The YouYi Automation Products Center
All of YouYi's press automation solutions in one place.
Cut to Length Lines
Cut to Length Lines
Youyi Machine provides advanced Cut to Length Lines (CTL Lines) designed for high-efficiency coil processing and sheet metal cutting applications. Our automatic cut to length machines integrate coil decoiling, leveling, servo feeding, precision shearing, and automatic stacking functions to process steel coils, stainless steel coils, aluminum coils, and other metal materials into accurate flat sheets.
Designed for industries such as automotive manufacturing, home appliances, electrical cabinets, metal fabrication, and new energy equipment, Youyi’s coil processing lines deliver high precision, stable performance, and improved production efficiency. The system can handle different material thicknesses, coil widths, and production requirements through flexible configuration options.
Equipped with advanced servo drive technology, PLC control systems, and precision leveling units, our automatic Cut to Length Lines ensure accurate cutting length, smooth sheet feeding, and reliable operation with reduced manual intervention.
Whether you need a steel coil cutting line, aluminum sheet cutting solution, or customized coil processing equipment, Youyi Machine provides complete automation solutions to optimize your metal sheet production process.
A Cut to Length Line (CTL Line) is an automated coil processing system that converts metal coils into flat sheets with precise lengths. The system typically integrates coil decoiling, leveling, servo feeding, shearing, and stacking functions to achieve continuous and efficient sheet metal production.
Youyi’s Cut to Length Lines are designed for processing materials such as carbon steel, stainless steel, aluminum, and copper coils, providing accurate cutting solutions for various industries.
A Cut to Length Line works through several automated processes:
Coil loading and decoiling – The coil is placed onto the decoiler and continuously released.
Leveling – The straightener removes coil deformation and improves flatness.
Servo feeding – The servo system controls material movement with high precision.
Precision shearing – The flying or fixed shear cuts sheets according to preset lengths.
Automatic stacking – Finished sheets are collected and organized for further processing.
This integrated process improves production efficiency and reduces manual operation.
Youyi Cut to Length Machines can process various metal materials, including:
Carbon steel
Stainless steel
Aluminum
Copper
Galvanized steel
Cold rolled steel
The equipment can be customized according to material thickness, coil width, and production requirements.
An automatic Cut to Length Line provides several advantages:
High cutting accuracy and repeatability
Reduced manual labor requirements
Improved production efficiency
Stable sheet feeding performance
Better material utilization
Flexible processing for different coil materials
Compared with traditional manual cutting methods, CTL Lines provide a more efficient solution for modern coil processing.
A traditional sheet cutting machine usually requires pre-cut sheets to be manually loaded and positioned.
A Cut to Length Line directly processes coil materials through automated uncoiling, leveling, feeding, cutting, and stacking, eliminating additional handling steps and improving production efficiency.
The processing capacity depends on the specific model and customer requirements.
Youyi Cut to Length Lines can be customized based on:
Coil width
Material thickness
Coil weight
Cutting length
Production speed
Our engineering team provides suitable configurations for different applications.
The servo feeding system provides precise control of material movement, ensuring:
Accurate sheet length
Stable feeding speed
Reduced material waste
Improved production consistency
Servo technology is especially beneficial for industries requiring high precision and continuous production.
Yes. Youyi provides customized coil processing solutions based on:
Material specifications
Required output capacity
Cutting accuracy
Factory layout
Automation requirements
Optional configurations include different decoilers, leveling systems, feeding units, shearing systems, and stacking solutions.
Youyi specializes in coil processing automation equipment and provides reliable solutions for metal sheet production.
Our Cut to Length Lines feature:
Advanced servo control technology
Precision leveling systems
Stable PLC automation
Flexible customized designs
Professional engineering support
Youyi helps manufacturers achieve efficient and accurate coil-to-sheet processing.
LEARN MORE

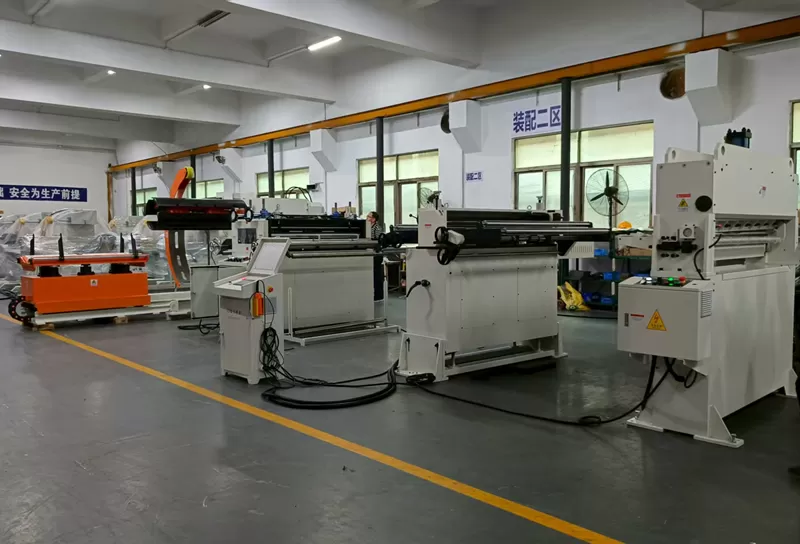

Cut to Length Line for Perforated Metal Sheets
High-speed cut to length line for perforated metal sheet production, integrating decoiler, leveler, servo feeder, punching press, and hydraulic shear for precise and efficient coil processing.

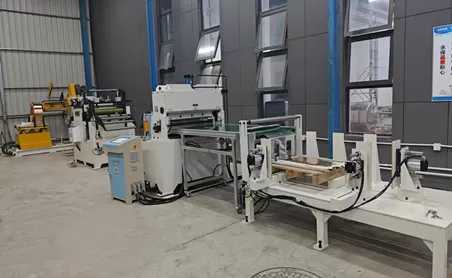

Automatic Cut to Length Line for Hydrogen Fuel Cell Bipolar Plate Production
Custom-engineered automatic cut-to-length line for hydrogen fuel cell bipolar plates. Combines decoiling, straightening, feeding, shearing, and stacking, handling coils up to 700mm wide and 2.5mm thick with ±0.2mm accuracy for scratch-free stainless steel and special alloys.

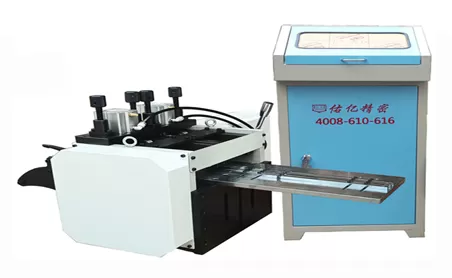

Automatic Cut to Length Line for Copper Coil Processing
The Copper Coil Cut to Length Line is a high-performance automation system that transforms copper coil into flat, precisely cut sheets. This complete solution combines uncoiling, leveling, feeding, shearing, and stacking into a seamless process.The line ensures excellent surface protection, dimensional accuracy, and efficient operation.
FAQ
Q: How do I determine the right feeder size for my production line?
A: The feeder size depends on the material width, thickness, and feeding step distance required by your stamping press. Choosing the correct specifications ensures smooth operation and prevents feeding errors or misalignment.
Q: What factors should I consider when choosing a servo feeder machine?
A: When selecting a servo feeder, key factors include feeding accuracy (±0.05mm or better), maximum feeding speed (e.g., 20m/min), material compatibility (stainless steel, aluminum, etc.), load capacity, and control system (PLC or touchscreen). Ensure the machine matches your stamping process requirements.
Q: How do I choose the right decoiler, straightener and feeder?
A: Select based on material type, width, thickness, coil weight, and required speed. Match decoiler capacity to coil size, choose a straightener for material strength, and a feeder that meets feed length and precision. Ensure compatibility with your press and automation level.
Q: Coil feeder vs servo feeder: what’s the difference?
A: A coil feeder is a broader system for continuous coil feeding, often integrated with decoiler and straightener. A servo feeder uses servo motors for precise, programmable feeding, ideal for short pitches and high accuracy applications.
Q: How to choose decoiler capacity?
A: Select a decoiler rated 10–20% above your maximum coil weight. Confirm inner diameter (I.D.) compatibility and outer diameter limits. Adjustable mandrels are recommended if you run multiple coil sizes.
Q: What feed precision can I expect?
A: Servo feeders typically achieve ±0.01–0.05 mm, with high-end models reaching ±0.005 mm. Mechanical feeders usually provide ±0.02–0.1 mm. Actual accuracy depends on material properties and straightening quality.
Q: How does material affect machine selection?
A: High-strength materials need stronger straightening and drive systems. Thin materials require low-pressure handling. Soft materials like aluminum need anti-scratch solutions.
Q: What affects feeding accuracy most?
A: Key factors include feeder precision, servo tuning, straightener setup, material quality, and press stability. Poor setup or worn dies can reduce accuracy.
Q: What spare parts should be prepared?
A: Common spares include bearings, belts, sensors, seals, guide blocks, and lubrication parts. Keeping key components reduces downtime and improves maintenance efficiency.
Q: Can feeders be retrofitted to existing presses?
A: Yes, most systems support retrofitting. Check press dimensions, feed height, control compatibility, and safety requirements before installation.
Q: How long does it take to receive the feeder machine after placing an order?
A: Lead time for delivery typically ranges from 4 to 8 weeks depending on customization, production schedules, and shipping location. Once your order is confirmed, we will provide a more precise delivery estimate.
Q: What are your payment terms?
A: We accepts T/T payment, 30% deposit and 70% balance before shipping
Q: How often should I perform maintenance on my servo feeder machine?
A: Routine maintenance should be conducted weekly for basic cleaning and lubrication, while a more thorough inspection should be done monthly to check for wear on rollers, belts, and electrical components. A full servicing is recommended every 6-12 months depending on usage intensity.
Q: What are the most common issues with feeder machines, and how can I troubleshoot them?
A: Common issues include misalignment, inconsistent feeding accuracy, or motor failure. Check for loose bolts, dirt buildup, or software calibration errors. If problems persist, refer to the user manual or contact technical support.
Q: Do you provide on-site repair services if my machine breaks down?
A: Yes, we offer on-site repair services for major issues, along with remote troubleshooting support for minor problems. For urgent cases, we can dispatch a technician within 24-48 hours, depending on your location.
Q: What is the maintenance cycle?
A: Daily cleaning and inspection; weekly check belts, air lines; monthly inspect bearings and guides; yearly replace worn parts. Adjust frequency based on operating hours and workload.
Q: What's the package of your coil feeding machines?
A: For the coil feeding equipment that go LCL shipping, We will use plastic films wrap on the equiment, and then fix it into a wooden box.
For the large coil lines that go FCL shipment, We will fix each part with ropes on the shipping container and then wrapped them with plastic films.
Q: What is the typical lead time?
A: Standard machines usually take 4–8 weeks. Customized systems or full production lines may require 10–20+ weeks depending on complexity and production schedule.
