Fineblanking Feeding Line
Fineblanking Feeding Line
Youyi Machine provides advanced Fineblanking Coil Processing Equipment designed for precision metal processing and automatic feeding applications in fine blanking press systems. The complete Precision Fine Blanking Coil Line integrates an automatic decoiler, precision straightener, servo feeding system, and L-type lifting platform to ensure stable, accurate, and scratch-free feeding of thick metal coils.
Designed for demanding automotive parts manufacturing, this fine blanking coil processing system is suitable for processing cold rolled steel, pickled steel, galvanized steel, stainless steel, alloy steel, and low-carbon steel. With capabilities of handling coil thicknesses from 2.0 mm to 8.0 mm, coil widths from 40 mm to 600 mm, and coil weights up to 3.5 tons, the system delivers excellent material flatness and consistent feeding performance.
The Precision Fine Blanking Coil Line features a high-performance 6-over-7 straightening roll structure, advanced servo control technology, and laser tracking lifting platform to maintain synchronization with fine blanking press speed. This design reduces material deformation, surface damage, and production errors during high-precision stamping.
Youyi’s Fineblanking Coil Processing Equipment is widely applied in automotive components, chassis parts, brake components, transmission parts, and other high-strength metal parts requiring superior dimensional accuracy and surface quality.
Fineblanking Coil Processing Equipment is a high-precision coil handling and feeding system designed for fine blanking press applications. The equipment integrates multiple functions, including automatic decoiling, precision straightening, servo feeding, and material lifting, to provide stable and accurate coil processing for thick metal sheets.
Compared with standard stamping feeding systems, fineblanking coil processing equipment focuses on higher material flatness, feeding accuracy, and surface protection, making it ideal for manufacturing automotive parts with strict dimensional and quality requirements.
A Precision Fine Blanking Coil Line is an automated production system that prepares coil materials before fine blanking operations. It typically consists of a heavy-duty decoiler, precision straightener, servo feeder, and auxiliary systems to ensure continuous and accurate material supply to the fine blanking press.
The system helps manufacturers improve production stability, reduce material deformation, and achieve consistent stamping quality for high-precision metal components.
Youyi’s Fineblanking Coil Processing Equipment can process a wide range of metal materials, including:
Cold rolled steel
Pickled steel
Galvanized steel
Stainless steel
Alloy steel
Low-carbon steel
The system is suitable for thick plate applications, supporting coil thicknesses from 2.0 mm to 8.0 mm, coil widths from 40 mm to 600 mm, and coil weights up to 3.5 tons.
A standard coil feeder is mainly designed for general stamping applications, while a Fine Blanking Coil Line is developed for high-precision fine blanking production.
The main differences include:
Higher straightening accuracy for thick materials
Better control of material flatness
Improved feeding stability
Reduced surface scratches and deformation
Better synchronization with fine blanking press speed
These advantages make fine blanking coil lines suitable for automotive components requiring precise dimensions and excellent surface quality.
Precision feeding is critical because fine blanking processes require extremely stable material positioning during stamping.
An accurate feeding system helps:
Maintain consistent part dimensions
Improve stamping quality
Reduce material waste
Prevent feeding deviation
Extend mold service life
Youyi’s precision coil feeding systems use advanced servo control and straightening technology to ensure reliable feeding performance during continuous production.
A Fineblanking Feeding System is widely used for manufacturing high-strength automotive components, including:
Brake components
Transmission parts
Chassis components
Gear plates
Seat adjustment parts
Structural metal components
The combination of precise feeding and fine blanking technology enables manufacturers to produce parts with excellent dimensional accuracy and reduced secondary machining requirements.
The accuracy of a Precision Fine Blanking Coil Line depends on material specifications, equipment configuration, and production requirements.
By integrating precision straightening rolls, servo feeding systems, and advanced control technology, the system provides stable feeding accuracy and consistent material positioning for high-speed fine blanking production.
Yes. Youyi provides customized fineblanking coil processing solutions according to customer requirements, including:
Coil width
Material thickness
Coil weight
Fine blanking press specifications
Production speed
Factory layout
Our engineering team can design suitable coil processing systems for different automotive and industrial applications.
LEARN MORE

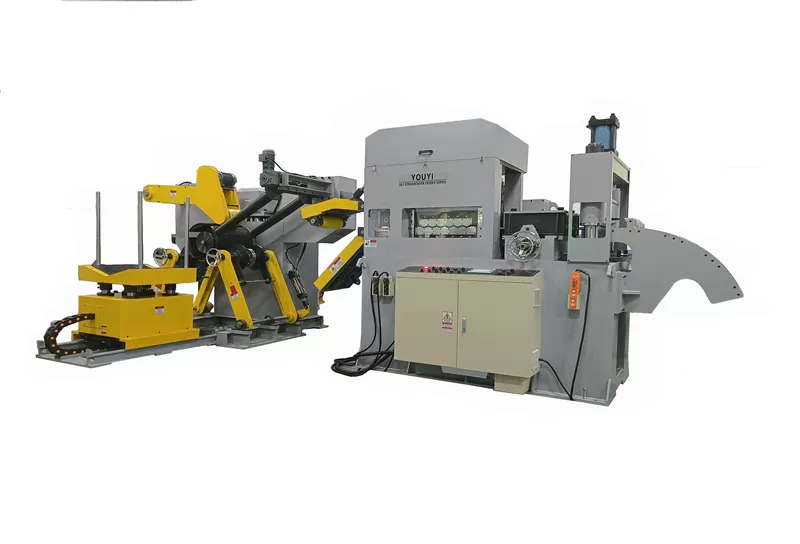

HBCL Series Fineblanking Feeding Line
The Fineblanking Feeding Line is a high-precision coil handling system designed for fineblanking presses, especially in automotive parts manufacturing. The line integrates an automatic decoiler with coil car, a precision straightener, and an L-type lifting platform to ensure stable, accurate, and scratch-free feeding of thick plates
FAQ
Q: How do I determine the right feeder size for my production line?
A: The feeder size depends on the material width, thickness, and feeding step distance required by your stamping press. Choosing the correct specifications ensures smooth operation and prevents feeding errors or misalignment.
Q: What factors should I consider when choosing a servo feeder machine?
A: When selecting a servo feeder, key factors include feeding accuracy (±0.05mm or better), maximum feeding speed (e.g., 20m/min), material compatibility (stainless steel, aluminum, etc.), load capacity, and control system (PLC or touchscreen). Ensure the machine matches your stamping process requirements.
Q: How do I choose the right decoiler, straightener and feeder?
A: Select based on material type, width, thickness, coil weight, and required speed. Match decoiler capacity to coil size, choose a straightener for material strength, and a feeder that meets feed length and precision. Ensure compatibility with your press and automation level.
Q: Coil feeder vs servo feeder: what’s the difference?
A: A coil feeder is a broader system for continuous coil feeding, often integrated with decoiler and straightener. A servo feeder uses servo motors for precise, programmable feeding, ideal for short pitches and high accuracy applications.
Q: How to choose decoiler capacity?
A: Select a decoiler rated 10–20% above your maximum coil weight. Confirm inner diameter (I.D.) compatibility and outer diameter limits. Adjustable mandrels are recommended if you run multiple coil sizes.
Q: What feed precision can I expect?
A: Servo feeders typically achieve ±0.01–0.05 mm, with high-end models reaching ±0.005 mm. Mechanical feeders usually provide ±0.02–0.1 mm. Actual accuracy depends on material properties and straightening quality.
Q: How does material affect machine selection?
A: High-strength materials need stronger straightening and drive systems. Thin materials require low-pressure handling. Soft materials like aluminum need anti-scratch solutions.
Q: What affects feeding accuracy most?
A: Key factors include feeder precision, servo tuning, straightener setup, material quality, and press stability. Poor setup or worn dies can reduce accuracy.
Q: What spare parts should be prepared?
A: Common spares include bearings, belts, sensors, seals, guide blocks, and lubrication parts. Keeping key components reduces downtime and improves maintenance efficiency.
Q: Can feeders be retrofitted to existing presses?
A: Yes, most systems support retrofitting. Check press dimensions, feed height, control compatibility, and safety requirements before installation.
Q: How long does it take to receive the feeder machine after placing an order?
A: Lead time for delivery typically ranges from 4 to 8 weeks depending on customization, production schedules, and shipping location. Once your order is confirmed, we will provide a more precise delivery estimate.
Q: What are your payment terms?
A: We accepts T/T payment, 30% deposit and 70% balance before shipping
Q: How often should I perform maintenance on my servo feeder machine?
A: Routine maintenance should be conducted weekly for basic cleaning and lubrication, while a more thorough inspection should be done monthly to check for wear on rollers, belts, and electrical components. A full servicing is recommended every 6-12 months depending on usage intensity.
Q: What are the most common issues with feeder machines, and how can I troubleshoot them?
A: Common issues include misalignment, inconsistent feeding accuracy, or motor failure. Check for loose bolts, dirt buildup, or software calibration errors. If problems persist, refer to the user manual or contact technical support.
Q: Do you provide on-site repair services if my machine breaks down?
A: Yes, we offer on-site repair services for major issues, along with remote troubleshooting support for minor problems. For urgent cases, we can dispatch a technician within 24-48 hours, depending on your location.
Q: What is the maintenance cycle?
A: Daily cleaning and inspection; weekly check belts, air lines; monthly inspect bearings and guides; yearly replace worn parts. Adjust frequency based on operating hours and workload.
Q: What's the package of your coil feeding machines?
A: For the coil feeding equipment that go LCL shipping, We will use plastic films wrap on the equiment, and then fix it into a wooden box.
For the large coil lines that go FCL shipment, We will fix each part with ropes on the shipping container and then wrapped them with plastic films.
Q: What is the typical lead time?
A: Standard machines usually take 4–8 weeks. Customized systems or full production lines may require 10–20+ weeks depending on complexity and production schedule.
