New Energy Industry
In the new energy sector, especially in battery casing and structural component manufacturing, material utilization and production efficiency are crucial to controlling cost and ensuring delivery stability.

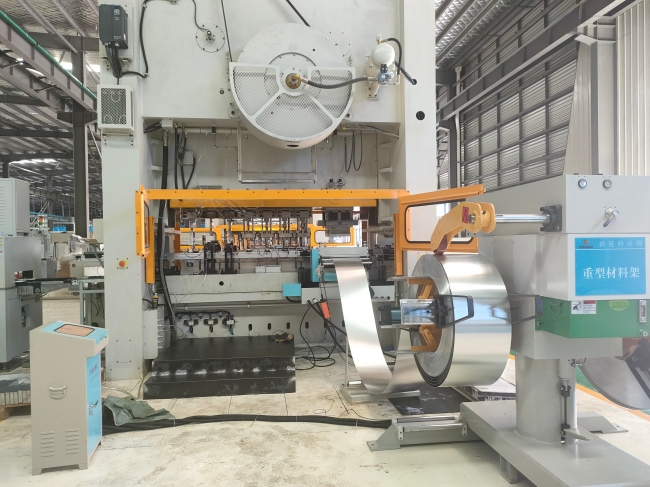

Youyi Precision’s Zigzag Feeder + Dual-Station Decoiler Automated Stamping Line provides a highly efficient, material-saving, and fully automated coil processing solution widely used across the new energy industry.
This system achieves non-stop coil changeover, high material utilization, and intelligent servo control—significantly increasing output while reducing material waste and manual operations.
The dual-station decoiler (also known as a dual-mandrel decoiler) features a double-spindle design that allows two coils to be loaded simultaneously.
Key Advantages
One coil runs while the other is preloaded, enabling continuous coil feeding without stopping the press line.
New coils can be loaded using a forklift or overhead crane during operation.
Each spindle is powered by a vertical motor with a reducer and chain mechanism for stable decoiling.
Contact-sensing control prevents material scratches.
Optional frequency inverter reduces vibration and allows adjustable speed.
Hydraulic expansion ensures stable clamping for heavy coils above 2 tons.
All functions—including tightening, pressing arm movement, and spindle rotation—are fully controlled through an intuitive touch-screen interface.
The NC zigzag feeder enables left-right alternating motion, allowing circular blanks to be punched in an overlapping layout, greatly improving material usage for round blanking applications.
Core Features
● High Material Utilization
The zigzag motion supports circle-to-circle overlapping blanking, minimizing raw material waste.
● Intelligent Adaptive Motion Control
The system automatically calculates shifting distances and feed steps based on the blank diameter, optimizing layout even when blank sizes vary.
● Precision Dual-Servo System
Equipped with Mitsubishi PLC + dual Yaskawa servos:
Servo 1: Drives the feed rolls for accurate forward feeding.
Servo 2: Drives a Hiwin ball screw for precise left-right zigzag shifting.
Feeding accuracy can reach ±0.08 mm, and edge spacing can be controlled within 0.5 mm, meeting high-precision stamping requirements.
● Easy Touch-Screen Operation
Operators simply input material width, blank diameter, and pitch; the system automatically calculates movement paths—no mechanical adjustments required.
By integrating the zigzag feeder with the dual-station decoiler, this automated stamping line provides a modern, intelligent production mode for new energy manufacturing:
Higher Productivity: Non-stop coil changeover significantly shortens downtime.
Reduced Material Cost: Zigzag blanking maximizes material utilization.
Lower Labor Demand: Automated control simplifies operation and minimizes manual handling.
Flexible Integration: Compatible with stamping robots, progressive dies, and multi-process forming lines.
This solution is especially suited for new energy battery aluminum casings, round blanking components, and high-precision stamping applications, where efficiency, precision, and material savings are essential.
Choosing Youyi Precision’s zigzag feeder and dual-station decoiler means choosing a stamping line that boosts productivity, reduces waste, and supports intelligent manufacturing—helping new energy manufacturers achieve stable, efficient, and sustainable production.
