When building a new stamping production line, manufacturers need to consider more than just the stamping press. The overall system may include the stamping press, dies, decoiling equipment, straightening equipment, feeding equipment, floor space, material handling, and automation requirements.

A traditional coil stamping line often uses a separate decoiler, straightener, and feeder. The material passes through each machine in sequence before entering the stamping press. This configuration remains practical for many existing production lines.

However, when planning a new coil stamping line, more manufacturers are evaluating a 3 in 1 Decoiler Straightener Feeder as an integrated solution. The reason is not simply that the machine combines more functions. A 3 in 1 feeder integrates decoiling, straightening, and feeding into one system, making it easier to optimize material flow, equipment layout, automation control, and daily operation.

This configuration can be particularly useful for applications that require continuous coil stamping, including automotive components, appliance hardware, 3C components, and new energy parts.

1. Why Does a Traditional Decoiler, Straightener, and Feeder Line Require More Space?

A typical traditional coil stamping line may be arranged as:

Each machine normally has its own frame, drive system, and control components. The required floor space is not determined only by the external dimensions of the machines. The layout also needs to allow for material transition distance, operator access, maintenance, coil threading, electrical installation, safe material movement, and component replacement.

Therefore, the actual footprint of a traditional line is more than simply adding together the lengths of several individual machines.

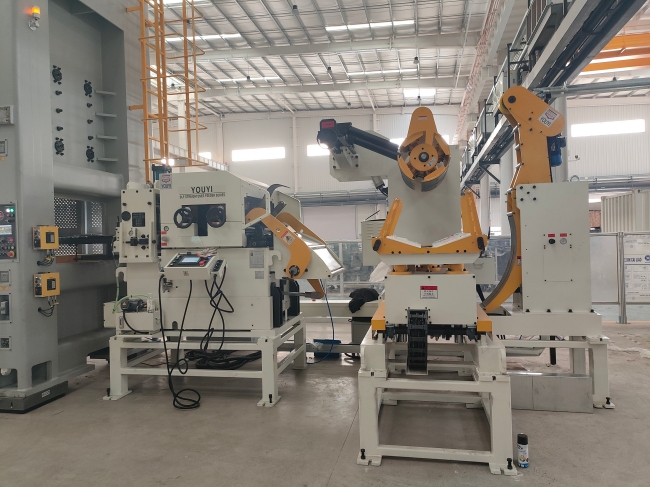

A 3 in 1 Decoiler Straightener Feeder combines these three functions into one machine. After the coil is loaded, the material passes through the decoiling and straightening sections and then directly enters the feeding mechanism before being sent to the stamping press.

This reduces unnecessary material transition distances between individual machines. For manufacturers with limited factory space, or companies planning to install several stamping lines in the same workshop, a more compact coil processing layout can be an important consideration.

2. A 3 in 1 Feeder Does Not Eliminate Processes—It Integrates Them

An important point is that a 3 in 1 feeder does not remove the three processing steps. The material still goes through:

What changes is that these functions are integrated into one equipment system.

In a traditional stamping line, the material leaves the decoiler, passes through a separate straightener, and then enters a separate feeder. Every additional standalone machine introduces another material transition and another point that needs to be coordinated.

With an integrated 3 in 1 structure, the material path becomes more direct. This is particularly relevant to continuous stamping.

As production continues, stable coordination between the material and each machine becomes increasingly important.

3. Why Is Automation More Important Than Maximum Feeding Speed?

When planning a new stamping line, manufacturers often ask: How fast can the feeder run?

Maximum feeding speed is certainly an important specification, but it is not the only factor that determines actual production performance. The more important question is whether the feeding system can maintain stable synchronization with the stamping press.

For example, during continuous die stamping, the operating sequence may include:

Therefore, the control system of the 3 in 1 Decoiler Straightener Feeder needs to coordinate with the stamping press.

A high feeding speed alone does not guarantee high production efficiency. If the feeding length fluctuates or the feeding timing does not match the press cycle, the actual production performance may be limited.

When designing a new stamping line, manufacturers should therefore confirm the following parameters:

Once these parameters are established, the appropriate feeder specification can be selected based on the actual production requirements rather than simply comparing maximum feeding speeds.

4. Why Is a 3 in 1 Feeder Suitable for Continuous Coil Stamping?

Continuous stamping requires a stable supply of coil material. Manual handling of coil material or segmented loading can introduce additional operating steps. A 3 in 1 Decoiler Straightener Feeder can automatically process and feed material from the coil.

For example, after a steel coil is installed on the decoiling section, the material is released from the coil, passes through the straightening section to improve its condition, and is then fed into the stamping press by the servo feeding mechanism according to the programmed feeding length.

The operator does not need to repeatedly transfer the material manually from one machine to another.

This is particularly important for progressive die stamping. In progressive stamping, the feeding length is normally closely related to the distance between die stations.

5. Why Is Servo Feeding Important for a New Automated Stamping Line?

Servo feeding is widely used in modern 3 in 1 coil feeding systems. The primary function of servo feeding is to transport material according to the feeding length programmed in the control system.

For example, if the die requires a feeding length of 400 mm per cycle, the control system can execute the feeding operation according to the programmed 400 mm length.

Compared with traditional mechanical feeding methods, servo feeding makes it easier to adjust feeding length, change products, and modify production parameters. When a manufacturer produces different stamped components, different feeding parameters can be established for different dies. This makes servo feeding suitable for production involving multiple product specifications.

However, using a servo motor does not automatically mean that the actual feeding accuracy will always reach a specific fixed value.

The final feeding performance can be affected by multiple factors:

For this reason, manufacturers should evaluate the complete feeding system rather than selecting equipment based only on whether it uses a servo motor.

6. How Can a 3 in 1 Structure Reduce Material Threading and Setup Work?

When planning a new stamping line, manufacturers are increasingly concerned not only with production speed but also with operator workload.

In a traditional decoiler, straightener, and feeder line, the material must pass through several separate machines. Material threading, position adjustment, and parameter coordination between machines all require operator involvement.

A 3 in 1 feeder consolidates the material path within one equipment system.

During coil replacement, the main operating steps may include:

If the machine is equipped with auxiliary systems such as a loading car, automatic pressure roller, or hydraulic expansion, manual work during the loading of heavier coils can be further reduced.

For production lines handling relatively heavy coils, these requirements should be considered during the equipment planning stage.

7. How Can a 3 in 1 Feeder Reduce Factory Layout Pressure?

Suppose a manufacturer plans to install several stamping lines in the same workshop. With a traditional configuration, each production line may require:

As the number of production lines increases, the distance between machines, operator access areas, and material handling paths can also increase.

An integrated 3 in 1 structure makes the coil processing section more compact.

The exact equipment configuration should therefore be determined from the actual production requirements.

For a new stamping line, manufacturers should first establish:

The appropriate 3 in 1 feeder specification can then be selected.

8. Why Is a 3 in 1 Feeder Particularly Suitable for a New Stamping Line?

The situation is different when upgrading an existing stamping line.

For a production line that has already been operating for years, the installation dimensions, foundation, material direction, and existing machines have already been established. Whether a 3 in 1 feeder is suitable will therefore depend partly on the cost and feasibility of modifying the existing line.

A new stamping line provides much more flexibility. Because the equipment has not yet been installed, the manufacturer can plan the complete production flow from the beginning:

This allows the following factors to be considered during the initial layout:

In this situation, the value of a 3 in 1 Decoiler Straightener Feeder can be considered at the production-line level rather than simply as a replacement for one individual machine.

9. Is a 3 in 1 Decoiler Straightener Feeder Suitable for Every Stamping Line?

A 3 in 1 feeder is not suitable for every stamping application. Before selecting this type of equipment, manufacturers should first determine whether the production process uses coil material and requires the following functions:

When these requirements are present, a 3 in 1 feeding system can be considered as part of the production-line design.

However, if the production process mainly uses individual sheets, or if the material specifications vary significantly beyond the normal processing range of the equipment, a 3 in 1 feeder may not be appropriate.

For particularly thick, wide, or heavy materials, the machine must also be selected according to the actual material specifications. Heavy-duty equipment may be required rather than a standard 3 in 1 configuration.

10. How Should You Select a 3 in 1 Feeder for a New Stamping Line?

One common equipment-selection mistake is to choose a machine model first and then try to find materials that fit the machine.

A more practical approach is to start with the material and production process.

Step 1: Define the Coil Material

Determine the following material and coil parameters:

These parameters establish the basic requirements for the decoiling and material handling sections.

Step 2: Define the Stamping Process

These factors determine the feeding requirements and the coordination between the feeder, die, and press.

Step 3: Define the Feeding Requirements

Step 4: Select the 3 in 1 Feeder Specification

Only after the material, stamping process, and feeding requirements have been established should the specific 3 in 1 feeder configuration be selected.

This approach helps ensure that the equipment is matched to the actual production process rather than selected only according to a machine model or headline specification.

11. The Value of a 3 in 1 Feeder Is in the Complete Stamping Line

For a new stamping production line, the value of a 3 in 1 Decoiler Straightener Feeder is not simply that the manufacturer purchases fewer individual machines.

Its main value comes from integrating three continuous processes:

These functions can then be coordinated with the:

to create a complete automated coil stamping process.

For manufacturers that require long-term continuous production, this integrated structure can reduce unnecessary material transitions, make the coil processing section more compact, and reduce independent threading and adjustment operations between machines.

However, the suitability of a 3 in 1 feeder must always be based on the actual material and stamping process.

For example, a 0.5 mm aluminum coil, 1.5 mm cold-rolled steel coil, and 5 mm high-strength steel coil have very different requirements for machine rigidity, straightening capability, feeding roller pressure, and decoiling capacity.

At YouYi Precision, 3 in 1 feeder systems are configured according to material width, thickness, coil weight, and stamping requirements rather than using a single fixed specification. Different machine structures and parameters can be applied to different coil processing requirements, from lightweight thin materials to continuous stamping of medium and thicker materials.

For a new stamping production line, the key consideration is not simply how high the specifications of an individual machine are. The more important question is whether the 3 in 1 Decoiler Straightener Feeder can maintain stable, long-term coordination with the material, die, and stamping press.
