When purchasing a 3 in 1 Decoiler Straightener Feeder, many manufacturers pay close attention to the number of straightening rollers. A common assumption is that more rollers mean more bending cycles and, therefore, better leveling performance. Some buyers even use roller quantity as a primary factor when comparing different machines.
However, the number of straightening rollers alone does not determine leveling performance. Material thickness, material type, initial coil curvature, roller diameter, roller spacing, machine rigidity, and adjustment settings all affect the final result.
For coil-fed stamping applications, the key is not simply to maximize the number of rollers. It is to select a straightening configuration that matches the material specifications and maintains consistent leveling performance during continuous feeding.
Executive Summary
More straightening rollers do not automatically mean better leveling. The performance of a 3 in 1 Decoiler Straightener Feeder depends on the complete straightening mechanism, including roller quantity, diameter, spacing, rigidity, adjustment method, and compatibility with the material being processed.
Material compatibility: Different thicknesses, material grades, and coil conditions require different straightening settings.
Mechanical design: Roller diameter, spacing, support structure, and rigidity affect straightening results.
Adjustment accuracy: Incorrect roller penetration can leave residual curvature or introduce reverse bending.
Surface protection: Clean, well-maintained rollers are important when processing aluminum and mirror-finish materials.
Equipment selection: Evaluate the complete machine configuration against actual production requirements instead of comparing roller counts alone.
How a 3 in 1 Decoiler Straightener Feeder Works
The straightening section must be configured for the actual material thickness, width, mechanical properties, and flatness requirements.
Key Takeaways
Roller quantity is only one factor in straightening performance.
Roller diameter and spacing must work together to create suitable bending conditions.
Machine rigidity is especially important when processing wide, thick, or high-strength materials.
Roller penetration should be adjusted according to the material and actual straightening results.
Unsatisfactory flatness may result from incorrect settings, roller deflection, material variation, or unstable feeding—not necessarily too few rollers.
Before purchasing equipment, provide the supplier with your material specifications and required flatness.
1. Why More Straightening Rollers Do Not Always Mean Better Leveling
A 3 in 1 Decoiler Straightener Feeder integrates decoiling, straightening, and servo feeding into one machine. After the coil is unwound, the strip passes through the straightening section, where upper and lower rollers apply controlled bending to reduce the original curvature. The feeding mechanism then delivers the material to the stamping press.
The purpose of straightening is to reduce the effects of coil-induced deformation through controlled bending. It is not simply a matter of passing the material through as many rollers as possible.
When properly designed, additional straightening rollers can provide more opportunities to control the material's bending behavior. However, if the roller diameter, spacing, rigidity, or penetration settings are unsuitable, a machine with more rollers may still produce unsatisfactory results.
For example, if the strip retains noticeable curvature after passing through the straightening section, the cause may be insufficient roller penetration, unsuitable settings for the material thickness and strength, or the original condition of the coil.
Simply increasing the roller count will not necessarily resolve the problem.
Therefore, straightening performance should be evaluated based on the complete roller arrangement and machine structure rather than a single specification.
2. What Does the Number of Straightening Rollers Affect?
2.1 Material Bending Conditions
Coil material generally retains some curvature after unwinding. The straightening section uses alternating upper and lower rollers to bend the strip as it passes through the machine.
When the overall design and settings are appropriate, a suitable number of rollers can provide additional opportunities for controlled bending and help reduce residual coil curvature.
However, the result also depends on the degree of bending applied during each pass.
If roller penetration is insufficient, the material may retain noticeable curvature even after passing through multiple rollers. Excessive penetration, on the other hand, may cause reverse bending or negatively affect flatness.
The objective is to establish suitable bending conditions for the specific material, not simply to increase the number of bending points.
2.2 Compatibility with Different Materials
Different materials place different demands on a straightening machine.
Mild steel, stainless steel, aluminum, and high-strength steel differ in elastic modulus, yield strength, springback behavior, and surface sensitivity. These properties affect the bending conditions required to achieve the desired flatness.
Consequently, one roller configuration cannot be assumed to suit every material.
For manufacturers processing multiple material grades or a wide range of thicknesses, the machine's roller diameter, adjustment range, and structural rigidity should be evaluated together to determine its actual application range.
2.3 Machine Structure and Adjustment Requirements
Increasing the number of rollers also requires appropriate structural design.
Important considerations include roller support rigidity, bearing arrangements, roller-gap adjustment mechanisms, and the parallelism of the upper and lower rollers.
If the machine structure or rollers deflect excessively under load, leveling performance may become inconsistent across the material width, even when the machine has numerous rollers.
When comparing equipment, buyers should therefore ask not only how many rollers are installed, but also whether the complete straightening mechanism is suitable for their material specifications and production requirements.
3. How Do Straightening Roller Configurations Differ by Material Thickness?
Material thickness is an important parameter when selecting a 3 in 1 Decoiler Straightener Feeder. However, thickness alone is not enough to determine the ideal number of straightening rollers.
3.1 Thin Sheet Metal
Thin sheet materials may retain noticeable curvature after being wound into a coil and can be sensitive to roller penetration and gap adjustments.
Incorrect settings may result in upward or downward curvature, surface waves, or localized deformation after straightening.
For aluminum sheets, mirror-finish stainless steel, and other surface-sensitive materials, roller surface condition, cleanliness, and scratch-prevention measures are also important.
When selecting equipment for these applications, buyers should evaluate roller surface quality, adjustment precision, and material protection measures rather than focusing exclusively on roller quantity.
3.2 Medium-Thickness Metal Sheets
For common medium-thickness steel sheets, the straightening mechanism must provide suitable bending conditions while maintaining sufficient structural rigidity.
Key considerations include roller diameter, roller spacing, adjustment range, and the machine's ability to maintain stable performance under the actual material load.
When processing wide strips, roller support and rigidity become particularly important. Excessive roller deflection can cause uneven straightening across the strip width.
The complete roller arrangement should therefore be evaluated against the material's thickness, width, and mechanical properties.
3.3 Thick Plate and High-Strength Materials
Thick plate and high-strength materials generally require greater bending forces, placing higher demands on the machine's drive capacity, roller rigidity, and adjustment range.
Simply adding more rollers will not solve a mismatch between the machine and the material.
If the roller diameter, structural strength, or available penetration is insufficient for the application, the material may still fail to achieve the required flatness.
For these applications, the straightening configuration should be selected according to the actual material grade, thickness, width, and initial coil condition.
4. Five Factors to Evaluate Beyond Roller Quantity
When comparing straightening machines, the following five factors are essential to understanding whether a roller configuration is suitable for a particular stamping application.
4.1 Straightening Roller Diameter
Roller diameter affects the bending conditions applied to the strip and influences roller rigidity and load-bearing capacity.
Different material thicknesses and strengths may require different roller diameters. Neither larger nor smaller rollers are automatically better; the appropriate choice depends on the material specifications and the design of the straightening mechanism.
4.2 Roller Spacing
Roller spacing determines the support and bending conditions between adjacent rollers.
It interacts with roller diameter, material thickness, and roller penetration. Increasing the number of rollers without appropriately designing the spacing does not guarantee better leveling performance.
The roller arrangement must be considered as a complete system rather than a collection of individual components.
4.3 Roller Rigidity
During straightening, the rollers are subjected to reaction forces from the material.
If the rollers lack sufficient rigidity, they may deflect under load. This is particularly important when processing wide or thick materials, as deflection can lead to inconsistent leveling across the strip.
For wide-coil applications, buyers should examine roller support structures and the overall rigidity of the straightening mechanism, not just the roller count.
4.4 Roller Penetration and Adjustment Method
Roller penetration directly affects the degree of bending applied to the material.
Insufficient penetration may leave the original coil curvature largely unchanged, while excessive penetration may introduce reverse curvature or other undesirable deformation.
Because material thickness, strength, and initial curvature vary, the settings should be adjusted according to the actual material. Trial runs may be necessary to establish suitable operating conditions.
Settings used for one material should not automatically be applied to another.
4.5 Roller Surface Condition
For aluminum, mirror-finish stainless steel, and other surface-sensitive materials, roller cleanliness and surface condition are critical to product quality.
Even when the roller quantity and machine structure are appropriate, hard particles, metal debris, or other contaminants on the roller surfaces can scratch the strip during continuous feeding.
Regular cleaning, inspection, and maintenance are therefore essential for maintaining stable production and protecting the material surface.
5. Why Can Two Machines with the Same Number of Rollers Produce Different Results?
During equipment selection, buyers may find that two straightening machines have the same number of rollers but produce different leveling results.
There are several possible reasons.
First, the machines may have different roller diameters, spacing, rigidity, or adjustment mechanisms. These differences affect the bending conditions applied to the same material.
Second, the material itself may vary. Even at the same nominal thickness, differences in material grade, yield strength, coiling tension, and initial curvature can change the straightening requirements.
Third, the machines may respond differently under actual operating loads because of differences in structural support and roller deflection.
For these reasons, comparing 3 in 1 Decoiler Straightener Feeders should involve more than asking, "How many straightening rollers does the machine have?"
Practical selection tip: Provide your actual material specifications and confirm whether the proposed machine can meet your leveling requirements under real production conditions. Roller quantity alone is not enough to establish suitability.
6. What Should You Check When Straightening Results Are Unsatisfactory?
If a 3 in 1 Decoiler Straightener Feeder produces material that is not sufficiently flat, do not immediately assume that the machine has too few rollers. A systematic inspection can help identify the actual cause.
Check the Material Condition
Confirm the material grade, thickness, and initial coil curvature. If the material supplier or batch has changed, check whether the material properties or coil condition have also changed.
Check the Straightening Settings
Observe whether the material retains upward curvature, downward curvature, or surface waves after passing through the straightening section. Review and adjust roller penetration according to the material specifications and actual straightening results.
Inspect Leveling Across the Material Width
If the center and edges of the strip show different levels of flatness, check roller parallelism, possible roller deflection, and the load distribution across the straightening mechanism. These checks can help identify whether the problem is related to roller alignment or insufficient structural rigidity.
Check Feeding Stability
Material misalignment, feeding roller slippage, or poor coordination between upstream and downstream equipment may affect how the strip enters the stamping die. Determine whether the issue originates in the straightening section or in the feeding and press synchronization process before making adjustments.
Inspect Roller Surfaces and Machine Maintenance
Remove oil residue, debris, and other contaminants from the roller surfaces. Check for roller wear and inspect the bearings and adjustment mechanisms for abnormal conditions. If the problem persists after these checks, reassess whether the existing straightening mechanism is suitable for the material and production requirements.
7. How to Choose the Right Straightening Roller Configuration
Before purchasing a 3 in 1 Decoiler Straightener Feeder, manufacturers should prepare the following information for the equipment supplier:
| Information Required | Details to Confirm |
|---|---|
| Material type | Mild steel, stainless steel, aluminum, high-strength steel, or other materials. |
| Material thickness | Minimum and maximum thickness to be processed. |
| Material width | Minimum and maximum strip width. |
| Flatness requirements | Required material condition after straightening. |
| Coil weight | Maximum coil weight for the intended application. |
| Feeding requirements | Feed length, stamping speed, and press strokes per minute. |
| Surface protection | Whether the material requires scratch-prevention measures. |
| Existing production issues | Current problems with curvature, waves, uneven leveling, or unstable feeding. |
With this information, the equipment manufacturer can evaluate the appropriate roller diameter, roller quantity, spacing, support structure, and adjustment method for the application.
For manufacturers processing multiple material grades and thicknesses, it is also important to confirm that the machine can accommodate the normal production range rather than being configured for only one specific material.

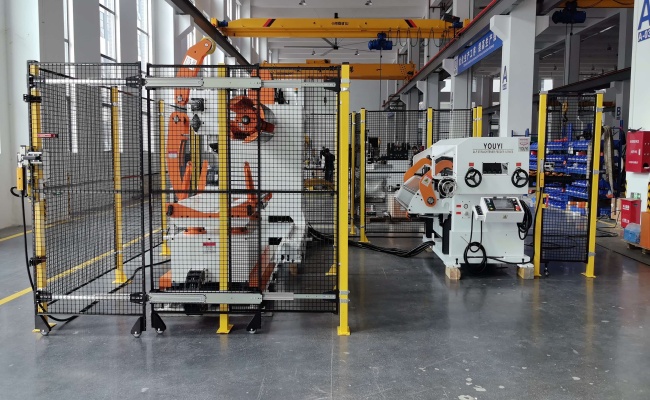

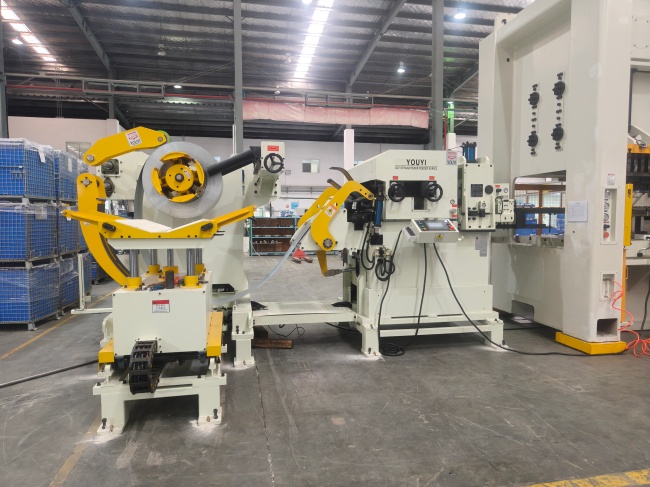

YouYi Precision 3 in 1 Decoiler Straightener Feeder
YouYi Precision integrates decoiling, straightening, and servo feeding into one machine to support automated coil-fed stamping production.
The straightening mechanism should be configured according to material width, thickness, grade, and stamping process requirements. Applications involving aluminum, mirror-finish materials, or thick plate may require additional evaluation of surface protection, straightening capacity, and machine rigidity.
Rather than selecting equipment based solely on the number of straightening rollers, manufacturers should confirm that the complete machine configuration matches their actual production needs.
Conclusion: Is a Higher Roller Count Always Better?
No. More straightening rollers do not automatically guarantee better leveling performance.
The final result depends on how roller quantity works together with roller diameter, spacing, rigidity, and adjustment settings, as well as the properties and initial condition of the material.
For manufacturers selecting a 3 in 1 Decoiler Straightener Feeder, the priority should be to define the material thickness, width, grade, and flatness requirements, then verify the machine's ability to deliver stable results under actual production conditions.
The right straightening configuration is the one that matches the application—not necessarily the one with the most rollers.
