Executive Summary

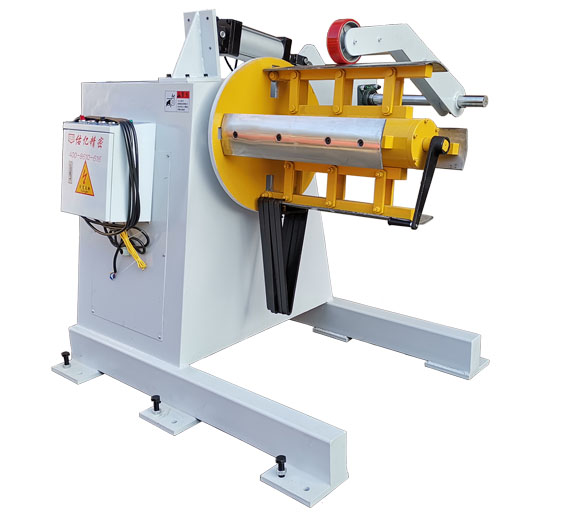

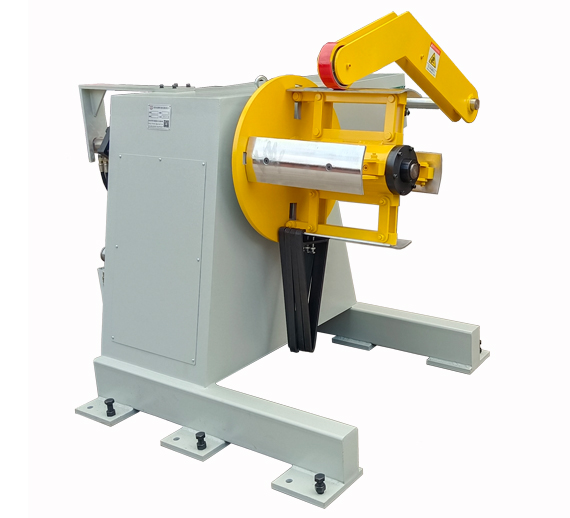

An automatic decoiler, also known as an automatic uncoiler, is an important part of a coil-fed stamping line. It supports the coil, expands and secures the coil ID, and continuously releases material to downstream leveling and feeding equipment.
Proper maintenance should cover more than lubrication. Coil installation, expansion, spindle and bearings, drive components, hydraulic systems, electrical controls, material alignment, and machine condition should all be inspected regularly. A combination of pre-start inspection, scheduled maintenance, condition monitoring, and maintenance records can help reduce unexpected downtime and support stable long-term operation.
Automatic Decoiler Maintenance: Why It Matters
An automatic decoiler, also known as an automatic uncoiler, supports the coil, secures the coil ID, and continuously releases material to the downstream leveling and feeding equipment.
When an automatic decoiler is not properly maintained, problems such as spindle vibration, unstable coil expansion, hydraulic leakage, abnormal noise, or material misalignment can affect the entire stamping process. In a continuous production line, a problem at the decoiling stage can eventually affect leveling, servo feeding, die positioning, and stamping accuracy.
For this reason, automatic decoiler maintenance should cover coil installation, expansion and tensioning, spindle and bearings, drive components, hydraulic systems, electrical controls, and overall machine condition.
This guide explains the key maintenance points for automatic decoilers and provides practical checks that can be incorporated into daily production and preventive maintenance routines.
Key Takeaways
Check coil installation and expansion before every production run.
Monitor spindle, bearings, and drive components for abnormal noise, vibration, and temperature.
Inspect hydraulic oil, hoses, fittings, cylinders, and expansion pressure.
Do not assume material misalignment is always caused by the servo feeder.
Include electrical controls and emergency-stop functions in routine inspections.
Use condition-based monitoring together with scheduled maintenance.
Follow the machine and component manufacturer's specifications for lubrication and replacement intervals.
1. What Should Be Checked During Automatic Decoiler Maintenance?
Before starting production, operators should inspect the main mechanical, hydraulic, and electrical components of the automatic decoiler.
| Inspection Area | What to Check | Typical Warning Signs |
|---|---|---|
| Machine frame and foundation | Mounting bolts, frame condition, foundation | Loose bolts, excessive vibration |
| Coil installation | Coil center, position, and weight | Off-center coil, unstable installation |
| Expansion system | Expansion movement and mechanical condition | Incomplete expansion, looseness |
| Spindle | Rotation, noise, and vibration | Abnormal noise, excessive movement |
| Bearings | Temperature, noise, and lubrication | Overheating, abnormal noise |
| Drive system | Motor, gearbox, chain, gears, coupling | Noise, looseness, wear |
| Hydraulic system | Oil level, hoses, fittings, cylinders | Leakage, unstable pressure |
| Electrical system | Sensors, limit switches, wiring, controls | Alarms, incorrect operation |
| Material path | Coil alignment and material discharge | Coil deviation, material rubbing |
For machines operating for long hours or under demanding production conditions, these items should be incorporated into a pre-start inspection checklist rather than waiting until a failure occurs.
2. Check the Coil Installation and Expansion System Before Startup
Before operating an automatic decoiler, make sure the coil is correctly installed and securely expanded.
Check the Coil Center Position
The center of the coil should be properly aligned with the centerline of the stamping line.
If the coil is installed off-center, the material may:
Move from side to side during decoiling;
Enter the downstream leveler at an angle;
Rub against guide components;
Gradually develop material deviation.
Check the Coil Expansion Mechanism
Depending on the machine design, the coil may be secured by a mechanical or hydraulic expansion system.
The expansion mechanism should operate smoothly.
The coil should be securely held after expansion.
Expansion components should show no excessive wear.
Hydraulic expansion components should have no visible leakage.
The coil should remain within the machine's rated capacity.
The allowable coil weight, outside diameter, inside diameter, and material width should always be confirmed against the specifications of the specific decoiler.
3. Inspect the Spindle and Bearings Regularly
The spindle and bearing assembly carries the rotating coil load and is therefore one of the most important areas of automatic decoiler maintenance.
| Component | Inspection Focus | Warning Signs |
|---|---|---|
| Spindle | Rotation, vibration, coil movement | Abnormal noise, excessive vibration |
| Bearings | Temperature, noise, lubrication | Overheating, abnormal noise |
A properly operating spindle should rotate smoothly without unusual mechanical noise.
Stop the machine for inspection if you notice:
Increasing spindle noise;
Repetitive metallic rubbing sounds;
Excessive spindle vibration;
Abnormal coil movement during rotation;
A noticeable increase in bearing temperature.
Check Bearing Lubrication
Bearing lubrication should not be based on one fixed interval for every decoiler. The appropriate lubrication method and relubrication interval can depend on bearing type, operating speed, load, temperature, contamination, and sealing arrangement.
Machine manufacturer's requirements → Bearing manufacturer's recommendations → Actual operating conditions
Avoid mixing different types of grease without confirming compatibility. Incorrect lubrication or contaminated grease can contribute to increased bearing temperature, wear, and premature failure.
4. Inspect the Motor, Gearbox, and Drive System
The drive system of an automatic decoiler is subjected to repeated starting, stopping, and rotational loads.
| Drive Component | Main Checks |
|---|---|
| Motor | Noise, temperature, vibration, electrical connections, overload trips |
| Gearbox | Oil leakage, noise, temperature rise, mounting bolts |
| Chain / Gear / Coupling | Tension, wear, engagement, alignment, looseness |
The gearbox lubricant type and replacement interval should follow the gearbox manufacturer's specifications.
5. Hydraulic System Maintenance Goes Beyond Checking Oil Level
Automatic decoilers equipped with hydraulic expansion or hydraulic auxiliary functions require regular hydraulic system inspection.
| Hydraulic Area | What to Inspect | Typical Problems |
|---|---|---|
| Hydraulic oil | Oil level and visible condition | Low level, contamination, deterioration |
| Hoses and fittings | Oil traces and connection condition | Leakage |
| Hydraulic cylinder | Movement and piston rod condition | Jerking, scratches, corrosion, leakage |
| Expansion pressure | Pressure and coil holding condition | Unstable expansion, insufficient holding |
If the coil is not being held securely, do not simply increase hydraulic pressure. First check the hydraulic circuit, cylinder, seals, expansion mechanism, and mechanical condition.
The correct pressure range should remain within the machine's designed operating limits.
6. Material Misalignment Should Not Always Be Blamed on the Servo Feeder
An automatic decoiler normally works together with a leveler, servo feeder, and stamping press as part of a continuous coil processing line.
When material begins to move sideways, the entire material path should be checked.
Coil installation and alignment;
Decoiler centerline;
Expansion uniformity;
Machine foundation and mounting;
Guide adjustment;
Material entry into the leveler;
Servo feeder clamping and feeding condition.
7. Inspect the Electrical Control System
Mechanical maintenance is only part of automatic decoiler maintenance. The electrical control system should also be inspected regularly.
| Electrical Item | Inspection Focus |
|---|---|
| Electrical cabinet | Dust accumulation and terminal condition |
| Sensors | Detection and signal stability |
| Limit switches | Correct operation and positioning |
| Wiring and cables | Loose connections, damage, cable-chain condition |
| Control buttons | Correct response and operation |
If the machine develops sensor alarms, limit-switch faults, or unstable control signals, troubleshooting should be performed using the machine's electrical drawings and control logic.
8. Include the Emergency Stop Function in Maintenance Checks
The emergency-stop system is an important part of machine safety and should not be treated as an ordinary stop button.
Emergency-stop button operation;
Reset function;
Safety circuit alarms;
Safety relay or related safety components;
Restart behavior after an emergency stop.
9. How Often Should an Automatic Decoiler Be Maintained?
There is no single maintenance interval that applies to every automatic decoiler.
The appropriate schedule depends on machine design, coil weight, operating speed, working hours, material type, working environment, hydraulic system configuration, and bearing and drive design.
Bearing lubrication intervals should not be universally defined as “every 7 days” or “every 30 days.” The interval should be established according to the machine and component manufacturer's recommendations and the actual operating conditions.
| Maintenance Level | Recommended Checks | Responsible Personnel |
|---|---|---|
| Every shift / Daily | Coil installation, expansion, abnormal noise, leakage, operating condition | Operator |
| Weekly | Hydraulic lines, fasteners, drive components, material path | Maintenance staff |
| Scheduled maintenance | Bearings, drive system, hydraulic system, electrical system | Qualified maintenance staff |
| Condition-based maintenance | Noise, vibration, leakage, temperature, misalignment, alarms | Maintenance staff |
| Major maintenance | Critical bearings, hydraulic components, drive components | Qualified technicians |
10. When Should an Automatic Decoiler Be Stopped for Inspection?
An automatic decoiler should not continue operating under certain abnormal conditions.
| Abnormal Condition | Possible Inspection Areas |
|---|---|
| Excessive spindle vibration | Bearing wear, spindle condition, coil installation, drive system |
| Persistent bearing noise | Lubrication, bearing condition, installation, load, mechanical components |
| Significant hydraulic leakage | Hoses, fittings, valves, cylinders |
| Abnormal expansion movement | Hydraulic circuit, cylinder, seals, expansion mechanism |
| Repeated motor overload | Mechanical resistance, drive components, actual coil load |
| Persistent coil misalignment | Coil installation, decoiler alignment, guides, leveling equipment, feeding system |
11. Common Automatic Decoiler Maintenance Mistakes
| Common Mistake | Why It Can Be a Problem |
|---|---|
| Assuming the machine does not need maintenance because it still runs | Early bearing, gear, or chain problems may first appear as abnormal noise, vibration, or temperature changes. |
| Using the same grease for every bearing | Different bearings may have different requirements based on speed, load, temperature, sealing, and environment. |
| Assuming higher hydraulic pressure is better | Hydraulic systems should operate within their designed pressure range. |
| Continuing production despite abnormal noise | Continued operation can allow a relatively small mechanical problem to develop into a more serious failure. |
12. Keep an Automatic Decoiler Maintenance Record
For continuous stamping operations, it is useful to maintain an individual maintenance record for each automatic decoiler.
Maintenance date
Operator
Coil weight
Pre-start inspection
Hydraulic condition
Lubrication records
Failure cause
Repair results
These records can help maintenance teams identify recurring problems. For example, if abnormal vibration repeatedly occurs after installing coils of a particular specification, the maintenance team can investigate coil installation, expansion, load distribution, and operating conditions before replacing components unnecessarily.
13. Move from Time-Based Maintenance to Condition-Based Maintenance
A maintenance program should not rely only on calendar-based servicing. Operators and maintenance personnel should also monitor the actual operating condition of the automatic decoiler.
A change in any of these indicators can provide an early warning.
| Observed Change | Possible Maintenance Signal |
|---|---|
| Periodic noise appears | Possible developing mechanical or bearing issue |
| Bearing temperature becomes noticeably higher | Check lubrication, load, bearing condition, and related components |
| Material begins drifting sideways | Check coil installation, alignment, guides, and material path |
| Coil expansion becomes slower or incomplete | Check hydraulic and mechanical expansion systems |
| Oil traces appear around fittings | Inspect hydraulic hoses, fittings, valves, and cylinders |
14. Proper Equipment Selection Can Also Reduce Maintenance Problems
Maintenance is important, but equipment selection and line matching also have a direct impact on machine reliability.
An automatic decoiler should be selected according to the actual production requirements, including:
| Selection Parameter | Considerations |
|---|---|
| Material | Material type, width, and thickness |
| Coil | Coil weight, ID, and OD |
| Production | Decoiling speed and production rate |
| Downstream equipment | Leveler, servo feeder, and stamping press requirements |
| Working environment | Operating conditions and installation environment |
The parameters of the upstream and downstream equipment need to be matched rather than selecting the decoiler independently.
15. YouYi Precision Automatic Decoiler and Coil Processing Solutions
YouYi Precision provides coil handling and stamping automation equipment for different material specifications, coil weights, and production requirements.
Depending on the application, the coil processing line can be configured around:
During equipment selection, factors such as material type, material thickness, coil width, coil weight, production speed, press capacity, and working environment should be considered together.
Proper matching at the design stage can make subsequent commissioning, operation, and maintenance more straightforward.
Conclusion
Automatic decoiler maintenance is not simply a matter of adding grease or cleaning the machine.
The main areas that require attention include:
A practical maintenance program combines pre-start inspection, condition monitoring, scheduled maintenance, timely troubleshooting, and maintenance records.
At the same time, lubrication types, hydraulic oil specifications, maintenance intervals, and component replacement schedules should not be standardized across all automatic decoilers. They should be determined according to the specific machine design, component specifications, manufacturer's recommendations, and actual operating conditions.
For a continuously running coil-fed stamping line, reliable equipment maintenance and proper system matching are both important. Keeping the automatic decoiler, leveler, servo feeder, and stamping press properly coordinated helps reduce unexpected interruptions and supports more stable long-term production.
Frequently Asked Questions
How often should an automatic decoiler be maintained?
There is no single interval for every machine. Daily or shift inspections can cover coil installation, expansion, abnormal noise, leakage, and operating condition. More detailed maintenance should follow the machine manual, component specifications, operating conditions, and actual equipment condition.
What are the most common signs of an automatic decoiler problem?
Common warning signs include excessive spindle vibration, abnormal bearing noise, increasing temperature, hydraulic leakage, unstable coil expansion, repeated motor overload, material misalignment, and electrical alarms.
Why does coil material move sideways during decoiling?
Possible causes include incorrect coil installation, decoiler misalignment, uneven expansion, foundation or mounting issues, guide adjustment, material entry conditions, leveling equipment, or downstream feeding conditions. The complete material path should be checked before adjusting servo feeder parameters.
Should hydraulic pressure be increased when the coil is not held securely?
Not necessarily. The hydraulic circuit, cylinder, seals, expansion mechanism, and mechanical condition should first be inspected. Hydraulic pressure should remain within the machine's designed operating limits.
What should be checked before restarting an automatic decoiler after a fault?
The cause of the fault should be identified and the relevant mechanical, hydraulic, electrical, and safety components should be checked. Particular attention should be given to spindle vibration, bearing noise, hydraulic leakage, abnormal expansion movement, motor overload, and material misalignment.
