Introduction

Aluminum coil is widely used in lightweight components, electronic products, and new energy battery applications. However, its relatively soft surface makes it more sensitive to scratches, dents, roller marks, and contamination during coil processing.

For aluminum stamping applications, the quality of the material entering the press depends not only on the stamping die but also on how the coil is unwound and leveled before feeding.

A 2 in 1 uncoiler leveler combines coil decoiling and leveling in one machine. For aluminum coil processing, a flip-top leveling structure can provide easier access to the leveling rollers, making cleaning, inspection, and maintenance more convenient while helping reduce the risk of surface damage.

What Is a 2 in 1 Uncoiler Leveler?

A 2 in 1 uncoiler leveler, also called a 2 in 1 uncoiler straightener, combines two functions in one machine:

Coil decoiling

Material leveling

The uncoiling section supports and releases the aluminum coil, while the leveling section removes coil set and improves the flatness of the strip before it enters the downstream feeding or stamping process.

Compared with a conventional layout using separate equipment, the integrated structure can reduce the space required between the coil and the stamping press and simplify material transfer.

A typical process can be arranged as:

Aluminum Coil → Uncoiling → Leveling → Servo Feeding → Stamping Press

The actual machine configuration should be selected according to material thickness, strip width, coil weight, surface requirements, and stamping process.

Why Does Aluminum Coil Require Careful Surface Protection?

Aluminum is softer than many commonly processed steel materials. During coil handling and leveling, excessive roller pressure, contamination, damaged roller surfaces, or metal particles can potentially leave marks on the strip.

For applications where the visible surface of the finished component is important, these defects can increase inspection requirements and material scrap.

Common sources of surface problems include:

Dust and aluminum particles accumulated around the rollers

Contamination on the leveling rollers

Damaged or worn roller surfaces

Improper roller pressure

Unstable material tension

Incorrect material alignment

Rough handling during coil threading

For this reason, aluminum coil processing equipment needs to consider not only leveling accuracy but also the cleanliness and condition of the material-contact surfaces.

How Does a Flip-Top Design Help Protect Aluminum Coil?

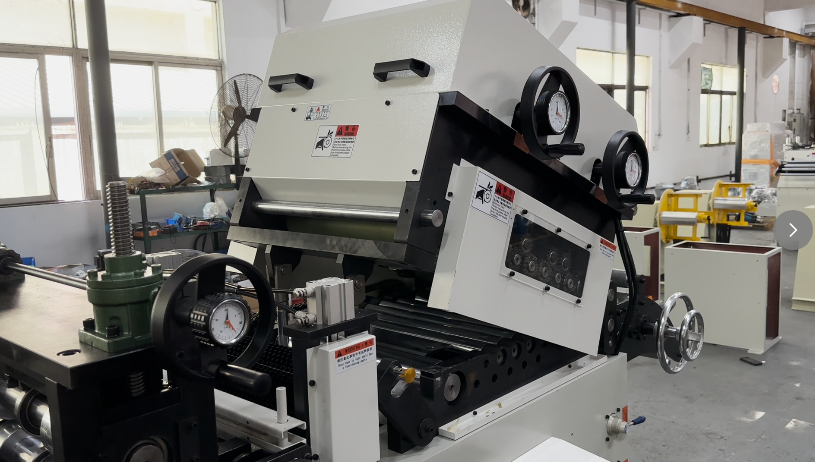

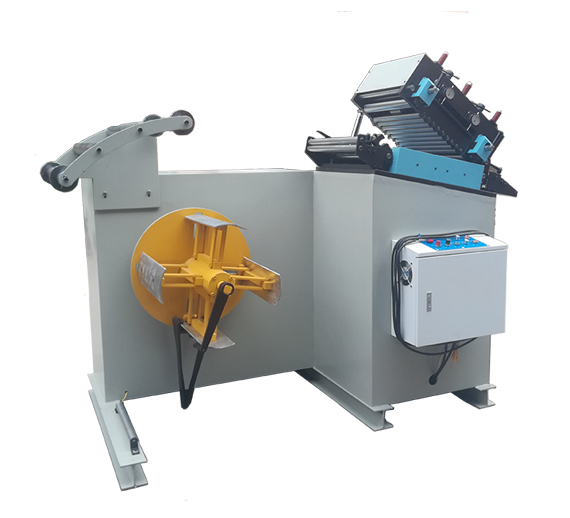

A flip-top structure allows the upper roller assembly to be opened, providing easier access to the leveling rollers.

This design is particularly useful when the machine is processing aluminum or other materials where surface quality is important.

1. Easier Cleaning of the Leveling Rollers

During continuous operation, aluminum particles and other contaminants can accumulate around the leveling section.

If these particles remain between the roller and strip, they may affect the surface of the material.

The flip-top structure allows operators to open the upper roller assembly and access the rollers more easily.

This makes it easier to:

Remove aluminum particles and debris

Clean the roller surfaces

Inspect the material-contact area

Check for abnormal marks or contamination

Regular cleaning can help reduce the risk of contamination-related surface defects.

2. Faster Roller Inspection and Maintenance

The leveling rollers are important components in controlling strip flatness.

With a conventional enclosed structure, inspection and cleaning may require more disassembly. A flip-top design provides more direct access to the leveling section.

Operators can more easily check for:

Roller wear

Surface damage

Material residue

Abnormal roller marks

Foreign particles

This can simplify routine maintenance and help identify potential problems before they affect production.

3. More Consistent Leveling Conditions

Leveling performance depends on the relationship between the material thickness, roller arrangement, roller gap, and material properties.

Contamination or unexpected material between the roller surfaces can affect the actual contact condition.

Keeping the rollers clean and properly adjusted helps maintain more consistent leveling conditions.

Depending on the machine configuration, adjustment mechanisms can also be used to control the roller gap according to the processed material.

For thin aluminum strip, stable roller adjustment is particularly important because excessive pressure can affect the material surface.

4. Better Access to the Leveling Section

Another practical advantage of the flip-top structure is accessibility.

When the leveling section needs to be inspected, cleaned, or adjusted, operators can work on the roller assembly without completely removing the machine from the production line.

This can reduce maintenance complexity and make routine inspection easier.

For manufacturers processing aluminum coils continuously, easier access to the roller section can also help establish a more practical cleaning and maintenance routine.

2 in 1 Uncoiler Leveler for Aluminum Battery Casing Applications

Battery casing production is one example where aluminum surface quality can be an important consideration.

In an aluminum battery casing stamping line, the coil may pass through several stages before the material reaches the stamping die.

A typical process can include:

Aluminum Coil → 2 in 1 Uncoiler Leveler → Servo Feeder → Stamping Press

The 2 in 1 machine handles the initial coil processing by unwinding the material and improving strip flatness before feeding.

For these applications, the equipment should be selected according to the actual material specifications, including:

Aluminum alloy

Material thickness

Coil width

Coil weight

Inner and outer coil diameter

Required leveling performance

Surface quality requirements

Stamping speed

Feeding length

A flip-top leveling structure can be particularly useful when frequent roller cleaning and inspection are required.

2 in 1 Uncoiler Leveler vs. Separate Uncoiler and Leveler

A conventional coil processing line may use a separate uncoiler and straightener.

A 2 in 1 uncoiler leveler combines these functions into one machine.

The choice should be based on the actual production line rather than simply comparing the number of machines.

For applications with limited floor space or a requirement for a compact coil feeding section, an integrated 2 in 1 configuration can be considered.

What Should Be Considered When Choosing a 2 in 1 Uncoiler Leveler?

For aluminum coil applications, several parameters should be confirmed before selecting equipment.

Material Thickness

The machine must be matched to the actual aluminum thickness range.

Thin aluminum strip and thicker aluminum sheet require different leveling and roller adjustment conditions.

Material Width

The usable strip width determines the required machine working width and roller configuration.

Coil Weight

The uncoiling section must be capable of supporting the maximum coil weight used in production.

Surface Requirements

For battery casings and other appearance-sensitive components, the roller material, surface condition, cleaning access, and material handling method should all be considered.

Leveling Requirements

The required flatness and material condition after leveling should be discussed with the equipment manufacturer before selecting the machine configuration.

Downstream Feeding and Stamping

The 2 in 1 uncoiler leveler should also be compatible with the downstream servo feeder and stamping press.

The complete line should be considered as a system rather than selecting the uncoiler leveler independently.

Why Choose Youyi Precision for Aluminum Coil Processing?

Youyi Precision develops coil processing and stamping automation equipment for different material types and production requirements.

For aluminum and other surface-sensitive materials, equipment configuration can be adjusted according to factors such as:

Material thickness and width

Coil weight

Required leveling performance

Surface protection requirements

Stamping process

Downstream feeding requirements

Our product range includes 2 in 1 Uncoiler Levelers, Precision Coil Straighteners, Servo Roll Feeders, and 3 in 1 Decoiler Straightener Feeders.

For a specific aluminum coil application, the appropriate machine configuration should be determined from the actual material and stamping parameters.

Contact Youyi Precision to discuss your aluminum coil specifications and production requirements.

FAQ

What is a 2 in 1 uncoiler leveler?

A 2 in 1 uncoiler leveler combines coil decoiling and material leveling in one machine. It is used to unwind coil material and improve strip flatness before downstream feeding or stamping.

Why is a flip-top design useful for aluminum coil processing?

A flip-top design provides easier access to the leveling rollers. This makes cleaning, inspection, and maintenance more convenient and can help reduce the risk of surface defects caused by roller contamination or debris.

Can a 2 in 1 uncoiler leveler be used for battery casing production?

It can be used in aluminum coil stamping applications such as battery casing production, provided that the machine configuration matches the material thickness, width, coil weight, surface requirements, and stamping process.

How can a 2 in 1 uncoiler leveler help protect aluminum surfaces?

Surface protection depends on the complete machine configuration and operating conditions. Clean rollers, appropriate roller pressure, stable material handling, and regular inspection can help reduce the risk of scratches and other surface defects.

What information is needed to select a 2 in 1 uncoiler leveler?

The main parameters include material type, thickness, width, coil weight, coil dimensions, required leveling performance, surface requirements, stamping speed, and downstream feeding conditions.

Conclusion

A 2 in 1 uncoiler leveler for aluminum coil combines decoiling and leveling in a compact coil processing system.

For aluminum applications where surface quality is important, a flip-top leveling structure provides practical advantages in roller cleaning, inspection, adjustment, and maintenance. These features can help manufacturers maintain more consistent material-processing conditions and reduce the risk of surface problems caused by contamination or roller conditions.

The appropriate configuration should always be selected according to the actual aluminum material, coil dimensions, leveling requirements, and downstream stamping process.
