In automotive parts stamping, many components are produced from steel coils, stainless steel coils, aluminum coils, and other coiled materials rather than individual sheets. Before the material enters the stamping die, it needs to pass through continuous processes such as decoiling, straightening, and servo feeding.
A Compact Coil Feed Line integrates these material handling processes into a more compact coil processing system. It is also commonly described as a 3 in 1 Decoiler Straightener Feeder, because the system combines decoiling, straightening, and servo feeding before the material enters the stamping press.
For automotive stamping applications, the purpose of this integrated configuration is not simply to reduce the number of individual machines. It is designed to create a more controlled material path and maintain continuous coordination between the coil, feeding system, stamping die, and press.
This is particularly important for progressive die stamping, where the feeding length and feeding cycle directly affect the material position at different stamping stations.
Coil Loading → Decoiling → Straightening → Servo Feeding → Stamping Press → Finished-Part / Scrap Handling
Why Use a Compact Coil Feed Line for Automotive Parts Stamping?
Automotive stamping covers many types of components, including brackets, structural parts, reinforcement components, connectors, and some chassis and body-related parts.
Different components may use different material thicknesses, widths, die structures, and feeding pitches. When individual sheets are loaded manually, operators need to repeatedly handle and position the material. This approach is not suitable for long-duration continuous production using coil stock.
In an automated coil stamping process, the Compact Coil Feed Line handles the material preparation and feeding stages, while the stamping press performs operations such as punching, blanking, bending, and forming.
For progressive die stamping, the feeding system must repeatedly advance the strip according to the die's programmed feeding pitch.
For example, if a die requires the material to move forward by a fixed distance during each working cycle, the feeder needs to perform the corresponding feeding movement after each stamping cycle.
Therefore, the key requirement is not simply whether the feeder can complete one feeding operation. The more important consideration is whether the continuous feeding process remains stable over repeated stamping cycles.
What Is a Compact Coil Feed Line?

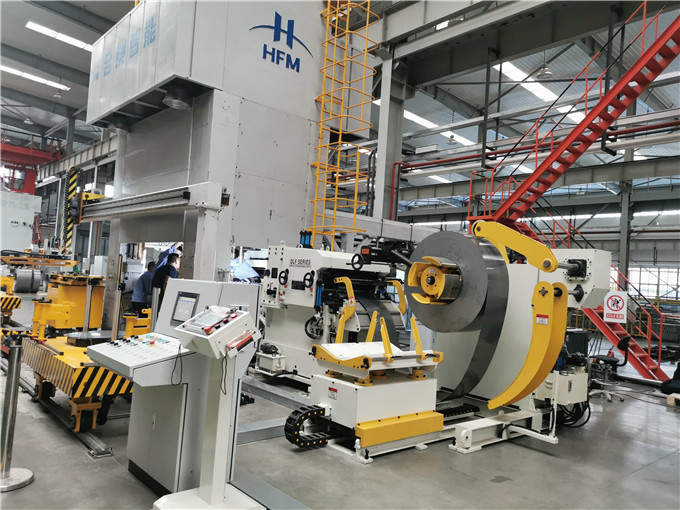

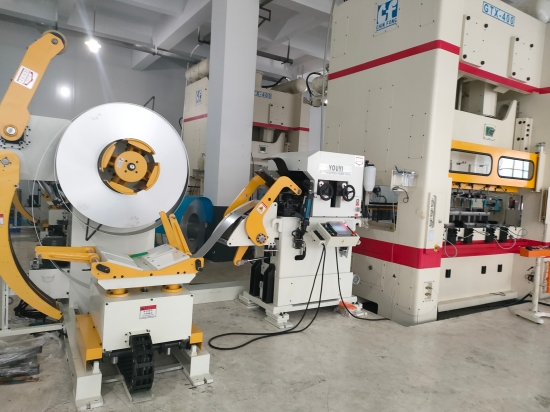

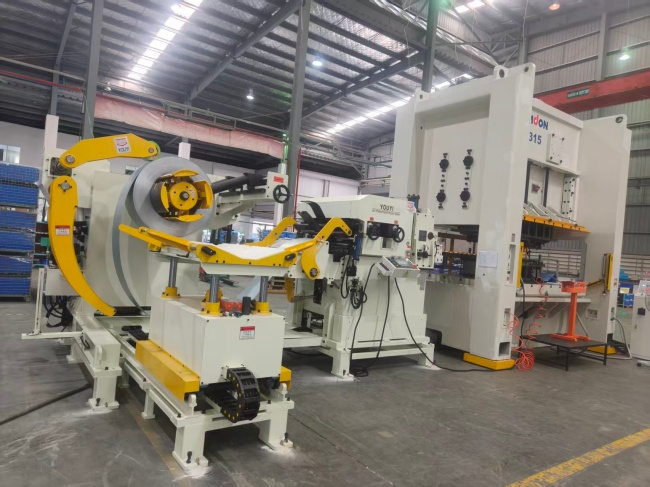

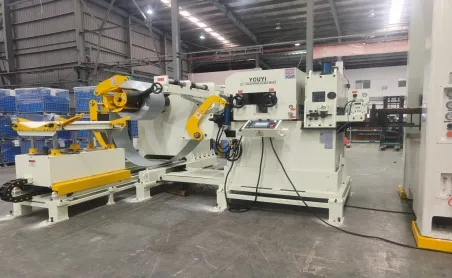

A Compact Coil Feed Line is an integrated coil processing and feeding system that combines decoiling, straightening, and servo feeding.
This configuration is also commonly referred to as a 3 in 1 Decoiler Straightener Feeder.
Instead of arranging the decoiler, straightener, and feeder as three separate machines, the three functions are integrated into one system.
This arrangement concentrates the material path before the stamping press and reduces the number of separate material transfer points.
For automotive parts stamping, the exact configuration still needs to be matched to the actual coil material and stamping process.
Why Does Coil Material Need to Be Straightened Before Stamping?
Steel and other metal coils naturally retain a certain amount of curvature after being wound.
If the strip enters the stamping press without proper straightening, several problems may occur:
The material may remain curved when entering the die.
The strip may move or swing during feeding.
The feeding rolls may not maintain stable contact.
The material position inside the die may change.
Forming operations may be affected by the material condition.
For this reason, coil material normally needs to be straightened before entering the stamping die.
The straightening section of a Compact Coil Feed Line uses multiple rolls to continuously bend and correct the strip, reducing the original coil curvature before the material reaches the servo feeding section.
However, straightening does not simply mean applying as much pressure as possible. The adjustment of the straightening rolls depends on material thickness, material type, material width, original coil curvature, and surface requirements.
An inappropriate straightening setting may affect the material surface or create problems during subsequent forming operations. Therefore, the actual material specifications should be provided to the equipment manufacturer when selecting a Compact Coil Feed Line.
How Does a 3 in 1 Decoiler Straightener Feeder Work with a Stamping Press?
The servo feeding section of a 3 in 1 Decoiler Straightener Feeder needs to work in coordination with the stamping press.
For progressive die stamping, this sequence is repeated continuously.
For example, if an automotive parts die requires a 300 mm feeding length per cycle, the servo feeding system needs to move the material according to the programmed feeding distance.
In actual production, the feeding length may need to be adjusted according to the die's pilot system, material condition, and actual machine accuracy.
This is why the Compact Coil Feed Line and stamping press need to be commissioned together.
Testing should be performed using:
The actual coil material
The actual stamping press
The actual stamping die
The actual feeding pitch
What Feeding Stability Is Required for Automotive Parts Stamping?
One issue that can easily be overlooked in continuous automotive stamping is cumulative feeding error.
For example, assume the programmed feeding length is 500 mm per cycle. If a fixed deviation occurs during every feeding operation, the actual material position may gradually move away from the intended position after multiple stamping stations.
Random feeding deviations can be more difficult to diagnose. If the feeding length varies from cycle to cycle, possible factors include feeding-roll clamping, material condition, servo feedback, and mechanical transmission components.
The following areas should be checked when troubleshooting unstable feeding.
Feeding Roll Clamping
If the feeding-roll pressure is too low, the material may slip during feeding. If the pressure is too high, it may create unwanted marks or indentations on materials with sensitive surfaces.
Material Surface Condition
Excessive oil, foreign particles, or contamination on the material surface can change the friction between the material and feeding rolls, affecting feeding stability and positioning.
Servo System
The servo motor, encoder, and control system work together to control the feeding position. Abnormal feedback signals, wiring problems, or poor electrical connections may cause feeding-position deviations.
Mechanical Transmission
Loose or worn components such as couplings, timing belts, gears, or feeding-roll connections may also contribute to feeding errors.
Therefore, if feeding becomes unstable in an automotive stamping line, the problem should not automatically be attributed to insufficient feeder accuracy. The mechanical system, material condition, and control system should be checked individually.
How Can a Compact Coil Feed Line Improve Coil Processing Continuity?
With a conventional setup, the decoiler, straightener, and feeder are installed as separate machines.
This arrangement creates several material transfer points between machines.
A Compact Coil Feed Line integrates these processes into one system:
For automotive parts stamping, this integrated structure provides several practical advantages.
Reduced Material Transfer
The strip does not need to pass through separate decoiling, straightening, and feeding machines. This creates a more concentrated material path.
Reduced Manual Intervention
During normal production, operators mainly handle coil loading, material threading, parameter adjustment, and equipment status checks. Continuous manual feeding is not required.
Easier Process Adjustment
Decoiling, straightening, and feeding are connected processes. An integrated configuration makes it easier to adjust the three stages according to the actual material running condition.
More Compact Line Layout
For factories with limited floor space, integrating the three functions can reduce the space required by separately arranged machines.
However, a Compact Coil Feed Line does not automatically increase the production speed of every stamping process. Actual production capacity still depends on stamping press speed, die structure, feeding pitch, material specifications, and the overall production cycle.
What Parameters Should Be Confirmed Before Selecting a Compact Coil Feed Line?
Equipment selection should not start with only a general requirement such as an automotive stamping feeder. The following parameters should be confirmed first.
| Parameter | Information to Confirm |
|---|---|
| Material Type | Mild steel, stainless steel, aluminum, high-strength steel, etc. |
| Material Thickness | Minimum and maximum thickness |
| Material Width | Minimum and maximum width |
| Coil Weight | Maximum coil weight |
| Coil ID | Must match the decoiler configuration |
| Coil OD | Determines decoiling space and load capacity |
| Feeding Length | Determined according to the die pitch |
| Press Tonnage | Must match product and die requirements |
| Press Speed | Affects the feeding cycle |
| Die Type | Single-operation die, progressive die, etc. |
| Surface Requirements | Whether scratches or indentations must be avoided |
| Production Method | Individual production or continuous production |
Once these parameters are confirmed, the manufacturer can determine the appropriate machine width, material thickness range, coil capacity, straightening configuration, and servo feeding system.
Do Different Automotive Parts Require Different Coil Feed Configurations?
Automotive parts do not have one fixed material specification.
Some small brackets and connectors may use relatively narrow thin-gauge coil material, while structural components may require wider and thicker steel coils.
Therefore, one Compact Coil Feed Line configuration cannot necessarily cover every automotive parts stamping application.
Thin-Gauge Materials
Feeding-roll pressure
Material surface protection
Straightening performance
Feeding stability
Medium- and Thick-Gauge Materials
Decoiler load capacity
Straightener rigidity
Feeding-roll clamping capability
Overall machine structural strength
Materials with Sensitive Surface Requirements
For aluminum, stainless steel, and other materials where surface quality is important, the surface condition of the feeding rolls and straightening rolls should be considered carefully.
The production process should also be checked for foreign particles or other factors that could cause scratches or indentations.
What Should Be Adjusted After Installing a Compact Coil Feed Line?
After installation, the equipment should be commissioned under actual production conditions.
Step 1: Align the Machine Centerline
If there is a centerline deviation, the material may gradually move sideways during feeding.
Step 2: Adjust the Straightening Section
Adjust the straightening rolls according to the actual material thickness and coil curvature. Settings used for another material should not simply be copied.
Step 3: Adjust Feeding Pressure
The feeding rolls need to maintain stable contact with the material while avoiding excessive pressure that could create unnecessary surface marks.
Step 4: Set the Feeding Length
Enter the feeding parameters according to the actual die pitch.
Step 5: Perform a Low-Speed Line Test
Run the Compact Coil Feed Line and stamping press at low speed first. Check the timing between feeding, stamping, material release, and stopping operations.
Step 6: Gradually Increase the Production Cycle
After stable continuous operation has been confirmed, gradually increase the working speed of the stamping press and feeding system according to the actual process requirements.
How Does a 3 in 1 Decoiler Straightener Feeder Support Continuous Stamping?
For automotive parts stamping projects, the purpose of a 3 in 1 Decoiler Straightener Feeder is not simply to replace manual material handling.
The system needs to coordinate four connected processes:
If decoiling is unstable, the material condition can affect downstream feeding.
If straightening is inadequate, the strip may enter the die with an undesirable shape.
If the feeding length is unstable, the positions of parts at different stations in a progressive die can become inconsistent.
If the timing between the stamping press and feeding system is not properly coordinated, the overall production cycle can also become unstable.
This is why a Compact Coil Feed Line should be configured according to the actual material specifications, die feeding pitch, stamping press parameters, and production cycle.
Conclusion
A Compact Coil Feed Line integrates decoiling, straightening, and servo feeding into one coil processing system for continuous stamping applications.
It is also commonly referred to as a 3 in 1 Decoiler Straightener Feeder, particularly when the three functions are integrated into one machine.
For automotive parts stamping projects using coil material, this configuration provides a more continuous material path from the coil to the stamping press while reducing intermediate material transfer and supporting a more compact production-line layout.
However, the final machine model and configuration should always be determined according to the actual material thickness, material width, coil weight, stamping press, die parameters, feeding pitch, and production requirements.
