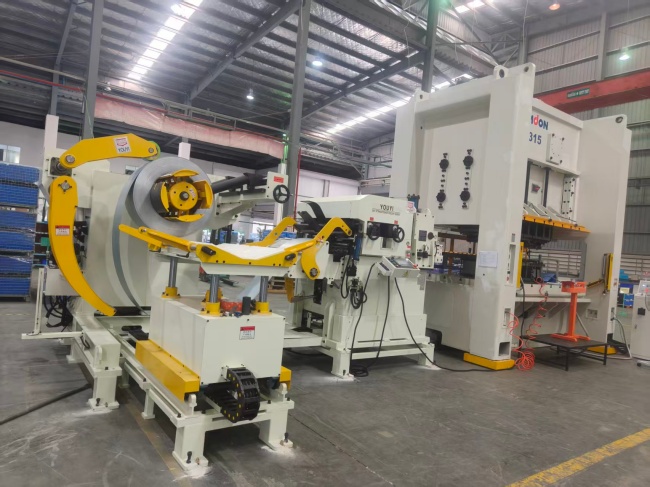

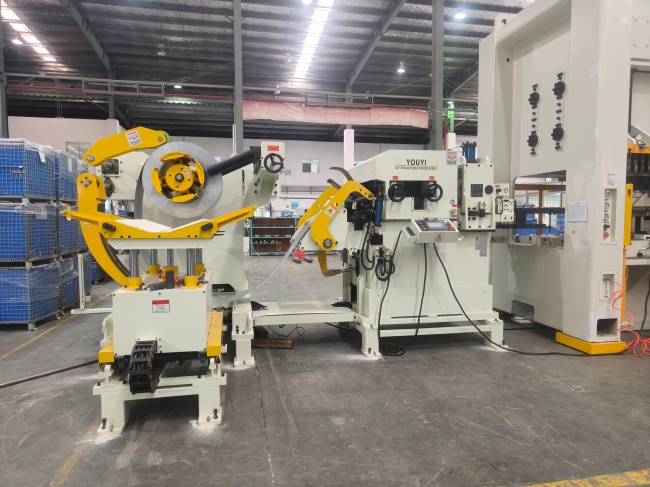

In continuous metal stamping production, a compact coil feed line is responsible for uncoiling, straightening, and precisely feeding coil material into the press. Because these functions are integrated into one system, the operating condition of the equipment can directly affect production efficiency, feeding accuracy, material quality, and overall line stability.

Without regular maintenance, problems such as feeding deviations, material misalignment, poor straightening performance, roller slippage, and servo system alarms may gradually occur. These issues can lead to unplanned downtime, material waste, and inconsistent stamping results.

For this reason, preventive maintenance should be part of the daily operation of a compact coil feed line rather than something performed only after a failure occurs.

This guide explains the key maintenance areas, inspection priorities, and recommended maintenance intervals that can help maintain stable operation and consistent feeding performance.

Why Is Regular Maintenance Important for a Compact Coil Feed Line?

A compact coil feed line integrates multiple functions—including coil uncoiling, material straightening, and servo feeding—into a single system. Compared with a traditional coil feed line this integrated design provides a more compact layout and a higher level of automation.

At the same time, the system includes multiple mechanical and electrical components, such as transmission mechanisms, servo drives, pneumatic components, and electrical control systems. During long-term operation, these components may experience wear, dust accumulation, or oil contamination.

Regular maintenance can help manufacturers:

Maintain stable feeding accuracy

Reduce unexpected equipment failures and downtime

Extend the service life of key components

Reduce repair and maintenance costs

Improve continuous stamping efficiency

Minimize material waste caused by feeding problems

A preventive maintenance plan that includes daily inspections and scheduled servicing can help identify potential problems before they affect production.

7 Key Areas to Check During Compact Coil Feed Line Maintenance

A compact coil feed line typically consists of an uncoiling section, a straightening section, a feeding system, and an electrical control system. Each section requires different maintenance attention.

1. Inspect the Feeding Rollers

Feeding rollers are one of the key components affecting feeding accuracy.

During long-term operation, dust, oil, or other contaminants may accumulate on the roller surfaces. Excessive contamination can cause the material to slip, affecting feed length and positioning accuracy.

Daily inspection should include:

Whether foreign particles are present on the roller surface

Whether the rollers show visible wear

Whether the pressure between the upper and lower rollers is normal

Whether the rollers operate smoothly

Whether material slippage occurs during feeding

For materials with high surface-quality requirements, such as aluminum and stainless steel, keeping the feeding rollers clean is particularly important to prevent surface scratches caused by contaminants.

2. Check the Straightening Section

Before entering the press, coil material passes through the straightening section. Therefore, the condition of the straightening mechanism directly affects material flatness and feeding stability.

During maintenance, inspect the straightening rollers for:

Material residue

Oil contamination

Abnormal wear

Loose components

Rough or irregular rotation

If the material still shows significant coil set, warping, or waviness after straightening, the straightening parameters and equipment condition should be checked. Feeding adjustments alone may not solve the underlying problem.

3. Inspect the Uncoiling System

The uncoiling section is responsible for supplying coil material smoothly and consistently.

Daily inspections should focus on:

Whether the coil is securely installed

Whether the expansion mechanism operates normally

Whether the coil rotates smoothly

Whether the uncoiling tension is appropriate

Whether abnormal noise is present in mechanical transmission components

If the coil experiences sticking, vibration, or unstable tension during uncoiling, the material may enter the straightening section unevenly, which can affect downstream feeding stability.

4. Monitor the Servo Feeding System

Compact coil feed lines commonly use a servo system to control feeding length and feeding rhythm. For this reason, the servo system should be included in regular maintenance inspections.

Operators should periodically check:

Whether the servo motor operates normally

Whether the servo drive displays any alarms

Whether excessive dust has accumulated inside the control cabinet

Whether electrical connections are secure

Whether the encoder and related wiring are functioning properly

If sudden changes in feed length, servo alarms, or abnormal feeding movements occur, the machine should be stopped and inspected rather than continuing production under abnormal conditions.

For high-precision stamping applications, the servo and electrical control systems should also be inspected according to the maintenance schedule recommended by the equipment manufacturer.

5. Check the Pneumatic System

Some compact coil feed lines use pneumatic components for material pressing, clamping, or other auxiliary movements.

Insufficient air pressure or pneumatic component failures may result in:

Unstable material pressing

Material slippage

Feeding abnormalities

Incomplete machine movements

During routine maintenance, check whether the air supply pressure remains within the specified operating range. Air hoses, fittings, and cylinders should also be inspected for air leakage.

Aging air hoses or loose connections should be addressed promptly.

6. Keep the Equipment Clean

Cleaning is one of the simplest maintenance tasks, but it is also one of the most frequently overlooked.

Metal dust, scrap, and oil may accumulate during stamping production. Over time, excessive buildup can affect mechanical movement and reduce the heat dissipation performance of electrical components.

After daily production, the following areas should be cleaned:

Feeding rollers

Straightening rollers

Machine working surfaces

Material travel areas

The exterior of the electrical control cabinet

Metal scrap around the equipment

When cleaning electrical components or control systems, proper safety procedures should be followed to prevent liquids from entering electrical equipment.

7. Inspect Mechanical Transmission Components

A compact coil feed line contains multiple mechanical transmission components. After extended operation, wear or changes in mechanical clearance may affect equipment performance.

Key components to inspect include:

Chains

Gears

Timing belts

Bearings

Couplings

Transmission shafts

If abnormal noise, noticeable vibration, or unstable operation occurs, the equipment should be stopped for inspection.

Components requiring lubrication should be maintained using the appropriate lubricant or grease specified by the equipment manufacturer. Lubricants should not be changed arbitrarily.

How to Monitor Changes in Feeding Accuracy

In addition to inspecting mechanical components, manufacturers should regularly monitor actual feeding performance during production.

For example, operators can measure feed length during continuous production and check for:

Gradual changes in feeding length

Inconsistent feeding lengths between cycles

Reduced accuracy during high-speed operation

Feeding problems after changing materials

If a noticeable change in feeding accuracy occurs, the inspection should consider multiple factors, including material condition, roller pressure, straightening parameters, servo system performance, and mechanical components.

Avoid repeatedly changing feeding parameters before identifying the actual cause of the problem, as this may temporarily mask an underlying equipment issue.

Maintenance Considerations for Different Materials

Different coil materials may require different maintenance priorities.

Aluminum

Aluminum surfaces are relatively easy to scratch. Feeding and straightening rollers should therefore be kept particularly clean to prevent metal particles or contaminants from damaging the material surface.

Stainless Steel

Because stainless steel materials may place higher demands on mechanical structures and feeding stability, operators should pay particular attention to roller wear and the condition of transmission mechanisms.

High-Strength Steel

High-strength steel stamping places greater demands on equipment rigidity, straightening capability, and feeding stability. Choosing the right compact coil feed line for high-strength steel stamping is also important for maintaining stable long-term performance.

Maintenance should therefore be based not only on a fixed cleaning and lubrication routine but also on material characteristics, production cycles, and actual processing requirements.

Recommended Compact Coil Feed Line Maintenance Schedule

Preventive Maintenance Helps Maintain Stable Stamping Production

A compact coil feed line is a key part of an automated stamping line. Its operating condition can directly influence material handling, press cycle stability, feeding accuracy, and final product quality.

Daily maintenance should therefore go beyond checking whether the machine is simply able to continue operating. Manufacturers should also pay attention to changes in feeding accuracy, mechanical wear, material surface quality, and overall operating stability.

By establishing standardized daily inspections, scheduled maintenance, and systematic troubleshooting procedures, manufacturers can identify potential problems earlier, reduce unexpected downtime, and maintain more consistent equipment performance over the long term.

Conclusion

A compact coil feed line integrates automatic uncoiling, material straightening, and servo feeding into a single system, helping manufacturers reduce manual operations and improve the efficiency and stability of coil-fed stamping production.

However, reliable performance depends not only on equipment design but also on proper operation and regular maintenance. A practical maintenance plan should take into account the machine structure, material characteristics, production workload, and the equipment manufacturer's technical requirements.

Regular inspection of the feeding rollers, straightening section, uncoiling system, servo system, pneumatic components, and mechanical transmission parts can help reduce unexpected problems and support more stable long-term operation.
