Executive Summary
A double head decoiler helps reduce coil changeover downtime by providing two coil-loading stations. While one coil supplies material to the stamping line, operators can prepare the next coil on the standby station, subject to the machine's configuration and safety requirements.
By completing part of the coil-loading and material-preparation work in advance, manufacturers can reduce waiting time between coils. The actual improvement depends on coil specifications, loading arrangements, station-switching time, and coordination with the straightener, servo feeder, and stamping press.
Why Does Coil Changeover Downtime Matter?
In coil-fed stamping production, changing a finished coil involves more than removing the empty coil and loading a new one. Operators must secure the new coil, prepare the material end, thread the strip into downstream equipment, and verify that the line is ready to resume production.
During this process, the stamping press and feeding equipment may need to stop and wait for the new coil to be prepared. For manufacturers that change coils frequently or operate stamping lines with demanding production schedules, this downtime can reduce equipment utilization and disrupt production planning.
A double head decoiler uses a dual-station design that allows operators to prepare a standby coil while the current coil is still feeding material, provided that the machine's configuration and safety procedures permit these tasks to be performed in parallel.
This guide explains how a double head decoiler can shorten coil changeover waiting time, how it compares with a single head decoiler, and what manufacturers should consider when integrating one into an automated stamping line.
Key Takeaways
A single head decoiler generally requires coil removal, loading, and preparation to take place sequentially.
A double head decoiler provides a standby station for preparing the next coil in advance.
Advance preparation can reduce the work that must be completed after the current coil runs out.
Actual downtime savings depend on the switching mechanism, coil-handling method, and downstream equipment.
Double head decoilers are worth evaluating for frequent coil changes, high-volume stamping, and applications involving lengthy loading procedures.
Material specifications, rated coil capacity, factory layout, and safety requirements should be confirmed before selection.
1. Why Does a Single Head Decoiler Cause Changeover Delays?
A conventional single head decoiler typically has only one coil-loading station. When the current coil runs out, material feeding must stop before operators can remove the empty coil, load a new one, secure it, and prepare the strip for downstream processing.
Production cannot resume until the necessary changeover procedures are completed. Several tasks can contribute to this downtime.
| Changeover Task | What It Involves | Potential Delay |
|---|---|---|
| Coil removal and loading | Remove the empty coil and install its replacement. | Heavy coils may require a loading trolley or auxiliary handling equipment. |
| New coil preparation | Check coil position, secure the coil, and prepare the strip end. | The new coil may need additional positioning or adjustment. |
| Material threading | Guide the strip into the straightener or feeder. | Incorrect strip positioning can require repeated adjustments. |
| Line restart | Confirm material supply and downstream equipment readiness. | The press and feeding equipment must wait until the line is ready. |
Therefore, reducing changeover downtime requires more than improving the loading speed of the decoiler. It also involves coordinating coil preparation, loading, material threading, and line restart procedures.

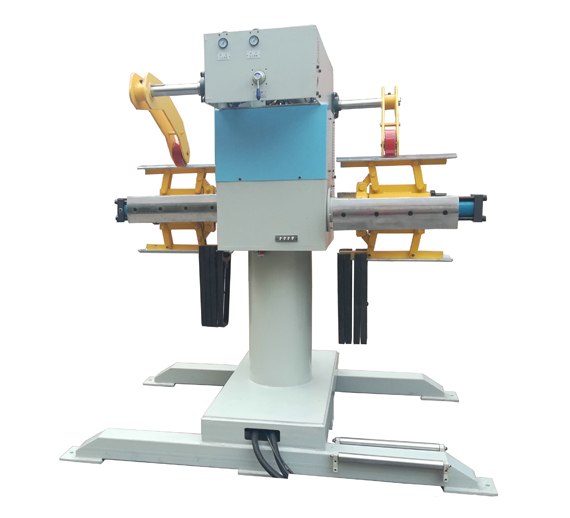

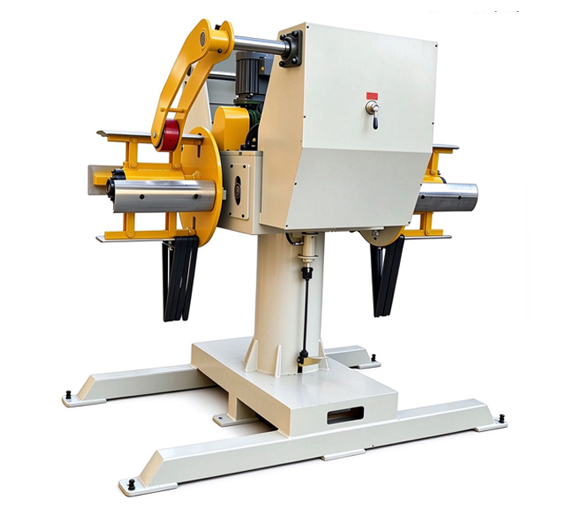

2. How Does a Double Head Decoiler Reduce Changeover Waiting Time?
The main difference between a single head decoiler and a double head decoiler is the number of coil-loading stations. A double head decoiler provides two stations, allowing one coil to supply material while the next coil is prepared on the standby station.
How the Dual-Station Arrangement Works
Current coil in production: One station supplies strip material to the downstream equipment.
Standby coil preparation: Operators prepare the next coil on the second station when permitted by the machine design and safety procedures.
Changeover: When the current coil is depleted, the machine follows its specified station-switching sequence.
Production restart: Operators confirm the strip position and downstream equipment readiness before production resumes.
Depending on the machine design, the stations may switch through a rotating mechanism or another engineered changeover arrangement.
The key advantage is not simply having an additional coil-loading position. It is the ability to complete certain preparation tasks before the current coil runs out, reducing the amount of work that must be performed after production stops.
3. Four Ways a Double Head Decoiler Optimizes the Coil Changeover Process
3.1 Prepare the Standby Coil in Advance
While the current station is supplying material, operators can load the next coil onto the standby station according to the machine's operating procedures.
They should verify the coil's inner diameter, loading position, and clamping or expansion condition before the changeover is required. With the standby coil prepared in advance, the next changeover does not have to begin with a complete coil-loading process.
3.2 Complete Preliminary Material Preparation
Coil installation is only one part of the preparation process. Depending on the production requirements, operators can also inspect the material, prepare the strip end, and arrange the tools or auxiliary equipment needed for threading.
When different coil specifications are used on the same production line, the material width, thickness, and feeding direction should be checked in advance. This helps prevent delays caused by specification mismatches or additional machine adjustments after the station has been switched.
3.3 Coordinate Station Switching with Production
As the current coil approaches the end of its usable material, operators should check the station status and follow the specified changeover sequence.
The switching method depends on the machine's mechanical design and control system. Some double head decoilers use a rotating structure, while others employ different station-switching arrangements.
If the machine requires a production stop during switching, the specified stop procedure must be followed. Station switching should only be carried out under the conditions and sequence permitted by the equipment design.
3.4 Reduce Threading and Adjustment Time After Switching
After switching to the standby station, operators must confirm that the strip enters the downstream equipment correctly. The feeding direction, material position, and strip condition should also be checked.
A well-planned layout between the double head decoiler, straightener, and servo feeder helps reduce unnecessary material handling and repeated adjustments. When the equipment parameters are properly matched and operators are familiar with the changeover procedure, the stamping line can return to production more efficiently.
4. Double Head Decoiler vs. Single Head Decoiler
For stamping lines that frequently change coils, the main benefit of a double head decoiler is the ability to prepare the next coil before the current one is depleted.
| Comparison Item | Single Head Decoiler | Double Head Decoiler |
|---|---|---|
| Coil-loading stations | Typically one | Two |
| Standby coil preparation | Usually begins after the current coil is finished | Can be completed in advance, depending on the design |
| Changeover workflow | Coil removal, loading, securing, and preparation are generally sequential | Some preparation tasks can be completed in parallel with production |
| Floor space | Generally requires less space | Requires space for the second station and switching mechanism |
| Suitable applications | Lower changeover frequency and moderate production demands | Frequent coil changes and a need to reduce loading delays |
A double head decoiler does not necessarily eliminate all changeover downtime. The actual time saved depends on coil weight, loading equipment, strip-end preparation, station-switching time, and coordination with downstream machinery.
Manufacturers should evaluate their existing production process before deciding whether a dual-station solution is worthwhile.

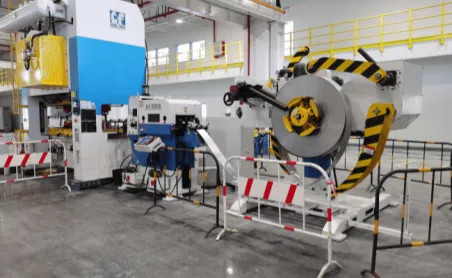

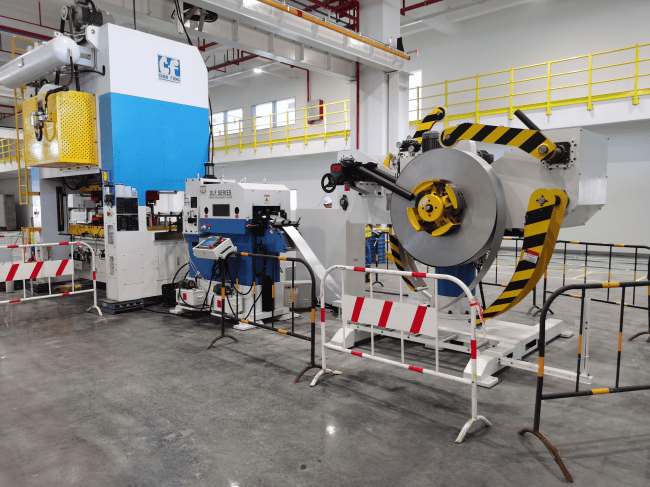

5. Integrating a Double Head Decoiler into an Automated Stamping Line
A double head decoiler delivers greater value when it is properly integrated with the downstream material-processing and feeding equipment.
| Equipment | Main Function |
|---|---|
| Double Head Decoiler | Supports the coil and releases strip material for downstream processing. |
| Straightener | Corrects coil set and improves the flatness of the strip. |
| Servo Feeder | Feeds material according to the programmed feed length and the requirements of the stamping press and die. |
| Stamping Press | Performs the stamping operation to produce the required components. |
For applications involving thicker materials or processes that require separate straightening and feeding operations, a double head decoiler can be configured with a straightener and servo feeder according to the material specifications and production requirements.
Key Factors for Line Integration
| Factor | What to Consider |
|---|---|
| Equipment parameter matching | Material width, thickness, coil weight, inner diameter, outer diameter, and rated load capacity. |
| Material transfer path | Distance and relative positions of the decoiler, straightener, and servo feeder. |
| Control system coordination | Speed settings, material tension, feeding sequence, and prevention of material slack or strip accumulation. |
| Standby coil preparation | Coil loading, expansion or clamping, strip-end preparation, threading, and station switching. |
| Space and safety | Loading trolley access, operator access, switching clearance, guards, and required protective measures. |
For production lines aiming to minimize changeover interruptions further, manufacturers should also evaluate the strip-threading method, material-joining requirements, and whether the changeover process can be coordinated with downstream equipment.
6. Which Stamping Applications Benefit Most from a Double Head Decoiler?
A double head decoiler is not necessary for every coil-processing application. Its value depends on the production schedule, changeover frequency, loading method, and the amount of downtime that can realistically be avoided.
| Application | Potential Benefit | What to Evaluate |
|---|---|---|
| Frequent coil changes | Standby coil preparation can reduce repeated loading delays. | Coil-change frequency and average changeover duration. |
| High-volume stamping | A more organized changeover process may support equipment utilization targets. | Production schedule and material-supply interruptions. |
| Automated coil feeding lines | More efficient changeovers can reduce interruptions affecting downstream equipment. | Coordination between decoiling, leveling, feeding, and stamping. |
| Heavy coils with longer loading preparation | Advance preparation may reduce waiting for loading operations. | Rated load capacity, loading equipment, and available floor space. |
Conversely, if coil changes are infrequent or most downtime is caused by die adjustments, quality inspections, or other production processes, a double head decoiler may deliver limited additional value.
7. How to Evaluate the Efficiency Improvement
Before selecting a double head decoiler, manufacturers should record the existing production line's coil-change frequency, average changeover duration, and associated downtime. These figures can then be compared with the expected performance of the proposed equipment and changeover procedure.
Illustrative Downtime Calculation
Consider a hypothetical stamping line that changes coils six times per day. With the existing equipment, each changeover requires an average of 12 minutes of production downtime. After introducing a double head decoiler and preparing standby coils in advance, assume that the actual downtime per changeover decreases to five minutes.
Illustrative example only. Actual savings depend on the equipment configuration and production conditions.
In this example, the assumed reduction is seven minutes per changeover. Across six changes per day, the theoretical reduction totals 42 minutes of downtime.
This is an illustrative calculation, not a guaranteed performance result. Actual savings must be verified using production records, the machine's switching method, and the requirements of the specific stamping process.
Other Performance Indicators to Monitor
Equipment utilization and productive operating time;
Operator workload and coil-loading arrangements;
Adjustment time after each coil change;
Additional downtime caused by threading difficulties or material misalignment.
These measurements provide a more complete picture of the equipment's practical value than coil-change time alone.
8. What Should You Consider When Selecting a Double Head Decoiler?
Before requesting a quotation, manufacturers should provide the equipment supplier with the following information.
| Selection Information | Details to Provide |
|---|---|
| Material specifications | Material type, thickness, width, and coil inner and outer diameters. |
| Maximum coil weight | Maximum weight of a single coil and required rated load capacity. |
| Coil-change frequency | Number of coil changes per day or shift and current average downtime. |
| Loading method | Whether a loading trolley, hydraulic assistance, or another coil-handling mechanism is required. |
| Downstream equipment | Specifications of the straightener, servo feeder, stamping press, and other relevant equipment. |
| Station-switching requirements | Required switching mechanism, automatic control, and material-guiding arrangement. |
| Installation space and safety | Available floor space, switching clearance, operator access, and required protective measures. |
By evaluating these factors together, manufacturers can select a double head decoiler configuration that better matches their material specifications, production targets, and factory layout.
YouYi Precision Double Head Decoiler Solutions
YouYi Precision specializes in stamping automation equipment and coil-processing solutions. Based on your material specifications, production requirements, and factory layout, the team can help evaluate suitable double head decoiler configurations and related feeding equipment.
When planning a coil-fed stamping line, equipment selection should account for coil width, material thickness, coil weight, loading arrangements, station-switching requirements, and the specifications of the downstream straightener and servo feeder.
A properly planned configuration helps coordinate coil handling and material feeding while making the changeover procedure easier to organize and evaluate.
Conclusion
A double head decoiler helps reduce coil changeover downtime by allowing operators to prepare a standby coil while the current coil is still being processed. By completing part of the loading and preparation work in advance, manufacturers can reduce waiting time between coils and improve the coordination of their stamping operations.
For stamping lines with frequent coil changes or lengthy loading procedures, a double head decoiler can be an effective option for improving production organization and equipment utilization. However, the actual benefits depend on coil specifications, load capacity, station-switching design, material preparation, and integration with the complete feeding line.
Frequently Asked Questions
How does a double head decoiler reduce coil changeover downtime?
It provides two coil-loading stations, allowing operators to prepare the next coil while the current coil is supplying material, where the machine design and safety procedures permit. This reduces the amount of preparation work that must be completed after the current coil runs out.
Does a double head decoiler eliminate all production downtime during coil changes?
No. Actual downtime depends on the station-switching mechanism, material preparation, coil-loading method, strip threading, and downstream equipment coordination. Some configurations still require the line to stop during switching.
Is a double head decoiler suitable for every stamping line?
Not necessarily. It is most worth evaluating for lines with frequent coil changes, high production utilization targets, or lengthy coil-loading procedures. If changeovers are infrequent or downtime is mainly caused by other processes, the additional benefit may be limited.
What information is needed to select a double head decoiler?
Important information includes material type, width, thickness, coil inner and outer diameters, maximum coil weight, changeover frequency, loading method, downstream equipment specifications, station-switching requirements, and available installation space.
How can manufacturers calculate the potential downtime savings?
Record the current average downtime per coil change and the number of coil changes per day. Multiply the expected reduction per change by the daily changeover frequency. The result is an estimate and should be verified against actual production records after installation.
