Introduction

As metal stamping manufacturers continue to improve production efficiency and automation levels, traditional coil handling methods using separate decoilers, straighteners, and feeders are becoming less competitive.

Separate equipment requires more installation space, complicated alignment, and additional operation adjustments, which can affect production stability.

A 3 in 1 coil feeder integrates decoiling, precision leveling, and servo feeding into a single automated system. By simplifying the coil processing process, it helps manufacturers achieve more stable feeding accuracy, faster production cycles, and improved stamping quality.

What Is a 3 in 1 Coil Feeder?

A 3 in 1 coil feeder is an integrated coil processing system that combines three essential functions:

Decoiling

Straightening

Servo feeding

Unlike conventional stamping lines that require independent machines, this integrated solution provides synchronized material handling from coil preparation to press feeding.

It is widely used in automotive stamping, new energy components, home appliances, and precision metal manufacturing.

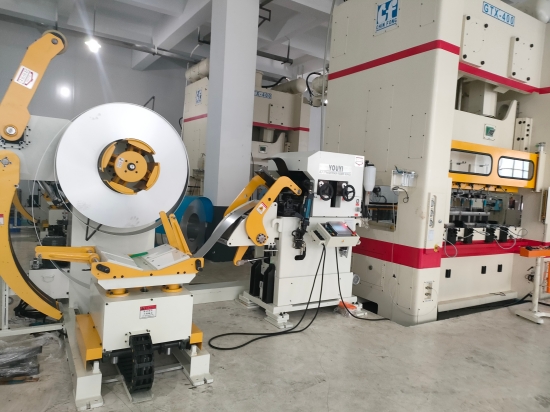

1. Main Components of a 3 in 1 Coil Feeder

A complete 3 in 1 coil feeding line typically consists of the following three functional modules:

1.1 Decoiler (Uncoiler Unit)

The decoiler is responsible for holding and unwinding the metal coil.

The coil is mounted on the main shaft and fixed by a hydraulic expansion system

Automatic speed control ensures smooth coil release

Equipped with hold-down arms, guide arms, and hydraulic support devices to prevent coil loosening or deviation during decoiling

This ensures stable and safe coil handling from the very beginning of the production process.

1.2 Straightener (Leveling Unit)

After decoiling, the strip material enters the straightening section.

Upper and lower leveling rollers repeatedly press the strip

Internal stress and coil set are eliminated

Material flatness is significantly improved

A high-quality straightening system plays a critical role in ensuring stable feeding accuracy and consistent stamping quality.

1.3 Servo Feeder (Feeding Unit)

The feeding unit is driven by a high-precision servo motor.

The strip is fed into the press die at a preset pitch length

Supports multi-stage feeding programs

Feeding length and speed can be flexibly adjusted based on die requirements

The servo feeder ensures precise, repeatable material positioning for every press stroke.

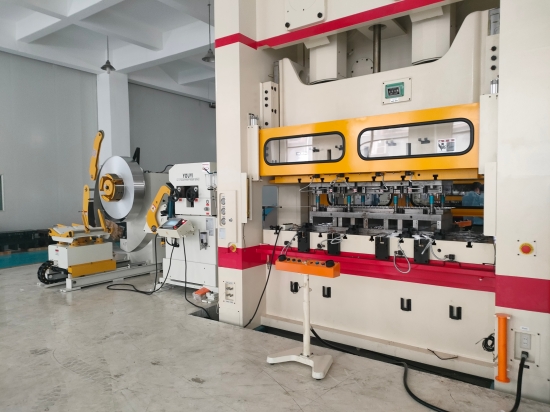

2. How Does a 3 in 1 Coil Feeder Work in an Automated Stamping Line?

The operation of a 3 in 1 coil feeder for stamping automation can be divided into five main stages:

Step 1: Coil Loading

Using a hydraulic coil car, the operator transports the coil to the decoiler spindle, adjusts the center height, and clamps the coil automatically.

Step 2: Decoiling and Hold-Down Control

Once the decoiler motor starts, the coil begins to unwind.
The hold-down arm keeps the strip under control, preventing material rebound or misalignment.

Step 3: Straightening Process

The strip passes through guide devices into the straightener.

Upper and lower rollers level the material repeatedly

Internal stress is removed

Leveling thickness can be adjusted via electric control or handwheel, ensuring precise flatness

Step 4: Automatic Servo Feeding

The straightened strip enters the feeding section.

Servo system controls feeding length and speed

Synchronizes automatically with the press signal

Guarantees accurate and consistent feeding for each stroke

Step 5: Stamping and Continuous Operation

Once the material reaches the die, the press performs the stamping action.
After each stroke, the feeder automatically advances the next feeding cycle, enabling continuous, high-efficiency automated stamping production.

3. Why Manufacturers Choose 3 in 1 Coil Feeding Lines?

As a professional 3 in 1 coil feeder manufacturer, Youyi Precision designs its systems with performance, stability, and automation in mind:

✔ Compact Space-Saving Design

Compared with separate decoiler, straightener, and feeder combinations, the integrated structure requires less installation space and simplifies factory layout.

✔ High Feeding Accuracy

Servo control ensures feeding accuracy up to ±0.1 mm, meeting the demands of high-precision dies.

✔ High Level of Automation

Supports automatic coil loading, centering, tension control, and speed adjustment, greatly improving production efficiency.

✔ Wide Material Compatibility

Suitable for processing 0.3 mm–10.0 mm thick materials, including cold-rolled steel, stainless steel, and high-strength steel.

Conclusion

By integrating decoiling, straightening, and feeding into one system, the 3 in 1 coil feeder delivers a streamlined and highly automated solution for modern stamping lines. From coil loading and leveling to servo feeding and continuous stamping, every step is precisely controlled to achieve both high efficiency and high accuracy.

In today’s manufacturing upgrade trend, choosing a reliable 3 in 1 coil feeding line is not only a smart investment in automation but also a practical way to reduce costs and improve long-term productivity.

FAQ

Q1: What is the difference between a 3 in 1 coil feeder and separate feeding equipment?

A 3 in 1 coil feeder integrates decoiling, leveling, and feeding into one machine, reducing equipment footprint and improving synchronization compared with separate systems.

Q2: What materials can a 3 in 1 coil feeder process?

It can process various coil materials including carbon steel, stainless steel, aluminum, galvanized steel, and high-strength steel.

Q3: Is a 3 in 1 coil feeder suitable for high-speed stamping?

Yes. The servo feeding system provides fast response and precise synchronization with stamping presses, making it suitable for continuous automated production.

Q4: What industries use 3 in 1 coil feeders?

They are widely used in automotive parts, new energy battery components, electronics, appliances, and precision metal stamping industries.

Q5: How do I choose a suitable coil feeding line?

Selection depends on material thickness, coil width, coil weight, stamping speed, press specifications, and automation requirements.
