In today’s manufacturing industry, automation has become a key factor in improving production efficiency, reducing labor costs, and maintaining product consistency. Industries such as automotive parts, new energy lithium batteries, metal stamping, home appliances, and 3C electronics increasingly rely on automated coil handling systems to achieve high-speed and stable production.

As one of the most important front-end machines in a stamping automation line, the automatic decoiler machine plays a critical role in coil loading, unwinding, tension control, and continuous material feeding. Its performance directly affects leveling accuracy, servo feeding stability, stamping precision, and overall production efficiency.

This article explains how automatic decoiler machines work, their structure, applications, advantages, and how to choose the right decoiler solution for modern stamping production.

What Is an Automatic Decoiler?

An automatic decoiler, also known as a coil unwinder or coil reel stand, is an automated machine designed to unwind and feed metal coils continuously into downstream equipment such as leveling machines, servo feeders, and stamping presses.

It is widely used in industries including:

· Metal stamping

· New energy lithium battery manufacturing

· Automotive parts production

· Home appliance components

· 3C electronics

· Construction hardware

In automated stamping production lines, the automatic decoiler has become one of the most important pieces of front-end equipment.

How Does an Automatic Decoiler Work?

The working principle of an automatic decoiler machine is based on motor-driven spindle rotation combined with automatic tension and feeding synchronization.

The typical working process includes the following stages:

1. Coil Loading

Metal coils are loaded onto the decoiler spindle using a forklift, overhead crane, or coil loading cart.

For heavy-duty applications, hydraulic loading systems are often used to improve safety and efficiency during coil handling.

2. Hydraulic Expansion and Coil Clamping

After loading, the spindle expansion system automatically tightens the inner diameter of the coil to secure the material firmly.

Common expansion structures include:

· Hydraulic expansion

· Pneumatic expansion

· Mechanical manual expansion

Among them, hydraulic expansion decoilers provide the highest stability and are ideal for heavy metal coils and high-speed stamping lines.

3. Motor-Driven Coil Unwinding

The decoiler motor drives the spindle rotation, allowing the coil to unwind continuously.

Modern automatic decoiler machines are usually equipped with:

· Variable frequency speed control

· Tension control systems

· Photoelectric sensing systems

· Automatic hold-down arms

· Coil pressing devices

These systems help maintain stable material feeding while preventing:

· Coil loosening

· Material scratching

· Feeding instability

· Coil collapse

· Material deviation

4. Synchronization with Leveling and Feeding Systems

After unwinding, the material enters the precision leveling machine and servo feeder.

The decoiler must synchronize with downstream equipment to ensure:

· Continuous material feeding

· Stable feeding speed

· Accurate coil alignment

· Reduced feeding errors

· Smooth high-speed stamping operation

This synchronization is especially important in high-precision industries such as EV battery shell stamping and automotive component manufacturing.

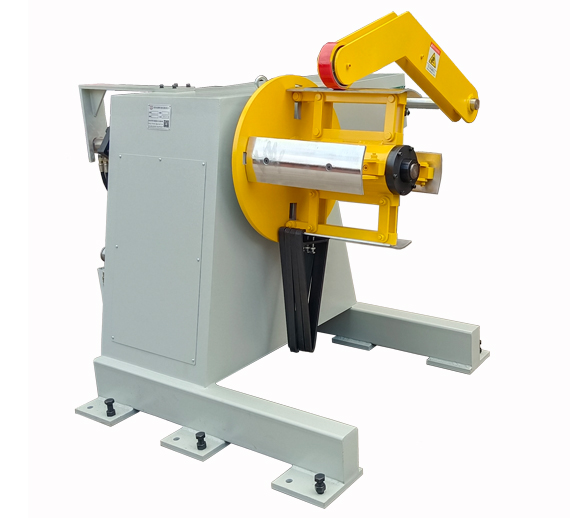

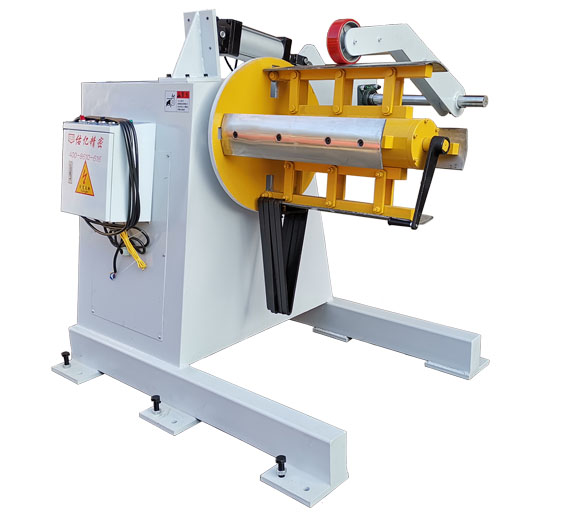

Main Structure of an Automatic Decoiler Machine

A standard automatic decoiler generally consists of the following components:

Heavy-Duty Machine Frame

The machine frame is typically manufactured using welded steel plate structures to ensure rigidity and operational stability.

Decoiler Spindle System

The spindle supports the coil weight and drives coil rotation during unwinding.

For large coils, reinforced spindle systems are required to support heavy loads safely.

Hydraulic Expansion System

The expansion mechanism clamps the coil securely from the inside diameter, ensuring stable unwinding during operation.

Hydraulic expansion systems are widely preferred for heavy-duty decoiler applications.

Drive and Transmission System

This system includes:

· AC motors

· Gear reducers

· Frequency inverters

· Transmission components

It controls unwinding speed and torque output.

Hold-Down Arm and Pressing Device

The hold-down arm presses the outer layer of the coil to prevent loose coils and improve unwinding stability.

This feature is especially important for aluminum coils and thin metal materials.

Electrical Control System

The electrical control system enables:

· Automatic operation

· Speed synchronization

· Tension adjustment

· PLC control

· Integration with servo feeders and stamping presses

Advantages of Automatic Decoilers

As manufacturing automation continues to evolve, automatic decoilers offer significant advantages compared with traditional manual coil feeding methods.

Higher Production Efficiency

Continuous automatic unwinding enables long-duration stable production while reducing manual intervention.

Lower Labor Costs

Automatic operation minimizes manual handling and feeding work, improving overall production automation.

Improved Feeding Stability

Stable and uniform unwinding helps improve feeding accuracy and stamping precision.

Reduced Material Damage

For sensitive materials such as aluminum, stainless steel, and mirror-finish materials, automatic decoilers help reduce scratches, dents, and surface damage.

Better Integration with Automation Lines

Automatic decoilers can be integrated with leveling machines, servo feeders, robotic arms, and stamping presses for fully automated production.

Materials Suitable for Automatic Decoilers

Automatic decoilers are suitable for processing various coil materials, including:

· Cold rolled steel

· Hot rolled steel

· Stainless steel coils

· Aluminum coils

· Copper strips

· Galvanized steel sheets

· High-strength steel

Different materials require different levels of feeding stability, tension control, and leveling precision, so machine configurations may vary accordingly.

How to Choose the Right Automatic Decoiler

When selecting an automatic decoiler, manufacturers usually consider the following factors:

Material Width

Determines the effective feeding width range of the machine.

Material Thickness

Different thicknesses require different machine structures and configurations.

Coil Weight

Determines spindle load capacity and machine strength requirements.

Surface Quality Requirements

Sensitive materials may require anti-scratch designs and protective feeding systems.

Automation Requirements

Whether the decoiler needs to operate together with leveling machines, servo feeders, or fully automated stamping lines.

Industries such as new energy battery manufacturing and precision automotive stamping often prefer high-precision, high-stability automatic decoiler solutions.

Youyi Precision Automatic Decoiler Solutions

As a professional manufacturer of stamping automation equipment, Youyi Precision provides customized automatic decoiler solutions for various materials, thicknesses, and production requirements.

Key features of Youyi automatic decoilers include:

· Stable and smooth unwinding performance

· High automation efficiency

· Support for heavy-duty coil handling

· Integration with leveling and feeding systems

· Compatibility with high-speed stamping production

· Suitable for precision stamping in the new energy industry

Youyi automatic decoilers are widely used in industries such as lithium battery manufacturing, automotive hardware, home appliance hardware, and 3C electronics.

Conclusion

Although the working principle of an automatic decoiler may seem straightforward, it plays a vital role in ensuring the stable operation of the entire automated stamping production line.

A high-quality automatic decoiler not only improves production efficiency but also enhances feeding stability, reduces material damage, and supports manufacturers in achieving higher levels of automation.

With the rapid growth of industries such as new energy, automotive manufacturing, and precision metal stamping, the demand for intelligent, automated, and high-precision decoiler systems will continue to increase in the future.
