A properly matched system follows a controlled sequence:
This guide explains how a 3 in 1 Decoiler Straightener Feeder works with a stamping press and which parameters should be checked before equipment selection and commissioning.
Key Takeaways
A 3 in 1 Decoiler Straightener Feeder combines decoiling, straightening, and servo feeding in one integrated system.
The feeder and stamping press need synchronized operating signals and feeding timing.
Material thickness, width, coil weight, die dimensions, feed length, and press speed should be evaluated together.
Proper material centerline alignment is essential for stable feeding and accurate stamping.
Actual feeding accuracy depends on the complete machine configuration, material condition, servo system, and mechanical structure.
The most reliable way to select a feeder is to match the complete coil stamping line rather than comparing one specification in isolation.
For manufacturers looking for an integrated coil feeding solution, YouYi's 3 in 1 Decoiler Straightener Feeder combines decoiling, straightening, and servo feeding in one compact system.

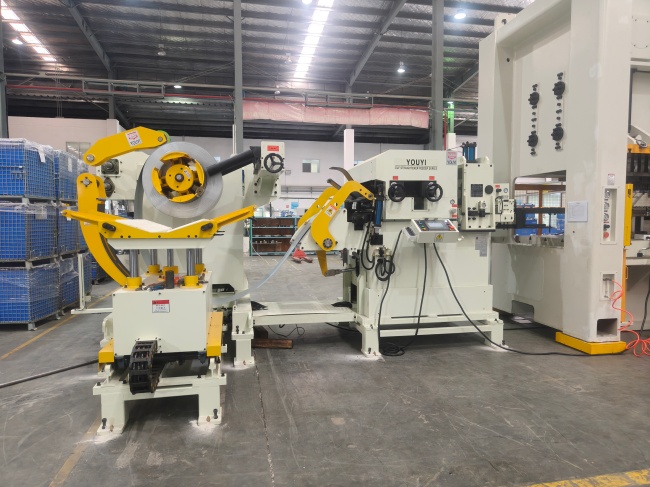

1. How Does a 3 in 1 Decoiler Straightener Feeder Work with a Stamping Press?
The decoiling section releases the coil material, the straightening section reduces the original coil curvature, and the servo feeding section moves the material to the required position according to the programmed feed length.
The feeding process is normally intermittent rather than continuous. For example, in progressive die stamping, the stamping press completes one working cycle before the feeder moves the material forward by the programmed feed length. After the material reaches the required position, the feeder stops and the press starts the next stamping cycle.
This requires clear coordination between the coil feeder and stamping press. Depending on the machine configuration, PLC, NC control, servo drives, encoder feedback, and press signals can be used to coordinate the feeding sequence. The operator can typically set parameters such as feed length and production cycles through the machine control interface.
The basic operating sequence is:
This synchronization becomes particularly important when the line is operating continuously or at a relatively high production speed.

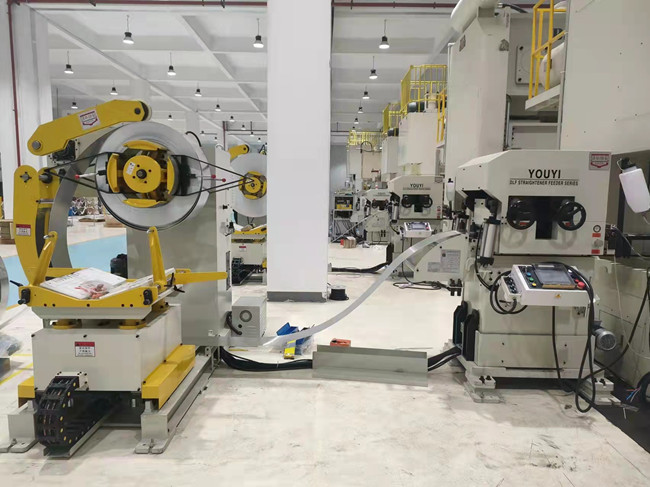

2. Step One: The Decoiler Provides Stable Coil Unwinding
The coil is first loaded onto the decoiling section of the 3 in 1 Decoiler Straightener Feeder. The decoiler needs to maintain stable material release while responding to the feeding requirements of the downstream system.
Typical functions include:
Securing the coil inner diameter
Positioning the coil center
Controlling material release
Maintaining an appropriate material loop
Preventing loose coils, tangled material, or excessive tension
The decoiler does not simply need to rotate continuously at a fixed speed. In stamping applications, feeding is generally intermittent. The feeder moves the material according to the press cycle, so the decoiling section needs to respond to changes in material demand.
A controlled material loop between the decoiler and feeding section can help absorb the speed difference between coil unwinding and intermittent servo feeding. This is one of the important differences between an automated coil feeding system and manual material handling.
3. Step Two: Straightening the Coil Before It Enters the Die
Coil material should normally be straightened before entering the stamping die. During coiling and storage, metal strip develops a certain amount of curvature. If the material enters the die without adequate straightening, several problems can occur:
Material warping
Up-and-down movement during feeding
Uneven material entry into the die
Reduced part flatness
Unstable feeding
The straightening section uses multiple upper and lower rollers to apply controlled repeated bending to the material and reduce its original coil curvature. A straightener does not simply "press the material flat." Its purpose is to adjust the material condition according to its thickness, width, material type, and existing deformation.
For example, a 0.5 mm sheet and a 4 mm plate require different roller adjustment, machine rigidity, and straightening capacity. Therefore, when selecting a 3 in 1 Decoiler Straightener Feeder, maximum material width should not be the only consideration. Material thickness, material type, coil weight, and required straightening performance should also be evaluated.
4. Step Three: The Servo Feeder Controls Material Position
After straightening, the material enters the feeding section. The feeding mechanism normally uses rollers to grip the material, while a servo motor drives the feeding rollers according to the programmed feed length.
For example: Programmed feed length is 300 mm. After receiving the feeding signal, the servo system moves the material forward by the programmed distance and then stops until the next feeding command is received.
However, a programmed feed length of 300 mm does not mean that every machine will achieve exactly the same actual feeding result. Actual feeding performance can be affected by multiple system factors:
| Category | Key Evaluation Variables |
|---|---|
| Mechanical & Drive | Machine structure, feeding roller grip & pressure, mechanical transmission |
| Control System | Servo motor and drive system, encoder feedback, press signal interface |
| Operation Ranges | Feed length range, feeding speed, material thickness & width range |
| Material Factors | Material condition, surface cleanliness, oil coating |
When selecting a Servo Feeder for a stamping line, it is therefore better to evaluate the complete feeding system rather than focusing on one advertised accuracy value.

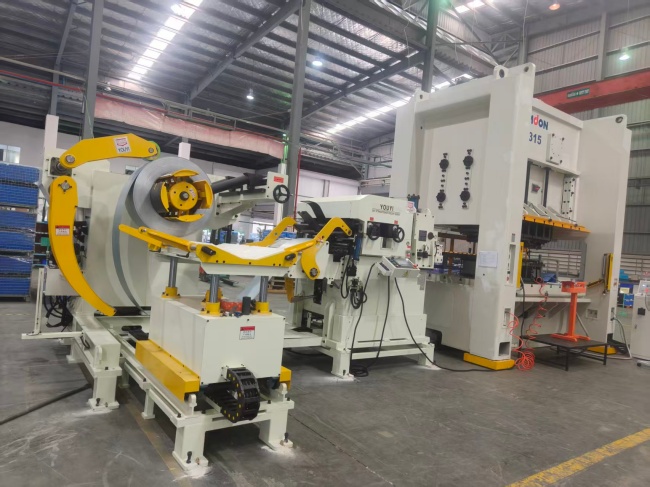

5. Why Does the 3 in 1 Feeder Need to Synchronize with the Stamping Press?
Synchronization is one of the most important factors affecting the stability of an automated stamping line. The stamping press and die follow a defined working cycle. The feeder must move the material during the appropriate part of this cycle rather than feeding at an uncontrolled time.
The exact signal sequence depends on the press, die, feeder control system, and production process. For progressive die stamping, the timing relationship is particularly important because each feeding movement determines the material position for the next stamping operation.
If press speed changes while the feeding program is not correctly matched, potential risks include:
Premature feeding
Delayed feeding
Incomplete feeding
Incorrect material positioning
For this reason, commissioning should not be limited to testing the feeder separately. The recommended approach is to test the complete integrated line (3 in 1 Feeder + Stamping Press + Die) under actual production conditions before continuous operation.
6. What Parameters Should Be Checked Before Matching?
Before selecting a 3 in 1 Decoiler Straightener Feeder, manufacturers should collect and verify key parameters across material, press, and die specifications:
| Parameter Group | Specific Checks & Impact |
|---|---|
| 6.1 Material Thickness | Determines required straightening and feeding machine structure (Thin sheet, Medium-gauge, or Thick plate). Do not run a feeder regularly beyond its rated thickness range. |
| 6.2 Material Width | Affects effective straightening roller width, feeding roller length, and material guiding structures. Account for actual material variations and guiding clearances. |
| 6.3 Coil Weight & Size | Determines decoiler load capacity (e.g., 2-ton coils). Check inner/outer diameter, width, and need for auxiliary loading tools (overhead crane, coil loading car, hydraulic system). |
| 6.4 Press Table & Die Dimensions | Check press table dimensions, die entry height, feeder outlet height, and material centerline alignment to prevent material deviation during production. |
| 6.5 Speed & Cycle | Press strokes per minute govern available feeding window. Verify if the feeder can reliably complete the required cycle rather than comparing max speed specs. |
7. How Does a 3 in 1 Feeder Reduce Manual Coil Handling?
A conventional coil stamping line uses separate machines (Decoiler → Straightener → Feeder → Stamping Press), where each unit requires its own installation space and material transition areas. A 3 in 1 system integrates these three functions into one compact unit.
Less manual material handling & reduced manual threading between machines
More compact equipment layout and floor space savings
Centralized control of decoiling, straightening, and feeding
Easier coordination and synchronization between all three functions
However, a 3 in 1 system is not automatically suitable for every stamping line. If material specifications vary significantly or the production process requires a long material buffer, the final configuration should still be determined according to the actual production process and available floor space.
8. Common Feeding Problems and Troubleshooting Guide
After installation, the key challenge is ensuring long-term operational stability. Use this quick reference guide to diagnose common feeding issues:
| Problem Symptoms | Potential Causes to Check | Correct Inspection Action |
|---|---|---|
| 8.1 Unstable Feed Length (e.g., programmed 300 mm, actual fluctuates 299.5–300.5 mm) | Feeding roller slippage, improper pressure, surface oil, encoder feedback, servo alarms, transmission backlash | Determine whether deviation is a fixed error or random variation before changing compensation parameters. |
| 8.2 Material Misalignment (Material moves sideways/enters die off-center) | Decoiler center misalignment, guide clearance, uneven L/R roll pressure, roller parallelism, material camber | Check material path and mechanical alignment first; adjusting servo feed parameters alone will not solve this. |
| 8.3 Surface Marks on Material (Surface scratches or roll marks) | Excessive feeding pressure, foreign particles on rollers, oil/dust contamination, improper roller condition | Clean rollers and adjust pressure based on material characteristics rather than simply increasing clamping force. |
9. When Is a 3 in 1 Feeder Suitable for a Stamping Press?
A 3 in 1 Decoiler Straightener Feeder is generally suitable for production lines with the following characteristics:
Continuous stamping with metal coil material
Progressive die or continuous die production
Material that needs straightening before entering the die
A requirement to reduce manual loading and threading
Stable feed-length control
Automated decoiling, straightening, and feeding
Long-term continuous production
Typical applications include:
Automotive components, home appliance sheet metal, hardware stamping, 3C components, and selected new energy components. The machine should always be selected according to the complete production requirements rather than based on a single specification.
10. A 3 in 1 Feeder Is Part of a Complete Stamping System
A 3 in 1 Decoiler Straightener Feeder does not operate independently. Its performance depends on how well the feeder, material, stamping press, and die are matched.
System Role Breakdown:
Decoiling: Determines whether the coil can be released smoothly.
Straightening: Determines material condition and flatness before feeding.
Servo Feeding: Controls precise material positioning entering the die.
Stamping Press: Determines overall production cycle speed and timing.
Stamping Die: Determines required feed pitch and material alignment guidance.
Therefore, when planning a coil stamping line, evaluate the complete formula:
YouYi's 3 In 1 Coil Feed Line integrates decoiling, straightening, and servo feeding into one compact coil processing system. The appropriate configuration should be selected according to material thickness, width, coil weight, and stamping requirements.
Frequently Asked Questions
What is a 3 in 1 Decoiler Straightener Feeder?
A 3 in 1 Decoiler Straightener Feeder combines three functions—decoiling, straightening, and feeding—into one integrated coil processing machine. It is commonly used to automatically prepare and feed metal coil material into a stamping press.
How do you match a 3 in 1 feeder with a stamping press?
The feeder should be matched according to material thickness, material width, coil weight, feed length, press speed, die dimensions, material centerline, and the required feeding signal sequence.
Does the feeder need to synchronize with the stamping press?
Yes. The feeder and stamping press need a coordinated feeding sequence so that material movement occurs at the appropriate stage of the press cycle. The exact control method depends on the press, die, and feeder configuration.
What causes unstable feeding length?
Possible causes include feeding roller slippage, incorrect feeding pressure, material surface contamination, encoder feedback problems, servo alarms, or mechanical backlash. The material condition and complete feeding system should be checked before changing compensation parameters.
Can a 3 in 1 feeder process different material thicknesses?
The answer depends on the specific machine model. Material thickness, width, coil weight, material strength, and required straightening performance should be considered when selecting the machine configuration.
Is a 3 in 1 feeder suitable for progressive die stamping?
Yes. A 3 in 1 Decoiler Straightener Feeder can be used for progressive die stamping when the feeder, press, die, and material specifications are properly matched.
