Introduction

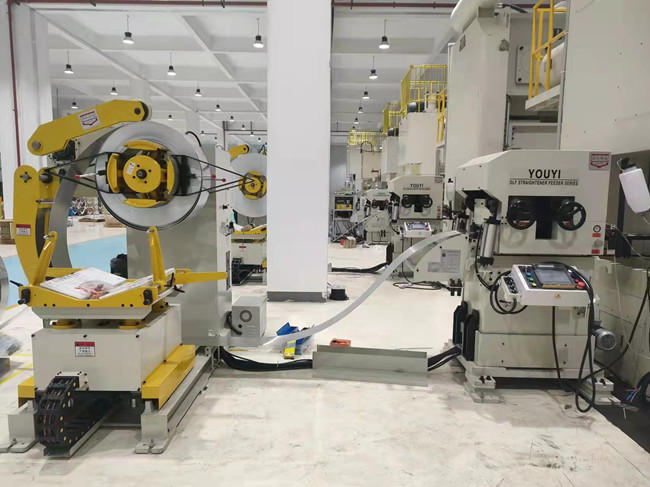

A 3 in 1 Decoiler Straightener Feeder combines decoiling, straightening, and servo feeding functions into one integrated system. It is widely used in automated metal stamping lines to improve material handling efficiency, reduce equipment footprint, and maintain consistent feeding performance.

However, correct operation is essential for stable production and operator safety. Before starting the machine, operators should understand the control system, verify the material specifications, and follow the operating procedures provided by the equipment manufacturer.

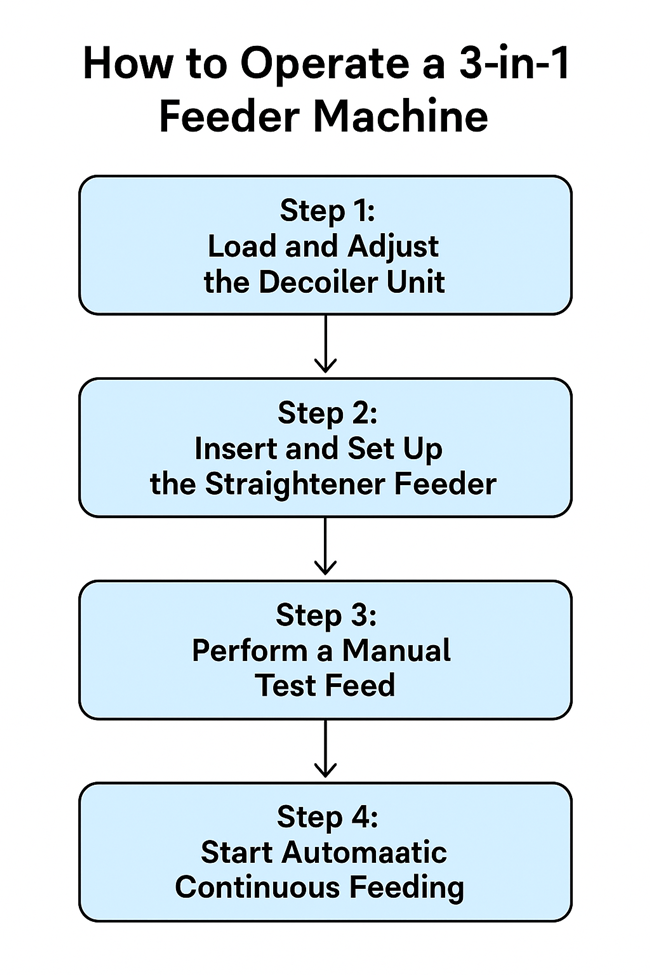

This guide explains the main operating steps, from loading the coil and threading the strip to test feeding and automatic production.

Before Operating a 3 in 1 Decoiler Straightener Feeder

Before starting the equipment, confirm that the machine configuration is suitable for the material and production requirements.

Check the following items:

Material specifications: Confirm the strip width, thickness, coil weight, and material type are within the machine's rated capacity.

Coil condition: Check that the coil is properly secured and free from obvious damage that could affect loading or feeding.

Equipment condition: Inspect the decoiler mandrel, straightening rollers, feeding rollers, guide components, and relevant safety devices.

Electrical and pneumatic systems: Check the required power supply, air pressure, and other utilities according to the machine manual.

Press synchronization: Confirm that the feeder settings and press control signals are suitable for the intended stamping process.

Safety measures: Make sure guards and interlocks are in place and that no personnel are inside hazardous operating areas.

Only trained and authorized personnel should operate the equipment. Always follow the machine-specific instructions supplied by YouYi Precision or the equipment manufacturer.

Step 1: Load and Secure the Coil

The first step is to position the metal coil on the decoiler section.

Use the designated coil-loading device to lift and position the coil according to the machine's loading procedure.

Align the coil with the decoiler mandrel and confirm that the coil is positioned correctly.

Expand the mandrel to secure the coil's inner diameter, following the machine's operating instructions.

Verify that the coil is firmly supported and that the loading equipment can be safely removed.

Check the decoiler's rotation direction and material discharge path before proceeding.

Important: Metal coils are heavy and can move unexpectedly if they are not secured correctly. Keep personnel clear of suspended loads and pinch points. Never exceed the rated coil capacity of the machine.

Step 2: Thread the Material Through the Straightening and Feeding Sections

After securing the coil, guide the strip through the straightening and feeding mechanisms.

Place the equipment in the designated setup mode and follow the manufacturer's procedure for opening or adjusting the relevant rollers.

Guide the strip through the straightening section and into the servo feeding section.

Ensure that the material follows the intended path without twisting, excessive lateral movement, or obstruction.

Adjust the straightening roller pressure and material guides according to the material thickness, strength, and actual straightening requirements.

Secure the strip in the feeding section as specified in the operating manual.

The required roller settings depend on the material properties, strip dimensions, and machine configuration. Avoid applying a universal setting to different materials without verification.

Before proceeding, confirm that the strip is correctly positioned and that no tools or loose objects remain in the operating area.

Step 3: Perform a Test Feed and Verify the Settings

Before starting continuous production, conduct a controlled test feed.

Select the appropriate manual or setup mode.

Use the designated controls to advance the material through the feeding section.

Observe whether the strip moves smoothly through the straightening and feeding mechanisms.

Check for material deviation, slipping, abnormal noise, vibration, or visible surface damage.

Verify that the feed length and positioning meet the requirements of the stamping process.

Make necessary adjustments according to the machine manual and repeat the test until the feeding operation is stable.

If the material does not feed correctly, stop the operation and identify the cause before continuing. Do not reach into moving rollers or attempt to clear a jam while the machine is energized.

Where inspection, cleaning, or jam removal requires access to hazardous areas, follow the required energy-isolation procedure.

Step 4: Start Automatic Feeding and Monitor Production

Once the test feed is satisfactory, prepare the system for automatic operation.

Confirm that the coil is secure and the material path is clear.

Verify the feeder settings, press signals, and production parameters.

Ensure that guards, interlocks, and other safety devices are functioning correctly.

Select automatic mode according to the operating procedure.

Start the production cycle using the designated controls.

Monitor the material movement, feeding accuracy, decoiler operation, and interaction between the feeder and stamping press.

During production, pay attention to changes in feeding performance, material alignment, unusual noise, or abnormal machine movement.

If the system stops unexpectedly or feeding accuracy becomes unstable, follow the prescribed shutdown and troubleshooting procedures. Do not bypass safety devices to maintain production.

Daily Safety and Maintenance Checks

Routine inspections help maintain stable operation and reduce avoidable downtime.

Inspection frequency and maintenance intervals should follow the manufacturer's recommendations and the actual production environment.

Before cleaning, adjusting, or maintaining hazardous areas, stop the machine and isolate all relevant energy sources according to the approved safety procedure.

Common Operating Mistakes to Avoid

1. Loading a Coil That Exceeds the Machine's Capacity

Excessive coil weight or unsuitable coil dimensions can affect safe operation and equipment performance. Confirm the rated capacity before loading.

2. Incorrect Straightening Roller Adjustment

Insufficient or excessive roller pressure can result in residual material curvature, surface marks, or unstable feeding. Adjust the rollers based on the material and verify the result through test feeding.

3. Skipping the Test Feed

Starting automatic production without checking the feeding path and feed length may cause material misalignment, stamping defects, or equipment interruptions.

4. Ignoring Abnormal Machine Conditions

Unusual noise, material deviation, repeated alarms, or inconsistent feeding should be investigated promptly. Stop the equipment when necessary and follow the approved troubleshooting procedure.

5. Adjusting or Clearing the Machine While It Is Running

Never place hands near moving rollers or other hazardous components during operation. Use the proper shutdown and energy-isolation procedures before accessing hazardous areas.

Frequently Asked Questions

What is a 3 in 1 Decoiler Straightener Feeder?

A 3 in 1 Decoiler Straightener Feeder integrates decoiling, straightening, and servo feeding into one machine. It is designed to prepare coil material and feed it into a stamping press in a controlled sequence.

What Should I Check Before Starting the Machine?

Check the coil specifications, coil security, material path, roller condition, machine settings, press synchronization, and safety devices. Always follow the instructions for the specific machine model.

Why Is the Material Feeding Inaccurately?

Potential causes include incorrect feeding parameters, material slippage, unsuitable straightening roller settings, material misalignment, or a mismatch between the feeder and press signals. Inspect the system and make adjustments according to the manufacturer's troubleshooting guidance.

Can One Machine Handle Different Material Thicknesses?

That depends on the machine model and its rated processing range. Material thickness, width, strength, and surface requirements should all be considered when selecting a 3 in 1 Decoiler Straightener Feeder. Confirm the applicable specifications with the manufacturer before processing a different material.

How Can I Improve Feeding Stability?

Use suitable machine settings, verify the material path, keep rollers clean and in good condition, confirm press synchronization, and monitor the feeding process. Regular maintenance and correct operation help support stable production.

Conclusion

Operating a 3 in 1 Decoiler Straightener Feeder correctly involves more than starting the machine. Proper coil loading, accurate material threading, controlled test feeding, and careful monitoring during automatic production all contribute to safe and reliable stamping operations.

For manufacturers planning a new coil feeding line or upgrading an existing stamping process, selecting equipment that matches the material specifications, press requirements, and production conditions is equally important.

Looking for a suitable 3 in 1 Decoiler Straightener Feeder for your stamping application? Contact YouYi Precision to discuss your material specifications, coil weight, strip width, material thickness, and production requirements. Our team can help evaluate a suitable coil feeding solution for your application.
