In the metal processing industry—especially in new energy applications such as aluminum casing production for lithium batteries—surface quality is just as critical as production efficiency. During decoiling and straightening, surface scratches, drag marks, or material galling can directly impact downstream stamping quality and final product yield.

A 2-in-1 Decoiler Straightener (also known as a combined uncoiler and straightener) is widely used for its compact structure and high efficiency. However, preventing material surface damage during operation remains a key concern for manufacturers. This article explores practical design features and optimization strategies that help effectively prevent scratches and surface defects, making it suitable for publication on a Google-focused independent website.

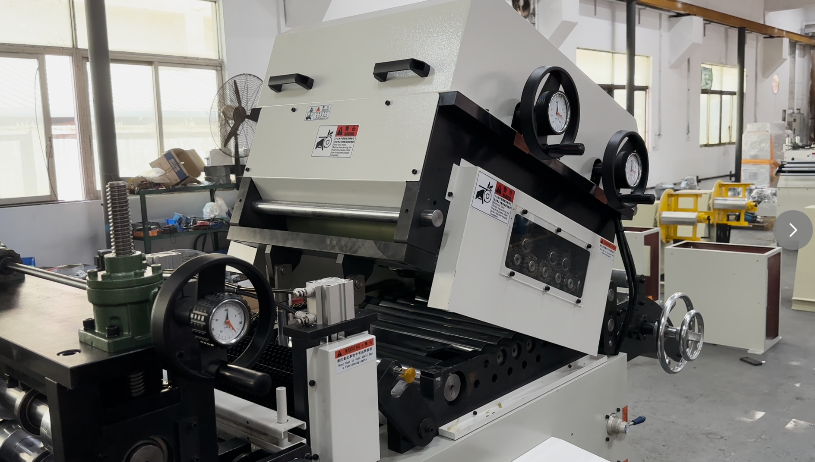

Openable Machine Head Design: Easier Cleaning, Lower Scratch Risk

One of the most effective ways to prevent surface scratches is maintaining a clean straightening environment. Modern 2-in-1 decoiler straighteners often feature an openable (flip-up) machine head design, allowing operators to easily access the straightening rollers.

This structure makes it convenient to:

Remove metal dust, aluminum powder, or debris accumulated on rollers

Clean residual contaminants on the material path

Perform routine inspections and maintenance

By reducing foreign particles between the rollers and the strip material, this design significantly lowers the risk of surface scratches caused by trapped debris, while also improving long-term straightening accuracy.

Precision Adjustment System: Improving Flatness and Surface Protection

A high-quality precision adjustment system is essential for both flatness control and surface protection. Many 2-in-1 decoiler straighteners are equipped with servo motor-driven adjustment mechanisms, enabling accurate and repeatable control of roller penetration.

Key benefits include:

Precise adjustment for different material thicknesses and strengths

Stable roller pressure distribution

Reduced over-compression that can lead to drag marks or surface stress

By accurately setting roller pressure and tension, the straightener ensures smooth material flow, minimizes waviness, and reduces the likelihood of surface galling during processing.

Dust Removal and Anti-Scratch Devices: All-Round Surface Protection

For materials such as aluminum and stainless steel, surface dust or fine metal particles are common sources of scratches. To address this, a 2-in-1 decoiler straightener can be optionally equipped with dust-removal felt pads or wool felt cleaning plates installed before the straightening section.

These devices:

Clean the strip surface before it enters the rollers

Prevent hard particles from being pressed into the material surface

Protect high-finish or sensitive materials

In addition, straightening rollers are typically manufactured from high-grade alloy steel and treated with hardening and polishing processes, enhancing wear resistance and reducing the risk of roller-induced scratches.

Dust Removal and Anti-Scratch Devices: All-Round Surface Protection

For materials such as aluminum and stainless steel, surface dust or fine metal particles are common sources of scratches. To address this, a 2-in-1 decoiler straightener can be optionally equipped with dust-removal felt pads or wool felt cleaning plates installed before the straightening section.

These devices:

Clean the strip surface before it enters the rollers

Prevent hard particles from being pressed into the material surface

Protect high-finish or sensitive materials

In addition, straightening rollers are typically manufactured from high-grade alloy steel and treated with hardening and polishing processes, enhancing wear resistance and reducing the risk of roller-induced scratches.

Wide Material Compatibility: Suitable for Multiple Metal Types

A well-designed 2-in-1 decoiler straightener is not limited to lithium battery aluminum sheets. It is also widely used for processing:

Stainless steel coils

Copper coils

Aluminum coils of various alloys

Thanks to flexible adjustment ranges and optimized roller configurations, the machine can adapt to different materials and thicknesses while maintaining stable straightening performance. This versatility improves equipment utilization and helps manufacturers reduce investment costs.

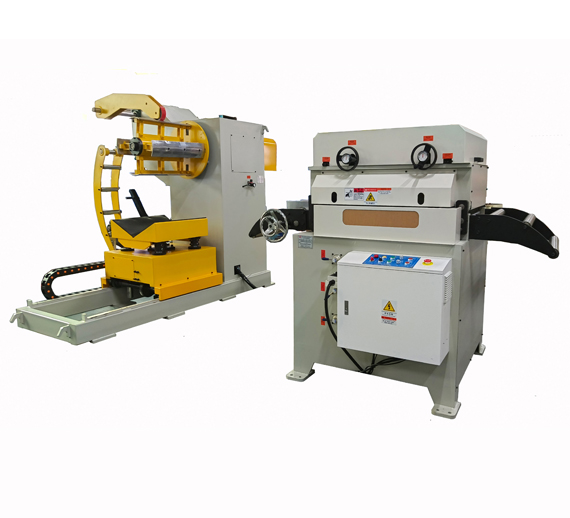

Compact Structure and Integrated Control: Saving Space, Boosting Efficiency

The integrated design of a 2-in-1 decoiler straightener combines the coil car, decoiler, and straightener on a single base frame. This compact structure:

Saves valuable factory floor space

Ensures stable material feeding without strip deviation

Improves alignment accuracy before downstream processing

All operations are typically controlled via a centralized electrical control cabinet, simplifying operation and enhancing overall production efficiency.

Conclusion

Through innovative structural designs and precision control systems, the 2-in-1 Decoiler Straightener effectively addresses one of the most common challenges in coil processing—material surface scratches. Features such as an openable machine head, servo precision adjustment, dust removal devices, high-quality rollers, and compact integrated design work together to ensure stable processing, superior surface quality, and higher production efficiency.

For manufacturers in lithium battery, automotive, appliance, and general metal stamping industries, choosing a well-designed 2-in-1 decoiler straightener is a reliable solution for improving product quality while reducing maintenance and operational costs.
