Introduction

In coil-fed metal stamping, material preparation directly affects production stability. Coil curvature, uneven material flatness, improper decoiling tension, and limited factory space can create challenges before the strip even reaches the stamping press.

A 2 in 1 Uncoiler Leveler combines coil decoiling and material leveling in one integrated machine. Instead of installing a separate uncoiler and leveler as two independent units, manufacturers can use a combined system to simplify the coil processing layout and prepare strip material for downstream stamping operations.

For manufacturers upgrading an existing production line or planning a new stamping workshop, the main consideration is not simply whether two functions can be integrated. It is whether the equipment can handle the required material specifications, achieve the necessary flatness, and maintain a stable supply of material to the next process.

This article explains how a 2 in 1 Uncoiler Leveler works, its main components, its practical advantages, and the key factors to consider when selecting equipment for stamping automation.

What Is a 2 in 1 Uncoiler Leveler?

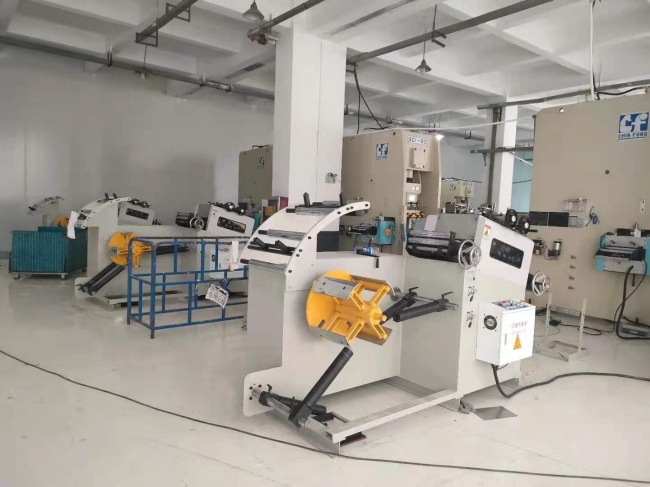

A 2 in 1 Uncoiler Leveler is coil processing equipment that integrates an automatic uncoiling mechanism and a leveling unit into one machine.

The uncoiling section supports the metal coil and releases the strip in a controlled manner. The leveling section uses a series of rollers to correct curvature and reduce the deformation associated with coil winding, helping prepare the material for subsequent stamping operations.

The typical process is:

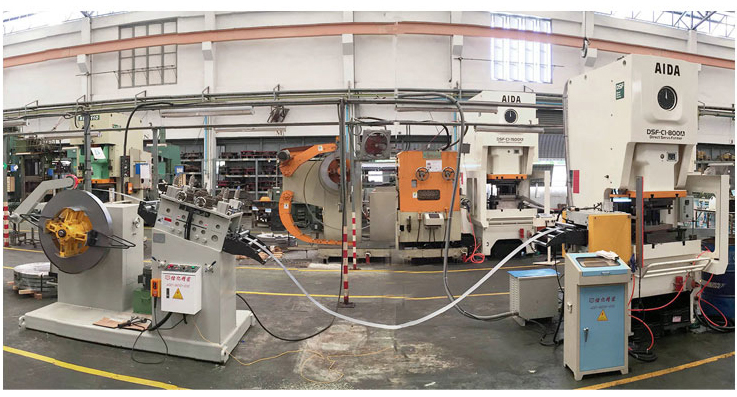

Metal Coil → Uncoiling → Roller Leveling → Downstream Feeding Equipment → Stamping Press

The exact production layout depends on the equipment configuration. A standard 2 in 1 Uncoiler Leveler performs decoiling and leveling; a separate servo feeder or other feeding mechanism may still be required to deliver material to the stamping die at the specified feed length and timing.

Compared with installing separate uncoiling and leveling machines, the integrated design can simplify equipment positioning and reduce the space needed for the coil preparation section.

How Does a 2 in 1 Uncoiler Leveler Work?

The equipment performs two main operations: releasing the coil and correcting the strip's curvature.

1. Controlled Coil Uncoiling

The uncoiling section supports the coil on an expansion mandrel or another designated holding mechanism. As the production line operates, the coil rotates and releases material toward the leveling section.

Depending on the machine configuration, features may include a hydraulic expansion system, a coil pressing arm, a support arm, or an optional coil loading trolley.

These components help secure the coil, control material release, and support safer coil handling. Their availability and specifications vary by model.

2. Roller Leveling

After leaving the coil, the strip passes through the leveling rollers. The rollers apply controlled bending to the material, helping reduce the curvature that remains after winding.

The required adjustment depends on material thickness, yield strength, strip width, and the desired flatness. Different materials and thicknesses may require different roller settings.

Correct leveling helps provide a more consistent material condition for downstream feeding and stamping. However, the achievable flatness depends on both the machine's capabilities and the characteristics of the incoming material.

3. Material Transfer to the Next Process

After leveling, the strip moves to the downstream feeding mechanism or stamping process.

For an integrated automatic line, the uncoiler, leveler, feeder, and press must work together according to the required production sequence. Proper material alignment and compatible control signals help prevent feeding interruptions and positioning problems.

Main Components of a 2 in 1 Uncoiler Leveler

The machine configuration should be selected according to the coil specifications, material characteristics, and production requirements.

1. Automatic Uncoiling Unit

The uncoiling unit supports the coil and provides a controlled supply of strip material.

Depending on the selected configuration, key features may include:

Coil support and expansion mechanism: Holds the coil securely during operation.

Hydraulic expansion system: Facilitates coil securing where this configuration is fitted.

Pressing arm: Helps restrain the outer coil wraps and reduce the risk of loosening.

Support arm: Supports material handling during the designated operating stages.

Optional coil loading trolley: Assists with loading and positioning compatible coils.

When evaluating the uncoiling section, check the rated coil weight, coil inner and outer diameters, strip width, and the available loading method. These parameters determine whether the machine can accommodate the intended production materials.

2. Precision Leveling System

The leveling unit corrects strip curvature before the material reaches the next production stage.

Important considerations include:

Leveling roller configuration: Influences the machine's ability to correct material deformation.

Adjustment mechanism: Allows the leveling settings to be matched to the material and operating requirements.

Material-contact surface: Should be suitable for the material's surface and finish requirements.

Maintenance accessibility: Helps operators inspect and clean the rollers when required.

For aluminum, copper, stainless steel, and other materials with demanding surface requirements, roller condition and material-contact design deserve particular attention. The appropriate configuration depends on the material properties and the acceptable surface quality.

Key Advantages of a 2 in 1 Uncoiler Leveler in Stamping Automation

1. Reduced Equipment Footprint

Installing separate decoiling and leveling machines requires space for each unit, their relative positioning, and the material path between them.

A 2 in 1 Uncoiler Leveler integrates both functions into one machine, which can simplify the layout of the coil preparation section.

This is particularly useful for manufacturers that:

Need to upgrade an existing stamping line with limited floor space.

Want to simplify equipment positioning during a new line installation.

Need a more compact arrangement between coil storage and the stamping press.

Want to reduce unnecessary transfers between separate processing units.

The actual space saving depends on the dimensions of the selected machine and the layout of the complete production line.

2. More Consistent Material Flatness

Coil material retains curvature after being wound and stored. If the incoming strip is not adequately leveled, residual deformation may affect subsequent material positioning and forming.

The leveling rollers apply controlled bending to reduce this curvature before stamping.

When the equipment is correctly matched to the material and properly adjusted, improved flatness can help support:

More consistent material positioning.

More stable downstream feeding.

Reduced problems associated with excessive strip curvature.

More consistent stamping results when material flatness is a contributing factor.

Leveling alone cannot eliminate every cause of dimensional variation. Die condition, press performance, material properties, and feeding accuracy also affect the final part quality.

3. A Simplified Coil Processing Layout

Combining uncoiling and leveling into one unit reduces the need to position and coordinate two independent machines in the coil preparation section.

This can make equipment installation and routine production management more straightforward.

For manufacturers integrating a new press line, the combined design also provides a clear starting point for planning the downstream servo feeder, press interface, safety guarding, and material transfer path.

4. More Efficient Material Handling

An integrated machine can reduce the need to transfer the strip between separate uncoiling and leveling units.

Depending on the line configuration, this may simplify setup activities and reduce unnecessary handling steps.

To achieve stable continuous production, however, the uncoiler and leveler must still be correctly adjusted, and the downstream feeding equipment must be compatible with the material and press requirements.

5. Flexible Configuration for Different Production Needs

Different stamping applications require different combinations of coil weight capacity, strip width, material thickness, leveling performance, and loading options.

A suitable 2 in 1 Uncoiler Leveler should therefore be selected according to the actual production materials rather than equipment appearance or nominal capacity alone.

For manufacturers processing surface-sensitive materials or changing between different material specifications, the leveling mechanism, roller surface, adjustment range, and maintenance requirements are particularly important.

2 in 1 Uncoiler Leveler vs. Separate Uncoiler and Leveler

Both configurations can prepare coil material for stamping. The main difference is how the uncoiling and leveling functions are arranged within the production line.

Neither arrangement is automatically suitable for every stamping line. The right choice depends on material specifications, production volume, available space, equipment capacity, and downstream process requirements.

How to Choose the Right 2 in 1 Uncoiler Leveler

Before purchasing equipment, manufacturers should evaluate several technical factors.

1. Material Thickness and Strip Width

Material thickness and width are fundamental selection parameters because they affect the required leveling capacity and machine configuration.

Confirm the complete processing range rather than checking only the maximum thickness or maximum width. If the line handles several materials, evaluate the full range of thicknesses, widths, and material properties.

2. Coil Weight and Dimensions

The uncoiling section must safely support the intended coil weight and dimensions.

Check:

Maximum coil weight.

Coil inner diameter.

Coil outer diameter.

Strip width.

Loading and unloading requirements.

The loading equipment must also be suitable for the coil dimensions and the machine's approved handling procedure.

3. Material Type and Surface Requirements

Carbon steel, stainless steel, aluminum, and copper can have different mechanical and surface characteristics.

For materials with strict appearance requirements, discuss roller surface condition, material-contact design, and cleaning procedures with the manufacturer. Surface protection depends on the entire material path, not only the leveling rollers.

4. Required Flatness and Leveling Performance

Clarify the material's incoming condition and the required flatness after leveling.

Material strength, thickness, coil history, and the required result all affect equipment selection. If flatness is critical to the final stamped part, provide representative material samples or detailed specifications for technical evaluation.

5. Compatibility with the Downstream Stamping Line

A 2 in 1 Uncoiler Leveler is one part of the complete coil processing system.

Before finalizing the configuration, consider the downstream servo feeder, stamping press, die requirements, material transfer path, control signals, and safety arrangements.

If the production line requires precise intermittent feeding, confirm whether a separate servo feeder is needed and how the complete system will be synchronized.

FAQ

What is a 2 in 1 Uncoiler Leveler used for?

A 2 in 1 Uncoiler Leveler combines coil decoiling and material leveling in one machine. It prepares metal strip for downstream feeding and stamping while providing an integrated alternative to separately installed uncoiling and leveling units.

What is the difference between a 2 in 1 Uncoiler Leveler and a 2 in 1 Decoiler Straightener?

These terms can describe similar equipment that combines decoiling and leveling or straightening. The exact product name and configuration depend on the manufacturer's terminology. When comparing machines, verify the actual functions, material range, and technical specifications instead of relying on the name alone.

What materials can a 2 in 1 Uncoiler Leveler process?

Depending on the model and configuration, it may be suitable for carbon steel, stainless steel, aluminum, copper, and other metal coil materials. Confirm the material thickness, strip width, mechanical properties, surface requirements, and rated machine capacity before selecting equipment.

Does a 2 in 1 Uncoiler Leveler include a servo feeder?

Not necessarily. A 2 in 1 Uncoiler Leveler generally integrates decoiling and leveling. A separate servo feeder may be required to control feed length and coordinate material delivery to the stamping press. Confirm the functions included in the specific machine configuration.

How do I select the right machine capacity?

Start with the maximum and minimum material thickness, strip width, coil weight, coil dimensions, material type, and required flatness. Then verify that the machine's rated capacity and adjustment range cover the actual production requirements.

Can a 2 in 1 Uncoiler Leveler improve stamping quality?

It can help improve material flatness and feeding consistency when the equipment is correctly selected and adjusted. Final stamping quality also depends on material properties, die condition, press accuracy, feeding control, and other process variables.

Conclusion

A 2 in 1 Uncoiler Leveler offers an integrated approach to coil decoiling and material leveling for metal stamping applications. By combining these functions into one machine, it can simplify the coil preparation layout, reduce the need for transfer between separate units, and help prepare material for more consistent downstream processing.

The most suitable configuration depends on coil weight, material thickness, strip width, material surface requirements, required flatness, and compatibility with the downstream feeding and stamping equipment.
