Choosing the right feeder is important when a stamping line needs both accurate feeding and reliable material handling. While conventional roller feeders are widely used for standard metal stamping, some materials require better surface protection and more precise feeding control.

A servo gripper feeder uses a gripping mechanism to hold the edge of the strip and move it according to the programmed feed length. Unlike a conventional roller feeder that relies on direct friction between rollers and the material surface, the gripper design minimizes contact with the finished surface of the strip.

This makes the servo gripper feeder particularly useful for surface-sensitive materials, thin metal strips, titanium alloys, mirror-finish materials, and precision stamping applications.

The right choice, however, depends on the material, surface requirements, feeding accuracy, stamping process, and production speed.

What Is a Servo Gripper Feeder?

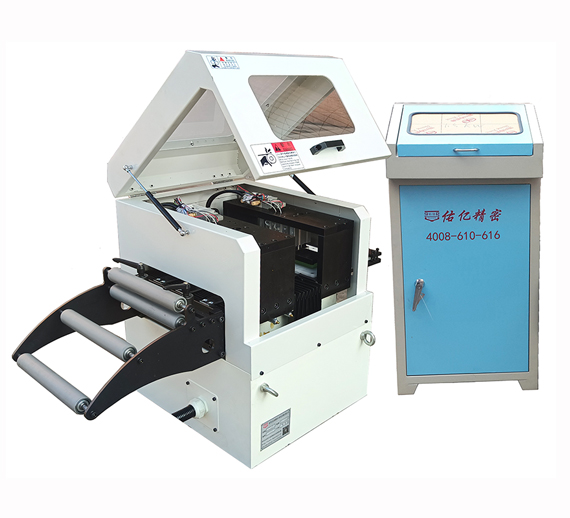

A servo gripper feeder is a precision feeding machine designed for automatic material feeding in stamping production.

Instead of pulling the material forward with conventional feeding rollers, the feeder uses a servo-driven gripping mechanism to clamp the edge of the strip and perform a controlled reciprocating movement.

The main components typically include:

Servo motor

Linear guide rails

Precision ball screw

Gripper or clamping mechanism

Feeding control system

Pneumatic or mechanical clamping system, depending on configuration

The servo motor controls the feeding movement according to the programmed feed length. The linear guide and ball screw system help maintain stable and repeatable movement during continuous operation.

One important advantage is that the gripping mechanism primarily contacts the edge of the material rather than relying on rollers pressing against the finished surface.

For this reason, a servo gripper feeder can be considered when the material has a high surface-finish requirement or when roller contact may affect the appearance of the finished strip.

How Does a Servo Gripper Feeder Work?

The feeding process is based on a clamp-and-release cycle.

1. Material Clamping

The gripper clamps the edge of the metal strip securely before the feeding stroke begins.

2. Servo Feeding

The servo motor drives the gripper through the linear guide and ball screw according to the programmed feed length.

3. Material Positioning

The strip is moved to the required position before the stamping operation. The programmed feeding distance can be adjusted according to the die and production requirements.

4. Gripper Release

After the feeding stroke, the gripper releases the strip and returns to its starting position.

5. Repeat Feeding

The cycle repeats according to the stamping press operation and programmed feeding sequence.

This feeding principle is different from a conventional roller feeder because the material is transported through a controlled gripping movement rather than continuous friction between rollers and the material surface.

Servo Gripper Feeder vs. Conventional Roller Feeder

The main difference between the two systems is the way they grip and move the material.

A conventional roller feeder uses upper and lower rollers to clamp the strip. The rollers rotate to pull the material toward the stamping die.

A servo gripper feeder uses a clamp to grip the material edge and move the strip through a reciprocating stroke.

Neither feeding system is universally better. The appropriate choice depends on the material and production requirements.

Feeding Mechanism

A conventional roller feeder depends on friction between the rollers and the strip. The feeding performance can therefore be affected by roller pressure, material thickness, surface condition, and the condition of the roller surfaces.

A servo gripper feeder transfers the strip through a controlled clamping movement. This makes it useful when the production process requires reduced contact with the finished surface.

Material Surface Protection

Surface protection is one of the main reasons manufacturers consider a gripper feeder.

For mirror-finish stainless steel, decorative metal, or other surface-sensitive materials, direct roller contact may leave marks if the roller pressure, material cleanliness, or roller condition is not properly controlled.

A gripper feeder minimizes this type of contact by gripping the material edge.

However, it should not be described as completely "non-contact feeding" because the gripper still physically clamps the material. The key difference is that it avoids using the finished surface as the primary friction surface for feeding.

Feeding Accuracy

Both servo gripper feeders and modern NC roller feeders can provide high feeding accuracy when correctly configured.

Actual accuracy depends on factors such as:

Servo system

Feed length

Material thickness

Material width

Die design

Material straightness

Mechanical rigidity

Press synchronization

Machine setup

Therefore, feeder selection should not be based on the drive type alone.

Material Compatibility

Conventional roller feeders are suitable for a wide range of common stamping materials, including carbon steel, stainless steel, galvanized steel, aluminum, and other coil-fed materials.

A servo gripper feeder becomes more attractive when the material also has strict requirements for surface finish, deformation control, or feeding stability.

Which Materials Are Suitable?

Servo gripper feeders are particularly useful for materials where surface quality and feeding control are important.

Mirror-Finish Stainless Steel

Mirror-finish stainless steel is sensitive to scratches, pressure marks, and contamination.

Because the gripper primarily holds the edge of the strip, it can reduce the amount of direct contact with the finished surface during feeding.

This makes the feeding method suitable for selected decorative and precision stainless-steel stamping applications.

Thin Aluminum and Copper

Thin aluminum and copper strips can be sensitive to surface damage and deformation during feeding.

For these materials, the feeding force and clamping method need to be carefully matched to the material thickness and width.

A servo gripper feeder can be considered when the application requires controlled feeding with limited surface contact.

Titanium Alloy

Titanium alloys are used in applications where material performance and dimensional accuracy are important.

When titanium strips are used for precision stamping, the feeding system needs to provide stable movement while minimizing unnecessary contact with the finished surface.

A gripper-type feeding system can be suitable for these applications when the material dimensions and stamping process match the feeder's working range.

Hydrogen Fuel Cell Bipolar Plates

Hydrogen fuel cell bipolar plates are precision components with strict requirements for dimensional accuracy and surface condition.

Depending on the plate material and production process, a servo gripper feeder can be used to provide controlled strip feeding while minimizing contact with critical surfaces.

The feeder configuration should be selected according to the bipolar plate material, thickness, width, forming process, and die design.

Surface-Sensitive Automotive Components

Automotive decorative parts and trim components often have higher appearance requirements than conventional structural stamping parts.

When the finished metal surface must remain free from visible roller marks or scratches, a gripper feeding system can be considered as part of the automated stamping line.

When Should You Choose a Conventional Roller Feeder?

A conventional roller feeder remains a practical choice for many stamping applications.

It is generally suitable when:

The material surface is not highly sensitive to roller contact.

The material is a standard steel or metal coil.

The production process does not require edge gripping.

The feeding distance is compatible with the roller feeder.

The required feeding accuracy can be achieved with a conventional NC servo feeder.

Production cost and equipment simplicity are important considerations.

For standard cold-rolled steel, galvanized steel, and many general-purpose stamping applications, a conventional servo roll feeder may provide a more straightforward and economical solution.

There is therefore no need to use a servo gripper feeder simply because it provides a different feeding mechanism. The material and production requirements should determine the choice.

Why Use a Servo Gripper Feeder for Precision Stamping?

The main reason to consider a servo gripper feeder is not simply higher speed. Its main value is the combination of controlled feeding movement and reduced contact with the material surface.

It can be considered for applications requiring:

High feeding repeatability

Reduced risk of surface marks

Controlled movement of thin strips

Precision stamping

Surface-sensitive materials

Multi-stage progressive stamping

Specialized metal forming processes

For these applications, the feeder should be selected together with the stamping press, die, material specification, and required production cycle.

How to Choose the Right Feeder for Your Stamping Line?

Before selecting a feeder, collect the actual production parameters rather than choosing the machine only by material name.

The following information is important:

For surface-sensitive materials, the material surface requirement should be considered together with the feeder structure.

For standard stamping materials, a conventional NC servo feeder may already provide sufficient accuracy and reliability.

Conclusion

A servo gripper feeder and a conventional roller feeder serve different production requirements.

Conventional roller feeders remain widely suitable for standard metal stamping because of their simple feeding principle and broad material compatibility.

A servo gripper feeder is worth considering when the application requires reduced contact with the finished material surface, controlled feeding movement, or stable handling of specialized materials such as mirror-finish stainless steel, thin aluminum, copper, titanium alloy, and selected hydrogen fuel cell bipolar plate applications.

The best feeder is therefore not determined by the feeder type alone. Material thickness, width, surface finish, feed length, stamping speed, die structure, and required accuracy should all be considered before selecting the equipment.

Frequently Asked Questions

What is the main advantage of a servo gripper feeder?

The main advantage is its edge-gripping feeding method. Instead of relying on rollers pressing against the material surface, the gripper holds the strip edge and moves it through a controlled servo-driven stroke. This can help reduce the risk of surface marks on sensitive materials.

Does a servo gripper feeder contact the material?

Yes. The gripper physically clamps the material, normally at the strip edge. Therefore, "reduced surface contact" is a more accurate description than completely "non-contact feeding."

Is a servo gripper feeder suitable for high-speed stamping?

It can be used for high-speed and precision stamping applications when the feeder specifications, stamping press, die, material characteristics, and required cycle time are properly matched.

The actual maximum operating speed should be confirmed according to the specific feeder model and production configuration.

Can a servo gripper feeder handle all types of metal?

Not necessarily. A servo gripper feeder can handle many metal materials, but suitability depends on material thickness, width, strength, surface condition, strip geometry, and the required feeding process.

For standard metal coils, a conventional NC servo feeder may be a more practical choice.
