Introduction: What Is Steel Coil Processing?

Steel coil processing is the process of converting rolled metal coils into sheets or strips with specific dimensions and material characteristics for downstream manufacturing. Depending on the final product requirements, the process may involve decoiling, leveling, cutting to length, slitting, and recoiling.

Steel coils are widely used in metal manufacturing because they can be stored and transported in large quantities. However, many production processes require flat sheets or narrower strips rather than full-width coils. Steel coil processing equipment helps manufacturers convert raw coil material into the formats required for fabrication, stamping, and assembly.

Two common processing methods are cut-to-length processing and coil slitting.

Cut-to-length processing converts continuous coil material into flat sheets with specified lengths.

Coil slitting cuts a wide coil lengthwise into narrower strips that can be rewound into separate coils.

The appropriate method depends on the required material dimensions, flatness, production volume, and downstream manufacturing process.

YouYi Precision provides automated coil processing equipment, including Cut to Length Lines for applications requiring continuous coil-to-sheet processing.

What Are the Main Types of Steel Coil Processing?

Steel coil processing methods are selected according to the shape, dimensions, and properties required for the finished material. Cut-to-length processing and slitting serve different purposes and should not be treated as interchangeable operations.

1. Cut-to-Length Processing

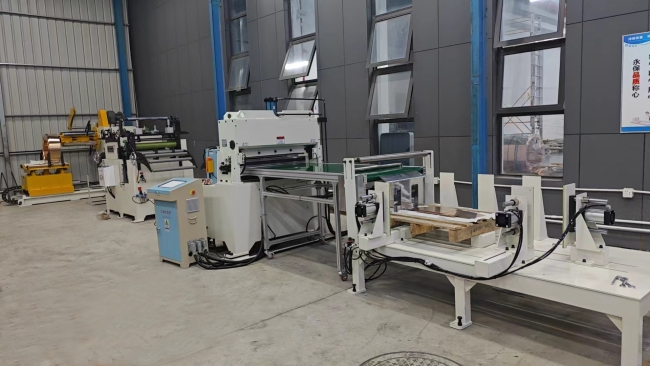

Cut-to-length processing converts continuous metal coil into flat sheets with predetermined lengths. A typical automatic cut-to-length line integrates decoiling, leveling, servo feeding, shearing, and sheet stacking.

The process generally follows these steps:

Decoiling: The steel coil is mounted on a decoiler and released into the processing line.

Leveling: The material passes through leveling rollers to reduce coil set and improve flatness.

Feeding: A controlled feeding system advances the material to the required cutting position.

Shearing: The cutting mechanism separates the material into sheets of the specified length.

Stacking: The finished sheets are collected and arranged for storage or subsequent processing.

The exact equipment configuration depends on the material thickness, width, strength, cutting length, and required production rate.

Cut-to-length processing is suitable for manufacturers that need flat metal sheets for stamping, fabrication, laser cutting, and other sheet metal operations.

Explore YouYi Precision's Cut-to-Length Lines to learn more about automated coil-to-sheet processing solutions.

2. Steel Coil Slitting

Steel coil slitting is used to divide a wide metal coil into multiple narrower strips. Unlike cut-to-length processing, which cuts material across its width to create individual sheets, slitting cuts longitudinally along the direction of the coil.

A typical slitting line includes:

Decoiling: The original coil is mounted and unwound.

Slitting: Rotary slitting knives divide the material into narrower strips according to the required widths.

Tension control: The line maintains suitable material tension during processing.

Recoiling: The slit strips are rewound into separate coils for transportation or further manufacturing.

The number and width of the slit strips depend on the original coil width, the required strip dimensions, knife arrangement, and material properties.

Steel coil slitting is suitable for manufacturers that need narrow metal strips for roll forming, tube manufacturing, metal profiles, stamping, and other continuous production processes.

The slitting line must be configured for the material thickness, strength, width, and required edge quality. Knife setup and tension control are important factors in maintaining consistent strip dimensions and winding quality.

Cut-to-Length vs. Coil Slitting: What Is the Difference?

Although both methods process coil material, they produce different output formats and serve different manufacturing requirements.

The choice should be based on the format required by the next production stage. If the material must be supplied as flat sheets, a cut-to-length line is generally the appropriate solution. If the next process requires narrower continuous strips, coil slitting is usually more suitable.

Applications of Steel Coil Processing

Processed steel sheets and strips are used across a wide range of manufacturing industries. The appropriate processing method depends on how the material will be formed, cut, assembled, or integrated into the finished product.

1. Automotive Manufacturing

Automotive manufacturers use processed steel in structural components, brackets, reinforcement parts, body components, and other stamped products.

Cut-to-length processing supplies flat sheets for operations requiring specified sheet dimensions. Slitting supplies narrower strips for processes that require consistent strip widths.

Material thickness, strength, flatness, and dimensional requirements should be considered when selecting the processing equipment.

2. Construction and Building Materials

Construction products such as metal panels, cable trays, framing components, and structural profiles may require processed steel sheets or strips.

Cut-to-length lines can produce sheets for fabrication and panel manufacturing, while slit coils can supply material for continuous roll forming and profile production.

For high-volume construction manufacturing, stable material dimensions and consistent output can simplify downstream production.

3. Home Appliances and Electrical Equipment

Steel sheets are commonly used for appliance housings, electrical cabinets, enclosures, and internal structural components.

Cut-to-length processing helps prepare flat material for subsequent forming and fabrication. Slitting may be used when narrower strips are needed for specific components or continuous manufacturing operations.

Where appearance is important, manufacturers should also consider surface condition, roller contact, material handling, and protective measures during processing.

4. Metal Fabrication and Industrial Manufacturing

Fabricators process steel coils into sheet blanks, strips, and other material formats used in industrial machinery, equipment enclosures, storage systems, and general metal products.

Automated coil processing can reduce repeated manual handling and help standardize material dimensions before subsequent cutting, forming, welding, or assembly operations.

Key Benefits of Steel Coil Processing

1. Improved Production Efficiency

Automated coil processing combines multiple operations into a coordinated production workflow.

For cut-to-length processing, integrating decoiling, leveling, feeding, and shearing reduces the need to handle individual sheets at every stage. For slitting, automated knife positioning, longitudinal cutting, and recoiling can support continuous strip production.

The actual productivity improvement depends on the line configuration, material specifications, and production requirements.

2. More Consistent Material Dimensions

Controlled feeding and cutting help produce sheets with consistent lengths, while properly configured slitting equipment helps maintain the required strip widths.

Leveling is particularly important when flat sheets are needed for downstream manufacturing. The achievable dimensional consistency depends on the machine, material properties, tooling condition, and process settings.

3. Reduced Manual Handling

Automated decoiling, feeding, cutting, and stacking can reduce the amount of manual material transfer required during production.

This can simplify production workflows and reduce handling effort, especially when processing large quantities of coil material.

Material loading, unloading, and coil handling must still follow appropriate safety procedures.

4. Better Material Utilization

Steel coil processing allows manufacturers to plan output dimensions according to downstream requirements.

Cut-to-length operations can be configured around required sheet lengths, while slitting patterns can be selected to produce the necessary strip widths from a wider coil.

Material utilization depends on the cutting or slitting layout, trim allowances, setup requirements, and material quality. Equipment selection alone does not guarantee a particular reduction in scrap.

5. Support for High-Volume Manufacturing

Coil processing lines are particularly useful when production requires repeated material dimensions and relatively stable output volumes.

Once the process parameters are established, automated equipment can maintain a consistent workflow across production runs. For frequently changing product specifications or low-volume work, setup time and the required level of flexibility should also be considered.

How to Choose the Right Steel Coil Processing Equipment

Selecting the right processing line requires more than identifying whether the material needs to be cut or slit. Manufacturers should evaluate the raw material, finished dimensions, production requirements, and available factory space together.

1. Define the Required Output Format

Start by identifying the format required by the next production stage.

If the material must be supplied as flat sheets with specified lengths, evaluate a cut-to-length line. If it must remain in continuous narrow strips for roll forming, tube production, or similar operations, evaluate a slitting line.

This decision establishes the basic equipment configuration.

2. Confirm Material Type and Thickness

Steel grades and material thickness influence the required decoiler capacity, leveling structure, cutting mechanism, slitting knives, and drive system.

Provide the actual material specifications rather than relying only on a general description such as steel coil. Different materials may require different equipment configurations even when their dimensions are similar.

3. Determine Coil Width and Weight

The processing line must accommodate the coil's maximum width, weight, inner diameter, and outer diameter.

These dimensions affect the decoiler structure, loading method, material support, and overall equipment layout. Confirming them early helps prevent capacity mismatches.

4. Specify Sheet Length or Strip Width

For cut-to-length processing, define the required sheet length, cutting tolerance, flatness requirements, and expected output rate.

For slitting, specify the original coil width, finished strip widths, number of strips, edge quality requirements, and recoiling conditions.

Clear output specifications make it easier to determine the appropriate machine configuration.

5. Evaluate Production Volume and Automation

Production volume affects whether a highly automated line is economically appropriate.

Manufacturers with continuous, high-volume demand may benefit from integrated decoiling, leveling, feeding, cutting, and stacking functions. Other applications may prioritize quick changeovers, flexible dimensions, or simpler equipment arrangements.

The decision should consider both output requirements and the time needed for setup, maintenance, and material changes.

6. Consider Material Surface and Flatness Requirements

Surface scratches, pressure marks, coil set, and other material defects can affect downstream manufacturing.

For applications involving visible surfaces or tight flatness requirements, discuss roller design, leveling capability, material contact, and protective measures with the equipment manufacturer.

The required performance should be assessed against the actual material and finished-product specifications.

Why Choose YouYi Precision for Coil Processing Equipment?

YouYi Precision provides automated equipment for coil handling, leveling, feeding, and cut-to-length processing.

For manufacturers converting coil material into flat sheets, an appropriately configured cut-to-length line can integrate decoiling, leveling, controlled feeding, shearing, and stacking into a coordinated process.

The final configuration should be selected according to material thickness, coil width, coil weight, cutting length, flatness requirements, and production capacity.

Explore our Cut-to-Length Lines to review available equipment solutions. You can also visit our coil processing equipment overview to learn more about integrated coil handling and processing systems.

Frequently Asked Questions About Steel Coil Processing

What is steel coil processing?

Steel coil processing converts coiled metal into sheets or strips with specified dimensions for downstream manufacturing. Common operations include decoiling, leveling, cut-to-length shearing, slitting, and recoiling.

What is the difference between cut-to-length processing and slitting?

Cut-to-length processing cuts coil material across its width to produce flat sheets of specified lengths. Slitting cuts a wide coil longitudinally into narrower strips that are subsequently rewound into separate coils.

What materials can coil processing equipment handle?

The suitable materials depend on the machine configuration. Coil processing equipment may be designed for carbon steel, stainless steel, galvanized steel, aluminum, copper, and other metals. Material thickness, width, strength, and surface requirements must be confirmed for the selected line.

How does leveling improve steel coil processing?

Leveling uses rollers to reduce coil set and other flatness irregularities before subsequent processing. Better flatness can help improve material handling and the consistency of downstream cutting or forming operations. The result depends on the material and leveling machine configuration.

Which industries use processed steel coils?

Processed steel sheets and strips are used in automotive manufacturing, construction, home appliances, electrical equipment, industrial machinery, metal fabrication, and other manufacturing sectors.

What information is required to select a cut-to-length line?

Important parameters include material type, thickness, coil width, maximum coil weight, required sheet lengths, cutting tolerance, flatness requirements, and expected production volume. These details help determine the appropriate line configuration.

How can manufacturers reduce material waste during coil processing?

Material waste can be managed by optimizing sheet cutting plans or slitting layouts, selecting suitable processing parameters, and accounting for trim allowances and material defects. The potential savings depend on the material dimensions and the requirements of the finished product.

Conclusion

Steel coil processing helps manufacturers convert raw coil material into the sheets and strips required for modern production.

Cut-to-length processing is suitable for producing flat sheets with specified lengths, while coil slitting is used to create narrower strips for continuous downstream operations. Both methods can support more consistent material dimensions, reduced manual handling, and efficient high-volume manufacturing when the equipment is correctly configured.

The most suitable solution depends on the required output format, material properties, coil dimensions, precision requirements, and production volume.
