Introduction

Feeding medium and thick metal strips into a stamping press requires more than simply moving material forward. The feeder must maintain a consistent grip, control the feed length, and keep the strip aligned throughout repeated press cycles. When material thickness, strength, or width increases, an unsuitable feeding system may experience slippage, unstable positioning, or inconsistent feeding.

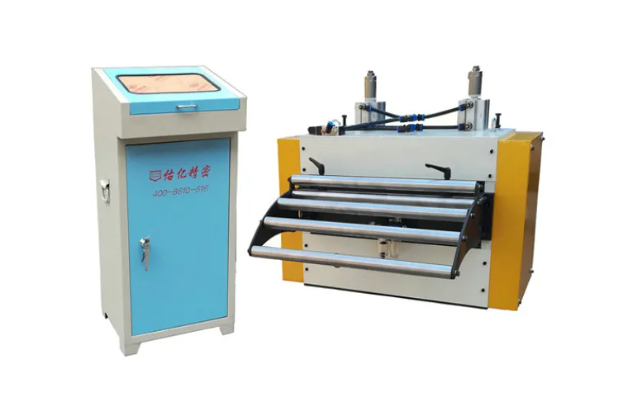

A Thick Plate NC Servo Feeder is designed for stamping applications that require controlled feeding of metal strips across a wider thickness range. By combining servo-driven feed rollers, adjustable pressing mechanisms, and material-guiding structures, it helps manufacturers maintain stable material movement and consistent feeding performance.

YouYi Precision offers a thick plate NC servo feeder designed for material thicknesses ranging from 0.1 mm to 6.0 mm, depending on the selected model and configuration. It can be used in automotive stamping, electrical cabinet manufacturing, home appliance production, and other metal forming applications.

This guide explains how a thick plate NC servo feeder works, which structural features affect feeding performance, and what manufacturers should consider when selecting a suitable model.

What Is a Thick Plate NC Servo Feeder?

A thick plate NC servo feeder is an automatic material feeding device that uses a servo motor and a roller mechanism to advance metal strips into a stamping press according to programmed feed parameters.

Unlike a conventional mechanical feeder driven directly by the press, an NC servo feeder allows operators to set the feed length and related operating parameters through its control system. This makes it suitable for production processes that require adjustable feeding distances and repeatable positioning.

The thick plate version is designed for applications involving relatively thick or high-strength materials. Its mechanical structure and pressing mechanism help maintain contact between the feed rollers and the material during operation.

Typical applications include:

Automotive structural components, brackets, and reinforcement parts

Electrical cabinets and metal enclosures

Home appliance panels and structural components

Heavy-duty metal stamping and industrial equipment parts

Other press applications requiring controlled strip feeding

For continuous coil processing, the feeder can also be integrated with an upstream decoiler and straightener. The complete arrangement depends on the material condition, production layout, and requirements of the stamping press.

Key Advantages of the Thick Plate NC Servo Feeder

The feeding performance of a thick plate servo feeder depends on several factors, including the drive system, roller contact, material guidance, and control settings. The following structural features help address common feeding challenges.

1. Adjustable Feed Channel Height

Material thickness can vary between production orders, even when the same stamping press is used. A fixed feed channel may make material loading and adjustment more difficult when the incoming strip changes.

The adjustable feed channel uses a cylinder positioned above the upper roller to control its vertical movement. By adjusting the upper roller position, operators can accommodate different material thicknesses within the machine's rated operating range.

This design offers several practical benefits:

Simplifies setup when changing material thickness

Helps establish appropriate contact between the rollers and the strip

Reduces the risk of unsuitable roller positioning

Improves flexibility when processing different material specifications

The adjustment must follow the machine's operating instructions. The selected pressing force and roller position should suit the material rather than simply applying the maximum available pressure.

2. Additional Clamping Rollers for Material Support

Thicker metal strips may require more effective support as they enter and pass through the feeding mechanism. Inadequate support can make loading less convenient and may contribute to unstable material movement.

Additional clamping rollers installed in the feeding support frame help guide the material through the feed channel. They support smoother material passage and help maintain its position before the strip enters the main feed rollers.

Their effectiveness depends on the material thickness, width, stiffness, and feeding arrangement.

For manufacturers handling multiple material specifications, this additional support can make material loading and alignment easier while helping maintain a consistent feeding process.

3. Positioning Clamps for Lateral Alignment

Correct feed length is only one part of accurate stamping. The material must also remain properly aligned with the die throughout the feeding cycle.

Positioning clamps on the discharge support frame allow operators to adjust the guiding position according to the material width. When correctly set, they help limit unwanted lateral movement as the strip advances toward the press.

This feature is particularly useful when material alignment affects the position of the stamped part or the way the strip enters the die.

For reliable operation, the clamps should guide the material without creating excessive resistance. Incorrect adjustment may cause scratching, additional drag, or feeding instability, depending on the material and setup.

4. Servo-Driven Rollers and NC Control

The servo motor provides controlled movement of the feed rollers, while the NC control system allows operators to configure the required feed length and other production parameters.

The motor transmits power through a synchronized belt and pulley arrangement to drive the rollers. When the feed command is issued, the system advances the strip according to the programmed settings.

Compared with a purely mechanical feeding arrangement, NC servo control offers greater flexibility when different feed lengths are required. It can also simplify parameter adjustments when changing between compatible stamping jobs.

Actual feeding accuracy and repeatability depend on the machine configuration, servo settings, material condition, roller condition, and synchronization with the press.

How the Thick Plate NC Servo Feeder Works

A thick plate NC servo feeder follows a straightforward operating sequence. Correct setup is essential for achieving stable feeding and avoiding unnecessary adjustments during production.

Step 1: Prepare and Align the Material

First, adjust the guide wheels and positioning clamps to match the width of the metal strip.

Place the material on the support frame and guide it through the designated support rollers and into the feed channel. Make sure the strip follows the intended path and is correctly positioned between the upper and lower feed rollers.

Before starting the machine, confirm that the material width and thickness are within the selected model's specifications.

Step 2: Set the Pressing Mechanism

Activate the pneumatic cylinder according to the operating procedure to position the upper roller and apply the required pressing force.

The purpose is to establish sufficient contact between the feed rollers and the material so that the strip can advance without slipping.

The appropriate setting depends on the material and operating conditions. Excessive pressure should be avoided, especially when processing materials with sensitive surface finishes.

Step 3: Configure the Feeding Parameters

Use the touchscreen control interface to enter the required feed length, feeding count, and other available parameters.

Where the production program includes multiple feeding sections or different feed lengths, configure the relevant settings according to the control system's functions.

Before automatic production begins, verify the programmed feed distance and confirm that the material path is clear.

Step 4: Start Servo Feeding and Verify Operation

Once the setup is complete and the required safety checks have been performed, the servo motor drives the feed rollers to advance the strip toward the stamping press.

The feeder must operate in coordination with the press cycle so that material advances at the correct stage of production.

During initial testing, check the actual feed length, lateral alignment, roller contact, and synchronization with the press. Make any necessary adjustments before proceeding with continuous production.

Thick Plate NC Servo Feeder vs. Standard NC Servo Feeder

Not every stamping application requires a heavy-duty feeder. The main selection consideration is whether the equipment can handle the material specifications and production conditions reliably.

A standard NC servo feeder may be sufficient for lighter materials and less demanding feeding conditions. A thick plate model is worth evaluating when the material approaches the upper thickness limit of a standard feeder or when additional mechanical support is required.

The following table summarizes the main considerations.

The actual capabilities of both types vary by model. Buyers should compare the manufacturer's technical specifications rather than assuming that every standard feeder has the same capacity or that every thick plate feeder can process all materials up to 6.0 mm.

How to Choose the Right Thick Plate NC Servo Feeder

Selecting a feeder based only on maximum material thickness can lead to an unsuitable configuration. The following factors should be checked before placing an order.

1. Material Thickness and Width

Confirm the minimum and maximum material thicknesses used in production, together with the maximum strip width.

For YouYi Precision's thick plate NC servo feeder, the product range is listed as 0.1–6.0 mm, with different model options available for different material widths.

If the production line handles several material specifications, provide the complete thickness and width range rather than selecting a model based on only one job.

2. Material Type and Strength

Carbon steel, stainless steel, aluminum, and high-strength steel can behave differently during feeding.

Material strength affects the force required to advance the strip, while surface sensitivity influences the choice of roller contact and guiding arrangements.

When processing high-strength or surface-sensitive materials, discuss the actual material grade and surface requirements with the equipment manufacturer.

3. Required Feed Length and Press Speed

The required feed length and stamping cycle determine how the feeder must operate in coordination with the press.

Confirm the maximum feed length, required production speed, press timing, and control interface. The feeder's rated speed alone does not establish the achievable production rate of the complete stamping line.

4. Feeding Accuracy and Repeatability

If the stamping die has tight positional requirements, clarify the required feeding accuracy and repeatability before selecting the equipment.

These results depend on more than the servo motor. Material straightness, roller condition, setup, control parameters, and press synchronization can all affect feeding performance.

Where necessary, arrange a material test using the actual strip specifications and production conditions.

5. Compatibility with Existing Equipment

For an existing stamping line, check the press feed height, available installation space, material path, electrical interface, and required release or synchronization functions.

For coil-fed production, also determine whether a separate decoiler and straightener are required. A correctly matched system helps ensure that material is unwound, leveled, and fed into the press in a coordinated sequence.

FAQ

What material thickness can a thick plate NC servo feeder handle?

The specified YouYi Precision product range covers 0.1–6.0 mm. The actual allowable thickness depends on the selected model, material width, material properties, and machine configuration. Confirm the complete specifications before ordering.

What is the difference between an NC servo feeder and a mechanical feeder?

An NC servo feeder uses servo control to set and regulate the feed distance, offering flexibility when changing feeding parameters. A mechanical feeder is typically synchronized with the press through a mechanical drive arrangement. The more suitable option depends on the required feed flexibility, press configuration, and production process.

Can a thick plate NC servo feeder process stainless steel and aluminum?

It may be suitable for both materials when their thickness, width, strength, and surface requirements fall within the machine's rated capabilities. For soft or surface-sensitive materials, roller contact and guiding arrangements should be confirmed before production.

Does a thick plate NC servo feeder require a straightener?

Not every application requires a separate straightener. The decision depends on whether the incoming material is supplied as coil stock, its initial flatness, and the flatness requirements of the stamped part. Coil-fed production commonly uses a decoiler and straightener upstream of the feeder when material leveling is necessary.

How can feeding accuracy be improved?

Start by checking material alignment, roller condition, pressing force, feed parameters, and synchronization with the press. The incoming material's condition and the stability of the complete feeding system also affect repeatability. If the required accuracy cannot be maintained, inspect the entire process rather than adjusting the servo settings alone.

What information is needed to select a suitable model?

Prepare the material thickness, maximum width, material type and grade, required feed length, press speed, feed height, and any special surface or accuracy requirements. Providing these details allows the manufacturer to recommend a configuration that matches the actual stamping application.

Conclusion

A thick plate NC servo feeder is designed for stamping operations that require controlled feeding of medium and thick metal strips. Its servo-driven roller system, adjustable feed channel, additional material support, and positioning clamps help address common challenges involving material grip, alignment, and feeding consistency.

However, reliable performance depends on selecting the correct model and matching the feeder to the material, die, and press. Manufacturers should evaluate thickness, width, material strength, feed length, production speed, and equipment compatibility before making a purchasing decision.

YouYi Precision provides thick plate NC servo feeder solutions for material thicknesses ranging from 0.1 mm to 6.0 mm, depending on the selected configuration.
