Introduction

In modern metal stamping plants, handling heavy steel coils efficiently has become just as important as improving feeding accuracy.

As coil weights continue to increase—from hundreds of kilograms to several tons—traditional loading methods using cranes or manual positioning often create production bottlenecks, increase safety risks, and prolong downtime during coil replacement.

To solve these challenges, many manufacturers are upgrading their coil feeding systems by combining a 3-in-1 coil feed line with a hydraulic load cart. This integrated solution simplifies coil loading, improves production efficiency, enhances workplace safety, and supports fully automated stamping operations.

In this guide, we'll explain how a load cart works, why it is becoming an essential part of modern coil handling systems, and which industries benefit most from this solution.

1. Enhancing Coil Loading Efficiency

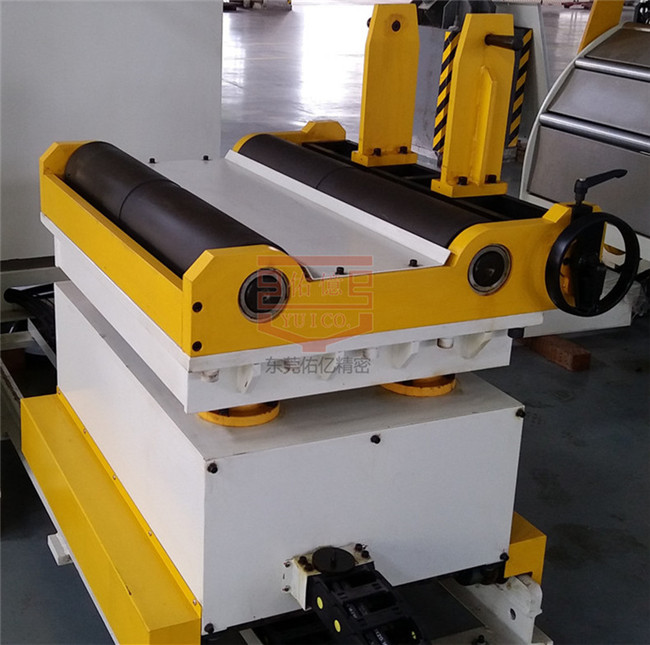

Traditional manual or crane loading methods are inefficient and require significant manual labor. With the addition of a load cart to the 3-in-1 coil feed line, steel coils can be quickly transported and positioned, enabling smooth loading of the coil from the ground to the uncoiling spindle. This dramatically reduces the time required for coil changeover and improves overall production efficiency.

2. Ensuring Operational Safety

Steel coils often weigh tons, and manual handling poses significant safety risks. The load cart, with hydraulic lifting, horizontal movement, and alignment functions, safely and steadily transports coils into the uncoiler spindle, preventing coil slippage and protecting operators from injury. This enhances the overall safety of the production process.

3. Achieving Automatic Coil Alignment

In stamping production, the precision of coil alignment directly affects feeding accuracy. When the 3-in-1 coil feed line is equipped with a load cart, the cart automatically adjusts the position of the coil, ensuring precise alignment with the uncoiling spindle. This eliminates the risk of feeding errors due to misalignment, ensuring the dimensional accuracy of the stamped parts.

4. Reducing Labor Intensity

Without a load cart, workers must rely on cranes or manual labor to repeatedly adjust the position of the coil. This is time-consuming and can result in damage to the material surface. With the load cart, the 3-in-1 coil feed line can be operated by a single worker, significantly reducing the physical effort required and preventing material surface scratches.

5. Improving Production Line Automation

Modern stamping production requires increasingly high levels of automation. The 3-in-1 coil feed line, when paired with the load cart, not only enables efficient and safe loading but also integrates seamlessly with the uncoiling, leveling, and feeding processes. This enhances the overall automation and stability of the entire stamping production line.

6. Extending Equipment Lifespan

Manual loading methods can damage the uncoiler spindle or the material. By using a load cart to assist with coil loading, the force on the material is distributed more evenly, leading to smoother operation of the equipment. This results in less wear and tear, ultimately extending the lifespan of both the 3-in-1 coil feed line and its components.

When Should You Consider Adding a Load Cart?

A load cart is especially recommended when:

Coil weight exceeds safe manual handling limits

Production involves frequent coil changes

The line operates in high-speed, high-volume production

Material surface protection is critical

Automation upgrades are planned

In these cases, the return on investment from improved efficiency and safety is significant.

Conclusion

In conclusion, equipping the 3-in-1 coil feed line with a load cart plays a crucial role in enhancing production efficiency, ensuring operational safety, achieving accurate alignment, reducing manual labor, increasing automation levels, and extending the lifespan of equipment. As stamping automation continues to develop, the 3-in-1 coil feed line with a load cart has become the preferred choice for more and more enterprises.

If you are looking to upgrade your stamping production line or improve coil handling efficiency, now is the right time to take action. Our team is ready to provide customized solutions based on your specific production needs.

Why Choose Youyi Precision?

With over 25 years of experience in stamping automation equipment manufacturing, Youyi Precision has become a trusted partner for manufacturers seeking reliable and efficient coil processing solutions. We specialize in the research, development, and production of 3-in-1 coil feed lines, decoilers, straighteners, servo feeders, zigzag feeders, and complete stamping automation systems for a wide range of industries.

Whether you are upgrading an existing stamping line or building a new automated production system, Youyi Precision is committed to helping you improve productivity, reduce operating costs, and achieve more efficient, reliable, and intelligent manufacturing.

Frequently Asked Questions (FAQ)

1. What is a load cart used for in a 3-in-1 coil feed line?

A load cart is used to safely transport and position heavy steel coils onto the uncoiler of a 3-in-1 coil feed line. It simplifies coil loading, reduces manual handling, and improves production efficiency while enhancing workplace safety.

2. Why should a 3-in-1 coil feed line be equipped with a load cart?

A load cart helps minimize downtime during coil changes, ensures accurate coil alignment, reduces labor intensity, protects material surfaces, and supports a higher level of automation in stamping production.

3. What coil weight requires a load cart?

A load cart is recommended for coils weighing more than 1 ton. For heavy-duty stamping applications handling coils of 3 to 10 tons or more, a hydraulic load cart significantly improves both safety and operational efficiency.
