Lithium battery case stamping places higher demands on coil feeding than many conventional metal stamping applications. Aluminum coil must be uncoiled smoothly, leveled accurately, and positioned consistently before entering the stamping die. At the same time, the material surface needs to be protected from scratches, dents, and excessive contact during feeding.

A 3 in 1 coil feed line combines decoiling, precision leveling, and servo feeding in one integrated system. Instead of using separate machines for each process, the material moves through a coordinated coil processing path before entering the stamping press.

For lithium battery aluminum casing production, this configuration can simplify line layout, reduce material transfer between individual machines, and provide more stable feeding conditions for continuous stamping and blanking.

What Is a 3-in-1 Coil Feed Line?

A 3-in-1 coil feed line, also called a 3-in-1 decoiler straightener feeder, integrates three main functions:

Decoiling – unwinds aluminum or other coil material from the coil.

Precision leveling – corrects coil curvature and improves material flatness before stamping.

Servo feeding – controls the feeding length and delivers the strip into the stamping press at the required position.

The three processes are coordinated through the machine's mechanical and control systems.

Compared with a conventional layout using a separate decoiler, straightener, and servo feeder, the integrated structure shortens the material path and reduces the number of independent equipment sections that need to be synchronized.

For lithium battery case stamping, this is particularly important because feeding stability directly affects blank positioning, material surface quality, and the consistency of subsequent forming operations.

Why Is Coil Feeding Important for Lithium Battery Case Stamping?

Lithium battery cases and covers are commonly produced from aluminum and other lightweight metal materials. These materials can be sensitive to surface contact, material deformation, and feeding instability.

Several issues need to be controlled during coil-fed stamping.

1. Aluminum Coil Can Be Sensitive to Surface Damage

Scratches, dents, and roller marks can affect the appearance and downstream forming quality of aluminum battery components.

For this reason, the feeding section should provide controlled material contact rather than relying only on feeding speed.How a 3-in-1 Coil Feed Line Improves Battery Case Production

1. Increased Production Efficiency

Automated Coil Handling

As a compact coil feed line, the system allows fully automated processing from coil loading to precision feeding into stamping dies.
This reduces manual intervention and improves overall production efficiency.

Continuous Feeding Stability

The integrated coil feeding system ensures uninterrupted material supply, allowing stamping presses to operate continuously and maintain a stable production rhythm.

2. Reduced Labor Costs

Simplified Operation

Compared with traditional multi-machine setups, this compact coil feed line requires only one operator for coil loading, system monitoring, and parameter adjustment.

Hydraulic Expansion for Automation

Advanced coil feeding system configurations include hydraulic expansion technology, allowing automatic coil positioning and feeding — improving safety while further reducing labor requirements.

3-in-1 Coil Feed Line vs. Separate Coil Processing Equipment

Both configurations can be used in stamping production, but they have different layout characteristics.

The integrated design is especially useful when the production line requires a compact layout and coordinated coil handling.

However, machine selection should still be based on the actual material and stamping process. A 3-in-1 system is not automatically suitable for every battery component.

Why a 3-in-1 Coil Feed Line Can Improve Production Efficiency

The main efficiency improvement does not come from simply combining three machines into one frame.

The larger benefit comes from coordinating the complete material handling process.

A properly configured line can provide:

Stable coil unwinding

Consistent material leveling

Programmable servo feeding

Reduced manual material handling

More compact equipment layout

Easier production parameter management

Better integration with automated stamping

For high-volume battery component production, these factors can help maintain a more stable production rhythm and reduce interruptions caused by inconsistent material preparation.

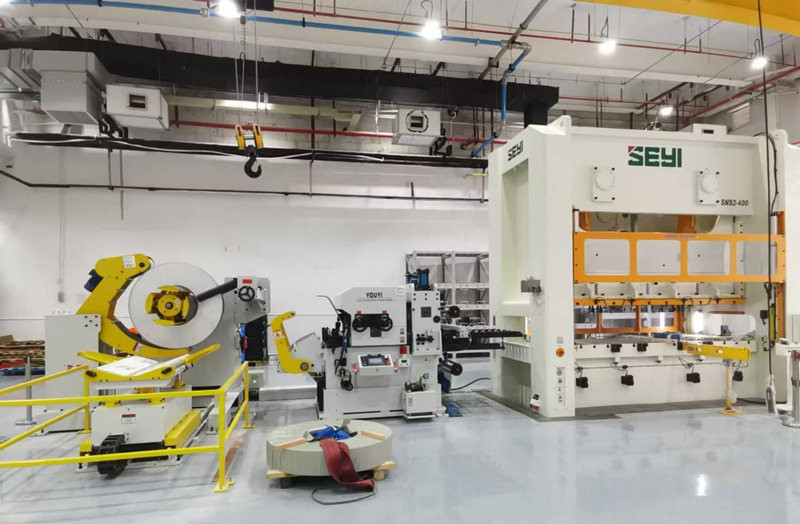

YouYi Precision 3-in-1 Coil Feed Line for Battery Component Stamping

YouYi Precision provides 3-in-1 coil feed line configurations for different material thicknesses, widths, coil weights, and stamping requirements.

The current product range includes compact, medium-plate, high-tension, and heavy-duty configurations. The company's coil processing product range integrates decoiling, precision leveling, and servo feeding into a single system, with configurations selected according to material and production requirements.

For lithium battery aluminum casing production, the equipment should be configured around the actual coil and stamping requirements rather than using a standard machine specification.

When requesting a quotation, manufacturers should provide:

Material type and grade

Material thickness

Coil width

Coil weight

Coil inner and outer diameter

Required feeding length

Stamping press tonnage

Die layout

Required production speed

Surface protection requirements

With this information, the coil feed line can be matched more accurately to the stamping process.

FAQ: Three-in-One Press Feeder for Lithium Battery Case Stamping

Q1: What materials can a three-in-one press feeder process?

A three-in-one press feeder is designed to process a wide range of coil materials, including aluminum, stainless steel, galvanized steel, cold-rolled steel, and high-strength steel. It is especially suitable for precision stamping applications such as lithium battery cases, battery covers, automotive parts, and electronic components.

Q2: Is a three-in-one press feeder suitable for aluminum battery case stamping?

Yes. Aluminum coils require stable feeding and precise leveling to prevent scratches, deformation, and dimensional errors. A three-in-one press feeder integrates decoiling, leveling, and servo feeding into one synchronized system, ensuring smooth material handling and consistent feeding accuracy for aluminum battery case production.

Q3: What feeding accuracy can a three-in-one press feeder achieve?

Depending on the machine configuration and production conditions, a servo-controlled three-in-one press feeder can typically achieve feeding accuracy of up to ±0.03 mm. This level of precision meets the requirements of most lithium battery case stamping and other high-precision metal stamping applications.

Q4: Can a three-in-one press feeder work with high-speed stamping presses?

Yes. Modern three-in-one press feeders are designed to synchronize with high-speed mechanical and servo stamping presses. The integrated servo feeding system provides fast response, accurate positioning, and stable continuous feeding, making it ideal for automated, high-volume production lines.

Q5: Why choose a 3-in-1 coil feed line for lithium battery case stamping?

A 3-in-1 coil feed line reduces the need for multiple independent machines by integrating decoiling, leveling, and feeding functions. This helps lithium battery case manufacturers improve production efficiency, reduce floor space, and maintain stable stamping quality.
