Automotive stamping manufacturers must balance production efficiency, material quality, equipment footprint, and line reliability. As production facilities introduce new components or upgrade existing press lines, the arrangement of coil processing equipment becomes an important part of the overall automation plan.

A conventional coil feeding system typically uses a separate decoiler, straightener, and servo feeder. This configuration offers flexibility, but it also requires space for multiple machines, material transfer sections, and equipment connections.

A compact coil feed line combines decoiling, straightening, and servo feeding into one integrated system. For suitable automotive stamping applications, this design can simplify equipment layout, reduce unnecessary material handling, and improve coordination between material preparation and press feeding.

For manufacturers producing brackets, seat components, structural parts, and other stamped automotive components, the main advantage is not simply a smaller machine footprint. It is the ability to organize the coil processing workflow around the actual requirements of the stamping operation.

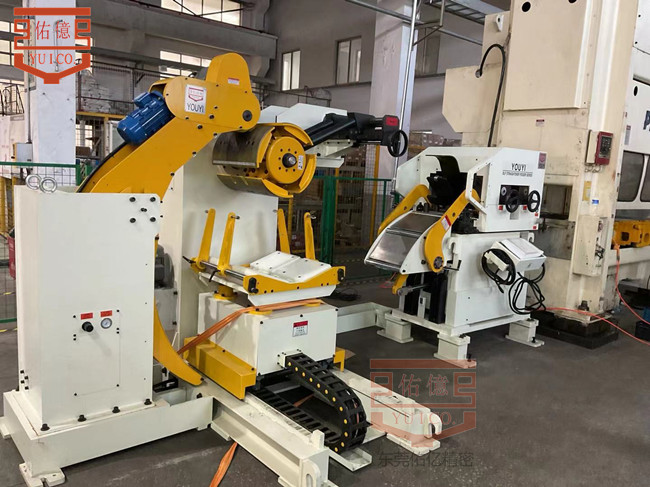

What Is a Compact Coil Feed Line?

A compact coil feed line is an integrated coil processing system that prepares metal strip material before it enters a stamping press. It is commonly configured as a 3-in-1 decoiler straightener feeder.

The system combines three main functions:

Decoiling: Supports the coil and releases strip material for downstream processing.

Straightening: Uses leveling rollers to reduce coil curvature and improve material flatness.

Servo feeding: Advances the strip into the stamping die according to the required feed length and press cycle.

By combining these functions, the equipment reduces the need to position and connect three independent machines.

The system can be configured for compatible steel, stainless steel, aluminum, and coated metal coils. The actual material range depends on the machine model, material thickness, strip width, mechanical properties, and required surface quality.

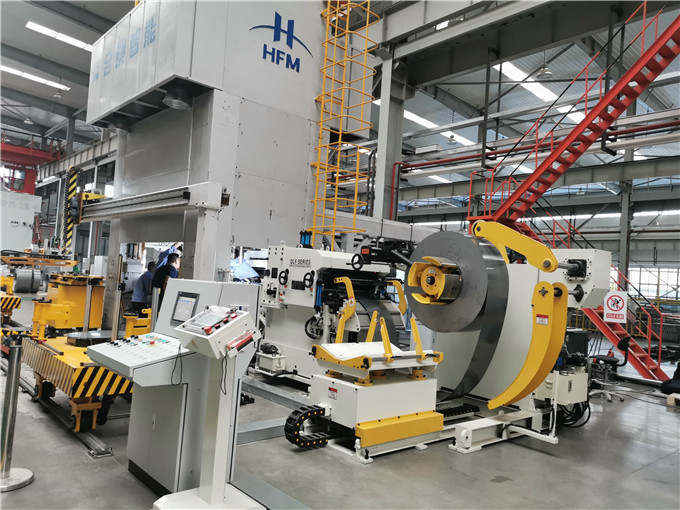

Why Compact Coil Feed Lines Suit Automotive Stamping Automation

1. Reduce Equipment Footprint and Simplify Line Layout

Automotive stamping workshops often need to accommodate presses, dies, coil storage, loading equipment, safety barriers, and material handling routes within a limited production area.

When the decoiler, straightener, and feeder are installed separately, the layout must account for the dimensions and working clearances of each machine.

An integrated coil feed line combines the three main processing functions into one equipment unit. This can simplify the arrangement of the coil processing section and reduce the space needed for separate machines.

However, the total space requirement depends on the complete installation, including coil loading, hydraulic or pneumatic systems, electrical cabinets, operator access, and maintenance clearance.

For a new stamping line, manufacturers should evaluate the complete equipment layout rather than comparing machine dimensions alone.

2. Coordinate Decoiling, Leveling, and Servo Feeding

Stable stamping production requires the material to move through each processing stage in a controlled sequence.

If the decoiler releases material too quickly or too slowly, the strip may develop excessive slack or tension. If the leveling section is not correctly adjusted, residual coil curvature may affect material flatness. If the servo feeder is not synchronized with the press, feeding errors or production interruptions may occur.

An integrated 3-in-1 system coordinates these functions within one machine configuration.

The decoiler supplies material, the leveling section prepares the strip, and the servo feeder controls the required feed length. When correctly configured for the material and press cycle, this arrangement helps maintain a more consistent material feeding process.

The final result depends on equipment sizing, control settings, material characteristics, and the condition of the stamping press and die.

3. Improve Feeding Repeatability and Material Preparation

Automotive components often require consistent dimensions and repeatable forming conditions. Variations in strip flatness or feed positioning can affect how material enters the die and may contribute to dimensional inconsistencies.

The leveling section helps correct curvature introduced during coil winding, while the servo feeder controls the movement of the strip between press strokes.

These functions address different requirements: leveling improves the condition of the incoming material, while servo feeding controls its position and feed length.

Neither function can compensate for every downstream problem. Die condition, press accuracy, material thickness variation, and forming parameters also influence the finished component.

Selecting the appropriate machine configuration helps establish more consistent material preparation before stamping.

4. Simplify Equipment Setup and Changeover Planning

Production lines manufacturing different automotive components may need to accommodate changes in material specifications, strip width, feed length, or coil dimensions.

A compact coil feed line can simplify the arrangement of the coil processing section because the principal processing functions are integrated into one system.

Nevertheless, actual changeover time depends on the coil loading method, material threading procedure, stored production parameters, adjustment requirements, and operator workflow.

When evaluating equipment, manufacturers should ask how the system handles coil loading, material threading, straightener adjustment, servo feed parameter changes, and restart procedures after a coil change.

These practical details are more useful for estimating production downtime than assuming that an integrated machine will automatically reduce all setup time.

5. Support Automation and Production Safety

A compact coil feed line can be incorporated into an automated stamping cell with suitable press signals, control interfaces, and safety devices.

Depending on the machine configuration, the system may include a touchscreen interface, automatic operating sequences, coil support equipment, and other auxiliary functions.

Integration can simplify the coordination of the main processing functions. However, safe operation still requires appropriate guarding, emergency-stop arrangements, interlocks, coil loading procedures, and maintenance access.

Manufacturers should assess the complete line's control architecture and safety requirements before commissioning the equipment.

Compact Coil Feed Line vs. Separate Coil Processing Equipment

The choice between an integrated system and separate machines depends on production requirements rather than footprint alone.

For automotive stamping lines with limited space and clearly defined material requirements, an integrated system may simplify installation and production coordination.

Separate equipment may be more suitable when the process requires independent machine operation, specialized processing stages, or frequent changes to the production arrangement.

The appropriate solution should be determined by material specifications, press requirements, production volume, and workshop layout.

Automotive Components That Can Use Compact Coil Feed Lines

Compact coil feed lines can support a range of automotive stamping applications when the equipment is correctly matched to the material and component requirements.

Automotive Brackets and Mounting Components

Brackets and mounting plates are common applications for coil-fed stamping. Stable feeding helps position the strip consistently before the material enters the die.

The required feed length, strip width, and material thickness should be evaluated against the part design and press configuration.

Seat Rails and Structural Components

Seat rails and other structural components may require consistent material positioning throughout repeated stamping operations.

For these applications, manufacturers should assess material flatness, strip guidance, feeding repeatability, and the compatibility of the coil feeding system with the stamping die.

Reinforcement Parts and Chassis Components

Automotive reinforcement parts and chassis-related components may use different steel grades and thicknesses according to their mechanical requirements.

When processing higher-strength materials, the leveling mechanism must be selected according to the material's yield strength and thickness. A configuration suitable for mild steel may not provide equivalent performance with high-strength steel.

Electric Vehicle Battery Enclosures

Battery enclosures and related structural components may involve steel or aluminum materials, depending on the component design and manufacturing process.

Surface quality, material thickness, strip width, and forming requirements should be considered when selecting the coil processing equipment.

For related automotive production examples, see the YouYi Precision Automotive Stamping Application Cases.

How Compact Coil Feed Lines Improve Automotive Stamping Efficiency

1. Enhanced Product Quality and Feeding Precision

Automotive stamped components require tight dimensional tolerances to meet performance and safety standards. A compact coil feed line helps ensure:

Consistent feeding accuracy, with precise control over speed and positioning

Effective stress relief and leveling, resulting in improved flatness and reduced deformation

Lower scrap rates, as automation minimizes manual errors and material waste

These advantages are particularly important when stamping high-strength automotive materials.

2. Boosted Production Efficiency

In high-volume automotive production, uptime and throughput directly impact profitability. Compact coil feed lines improve efficiency by:

Automating the entire process from coil loading to press feeding

Supporting continuous, high-speed stamping, depending on stroke length and part geometry

Reducing setup time through centralized control systems and quick coil change functions

As a result, manufacturers achieve higher output with more stable production cycles.

3. Optimized Floor Space Utilization

Traditional coil handling systems typically require separate decoilers, straighteners, and feeders, along with long material paths.

A compact coil feed line offers:

Up to 50% reduction in floor space, ideal for space-constrained stamping workshops

Simplified installation and maintenance

Cleaner, safer, and more organized production layouts

This compact design is a major advantage for modern automotive plants focused on lean manufacturing.

4. Lower Labor and Operational Costs

With rising labor costs and workforce shortages, automation has become a necessity rather than an option.

Compact coil feed lines:

Require minimal manpower—often operated by a single technician

Improve operational safety by reducing direct contact with moving coils

Lower long-term operating costs by minimizing downtime, rework, and training needs

Over time, this leads to a faster return on investment (ROI).

How to Select a Compact Coil Feed Line for Automotive Stamping

A compact design is useful only when the equipment can handle the actual production requirements. Before selecting a system, manufacturers should confirm the following parameters.

Material Type and Thickness

Identify the material grade, minimum and maximum thickness, strip width, and mechanical properties.

Steel, high-strength steel, stainless steel, and aluminum can have different leveling and surface protection requirements. The machine should be selected for the intended material range rather than appearance or footprint alone.

Coil Weight and Dimensions

Confirm coil weight, inner diameter, outer diameter, and strip width. These parameters determine the required decoiler capacity, support structure, and material handling arrangement.

The coil loading method should also be considered, especially where coils are heavy or changeovers occur frequently.

Feeding Length and Press Speed

The required feed length per stroke and the stamping cycle determine the servo feeding requirements.

The selected feeder must provide the required operating performance while remaining compatible with the press, die, material, and control signals.

Leveling and Surface Quality Requirements

Consider the material's incoming curvature, strength, thickness variation, and surface finish.

Roller configuration, adjustment range, roller condition, and material guidance influence the leveling result. Materials with sensitive surfaces may also require additional handling precautions.

Workshop Layout and Maintenance Access

Evaluate the complete installation footprint, including the coil loading area, operator access, control cabinet, auxiliary equipment, and maintenance clearance.

A compact machine should not be installed in a way that restricts safe coil handling or routine service.

Future Production Changes

If the stamping line will process several material grades or component types, determine the expected range of widths, thicknesses, coil weights, and feed lengths.

Discuss these requirements before ordering so that the machine configuration and automation interfaces can accommodate the intended production range.

Why Automotive Manufacturers Choose Youyi Precision

YouYi Precision develops coil handling and stamping automation equipment for manufacturers that need coordinated material preparation and feeding.

When selecting a compact coil feed line, customers should evaluate the proposed configuration against their actual material specifications, press requirements, production layout, and automation objectives.

To help determine a suitable solution, provide the following information when contacting our team:

Material type and grade

Material thickness and strip width

Maximum coil weight and coil dimensions

Required feed length and stamping speed

Press model and die requirements

Available installation space and coil loading method

With these details, the equipment configuration can be evaluated according to the production requirements rather than relying on a general machine description.

Visit YouYi Precision to discuss a compact coil feeding solution for your automotive stamping application.

FAQ

What is a compact coil feed line?

A compact coil feed line integrates decoiling, leveling, and servo feeding functions into one automated system for continuous stamping production.

Why are compact coil feed lines used in automotive stamping?

They provide stable feeding accuracy, reduce production space, improve automation efficiency, and support high-strength materials used in automotive components.

What materials can compact coil feed lines process?

They can process materials such as high-strength steel, stainless steel, aluminum alloys, and coated metal sheets.
