Introduction

In high-volume metal stamping, raw material consumption and production downtime directly affect manufacturing costs. For manufacturers processing circular blanks and other shaped metal components, improving material utilization while maintaining a continuous coil supply is an important part of stamping line optimization.

A zigzag feeder and a dual-station decoiler address these challenges in different ways. The zigzag feeder moves metal strip forward and laterally according to programmed parameters, helping optimize blank positioning within the available coil width. The dual-station decoiler provides two coil-loading positions, allowing the next coil to be prepared while the current coil is still running.

When integrated into an automatic stamping line, these two machines can help manufacturers reduce material waste, shorten coil changeover downtime, and maintain controlled material positioning.

This guide explains how a zigzag feeder and dual-station decoiler work together, which applications can benefit from this combination, and what manufacturers should consider when selecting a suitable system.

Why Combine a Zigzag Feeder with a Dual-Station Decoiler?

A coil-fed stamping line must manage two separate production requirements: using the material efficiently and supplying it to the press without unnecessary interruptions.

A conventional feeding system may advance material along a fixed path. Depending on the blank shape and die layout, this can leave unused material between adjacent stamping positions.

At the same time, replacing an exhausted coil can interrupt production if the next coil has not been prepared in advance.

The combined system addresses both issues:

Improved material utilization: Lateral shifting changes the position of the strip between feeding cycles, potentially allowing a more efficient blank arrangement.

Reduced coil changeover downtime: The dual-station decoiler allows the next coil to be prepared while the current coil supplies the production line.

Controlled material positioning: Servo-controlled forward feeding and lateral movement help position the strip according to the programmed stamping sequence.

More efficient production planning: Programmable feeding parameters and advance coil preparation can simplify routine production changes.

The actual improvement depends on the blank geometry, die design, material specifications, coil dimensions, and equipment configuration.

How Does a Zigzag Feeder Improve Material Utilization?

1. Forward Feeding and Lateral Shifting

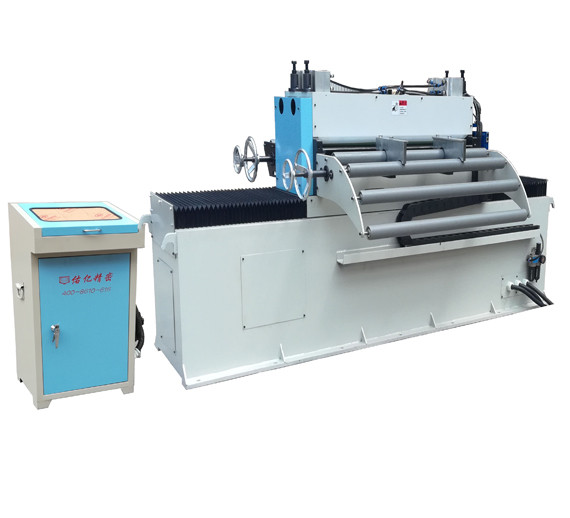

An NC zigzag feeder differs from a conventional servo feeder by adding controlled lateral movement to the forward feeding process.

A conventional feeding sequence generally advances the material along a fixed path. A zigzag feeder can combine forward feeding with left-to-right shifting according to the programmed production sequence.

This additional movement changes the position of the strip relative to the stamping die.

For circular blanks, the lateral shift can allow adjacent blanks to be arranged more efficiently within the available strip width. When the die is designed for this feeding pattern, unused material between stamping positions may be reduced.

However, zigzag feeding does not automatically reduce scrap in every application. The result depends on the blank shape, strip width, feed pitch, die layout, and available shifting range.

2. Programmable Feeding Parameters

A zigzag feeder uses a control system to coordinate feed length and lateral shifting distance.

Depending on the machine configuration, operators can set relevant parameters according to the material dimensions and stamping requirements.

Important parameters include:

Material width and thickness

Blank diameter and geometry

Feed pitch

Lateral shifting distance

Stamping sequence

Required material positioning accuracy

When a product or die changes, the feeding program can be adjusted to suit the new production requirements, subject to the machine's available functions.

This reduces reliance on repeated manual repositioning and makes the feeding process more adaptable to different stamping jobs.

3. Coordinated Servo Control

The feeding and lateral shifting axes must work together to position the strip correctly before each stamping operation.

In the YouYi Precision configuration described for this application, a Yaskawa servo motor drives the feed rollers through a synchronous belt, while a second Yaskawa servo motor controls lateral movement through a Hiwin precision ball screw. A Mitsubishi PLC coordinates the feeding and shifting operations.

This arrangement provides independent control of the two movement directions while coordinating them with the production sequence.

For the referenced configuration, feeding accuracy can reach approximately ±0.08 mm, while edge-to-edge spacing can be controlled to approximately 0.5 mm or less under suitable conditions. These figures are configuration-specific references, not guaranteed specifications for every zigzag feeder or every material.

What Is a Dual-Station Decoiler?

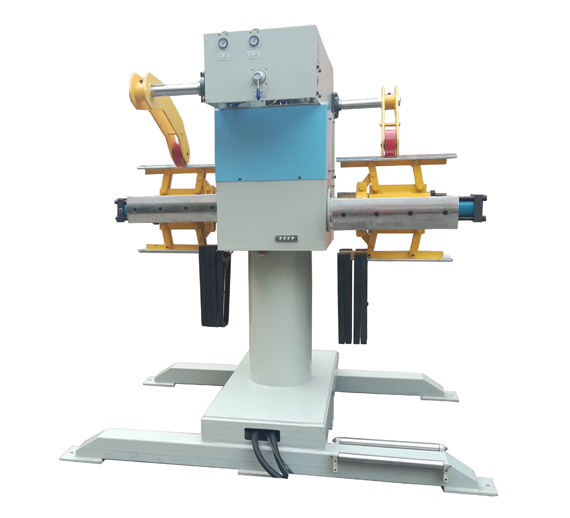

A dual-station decoiler, also known as a dual-mandrel decoiler, has two coil-loading positions. It is designed to make coil preparation and replacement more efficient in coil-fed production.

The operating principle is straightforward:

Coil A in Production → Coil B Being Prepared → Coil A Finished → Switch to Coil B

While the active coil supplies material to the downstream equipment, the next coil can be prepared at the second station. This helps separate coil preparation from the active production cycle.

The actual changeover procedure depends on the machine design, material handling equipment, operator workflow, and level of automation.

Key Features of a Dual-Station Decoiler

Two Coil-Loading Positions

The main advantage is that the next coil can be prepared while the current coil is still running.

This reduces the need to wait until the active coil is completely consumed before beginning all preparation work for the next coil.

Hydraulic Coil Expansion

Depending on the configuration, a hydraulic expansion mechanism can secure the coil on the mandrel.

The appropriate decoiler capacity must be selected according to the maximum coil weight, coil dimensions, material properties, and operating conditions. The referenced application includes configurations capable of handling coils weighing more than 2 tons, but this should not be assumed for every dual-station model.

Controlled Decoiling Speed

The decoiler must supply material at a rate that matches the downstream feeding process.

A frequency inverter can regulate motor speed in suitable configurations. Correct coordination helps maintain a stable material supply and avoid unnecessary fluctuations during operation.

Coil Handling and Material Protection

Depending on the design, a dual-station decoiler may incorporate hydraulic expansion, coil pressing, spindle rotation, and coil positioning functions.

For surface-sensitive materials, the coil handling arrangement should also be evaluated to minimize unwanted contact and surface marking. The appropriate protection measures depend on the material and machine configuration.

How Do the Zigzag Feeder and Dual-Station Decoiler Work Together?

The two machines perform different functions within the stamping line.

The dual-station decoiler provides a continuous supply of coil material, while the zigzag feeder controls the position of the strip before it enters the stamping die.

A typical process is:

Coil Loading → Decoiling → Feeding → Lateral Shifting → Blank Positioning → Stamping

During production:

The dual-station decoiler unwinds the active coil.

The strip enters the feeding section.

The zigzag feeder moves the material forward according to the programmed feed length.

The feeder shifts the strip laterally according to the programmed pattern.

The material enters the stamping die at the required position.

The second decoiler station can be prepared with the next coil while the first coil is running.

This division of functions allows the feeding system to focus on positioning accuracy while the decoiler focuses on coil handling and material supply.

Key Benefits of the Combined Stamping System

1. Better Material Utilization

The zigzag feeder changes the strip position through programmed lateral movement. For suitable circular or similarly shaped blanks, this can improve the arrangement of adjacent stamping positions and reduce unused material.

To estimate the actual savings, manufacturers should compare the proposed blank layout with the existing process using the same material width, blank dimensions, and production requirements.

2. Reduced Coil Changeover Downtime

The dual-station decoiler allows the next coil to be prepared while the active coil is still supplying material.

This can reduce waiting time associated with coil replacement and help improve production continuity. The achievable reduction depends on the existing changeover process and the automation level of the complete line.

3. Controlled Feeding and Positioning

Servo-controlled forward feeding and lateral shifting allow the strip position to be adjusted according to the programmed sequence.

This is especially relevant when the stamping process requires a repeatable blank arrangement. Feeding accuracy must still be verified under the actual material, die, and press conditions.

4. Reduced Manual Adjustment

Programmable feed and shifting parameters can reduce repeated manual positioning when changing compatible production jobs.

The dual-station decoiler also allows coil preparation to take place alongside production, helping organize routine material handling tasks more efficiently.

5. Flexible Automation Integration

The system can be integrated with a stamping press and, where required, additional part handling or stacking equipment.

A typical arrangement is:

Dual-Station Decoiler → Zigzag Feeder → Stamping Press → Part Handling or Stacking

The final layout should be designed around the production cycle, die requirements, available floor space, and material handling process.

Applications in New Energy Stamping

Zigzag feeding can be considered for high-volume stamping applications where material utilization is an important production factor.

Potential applications include:

New energy vehicle components

Battery-related metal components

Electrical components

Motor components

Circular metal blanks

Other high-volume stamped parts

The suitability of zigzag feeding depends on the blank geometry, material properties, die layout, coil dimensions, and required production cycle.

For more information about Youyi Precision's solutions for this sector, see our New Energy Industry application page.

Key Advantages of the Automatic Stamping Line

Reduced Material Waste

Optimized blank positioning can reduce unused material between adjacent stamping areas and improve overall material utilization.

Reduced Coil Changeover Downtime

The dual-station decoiler allows a new coil to be prepared while the current coil is still operating, helping maintain production continuity.

Improved Feeding Accuracy

Servo-controlled feeding and lateral shifting provide precise material positioning for automated stamping.

Reduced Manual Intervention

Automated coil handling, feeding, and parameter calculation reduce the amount of manual adjustment required during production.

Flexible Production

The system can be integrated with stamping presses, stamping robots, or other automated equipment to create a more complete production line.

These advantages make the system an effective solution for modern stamping automation, especially in high-volume coil-fed production.

How to Select the Right Zigzag Feeder and Dual-Station Decoiler

Selecting a suitable system requires evaluating the feeder, decoiler, stamping press, and die as one production arrangement.

1. Material Width and Thickness

Material width determines the required feed-roll width and affects the available lateral shifting range. Material thickness influences the roller configuration and the feeding force required.

Provide the full range of material specifications used in production rather than selecting equipment based on only one nominal size.

2. Blank Shape and Die Layout

Blank geometry is a critical factor when deciding whether zigzag feeding can improve material utilization.

Circular blanks may benefit from lateral shifting because a suitable alternating pattern can reduce unused areas between adjacent blanks. Irregular shapes require a more detailed evaluation of the die layout and nesting pattern.

Before choosing the equipment, confirm that the proposed feeding sequence is compatible with the stamping die.

3. Maximum Coil Weight and Dimensions

The dual-station decoiler must safely support the maximum coil weight and accommodate the coil's inner diameter, outer diameter, and width.

Hydraulic expansion and coil loading equipment should be selected according to the actual material specifications and handling requirements.

4. Required Feeding Accuracy

Determine the positional requirements of the stamped part and the die before specifying the feeder.

The required accuracy should be evaluated alongside feed length, lateral shifting distance, material condition, and press synchronization. If the process has tight tolerances, testing with the actual material is advisable.

5. Production Speed and Changeover Requirements

The feeder and decoiler must work within the timing requirements of the stamping press.

Evaluate the required feed pitch, lateral movement, press cycle, and coil changeover procedure together. A high rated feeder speed alone does not determine the production rate of the complete line.

6. Integration With Existing Equipment

For an existing stamping line, confirm press feed height, available installation space, control interfaces, safety requirements, and the material path.

For a new line, the layout can be planned around the coil handling system, feeder, stamping press, and downstream part handling equipment.

Conclusion

A zigzag feeder and dual-station decoiler can improve two important aspects of coil-fed stamping: material utilization and production continuity.

The zigzag feeder controls both forward and lateral movement to help optimize suitable blank layouts. The dual-station decoiler allows the next coil to be prepared while the current coil is still running, helping reduce changeover downtime.

When the equipment is matched to the material, die layout, coil dimensions, and stamping press, the combined system can support a more efficient and controlled production process.

FAQ: Zigzag Feeder and Dual-Station Decoiler

What is a zigzag feeder used for?

A zigzag feeder advances coil material and shifts it laterally according to programmed parameters. It is particularly useful for suitable blank layouts where changing the strip position can improve material utilization.

How does a dual-station decoiler reduce downtime?

It provides two coil-loading positions, allowing the next coil to be prepared while the current coil is still running. This can reduce the waiting time associated with coil changeover.

Can a zigzag feeder reduce stamping material waste?

Yes, in suitable applications. Lateral shifting can help arrange circular blanks more efficiently within the available strip width. Actual savings depend on blank geometry, material width, feed pitch, and die design.

What feeding accuracy can a zigzag feeder achieve?

The referenced YouYi Precision configuration can achieve approximately ±0.08 mm feeding accuracy. Actual results depend on the selected equipment, material, setup, and production conditions.

What coil weight can a dual-station decoiler handle?

Capacity varies by model. The referenced application includes configurations capable of handling coils weighing more than 2 tons. The maximum coil weight and dimensions should be confirmed for the selected machine.

Can the system be used for new energy manufacturing?

Yes. It can be considered for suitable high-volume stamping applications involving battery-related metal parts, motor components, electrical components, and other stamped products. The final configuration should be based on the material and die requirements.

What information is needed to select a suitable system?

Important details include material width and thickness, coil weight and dimensions, blank diameter and shape, feed pitch, required accuracy, stamping speed, press specifications, and any special surface requirements.
