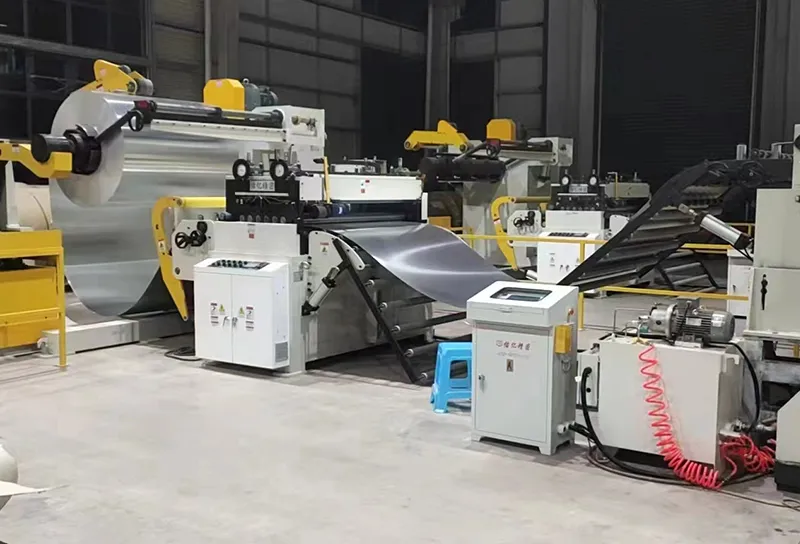

2 In 1 Uncoiler Leveler
The HTC-1600 Coil Processing Line is specially developed for automated stamping production of aluminum components in the lithium battery manufacturing industry, including battery covers, aluminum cases, and battery terminal components.
Material width (mm): 100-1600
Material thickness (mm): 0.5-3.0
Coi. weight (kg): 15000
Product Characteristics

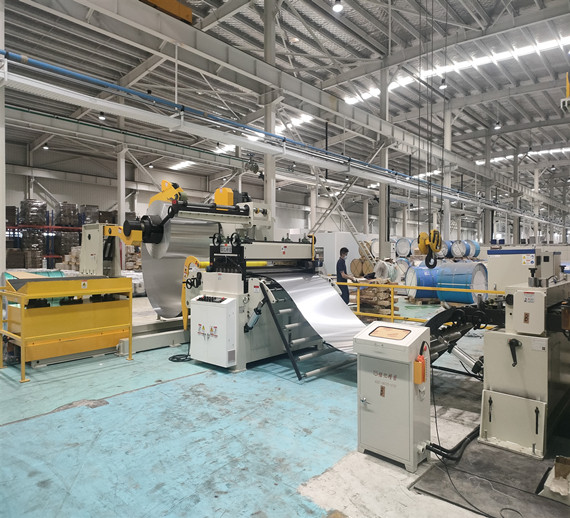

The HTC-1600 Coil Processing Line is an integrated coil handling and feeding solution designed for aluminum coil stamping applications, including lithium battery covers, aluminum battery housings, and other precision metal components.
The system combines automatic decoiling, precision leveling, and NC servo feeding to prepare coil material for downstream stamping operations. By coordinating these functions, the production line helps maintain stable material handling, improve strip flatness, and support consistent feeding during continuous stamping.
Aluminum coil processing requires particular attention to material surface protection. Scratches, roller marks, residual curvature, and unstable feeding can affect the appearance and dimensional consistency of stamped components. The HTC-1600 addresses these production challenges through a precision leveling system, an accessible leveling head for cleaning, a servo feeding mechanism, and a material buffering bridge.
Designed for integration with stamping presses, the HTC-1600 provides a coordinated solution for manufacturers processing aluminum battery covers, square battery cases, terminals, and other coil-fed components.
Key equipment features include:
Automatic uncoiling with a coil loading trolley.
Hydraulic expansion mechanism for coil holding.
Six-upper, five-lower precision leveling roller arrangement.
Hinged-open leveling head for easier roller cleaning.
NC servo feeding system for controlled material feeding.
Hydraulic loop bridge with photoelectric sensing for material buffering.
Material support rollers designed to help reduce surface scratching.
The final machine configuration and processing range should be confirmed according to the selected model and the customer's material specifications.

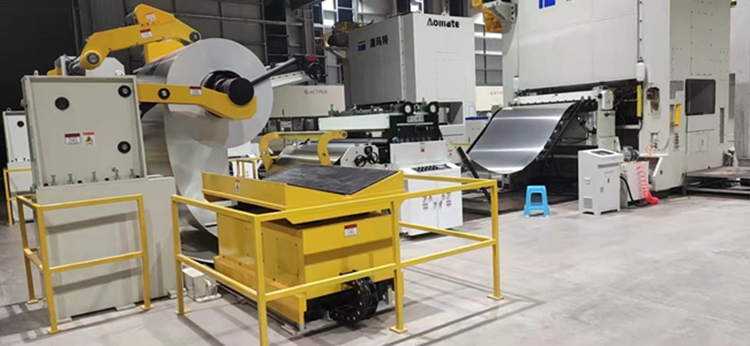

The feeding platform trolley is designed to ensure safe and efficient loading and unloading of heavy coils, significantly reducing manual handling risks. The heavy-duty uncoiler works in coordination with the leveling unit to smoothly guide the coil head into the straightening section and maintain controlled automatic unwinding.
A powered pressing arm prevents coil scattering during rotation, while assisting material entry into the leveler. The uncoiler features a hydraulic sliding block expansion structure, which offers higher load-bearing capacity than traditional pin-type designs and supports coil weights of up to 10 tons, ensuring stable, continuous, and vibration-free unwinding for demanding production environments.
The material leveling machine corrects and levels the material through upper and lower leveling rollers, in conjunction with an uncoiler and high-speed NC feeder. The leveling rollers are arranged with six on top and five on the bottom, made of bearing steel SUJ2, with the roller surfaces processed by wire electroplating and grinding.The machine head is designed to be easily hinged open, allowing for convenient daily cleaning of any impurities or metal oxide layers that may accumulate on the leveling rollers' surfaces, thus preventing material defects such as scratches or marks, especially on aluminum materials.
The servo coil feeder can achieve high-speed and efficient feeding. This machine uses a numerical control operating system, and its user-friendly design and operating concept allow users to quickly become proficient in operating it. The feeding rollers have a hollow structure, resulting in low rotational inertia, high feeding accuracy, and a long service life. The rollers are made of bearing steel and are subjected to high-frequency treatment, tempering, grinding, and hard chrome plating. After feeding with this machine, the materials are smooth and even without any indentations, ensuring that the surface of the materials is not damaged. The main machine has a strong steel structure, high output power, and stable feeding.
During the feeding process, there is no need for manual lifting of materials, and the steel coils can be smoothly delivered to the feeding machine. The steel coils can be buffered by the material arc to ensure that the material belt length can be conveyed into the feeding machine. Hydraulic power is used for lifting and lowering, with a buffering bridge spanning the ends of the leveling machine and the feeding machine. It is raised during feeding and lowered during connected operation. Two sets of photoelectric switches are installed at the material arc, controlling the speed conversion of the leveling machine to ensure that the hanging plates have sufficient length for storage. The material support rollers are covered with rubber on the bearing surface to prevent the material from scratching the surface during passage.
The HTC-1600 Heavy-Duty Uncoiler, Leveler, and Servo Feeder Line is widely used in the lithium battery manufacturing industry, particularly for the automated stamping production of precision aluminum components such as square battery cases, battery covers, and aluminum terminal components.
Designed for high-precision aluminum coil processing, the system integrates uncoiling, leveling, and servo feeding into one compact automated production line, ensuring stable material feeding, excellent flatness, and accurate positioning before stamping. This helps improve overall stamping consistency, dimensional accuracy, and production efficiency.
Typical stamping applications include:

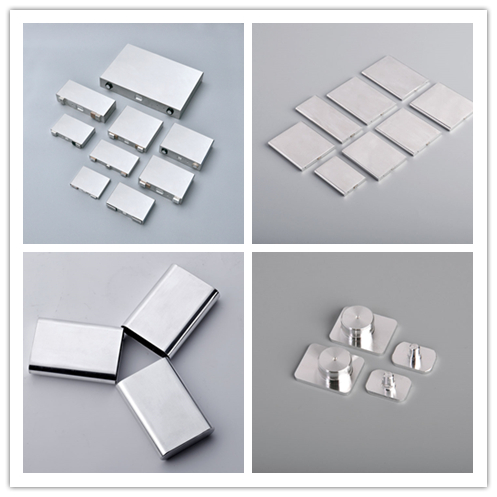

Square aluminum battery cases with high structural strength and reliable sealing performance;
Battery covers requiring multiple punching, forming, and bending operations;
Precision aluminum terminal components processed with accurate blanking and punching for improved electrical conductivity and assembly performance.
The HTC-1600 production line is especially suitable for high-speed automated stamping applications that require stable feeding performance, high surface quality, and consistent precision for lithium battery aluminum components.
Aluminum coil processing requires appropriate handling and contact surfaces to help reduce scratches, dents, and other visible defects.
The HTC-1600 combines coil handling, precision leveling, servo feeding, and material buffering in one coordinated production system. Roller cleanliness, guide alignment, and suitable machine settings remain essential to maintaining surface quality.
The leveling system uses six upper and five lower rollers to apply controlled bending to the material.
The roller arrangement, adjustment range, and material properties influence the achievable leveling result. The required flatness should be evaluated against the actual aluminum material and stamping application.

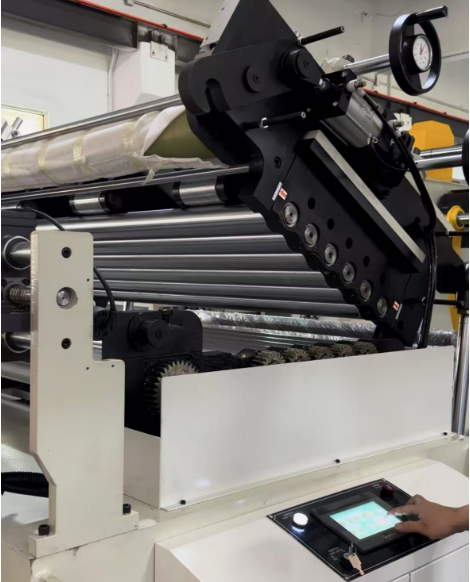

The hinged-open leveling head provides access to the roller area for routine inspection and cleaning.
This is particularly relevant when processing aluminum materials where accumulated particles or residue on contact surfaces may affect appearance.
The line combines three core material-handling functions, reducing the need to arrange each function as a completely separate machine.
The integrated configuration supports a coordinated coil-to-press process. Actual layout and space requirements depend on the machine dimensions, coil loading arrangement, and surrounding production equipment.
The hydraulic loop bridge provides temporary material storage between the leveling and feeding sections.
Photoelectric sensing supports loop monitoring and speed coordination, helping the system accommodate differences in material movement between the two sections.
1、What is the HTC-1600 Coil Processing Line used for?
The HTC-1600 is designed for coil-fed stamping applications that require automatic decoiling, precision leveling, and servo feeding. Its intended applications include aluminum battery covers, square battery cases, aluminum terminals, and other suitable aluminum stamping components.
2、What functions are integrated into the HTC-1600?
The described configuration includes an automatic uncoiler with a loading trolley, a precision leveling system, an NC servo feeder, and a hydraulic loop bridge for material buffering.
3、Why is a hinged-open leveling head useful for aluminum stamping?
A hinged-open leveling head provides easier access to the leveling rollers for inspection and cleaning. Removing accumulated particles and residue helps reduce the risk of contact marks and scratches caused by contaminated roller surfaces.
4、What is the function of the hydraulic loop bridge?
The loop bridge provides temporary material buffering between the leveling and feeding sections. Photoelectric switches monitor the loop position and help coordinate upstream material movement with downstream feeding requirements.
5、What is the maximum coil weight of the HTC-1600?
The supplied product information indicates a maximum coil weight of up to 10 tons. Confirm the rated coil capacity and the compatible coil dimensions for the exact machine configuration before ordering.
6、Can the HTC-1600 process aluminum up to 8.0 mm thick?
The supplied description mentions aluminum thickness up to 8.0 mm. This specification should be confirmed against the current technical datasheet, because allowable thickness depends on material properties, strip width, and the machine's actual configuration.
7、Can the HTC-1600 be integrated with a stamping press?
Yes. The line is designed to prepare coil material for downstream stamping. Integration requires compatible feeding parameters, press cycle timing, die requirements, control signals, and safety arrangements.
This video showcases the HTC-1600 heavy-duty 2-in-1 uncoiler leveler feeder line in the efficient processing of aluminum shell covers for the new energy lithium battery industry. The complete production line seamlessly integrates automatic uncoiling, precision leveling, and servo feeding, delivering high-precision feeding control and smooth, scratch-free material handling while significantly improving production efficiency and stability.
Designed specifically for the lithium battery sector, the system can handle aluminum coils of various thicknesses and widths, meeting strict industry requirements for surface quality, dimensional accuracy, and high production capacity. It is the ideal solution for stamping and processing aluminum shell covers.
Technical Parameters
| Width mm | 100-1600 |
| Thickness mm | 0.5-3.0 |
| Coi. Weigh kg | 15000 |
| Coil.I.Dia mm | Φ470-530 |
| Coil.O.Dia mm | Φ1300-Φ1800 |
| Straighten roller | 11, 6 up and 5 down |
| Feeding roller | 2 pieces, 1 on top and 1 on bottom (upper roller covered with rubber) |
| Air Pressure Mpa | 0.5 |
| Feeder motor kw | AC5.5KW |
| Uncoiler motor kw | AC7.5 |
| Leveler motor kw | AC11 |
| Hydraulic Power Unit kw | AC3.75 |
| Expansion range mm | Φ460-Φ530 |
| Expansion method | Hydraulic sliding block type |
| Feeding direction | Left→Right |
| Working power supply | AC 380V ±10%, 50Hz, three-phase four-wire system. |
Straighten Performance
| Yield stress (N/mm2) | 245 | 306 | 368 | 490 | 551 | 613 | |
| Tensile strength (N/mm2) | 392 | 490 | 588 | 784 | 882 | 980 | |
| Material thickness mm/material width mm | 0.6 | *1600 | *1600 | *1600 | *1600 | *1600 | *1600 |
| 0.8 | 1600 | 1600 | 1600 | *1600 | *1600 | *1600 | |
| 1.2 | 1600 | 1600 | 1600 | 1600 | 1600 | 1500 | |
| 1.4 | 1600 | 1600 | 1600 | 1300 | 1310 | 1165 | |
| 1.6 | 1600 | 1600 | 1400 | 1100 | 1200 | 1068 | |
| 2.0 | 1600 | 1500 | 1245 | 971 | 1066 | 948 | |
| 2.3 | 1600 | 1280 | 1062 | 828 | 984 | 875 | |
| 2.5 | 1500 | 1200 | 996 | 776 | 712 | 633 | |
| 2.8 | 1400 | 1120 | 939 | 732 | 684 | 608 | |
| 3.2 | 1300 | 1040 | 863 | 673 | 574 | 510 | |
| 4.0 | 1010 | 808 | 670 | 522 | 485 | 431 | |
| 4.5 | 800 | 640 | 560 | 436 | 307 | 273 | |

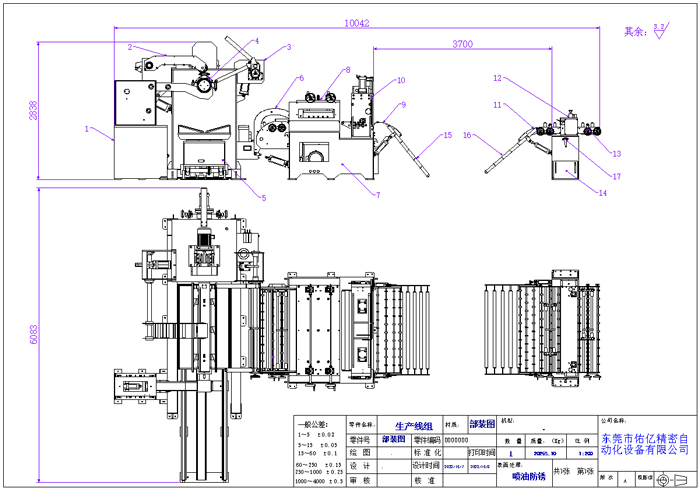

Outline Drawing
Application
1600 Large-Scale New Energy Lithium Battery Aluminum Casing Blanking Dedicated Automated Stamping Line
Thick-Sheet 3-in-1 Decoiler, Leveler & Feeder System for Automotive Stamping Applications
Customized Dual-Uncoiler 3-in-1 Feeding Line for Automated Stamping of Smart Furniture Hardware Components
2-in-1 Decoiler & Leveling Machines with Servo Feeders: Enhancing Precision in 3C Industry Automation
Ready to streamline your production with reliable stamping automation solutions that boost efficiency, reduce downtime!
Related Products
GO Type 2 In 1 Uncoiler Leveler For Sheet Thickness: 0.5-3.0mm
The two machines of the uncoiler and the straightener machine are integrated to reduce the installation space, reducethe excessive links in the precision material straightening process, and maximize the performance of the machine.
JMGO Precision 2 in 1 Uncoiler Leveler for Thin Sheet Metal (0.1–1.2mm)
The JMGO Precision 2 in 1 Uncoiler Leveler is designed for 0.1–1.2mm thin metal coils, integrating uncoiling and precision leveling in one compact machine. It is suitable for aluminum, copper, stainless steel and other thin sheet metal used in precision stamping applications.
TL Type 2 In 1 Uncoiler Leveler For Sheet Thickness: 0.5-6.0mm
Dual-Function Design: Combines decoiling and leveling operations in a single unit, saving floor space and streamlining workflows.
HCXL 2-in-1 Uncoiler Leveler with Coil Loading Trolley (1.0–6.0mm)
HCXL 2-in-1 Uncoiler & Leveler for 1.0–6.0mm sheets — integrated decoiler + precision leveling, hydraulic coil loading trolley, customizable widths 300–1000mm. Request quote.
FAQ
Q: How do I determine the right feeder size for my production line?
A: The feeder size depends on the material width, thickness, and feeding step distance required by your stamping press. Choosing the correct specifications ensures smooth operation and prevents feeding errors or misalignment.
Q: What factors should I consider when choosing a servo feeder machine?
A: When selecting a servo feeder, key factors include feeding accuracy (±0.05mm or better), maximum feeding speed (e.g., 20m/min), material compatibility (stainless steel, aluminum, etc.), load capacity, and control system (PLC or touchscreen). Ensure the machine matches your stamping process requirements.
Q: How do I choose the right decoiler, straightener and feeder?
A: Select based on material type, width, thickness, coil weight, and required speed. Match decoiler capacity to coil size, choose a straightener for material strength, and a feeder that meets feed length and precision. Ensure compatibility with your press and automation level.
Q: Coil feeder vs servo feeder: what’s the difference?
A: A coil feeder is a broader system for continuous coil feeding, often integrated with decoiler and straightener. A servo feeder uses servo motors for precise, programmable feeding, ideal for short pitches and high accuracy applications.
Q: How to choose decoiler capacity?
A: Select a decoiler rated 10–20% above your maximum coil weight. Confirm inner diameter (I.D.) compatibility and outer diameter limits. Adjustable mandrels are recommended if you run multiple coil sizes.
Q: What feed precision can I expect?
A: Servo feeders typically achieve ±0.01–0.05 mm, with high-end models reaching ±0.005 mm. Mechanical feeders usually provide ±0.02–0.1 mm. Actual accuracy depends on material properties and straightening quality.
Q: How does material affect machine selection?
A: High-strength materials need stronger straightening and drive systems. Thin materials require low-pressure handling. Soft materials like aluminum need anti-scratch solutions.
Q: What affects feeding accuracy most?
A: Key factors include feeder precision, servo tuning, straightener setup, material quality, and press stability. Poor setup or worn dies can reduce accuracy.
Q: What spare parts should be prepared?
A: Common spares include bearings, belts, sensors, seals, guide blocks, and lubrication parts. Keeping key components reduces downtime and improves maintenance efficiency.
Q: Can feeders be retrofitted to existing presses?
A: Yes, most systems support retrofitting. Check press dimensions, feed height, control compatibility, and safety requirements before installation.
Q: How long does it take to receive the feeder machine after placing an order?
A: Lead time for delivery typically ranges from 4 to 8 weeks depending on customization, production schedules, and shipping location. Once your order is confirmed, we will provide a more precise delivery estimate.
Q: What are your payment terms?
A: We accepts T/T payment, 30% deposit and 70% balance before shipping
Q: How often should I perform maintenance on my servo feeder machine?
A: Routine maintenance should be conducted weekly for basic cleaning and lubrication, while a more thorough inspection should be done monthly to check for wear on rollers, belts, and electrical components. A full servicing is recommended every 6-12 months depending on usage intensity.
Q: What are the most common issues with feeder machines, and how can I troubleshoot them?
A: Common issues include misalignment, inconsistent feeding accuracy, or motor failure. Check for loose bolts, dirt buildup, or software calibration errors. If problems persist, refer to the user manual or contact technical support.
Q: Do you provide on-site repair services if my machine breaks down?
A: Yes, we offer on-site repair services for major issues, along with remote troubleshooting support for minor problems. For urgent cases, we can dispatch a technician within 24-48 hours, depending on your location.
Q: What is the maintenance cycle?
A: Daily cleaning and inspection; weekly check belts, air lines; monthly inspect bearings and guides; yearly replace worn parts. Adjust frequency based on operating hours and workload.
Q: What's the package of your coil feeding machines?
A: For the coil feeding equipment that go LCL shipping, We will use plastic films wrap on the equiment, and then fix it into a wooden box.
For the large coil lines that go FCL shipment, We will fix each part with ropes on the shipping container and then wrapped them with plastic films.
Q: What is the typical lead time?
A: Standard machines usually take 4–8 weeks. Customized systems or full production lines may require 10–20+ weeks depending on complexity and production schedule.
Download
