The YouYi Automation Products Center
All of YouYi's press automation solutions in one place.

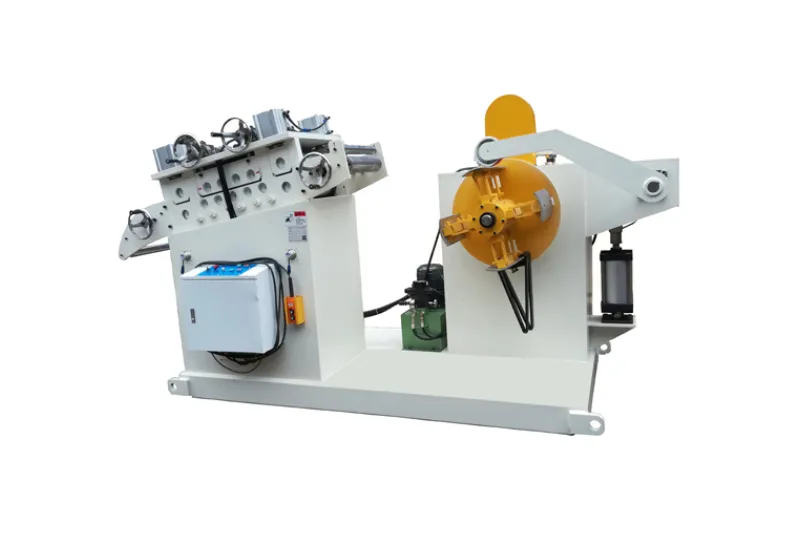

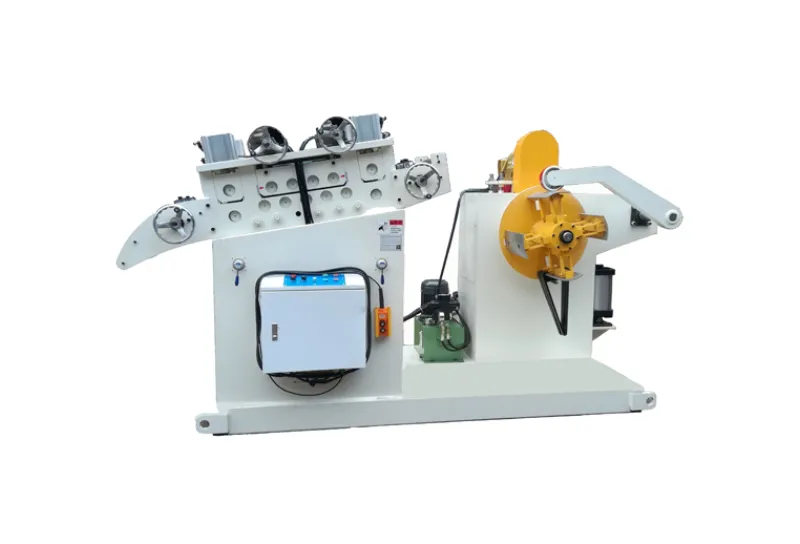

2 In 1 Uncoiler Leveler
Is a heavy-duty coil handling solution that integrates uncoiling and leveling functions in one compact machine. Designed for material thicknesses from 0.5mm to 6.0mm, it ensures precise straightening and stable feeding for press lines, especially suitable for automotive, construction, and sheet metal industries.
Material width (mm): 300-600
Material thickness (mm): 0.5-6.0
Coi. weight (kg): 1000-2000
Product Characteristics
The TL Series 2 in 1 Heavy Duty Uncoiler Leveler is a compact coil processing solution designed for medium and thick metal sheet applications from 0.5mm to 6.0mm.
By integrating automatic decoiling and precision leveling functions into one machine, TL Series provides stable coil handling, improved material flatness, and reliable feeding performance for high-strength metal stamping production.
Widely applied in automotive parts, home appliances, electrical cabinets, and general metal fabrication industries, this 2 in 1 uncoiler leveler helps manufacturers reduce production space, improve automation efficiency, and achieve consistent stamping quality.
The TL Series is engineered for demanding coil processing applications requiring high rigidity and stable operation.
Its reinforced machine frame provides excellent resistance against vibration and deformation during heavy-load processing, making it suitable for thick steel sheets and high-strength materials.
The TL Series combines an automatic uncoiler and leveling machine into one integrated system.
This compact design eliminates the need for separate equipment, saving valuable factory space while simplifying material handling and improving production efficiency.
Equipped with reinforced leveling rollers, TL Series effectively removes coil deformation and improves strip flatness before stamping.
The precision leveling system ensures stable material feeding and improves dimensional consistency for automotive components, electrical parts, and metal stamping products.
Ensures secure coil clamping, preventing slipping or damage during the decoiling process.
These additional features enhance safety and ensure stable material feeding during operation.
The advanced PLC control system makes operation straightforward, providing precise control over material tension, speed, and feeding rates, and ensuring smooth and efficient production.
The TL Series operates steadily and efficiently, reducing manual intervention, improving processing accuracy, and boosting overall production efficiency.
Designed specifically for medium and thick plate processing
Combines two machines into one, saving space and cost
Stable performance for high-strength materials
Improved leveling accuracy and feeding consistency
Reduced labor and higher automation compatibility

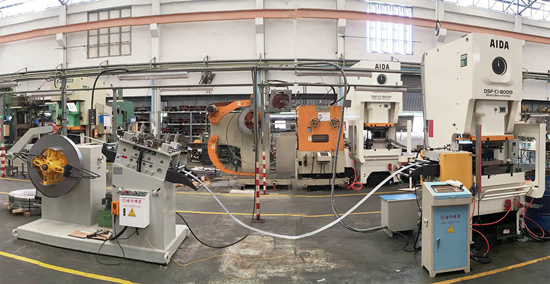

The TL Type 2-in-1 Uncoiler Leveler can be seamlessly integrated with a thick plate servo feeder and a power press to build a stable and highly efficient automated coil feeding and stamping production line.
Designed specifically for medium to thick sheet metal processing, this system delivers excellent leveling accuracy and feeding stability when handling 0.5–6.0 mm sheets, including high-tensile and high-strength steel materials. It ensures smooth material flow, precise positioning, and consistent stamping quality even under demanding production conditions.
This recommended configuration is widely used in medium-thickness stamping applications across industries such as automotive components, electrical enclosures, and metal hardware manufacturing, where reliability, precision, and production efficiency are critical.
1、What material thickness can TL Series 2 in 1 Uncoiler Leveler process?
The TL Series is designed for medium and thick metal sheets with thickness ranges from 0.5mm to 6.0mm, depending on the machine model configuration.
2、What is the advantage of a 2 in 1 Uncoiler Leveler?
A 2 in 1 Uncoiler Leveler combines decoiling and leveling functions in one machine, reducing equipment footprint and improving production efficiency compared with separate machines.
3、What industries use TL Series Uncoiler Leveler?
It is widely used in automotive stamping, electrical cabinets, home appliances, and metal fabrication industries.
Technical Parameters
| Modle | TL-200A | TL-300A | TL-400A | TL-500A | TL-600A | |
| TL-200B | TL-300B | TL-400B | TL-500B | TL-600B | ||
| Width | mm | 0.5-4.5 | 0.5-4.5 | 0.5-4.5 | 0.5-4.5 | 0.5-4.5 |
| 1.0-6.0 | 1.0-6.0 | 1.0-6.0 | 1.0-6.0 | 1.0-6.0 | ||
| Coil.I.Dia | mm | ∮450-530 | ∮450-530 | ∮450-530 | ∮450-530 | ∮450-530 |
| Coil.O.Dia | mm | ∮1200 | ∮1200 | ∮1200 | ∮1200 | ∮1200 |
| Coi. weight | Kg | 1000 | 1000 | 1500 | 2000 | 2000 |
| Expansion Method | Manual/Hydraulic | |||||
| Drive Motor HP | 1 | 2 | 2 | 3 | 5 | |
Application
1600 Large-Scale New Energy Lithium Battery Aluminum Casing Blanking Dedicated Automated Stamping Line
Thick-Sheet 3-in-1 Decoiler, Leveler & Feeder System for Automotive Stamping Applications
Customized Dual-Uncoiler 3-in-1 Feeding Line for Automated Stamping of Smart Furniture Hardware Components
2-in-1 Decoiler & Leveling Machines with Servo Feeders: Enhancing Precision in 3C Industry Automation
Ready to streamline your production with reliable stamping automation solutions that boost efficiency, reduce downtime!
Related Products
GO Type 2 In 1 Uncoiler Leveler For Sheet Thickness: 0.5-3.0mm
The two machines of the uncoiler and the straightener machine are integrated to reduce the installation space, reducethe excessive links in the precision material straightening process, and maximize the performance of the machine.
HTC-1600 Coil Processing Line for Lithium Battery Aluminum Component Stamping
TC-1600 Coil Processing Line integrates decoiling, leveling, and servo feeding for high-precision lithium battery aluminum stamping. Designed for battery covers, aluminum shells, and terminal components, it delivers stable feeding, accurate positioning, and excellent surface protection.
JMGO Type Precision 2 In 1 Uncoiler Leveler For Sheet Thickness: 0.1-1.2mm
This equipment is equipped with a photoelectric sensor that controls the stopping and feeding of materials (to prevent material blockage) comes with a support rack to prevent scratching of thin materials.
HCXL 2-in-1 Uncoiler Leveler with Coil Loading Trolley (1.0–6.0mm)
HCXL 2-in-1 Uncoiler & Leveler for 1.0–6.0mm sheets — integrated decoiler + precision leveling, hydraulic coil loading trolley, customizable widths 300–1000mm. Request quote.
FAQ
Q: How do I determine the right feeder size for my production line?
A: The feeder size depends on the material width, thickness, and feeding step distance required by your stamping press. Choosing the correct specifications ensures smooth operation and prevents feeding errors or misalignment.
Q: What factors should I consider when choosing a servo feeder machine?
A: When selecting a servo feeder, key factors include feeding accuracy (±0.05mm or better), maximum feeding speed (e.g., 20m/min), material compatibility (stainless steel, aluminum, etc.), load capacity, and control system (PLC or touchscreen). Ensure the machine matches your stamping process requirements.
Q: How do I choose the right decoiler, straightener and feeder?
A: Select based on material type, width, thickness, coil weight, and required speed. Match decoiler capacity to coil size, choose a straightener for material strength, and a feeder that meets feed length and precision. Ensure compatibility with your press and automation level.
Q: Coil feeder vs servo feeder: what’s the difference?
A: A coil feeder is a broader system for continuous coil feeding, often integrated with decoiler and straightener. A servo feeder uses servo motors for precise, programmable feeding, ideal for short pitches and high accuracy applications.
Q: How to choose decoiler capacity?
A: Select a decoiler rated 10–20% above your maximum coil weight. Confirm inner diameter (I.D.) compatibility and outer diameter limits. Adjustable mandrels are recommended if you run multiple coil sizes.
Q: What feed precision can I expect?
A: Servo feeders typically achieve ±0.01–0.05 mm, with high-end models reaching ±0.005 mm. Mechanical feeders usually provide ±0.02–0.1 mm. Actual accuracy depends on material properties and straightening quality.
Q: How does material affect machine selection?
A: High-strength materials need stronger straightening and drive systems. Thin materials require low-pressure handling. Soft materials like aluminum need anti-scratch solutions.
Q: What affects feeding accuracy most?
A: Key factors include feeder precision, servo tuning, straightener setup, material quality, and press stability. Poor setup or worn dies can reduce accuracy.
Q: What spare parts should be prepared?
A: Common spares include bearings, belts, sensors, seals, guide blocks, and lubrication parts. Keeping key components reduces downtime and improves maintenance efficiency.
Q: Can feeders be retrofitted to existing presses?
A: Yes, most systems support retrofitting. Check press dimensions, feed height, control compatibility, and safety requirements before installation.
Q: How long does it take to receive the feeder machine after placing an order?
A: Lead time for delivery typically ranges from 4 to 8 weeks depending on customization, production schedules, and shipping location. Once your order is confirmed, we will provide a more precise delivery estimate.
Q: What are your payment terms?
A: We accepts T/T payment, 30% deposit and 70% balance before shipping
Q: How often should I perform maintenance on my servo feeder machine?
A: Routine maintenance should be conducted weekly for basic cleaning and lubrication, while a more thorough inspection should be done monthly to check for wear on rollers, belts, and electrical components. A full servicing is recommended every 6-12 months depending on usage intensity.
Q: What are the most common issues with feeder machines, and how can I troubleshoot them?
A: Common issues include misalignment, inconsistent feeding accuracy, or motor failure. Check for loose bolts, dirt buildup, or software calibration errors. If problems persist, refer to the user manual or contact technical support.
Q: Do you provide on-site repair services if my machine breaks down?
A: Yes, we offer on-site repair services for major issues, along with remote troubleshooting support for minor problems. For urgent cases, we can dispatch a technician within 24-48 hours, depending on your location.
Q: What is the maintenance cycle?
A: Daily cleaning and inspection; weekly check belts, air lines; monthly inspect bearings and guides; yearly replace worn parts. Adjust frequency based on operating hours and workload.
Q: What's the package of your coil feeding machines?
A: For the coil feeding equipment that go LCL shipping, We will use plastic films wrap on the equiment, and then fix it into a wooden box.
For the large coil lines that go FCL shipment, We will fix each part with ropes on the shipping container and then wrapped them with plastic films.
Q: What is the typical lead time?
A: Standard machines usually take 4–8 weeks. Customized systems or full production lines may require 10–20+ weeks depending on complexity and production schedule.
