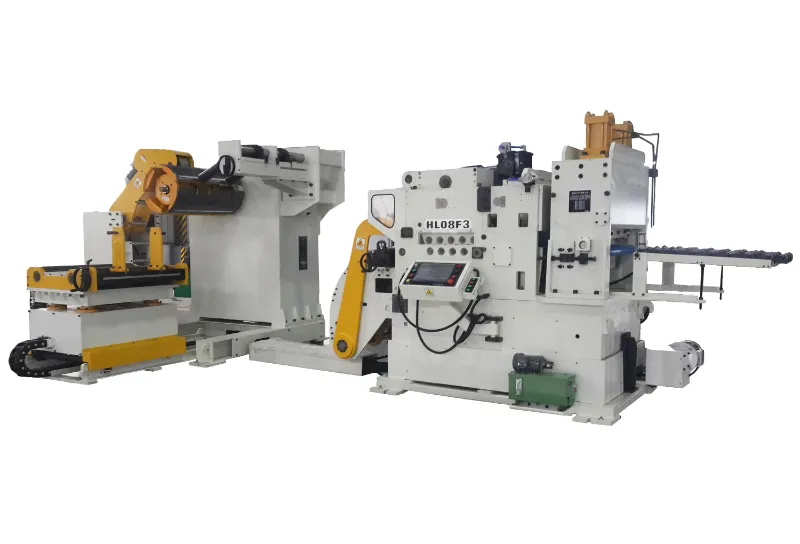

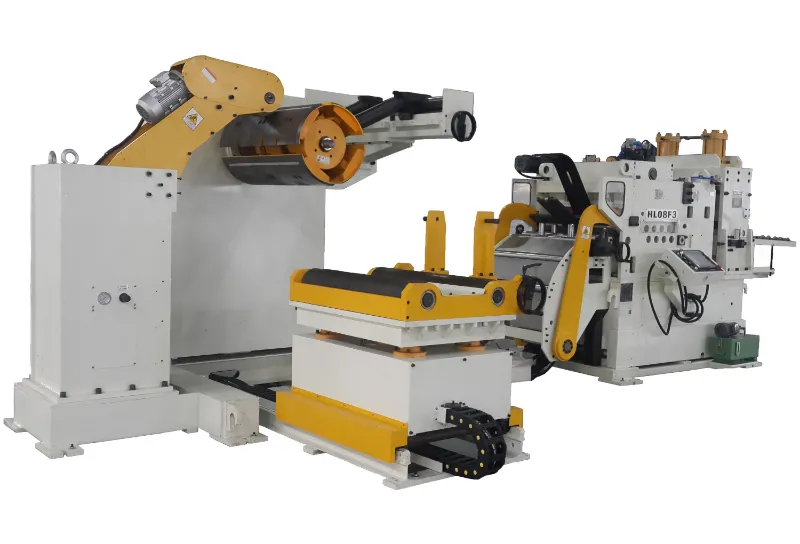

3 In 1 Coil Feed Line
The machine is a servo-driven uncoiling and leveling device specifically designed for the automatic feeding of medium to thick plates with wide widths and high yield strengths.
Material width(mm): 70-1300
Material thickness(mm): 0.6-6.0
Coi. weight(kg): 5000/7000
Product Characteristics
Innovative Mechanical Design:
The compact footprint minimizes the required operating space for the entire machine.
User-Friendly Control Panel:
Equipped with a large color LCD touchscreen, high-resolution interface, and integrated safety protection system, ensuring even first-time users can operate with confidence.
Intelligent Operating System:
Streamlined setup processes and advanced automatic diagnostic systems help operators quickly master the machine's operations.
Imported Servo Systems:
Guarantee high-precision feeding for consistent performance.
Durable Rollers:
Feed and leveling rollers undergo special heat treatment for exceptional hardness (HRC 62), wear resistance, and extended service life.
Heavy-Duty Back-Pressure Leveling Rollers:
Specifically designed for high-strength thick plates to ensure effective stress relief.
Enhanced Safety and Durability:
A design philosophy that doubles the safety factor, significantly extending equipment lifespan.
PLC-Based Control System:
Ensures responsive and reliable performance with a programmable logic controller (PLC) electrical system.
Labor and Time Efficiency:
Integrates material loading, alignment, folding, leveling, feeding, and material changeover into one machine. A single operator can manage all tasks via the centralized control panel, drastically reducing labor costs and intensity.
Technical Parameters
| Model | HL06F3 | HL08F3 | HL10F3 | HL13F3 |
| Material Width (mm) | 70~600 | 70~800 | 70~1000 | 70~1300 |
| Material Thickness (mm) | 0.6~6.0 | 0.6~6.0 | 0.6~6.0 | 0.6~6.0 |
| Coil Weight (kg) | 5000 | 5000/7000 | 7000 | 7000 |
| Inner Diameter (mm) | 1400 | 1400 | 1400 | 1400 |
| External Diameter (mm) | 508 | 508 | 508 | 508 |
| Max Feeding Length (mm) | 9999.99 | 9999.99 | 9999.99 | 9999.99 |
| Production Line Speed (m/min) | 16~24 | 16~24 | 16~24 | 16~24 |
| Correction Roller | upper5/lower4 | |||
| Feeding Roller | 1 set | 1 set | 1 set | 1 set |
| Main Motor (kW) | AC7.5 | AC11 | AC 11 | AC 15 |
| Material Rack Expansion Method | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
| Material Frame Motor (kW) | 2.2 | 2.2 | 2.2/3.7 | 3.7 |
| Power Supply Voltage (V) | 220/380 | 220/380 | 220/380 | 220/380 |
| Air Pressure (MPa) | 0.49 | 0.49 | 0.49 | 0.49 |
Corrective Ability
| Modle | HL06F3 | HL08F3 | HL10F3 | HL10F3 | |
| Stock thickness (mm) | 0.6-1.3 | 600 | 800 | 1000 | 1300 |
| 2.5 | 933 | 933 | |||
| 2.8 | 920 | 920 | |||
| 3.2 | 714 | 714 | 714 | ||
| 4 | 457 | 457 | 457 | 457 | |
| 4.5 | 361 | 361 | 361 | 361 | |
| 5 | 293 | 293 | 293 | 293 | |
| 6 | 203 | 203 | 203 | 203 | |
| The stress at the yield point in the table is 245N/mm² | |||||
| Modle | HL06F3 | HL08F3 | HL10F3 | HL10F3 | |
| Stock thickness (mm) | 2.3 | 255 | 252 | 250 | 246 |
| 2.8 | 205 | 203 | 202 | 199 | |
| 3.2 | 177 | 175 | 174 | 171 | |
| 4 | 138 | 136 | 135 | 133 | |
| 4.5 | 120 | 119 | 118 | 116 | |
| 5 | 106 | 105 | 104 | 103 | |
| 6 | 81 | 81 | 81 | 81 | |
| The stress at the yield point in the table is 600N/mm² | |||||

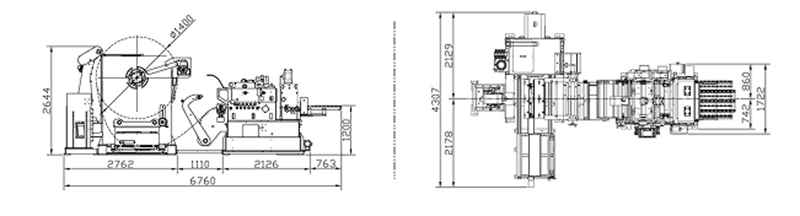

Outline Drawing
Application
1600 Large-Scale New Energy Lithium Battery Aluminum Casing Blanking Dedicated Automated Stamping Line
Thick-Sheet 3-in-1 Decoiler, Leveler & Feeder System for Automotive Stamping Applications
Customized Dual-Uncoiler 3-in-1 Feeding Line for Automated Stamping of Smart Furniture Hardware Components
2-in-1 Decoiler & Leveling Machines with Servo Feeders: Enhancing Precision in 3C Industry Automation
