Automobile Industry

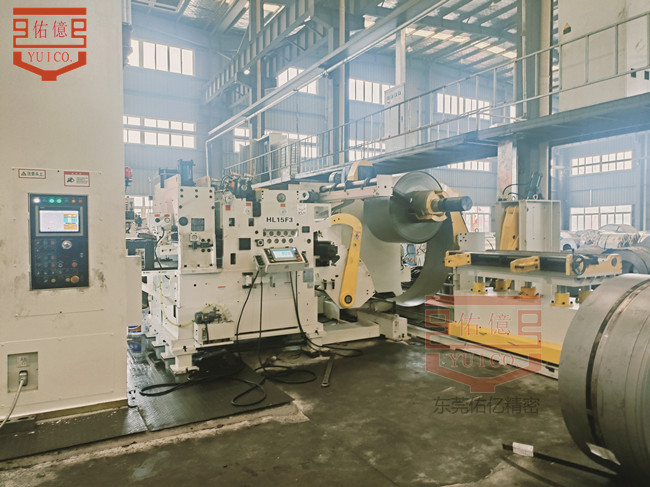

This project features a 1250-ton stamping press integrated with a high-tensile steel 3-in-1 coil feed line, delivering a fully automated solution for automotive chassis component production.
The system is designed for processing high-strength steel coils with:
Material width: 150–1500 mm
Thickness: 0.6–6.0 mm
It ensures stable feeding, precise leveling, and high-efficiency coil-fed stamping required in modern automotive manufacturing.
The High-Tensile Steel 3-in-1 Coil Feed Lineintegrates decoiling, straightening, and feeding into a single compact structure. This eliminates the need for multiple standalone machines, simplifies operation, and ensures stable processing of ultra-strong automotive-grade materials such as chassis reinforcement plates, suspension structures, and underbody components.
The high-tensile steel 3-in-1 feeder line integrates a decoiler, straightener, and servo feeder into a single compact machine. This integrated structure simplifies the production layout and ensures stable processing of high-strength automotive materials.
Compared with traditional multi-machine setups, the system provides continuous coil-fed stamping, reduces manual material handling, and significantly improves production efficiency when processing structural automotive parts.
From Manual Sheet Loading → Continuous Coil Stamping
Traditional production relies on purchasing cut sheets and using robots to load them piece by piece. This method increases labor cost, causes material waste at the sheet head and tail, and limits production speed.
The upgraded stamping line built with a High-Strength Steel 3-in-1 Feeder enables:
1、Continuous coil processing
2、High-speed stamping up to 18 m/min
3、Stable and accurate feeding of thick, high-tensile materials
4、Significant reduction in material loss
5、Higher precision in chassis part forming
This solution is widely used for:
1、Automotive chassis reinforcement components
2、Frame & suspension structures
3、Large metal panels and inner plates
4、High-strength structural parts requiring precise leveling

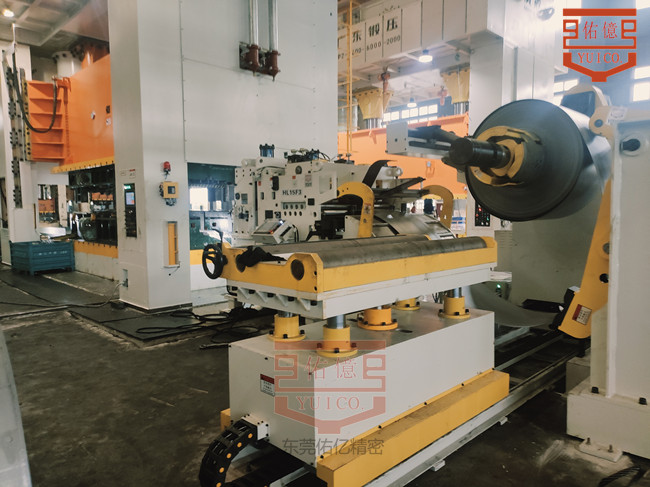

Equipped with coil-loading trolley, pressing arm, limiting arm, and hydraulic spindle support
Handles coils up to 16 tons without deflection or sinking
Ensures safe, smooth, and stable uncoiling even under heavy load
Perfect for ultra-high-strength steel and thick material applications
The decoiler section ensures stable uncoiling of heavy automotive steel coils, providing consistent material supply for high-tonnage stamping presses.
Features material entry swing arm to bend and guide coil heads
Servo-leveling adjustment, controlled directly through the touch screen
Parameters (leveling values, thickness settings, product codes) can be stored and recalled automatically
Reduces adjustment time and ensures consistent leveling accuracy across batches
The servo feeding unit delivers high-precision coil feeding to the 1250-ton stamping press, ensuring stable positioning and repeatable accuracy during high-speed automotive stamping production.
High consistency for demanding automotive chassis stamping
Maintains precision even during high-speed continuous runs
By upgrading to a High-Strength Steel 3-in-1 Feeder Line, the customer achieved:
✓ Higher Productivity
High-speed coil processing significantly boosts output compared to manual sheet loading.
✓ Reduced Material Waste
Continuous coil stamping eliminates sheet head/tail scrap.
✓ Increased Precision & Stability
Servo-controlled leveling and feeding ensure stable forming of high-strength materials.
✓ Lower Labor Intensity & Costs
Automation minimizes manual tasks and reduces staffing requirements.
✓ Smaller Footprint
One compact machine replaces three separate units.
These advantages make the 3-in-1 coil feeding line an ideal solution for high-strength steel automotive stamping production.
The High-Tensile Steel 3-in-1 Coil Feed Linehas proven to be an essential solution for modern automotive chassis stamping. With high automation, stable performance, and precise processing of ultra-strong materials, it greatly enhances production efficiency and strengthens competitiveness in the automotive manufacturing sector.
This case demonstrates how Youyi Precision helps customers upgrade to a smarter, more efficient coil-fed stamping line that meets the evolving demands of high-strength steel processing.
Frequently Asked Questions About 3-in-1 Coil Feed Lines
What is a 3-in-1 coil feed line used for?
A 3-in-1 coil feed line integrates decoiling, straightening, and servo feeding into one machine. It is widely used in automated stamping lines for automotive parts, appliances, and structural metal components.
Why is a 3-in-1 feeder suitable for high-strength steel?
The integrated structure ensures stable material control, precise leveling, and consistent feeding, which are critical for processing high-tensile automotive steel.
