Cut to Length Lines
A high-precision automatic cut to length line specially engineered for hydrogen fuel cell bipolar plate production, integrating decoiling, straightening, feeding, shearing, and stacking in one continuous process.
Applicable Materials
Material Types: Cold rolled steel, pickled steel, stainless steel, special alloys
Material Width: 250mm – 700mm
Material Thickness: 0.8mm – 2.5mm
Coil Weight: Max. 3000kg
Coil Inner Diameter: Φ470 – Φ530mm
Coil Outer Diameter: Φ800 – Φ1200mm
Product Characteristics
The Automatic Cut to Length Line for Hydrogen Fuel Cell Bipolar Plate Production is a customized coil processing system designed to cut metal coils into precise sheet lengths for bipolar plate manufacturing.
Bipolar plates are essential components of hydrogen fuel cells and electrolyzers. Their manufacturing process requires consistent sheet dimensions, reliable feeding accuracy, and careful surface protection to maintain product quality and support subsequent forming operations.
Developed by YouYi Precision, this automatic cut to length line integrates coil decoiling, precision straightening, servo feeding, pneumatic shearing, material conveying, and automatic stacking into one coordinated production system.
Designed for processing stainless steel, titanium alloy, and other metal materials, the production line provides stable material handling and automated cutting operations while minimizing surface scratches, dents, and other handling defects.
It is particularly suitable for manufacturers seeking an integrated solution for metal sheet preparation in hydrogen fuel cell bipolar plate production.

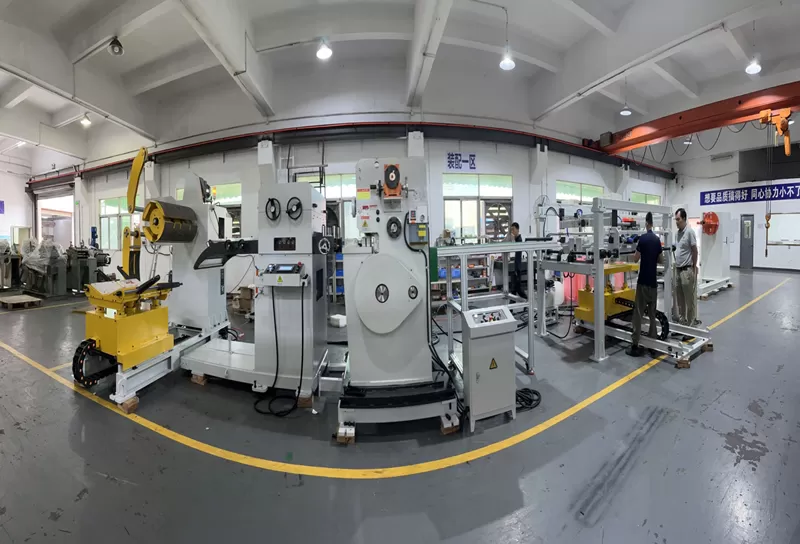

The automatic cut to length line consists of four main sections:
Automatic Decoiler: Unwinds and supports metal coils, providing continuous material supply.
Servo Straightener & Feeder: Levels the coil material and feeds it forward according to preset lengths.
Precision Pneumatic Shearing Machine: Cuts the material into required sheet lengths.
Automatic Conveyor & Stacking System: Transfers and stacks finished sheets for convenient collection and subsequent processing.
By coordinating these sections, the production line reduces manual material handling and helps improve production consistency.
The automatic decoiler provides stable coil support and controlled unwinding throughout the production process. Its safety-oriented structure helps prevent coil loosening and improves material loading efficiency.
Main Features:
Hydraulic expansion with a safety chuck for secure coil clamping.
Pneumatic pressing arm to prevent coil loosening during decoiling.
Hydraulic loading car for convenient coil loading and unloading.
AC motor drive with frequency converter for controlled unwinding.
Pneumatic disc brake for stable braking and tension control.
The servo straightener and feeder combines material leveling and precision feeding functions. It prepares the metal strip for shearing while maintaining consistent feeding performance.
The system uses a Yaskawa servo motor, Mitsubishi PLC, and a 7-inch touchscreen to provide accurate feeding control and convenient parameter adjustment.
Main Technical Specifications:
| Parameter | Specification |
|---|---|
| Maximum Feeding Width | 700 mm |
| Material Thickness | 0.8–2.0 mm |
| Feeding Length | 0–9999.99 mm |
| Feeding Accuracy | ±0.2 mm |
| Servo Motor | Yaskawa |
| Control System | Mitsubishi PLC |
| Operation Interface | 7-inch Touchscreen |
Key Features:
Integrated straightening and servo feeding for continuous material processing.
Precise feeding control for consistent sheet positioning.
Scratch-resistant material contact design to protect sensitive metal surfaces.
Designed to minimize oil contamination and surface dents during material processing.
Adjustable feeding length to accommodate different production requirements.
The precision pneumatic shearing machine cuts the continuously fed metal strip into preset sheet lengths.
Its rigid welded steel frame provides structural stability, while the upper-blade cutting design facilitates finished sheet discharge.
Main Features:
Rigid welded steel frame for reliable operation.
Upper-blade cutting motion for convenient sheet discharge.
Spring-loaded clamping device with anti-slip pads to protect material surfaces.
Pneumatic clutch for fast and efficient shearing cycles.
Maximum shearing width: 1300 mm.
Burr control: ≤0.1 mm.
The clamping structure helps reduce material movement during cutting, while the shearing mechanism is designed to achieve clean cutting edges and minimize burr formation.
After shearing, the finished metal sheets are automatically transferred to the stacking section.
The conveyor and stacking system reduces manual handling and helps maintain an organized sheet arrangement for subsequent production processes.
Main Features:
Automatic conveying of cut metal sheets.
Pneumatic side tapping system for neat and consistent stacking.
Adjustable stacking length: 300–1200 mm.
Adjustable stacking width: 300–700 mm.
Maximum stacking height: 400 mm.
Mobile stacking trolley for convenient finished-sheet removal.
The adjustable stacking configuration allows manufacturers to handle different sheet sizes and improve material collection efficiency.
The production line is customized for metal sheet preparation in hydrogen fuel cell bipolar plate manufacturing. It can process stainless steel, titanium alloy, and other suitable metal materials within the specified equipment capacity.
The Yaskawa servo motor and Mitsubishi PLC control system provide precise feeding control. With a feeding accuracy of ±0.2 mm, the system supports consistent material positioning during the cutting process.
Bipolar plate materials may require careful surface treatment to avoid scratches, dents, and contamination. The production line incorporates protective material contact structures, anti-slip clamping pads, and controlled conveying to reduce surface damage during processing.
By combining decoiling, straightening, feeding, shearing, conveying, and stacking, the production line reduces separate handling operations and improves workflow coordination.
The system uses components from established industrial brands, including Yaskawa, Mitsubishi, and Schneider, supporting stable equipment control and convenient operation.
Typical Applications
This automatic cut to length line is primarily designed for metal sheet preparation in hydrogen energy equipment manufacturing.
Typical application areas include:
Hydrogen fuel cell bipolar plate production.
Metal sheet preparation for fuel cell stack components.
Hydrogen electrolyzer component manufacturing.
Stainless steel and titanium alloy coil processing.
Precision metal sheet cutting before subsequent stamping or forming operations.
The final machine configuration can be customized according to material type, thickness, coil width, required cutting length, and production capacity.
Q1: What is a Hydrogen Fuel Cell Bipolar Plate Cut to Length Line?
A Hydrogen Fuel Cell Bipolar Plate Cut to Length Line is an automated coil processing system designed to convert metal coils into sheets of preset lengths for bipolar plate manufacturing. It typically integrates decoiling, straightening, servo feeding, shearing, conveying, and stacking functions.
Q2: What materials can this cut to length line process?
The production line is suitable for stainless steel, titanium alloy, and other metal materials commonly used in hydrogen fuel cell bipolar plate manufacturing. The actual material compatibility depends on material thickness, mechanical properties, surface requirements, and machine configuration.
Q3: What is the feeding accuracy of this production line?
The servo straightener and feeder has a specified feeding accuracy of ±0.2 mm. Actual finished-sheet cutting accuracy should be evaluated separately according to the material characteristics, cutting length, machine configuration, and production conditions.
Q4: Can the production line prevent scratches on bipolar plate materials?
The production line incorporates surface-protection features, including scratch-resistant material contact structures, anti-slip clamping pads, and controlled sheet conveying. These designs help minimize scratches, dents, and other handling defects. Actual surface quality also depends on material condition and production environment.
Q5: Can the cut to length line be customized?
Yes. YouYi Precision can customize the production line according to material specifications, coil width, thickness, cutting length, required automation level, and stacking requirements. Customers can provide their material parameters and production requirements for a suitable configuration.
Q6: What information is required to select a suitable cut to length line?
To recommend an appropriate configuration, manufacturers should provide the following information:
Material type, such as stainless steel or titanium alloy.
Material thickness and coil width.
Coil weight and inner/outer diameter.
Required sheet cutting length.
Required feeding and cutting accuracy.
Surface protection requirements.
Expected production capacity and automation requirements.
This video presents the complete operating process of YouYi’s Hydrogen Fuel Cell Bipolar Plate Cut-to-Length Line, designed specifically for high-precision bipolar plate production.
The system integrates automatic decoiling, servo straightening and feeding, precision pneumatic shearing, and high-speed stacking, ensuring stable material handling, accurate length control, and efficient downstream processing.
It is an ideal solution for hydrogen energy applications requiring surface protection, dimensional accuracy, and high-throughput production.
Technical Parameters
| Item | Specification |
|---|---|
| Feeding Direction | Left to Right (operator facing control panel) |
| Feeding Accuracy | ±0.15mm (≤500mm length), ±0.2mm (≤1000mm length), ±0.3mm (≤2000mm length) |
| Diagonal Accuracy | ≤0.5mm/m |
| Burr after Shearing | ≤0.1mm |
| Stacking Length | 300mm – 1200mm |
| Stacking Width | 300mm – 700mm |
| Max. Stacking Height | 400mm |
| Max. Stacking Weight | 1000kg |
| Line Footprint | Approx. 12m × 3m |
| Power Supply | 3 Phase AC 380V, 50Hz |

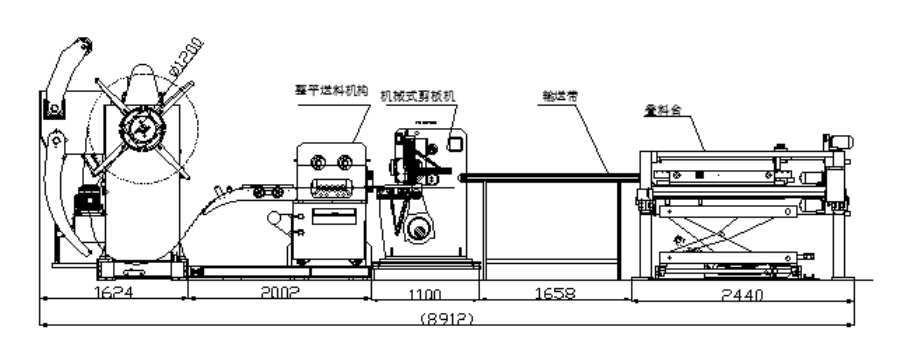

Outline Drawing
