Decoiler/Uncoiler

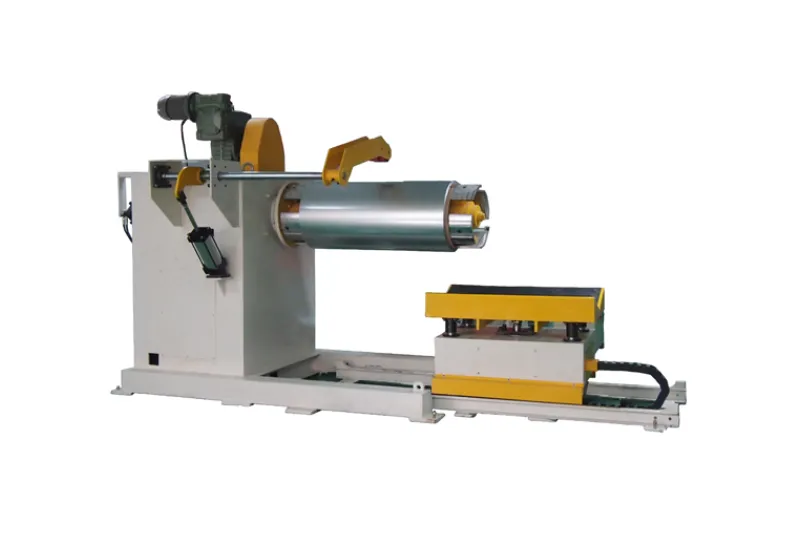

The MT Series Heavy-Duty Hydraulic Decoiler (Automatic Uncoiler) is engineered for high-capacity coil handling in roll-forming and stamping production lines. Supporting material widths of 100–1600 mm and thickness up to 6.0 mm, with hydraulic expansion and an optional coil loading carriage, the MT Series reliably feeds heavy coils (up to 20,000 kg) to straighteners and servo feeders for continuous, automated production.
Material width (mm): 100-1600
Material thickness (mm): 0-6.0
The automatic hydraulic decoiler is used for loading or unloading large metal coils, with an adjustable inner diameter of the material. It is designed with a loading trolley for quick and convenient loading and unloading.
Product Characteristics
The Heavy Duty Hydraulic Decoiler with Coil Loading Car is designed for stable, efficient, and automated metal coil unwinding in modern roll forming and sheet metal processing production lines. The machine is widely used in industries such as construction materials, ceiling systems, steel framing, appliance manufacturing, automotive parts, and metal stamping production.
The decoiler adopts a heavy-duty steel welded structure combined with a hydraulic expansion mandrel system, ensuring stable coil support, smooth uncoiling, and long-term durability during continuous production.
Integrated with an automatic coil loading car, the system significantly reduces manual handling while improving loading efficiency, production safety, and material feeding stability.
This automatic decoiler is suitable for processing steel coils, galvanized coils, stainless steel coils, aluminum coils, copper coils, and other metal materials.
The machine body is manufactured using high-strength steel plates with bevel preparation before welding.
Structural Advantages
Continuous and smooth welding structure
Strong load-bearing capacity
Stable operation during continuous production
Excellent rigidity and vibration resistance
Long service life
The overall welded structure is processed according to industrial manufacturing standards, ensuring reliability for heavy coil applications.
The main shaft is precision-machined from high-quality 40Cr steel material.
Benefits
High mechanical strength
Excellent wear resistance
Stable performance under heavy loads
Suitable for continuous automatic production
The heavy-duty rotary bearing system further improves operational stability and extends equipment lifespan.
The expandable reel adopts a four-blade expansion structure with a curvature matching the inner diameter of the metal coil.
Advantages
Stable coil clamping
Smooth uncoiling performance
Reduced material deformation
Prevents damage to coil inner surfaces
Suitable for precision metal materials
The hydraulic expansion system automatically expands and contracts the mandrel, improving operational efficiency and reducing manual labor.
The hydraulic expansion mechanism enables automatic reel expansion and contraction.
Features
One-button hydraulic expansion
Fast coil loading and unloading
Improved production efficiency
Reduced operator workload
Suitable for heavy coil applications
Compared with manual expansion systems, hydraulic expansion provides safer and more convenient operation.
The optional material pressing arm prevents the metal coil from loosening or springing outward during operation.
Safety Advantages
Prevents sudden coil rebound
Improves operator safety
Stabilizes coil unwinding
Reduces feeding interruption
This feature is especially important when processing high-tension steel coils or large-diameter materials.
The machine surface undergoes multiple anti-corrosion treatments, including:
Acid pickling
Phosphating
Spray coating
Benefits
Improved corrosion resistance
Enhanced rust protection
Longer equipment lifespan
Better appearance quality
The treatment process increases corrosion resistance performance by approximately five times compared with standard surface finishing methods.

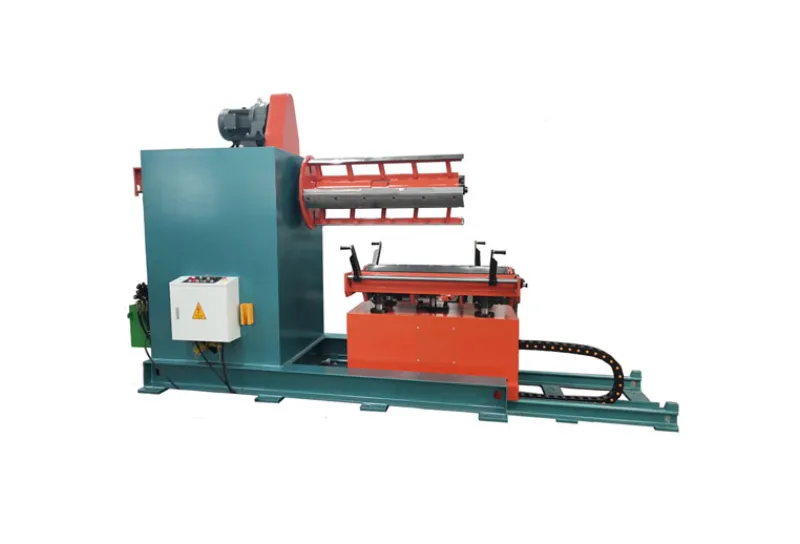

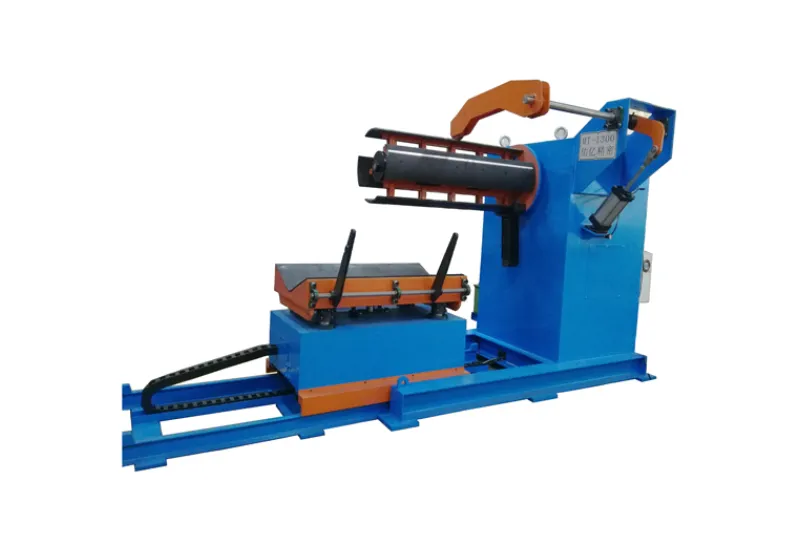

The hydraulic coil loading car assists with automatic coil loading and positioning.
Main Advantages
Easier heavy coil handling
Reduced manual lifting
Faster loading speed
Improved positioning accuracy
Safer production environment
The loading trolley works synchronously with the decoiler to achieve efficient automatic material preparation.

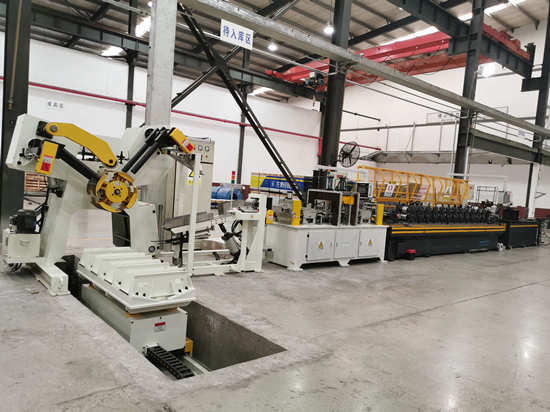

In this project, the MT Series Heavy Duty Hydraulic Decoiler is integrated with a roll forming machine to create a fully automated production line for metal keels used in the construction industry.
The system enables efficient coil loading, uncoiling, forming, and cutting—all in one continuous process. With the support of a hydraulic expansion decoiler and automatic coil loading carriage, this solution ensures stable and uninterrupted material feeding, greatly improving productivity and reducing manual handling.
This case demonstrates the application of an automated coil feeding solution in the building materials industry, enabling large-scale production of light steel framing components such as wall studs, ceiling grids, and other structural keels.
Technical Parameters
| Modle | MT-700 | MT-800 | MT-1000 | MT-1300 | MT-1600 |
| Width (mm) | 700 | 800 | 1000 | 1300 | 1600 |
| Thickness (mm) | 0-6.0 | ||||
| Coil.I.Dia (mm) | φ450 ～ 520 | ||||
| Coil.O.Dia(mm) | φ1200 | φ1200 | φ1200 | φ1200 | φ1200 |
| Coil Weight（kg） | 2500 ～ 20000 | 3000 ～ 20000 | 3000 ～ 20000 | 3000 ～ 20000 | 3000 ～ 20000 |
| Speed m/min | 15 | ||||
| Expansion | Hydraulic | ||||
Application
1600 Large-Scale New Energy Lithium Battery Aluminum Casing Blanking Dedicated Automated Stamping Line
Thick-Sheet 3-in-1 Decoiler, Leveler & Feeder System for Automotive Stamping Applications
Customized Dual-Uncoiler 3-in-1 Feeding Line for Automated Stamping of Smart Furniture Hardware Components
2-in-1 Decoiler & Leveling Machines with Servo Feeders: Enhancing Precision in 3C Industry Automation
Ready to streamline your production with reliable stamping automation solutions that boost efficiency, reduce downtime!
Related Products
MT Series Metal Coil Automatic Decoiler/Uncoiler Machine
Automatic Decoiler is designed for uncoiling various metal coils. It supports hydraulic expansion and optional coil car, and works with straighteners and servo feeders for automated coil feeding in stamping lines.
KHT Series Dual-Station Decoiler/Uncoiler - Motorized & Idler Options for Metal Coil Processing
KHT Series dual-station decoiler (dual-head uncoiler) for high-speed punch presses. Fast coil changeover, optional hydraulic expansion & motorized drive—ideal for stator/rotor and hinge stamping lines. Request datasheet & quote.
MT Series Heavy Duty Hydraulic Decoiler/Uncoiler Machine
The hydraulic automatic decoiler is equipped with hydraulic expansion, allowing the material's inner diameter to expand and contract automatically, saving time and effort.
CR Series Light Duty Decoiler/Uncoiler
The CR Series Light Duty Decoiler is built for uncoiling thin and soft metal coils in compact stamping lines. It features a simple structure, reliable performance, and optional motorized drive.
FAQ
Q: How do I determine the right feeder size for my production line?
A: The feeder size depends on the material width, thickness, and feeding step distance required by your stamping press. Choosing the correct specifications ensures smooth operation and prevents feeding errors or misalignment.
Q: What factors should I consider when choosing a servo feeder machine?
A: When selecting a servo feeder, key factors include feeding accuracy (±0.05mm or better), maximum feeding speed (e.g., 20m/min), material compatibility (stainless steel, aluminum, etc.), load capacity, and control system (PLC or touchscreen). Ensure the machine matches your stamping process requirements.
Q: How do I choose the right decoiler, straightener and feeder?
A: Select based on material type, width, thickness, coil weight, and required speed. Match decoiler capacity to coil size, choose a straightener for material strength, and a feeder that meets feed length and precision. Ensure compatibility with your press and automation level.
Q: Coil feeder vs servo feeder: what’s the difference?
A: A coil feeder is a broader system for continuous coil feeding, often integrated with decoiler and straightener. A servo feeder uses servo motors for precise, programmable feeding, ideal for short pitches and high accuracy applications.
Q: How to choose decoiler capacity?
A: Select a decoiler rated 10–20% above your maximum coil weight. Confirm inner diameter (I.D.) compatibility and outer diameter limits. Adjustable mandrels are recommended if you run multiple coil sizes.
Q: What feed precision can I expect?
A: Servo feeders typically achieve ±0.01–0.05 mm, with high-end models reaching ±0.005 mm. Mechanical feeders usually provide ±0.02–0.1 mm. Actual accuracy depends on material properties and straightening quality.
Q: How does material affect machine selection?
A: High-strength materials need stronger straightening and drive systems. Thin materials require low-pressure handling. Soft materials like aluminum need anti-scratch solutions.
Q: What affects feeding accuracy most?
A: Key factors include feeder precision, servo tuning, straightener setup, material quality, and press stability. Poor setup or worn dies can reduce accuracy.
Q: What spare parts should be prepared?
A: Common spares include bearings, belts, sensors, seals, guide blocks, and lubrication parts. Keeping key components reduces downtime and improves maintenance efficiency.
Q: Can feeders be retrofitted to existing presses?
A: Yes, most systems support retrofitting. Check press dimensions, feed height, control compatibility, and safety requirements before installation.
Q: How long does it take to receive the feeder machine after placing an order?
A: Lead time for delivery typically ranges from 4 to 8 weeks depending on customization, production schedules, and shipping location. Once your order is confirmed, we will provide a more precise delivery estimate.
Q: What are your payment terms?
A: We accepts T/T payment, 30% deposit and 70% balance before shipping
Q: How often should I perform maintenance on my servo feeder machine?
A: Routine maintenance should be conducted weekly for basic cleaning and lubrication, while a more thorough inspection should be done monthly to check for wear on rollers, belts, and electrical components. A full servicing is recommended every 6-12 months depending on usage intensity.
Q: What are the most common issues with feeder machines, and how can I troubleshoot them?
A: Common issues include misalignment, inconsistent feeding accuracy, or motor failure. Check for loose bolts, dirt buildup, or software calibration errors. If problems persist, refer to the user manual or contact technical support.
Q: Do you provide on-site repair services if my machine breaks down?
A: Yes, we offer on-site repair services for major issues, along with remote troubleshooting support for minor problems. For urgent cases, we can dispatch a technician within 24-48 hours, depending on your location.
Q: What is the maintenance cycle?
A: Daily cleaning and inspection; weekly check belts, air lines; monthly inspect bearings and guides; yearly replace worn parts. Adjust frequency based on operating hours and workload.
Q: What's the package of your coil feeding machines?
A: For the coil feeding equipment that go LCL shipping, We will use plastic films wrap on the equiment, and then fix it into a wooden box.
For the large coil lines that go FCL shipment, We will fix each part with ropes on the shipping container and then wrapped them with plastic films.
Q: What is the typical lead time?
A: Standard machines usually take 4–8 weeks. Customized systems or full production lines may require 10–20+ weeks depending on complexity and production schedule.
