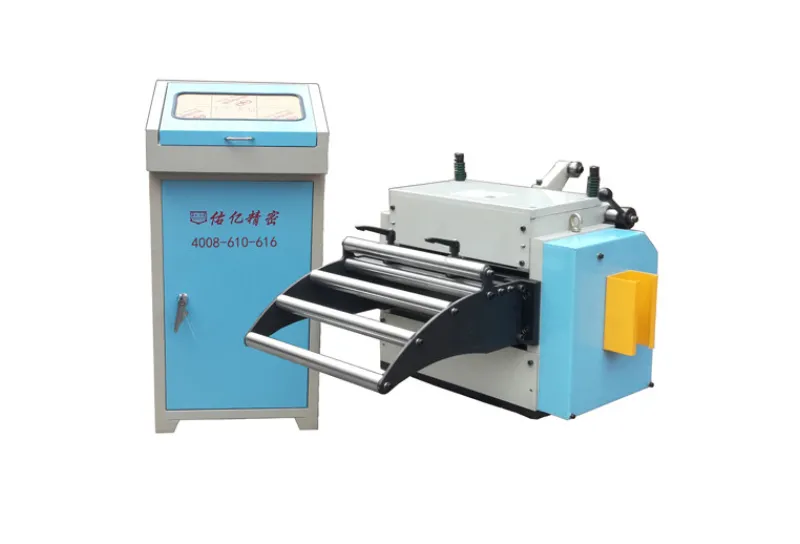

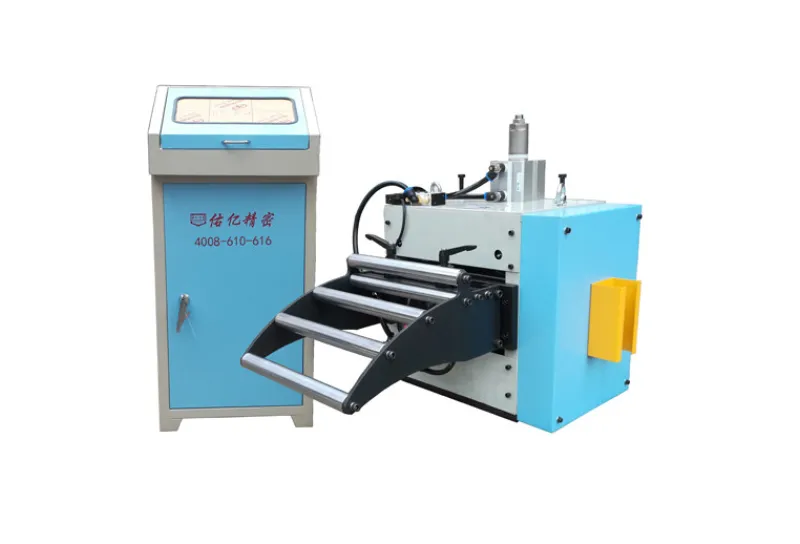

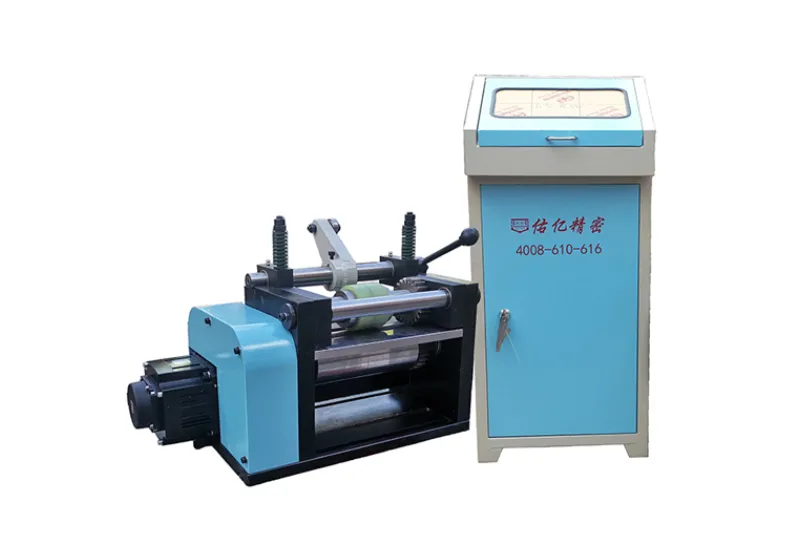

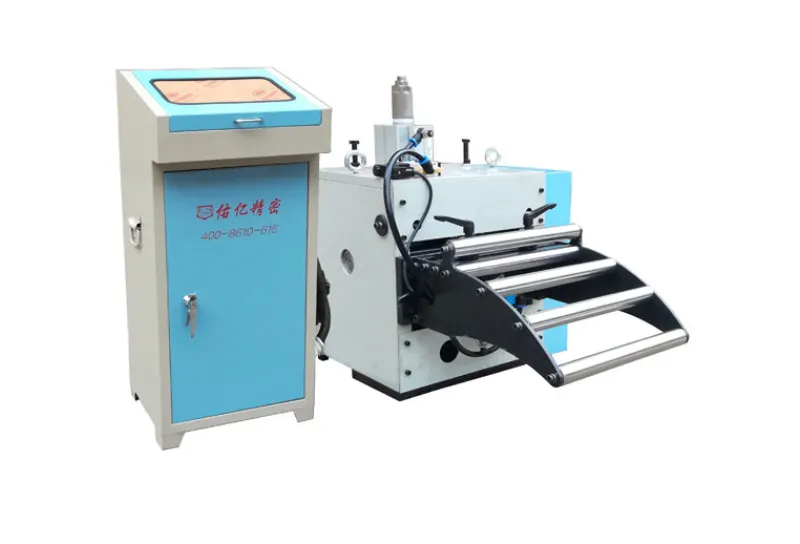

NC Servo Feeder
Our standard servo feeder is engineered for precision coil feeding of thin sheet materials ranging from 0.1mm to 3.0mm in thickness. Compact in size, efficient in performance, and easy to integrate with press machines, it is the ideal solution for electronic, electrical, and light metal component manufacturers.
The Sheet Metal NC Servo Feeder is designed for the automated feeding of a wide range of sheet and strip materials, including hot-rolled steel, cold-rolled steel, stainless steel, aluminum, copper, and more. It handles materials of varying thicknesses and lengths, providing flexible solutions for diverse production requirements.
Ideal for integration into press lines, cut-to-length lines, or fully automated feeding systems, this feeder can also be customized to meet specific operational needs, ensuring optimal efficiency and precision.
Product Characteristics
Precision sheet metal NC servo feeder designed for 0.1–3.0mm thin coil materials. Ideal for high-speed stamping of electronic parts, connectors, hardware, and light steel sheets. Improve productivity and accuracy in compact press line setups.
Precision Feeding: Servo motor control ensures accurate length and position with minimal tolerance deviation.
Suitable for Thin Materials: Optimized to handle copper, aluminum, mild steel, and stainless steel sheets.
Touchscreen Interface: User-friendly HMI allows fast parameter setup and job changes. Features an intuitive human-machine interface for quick and easy parameter configuration (feeding length range: 0.1 mm – 9999.99 mm).
High Speed Capability: Supports fast feeding cycles, suitable for progressive die and high-speed stamping.
Compact Design: Space-saving structure ideal for benchtop or limited-space press environments.
Low Operating Cost: Reliable system with reduced maintenance requirements.
High Feeding Accuracy: Utilizes a computer-controlled closed-loop feedback system to achieve precision within ±0.03 mm. With die positioning pins, accuracy can be further enhanced to ±0.02 mm.
High Speed & Long Stroke Feeding: Supports rapid operation and long-distance feeding, boosting productivity while ensuring stable performance.
Multi-Stage Feeding Function: Pre-program up to 20 different feeding lengths, each accommodating up to 999 punching cycles—perfect for complex die operations.
User-Friendly Manual Mode: Offers 3-level manual speed control, allowing flexible and precise adjustments during mold setup.
Efficient Release Mechanism: Available in mechanical or pneumatic options, with precisely controlled release points easily synchronized with press signals.
Dual Control Modes: Operable via panel buttons or handwheel, providing flexible, multi-functional control.
Job Memory for Fast Changeover: Built-in memory enables users to save and recall settings, significantly reducing setup time during production changes.
This sheet metal NC servo feeder can be matched with:
Decoiler: For smooth material unwinding
NC straightener: For material flattening
Press Machine: Mechanical or pneumatic presses for stamping tasks
We offer complete press line integration to suit your specific material, width, and tonnage requirements.

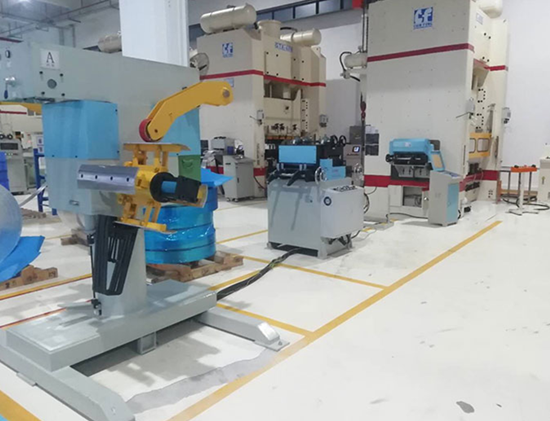

This setup features a fully automatic coil feeding line composed of an uncoiler, precision straightener, and servo feeder. It is widely used in electronics, appliances, hardware, and new energy industries for high-precision metal stamping. The modular design allows flexible layout and seamless integration with high-speed press lines.
Technical Parameters
| Model | NC-100 | NC-200 | NC-300 | NC-400 | NC-500 | NC-600 | NC-700 | NC-800 | NC-1000 | NC-1300 | NC-1600 |
| NC-100A | NC-200A | NC-300A | NC-400A | NC-500A | NC-600A | NC-700A | NC-800A | NC-1000A | NC-1300A | NC-1600A | |
| Material width(mm) | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 1000 | 1300 | 1600 |
| Material thickness(mm) | 0.1-1.6 | 0.1-3.0 | 0.1-3.0 | 0.1-3.0 | 0.1-3.0 | 0.1-3.0 | 0.1-3.0 | 0.1-3.0 | 0.1-3.0 | 0.1-3.0 | 0.1-3.0 |
| Feeding wheels | φ72.7 | φ87.5 | φ87.5 | φ87.5 | φ87.5 | φ87.5 | φ87.5 | φ87.5 | φ87.5 | φ87.5 | φ87.5 |
| Feeding length(mm) | 9999.99 | 9999.99 | 9999.99 | 9999.99 | 9999.99 | 9999.99 | 9999.99 | 9999.99 | 9999.99 | 9999.99 | 9999.99 |
| Fastest feeding speed (m/min) | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 |
| Voltage(V) | AC 220/380V | ||||||||||
· Servo Drive System: Powered by a high-quality brushless servo motor for fast response and smooth operation.
· High-Sensitivity Encoder: Provides accurate feedback for precise and stable feeding control.
· Synchronous Belt Transmission: Replaces traditional gears to eliminate backlash, reduce wear, operate quietly, and require no lubrication—safe and eco-friendly.
· Integrated Motor Design: Motor built into the machine body reduces risk of damage during transport or handling.
· Hollow-Type Feed Rolls: Lightweight with low rotational inertia, ensuring rapid response and enhanced feeding accuracy.
· Robust Machine Body: One-piece, high-rigidity structure provides long-term durability under heavy loads, easy maintenance, and high precision.
· Precision Gear System: Gears made of 20CrMnTi steel, carburized, quenched, and precision ground for excellent wear resistance and accurate transmission.
· Flexible Integration: Suitable for press lines, cut-to-length lines, or automated feeding systems, with custom solutions available for specific applications.
Application
· NC Servo Feeder for Power Press Line Automation
· NC Servo Roll Feeder for Coil Cut-to-Length and Straightening Lines
· High-Speed NC Servo Feeder for Metal Stamping Production
· Multi-Stage NC Servo Feeder for Progressive Dies
· Precision NC Servo Feeder for High-Tolerance Components
· General NC Servo Feeder for Coil and Sheet Metal Processing Lines
1600 Large-Scale New Energy Lithium Battery Aluminum Casing Blanking Dedicated Automated Stamping Line
Thick-Sheet 3-in-1 Decoiler, Leveler & Feeder System for Automotive Stamping Applications
Customized Dual-Uncoiler 3-in-1 Feeding Line for Automated Stamping of Smart Furniture Hardware Components
2-in-1 Decoiler & Leveling Machines with Servo Feeders: Enhancing Precision in 3C Industry Automation
Ready to streamline your production with reliable stamping automation solutions that boost efficiency, reduce downtime!
Related Products
This machine is used to cut and level the feeding line with shearing machine (no need to release)
High-precision feeding: Aiming at the advent of high-tech industries, computer close-circuit feedback control is used to ensure accuracy within ±0.05mm
Dual servo feeder is suitable for high-speed punching machine, dual servo control, the feeding speed can reach 300 times per minute
Thick Plate NC Servo Feeder (0.1-6.0mm)
High-precision feeding: Aiming at the advent of high-tech industries, computer close-circuit feedback control is used to ensure accuracy within ±0.02mm
Dual servo feeder is suitable for high-speed punching machine, dual servo control, the feeding speed can reach 300 times per minute
This machine can perform multiple shifts according to the blanking diameter of the water to ensure the circular cutting of the material, which maximizes the utilization of the material. If size of the blank is not equal, it can automatically arrange the angle calculations to ensure maximum material saving
FAQ
Q: How do I determine the right feeder size for my production line?
A: The feeder size depends on the material width, thickness, and feeding step distance required by your stamping press. Choosing the correct specifications ensures smooth operation and prevents feeding errors or misalignment.
Q: What factors should I consider when choosing a servo feeder machine?
A: When selecting a servo feeder, key factors include feeding accuracy (±0.05mm or better), maximum feeding speed (e.g., 20m/min), material compatibility (stainless steel, aluminum, etc.), load capacity, and control system (PLC or touchscreen). Ensure the machine matches your stamping process requirements.
Q: How long does it take to receive the feeder machine after placing an order?
A: Lead time for delivery typically ranges from 4 to 8 weeks depending on customization, production schedules, and shipping location. Once your order is confirmed, we will provide a more precise delivery estimate.
Q: What are your payment terms?
A: We accepts T/T payment, 30% deposit and 70% balance before shipping
Q: How often should I perform maintenance on my servo feeder machine?
A: Routine maintenance should be conducted weekly for basic cleaning and lubrication, while a more thorough inspection should be done monthly to check for wear on rollers, belts, and electrical components. A full servicing is recommended every 6-12 months depending on usage intensity.
Q: What are the most common issues with feeder machines, and how can I troubleshoot them?
A: Common issues include misalignment, inconsistent feeding accuracy, or motor failure. Check for loose bolts, dirt buildup, or software calibration errors. If problems persist, refer to the user manual or contact technical support.
Q: Do you provide on-site repair services if my machine breaks down?
A: Yes, we offer on-site repair services for major issues, along with remote troubleshooting support for minor problems. For urgent cases, we can dispatch a technician within 24-48 hours, depending on your location.
Q: What's the package of your coil feeding machines?
A: For the coil feeding equipment that go LCL shipping, We will use plastic films wrap on the equiment, and then fix it into a wooden box.
For the large coil lines that go FCL shipment, We will fix each part with ropes on the shipping container and then wrapped them with plastic films.
