In modern metal stamping production, automated workpiece transfer plays an important role in improving production efficiency, reducing manual handling, and maintaining consistent part positioning between stamping processes.

A press transfer robot automatically moves stamped workpieces between different dies, presses, or processing stations. Depending on the required movement, workpiece geometry, die layout, and production process, manufacturers may choose between a 2-axis transfer robot and a 3-axis transfer robot.

Although both systems are designed to automate workpiece transfer, they differ in motion flexibility, system complexity, application range, and investment requirements.

This guide explains the differences between 2-axis and 3-axis transfer robots, their operating principles, advantages, typical applications, and the key factors manufacturers should consider when selecting a transfer system for stamping automation.

What Is a Press Transfer Robot?

A press transfer robot is an automated handling system used to transfer stamped workpieces between multiple processes, presses, or die stations.

In a multi-stage stamping line, the transfer system can repeatedly pick up, move, position, and release workpieces according to the programmed production sequence.

A typical automated process may include:

Stamping Press → Transfer Robot → Next Die/Press → Transfer Robot → Next Process

Compared with manual part handling, press transfer robots can provide:

Faster and more consistent workpiece transfer

Repeatable positioning

Reduced manual handling

Improved operator safety

More stable production cycles

Better suitability for high-volume stamping

Common applications include automotive components, structural parts, appliance panels, electrical components, and other metal stamped products.

The exact transfer configuration depends on factors such as press layout, die structure, workpiece size, production speed, and required movement.

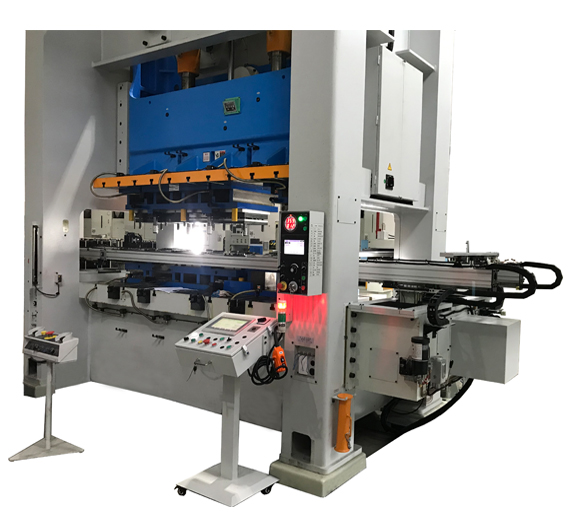

What Is a 2-Axis Transfer Robot?

A 2-axis transfer robot uses two controlled axes to move and position workpieces between stamping stations.

Depending on the system design, the two axes can control different combinations of horizontal, vertical, or coordinated transfer movements. The exact axis configuration varies between transfer mechanisms.

How Does a 2-Axis Transfer Robot Work?

During operation, the transfer mechanism follows a programmed motion sequence.

A typical cycle includes:

The transfer mechanism moves toward the workpiece.

The gripper picks up the stamped part.

The workpiece is moved along the programmed transfer path.

The part is positioned at the next die or processing station.

The gripper releases the workpiece.

The transfer mechanism returns for the next cycle.

Because the movement path is relatively structured, 2-axis systems are well suited to applications where the transfer process does not require extensive additional movement or part orientation.

Advantages of 2-Axis Transfer Robots

Simple System Configuration

A 2-axis system generally uses fewer controlled movements than a more complex multi-axis transfer system.

This can simplify the mechanical structure, control system, commissioning, and maintenance requirements.

Cost-Effective Automation

For stamping applications with relatively fixed transfer paths, a 2-axis system can provide the required automation without the additional complexity of a third controlled axis.

This makes it an attractive option when manufacturers need to balance automation performance and equipment investment.

Stable and Repeatable Operation

With a defined transfer path and programmed motion sequence, a 2-axis transfer robot can repeatedly move parts between stations with consistent positioning.

This is important for continuous stamping production where stable cycle-to-cycle operation is required.

Suitable for Standardized Production

2-axis systems are particularly suitable when the workpiece geometry, die layout, and transfer sequence remain relatively consistent.

Typical applications include standardized stamping components and production processes with limited part-orientation requirements.

Typical Applications of 2-Axis Transfer Robots

2-axis transfer robots can be considered for:

Standard metal stamping parts

Home appliance components

Electrical components

General hardware

Automotive components with relatively simple transfer requirements

High-volume production with fixed transfer paths

The final configuration should always be determined according to the workpiece, die layout, press specifications, and required transfer movement.

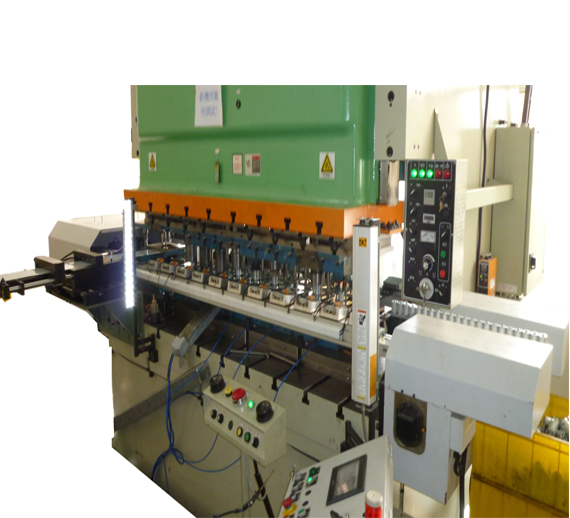

What Is a 3-Axis Transfer Robot?

A 3-axis transfer robot uses three controlled axes to provide additional movement flexibility for workpiece handling.

The third controlled axis can provide additional positioning, lifting, orientation, or other coordinated movements depending on the transfer system design.

This additional movement capability allows 3-axis systems to handle applications where a standard two-axis transfer path may not provide enough flexibility.

How Does a 3-Axis Transfer Robot Work?

A 3-axis transfer robot follows a programmed sequence involving three coordinated movements.

Depending on the system configuration, the robot may:

1、Approach the stamped workpiece.

2、Position the gripper at the required pickup location.

3、Lift, move, or adjust the workpiece.

4、Transfer the part to the next station.

5、Perform additional positioning or orientation if required.

6、Place the part accurately into the next die.

7、Return to the starting position.

The additional axis can be particularly useful when the workpiece requires more complex movement between stamping operations.

Advantages of 3-Axis Transfer Robots

Greater Motion Flexibility

The additional controlled axis provides more freedom for workpiece movement.

This can be useful when the transfer process requires additional lifting, positioning, orientation, or coordinated motion.

Better Adaptability to Complex Workpieces

Large, irregular, or geometrically complex workpieces may require more flexible transfer movements.

A 3-axis system can provide additional movement options for these applications, depending on its mechanical configuration and payload capacity.

Suitable for Complex Stamping Processes

Multi-stage forming, deep drawing, and other complex stamping processes may require more sophisticated part handling.

A 3-axis transfer system can provide additional flexibility when workpieces need to be positioned differently between operations.

Higher Production Flexibility

When manufacturers produce multiple products or expect production requirements to change, the additional movement capability of a 3-axis system can provide greater flexibility for future automation requirements.

Typical Applications of 3-Axis Transfer Robots

3-axis transfer robots can be suitable for:

Complex automotive components

Large structural parts

Irregular-shaped workpieces

Multi-stage stamping

Deep drawing applications

Processes requiring additional part positioning

Production lines requiring greater transfer flexibility

However, a 3-axis system is not automatically better for every application. The appropriate choice depends on the actual movement requirements of the stamping process.

2-Axis vs 3-Axis Transfer Robots: Key Differences

The main difference between 2-axis and 3-axis transfer robots is the number of controlled movement axes and the resulting flexibility of workpiece handling.

Motion Flexibility

A 2-axis transfer robot is generally suitable when the required transfer movement follows a relatively fixed path.

A 3-axis system provides an additional controlled movement, allowing greater flexibility when the workpiece needs more complex positioning or handling.

Workpiece Handling

The size, weight, shape, and material characteristics of the workpiece all affect transfer requirements.

For relatively standardized parts, a 2-axis system may provide sufficient movement.

For larger or more irregular workpieces, a 3-axis system may provide additional flexibility, provided that the robot's payload and mechanical configuration are suitable.

Part Orientation

Some stamping processes require the workpiece to be positioned or oriented in a particular way before entering the next die.

A 3-axis transfer system may provide additional movement options for these applications.

However, whether a specific transfer robot can rotate or reorient a workpiece depends on its actual mechanical configuration. The number of axes alone does not determine every available motion.

Stamping Process Complexity

Simple and standardized transfer processes can often be handled effectively with a 2-axis system.

When the production process involves multiple forming stages, complex die structures, or more demanding workpiece positioning, a 3-axis system may provide greater flexibility.

System Cost

A 2-axis transfer robot generally has a simpler configuration and can therefore offer a lower equipment investment for suitable applications.

A 3-axis system typically requires additional mechanical and control components, which can increase system complexity and investment.

The right choice should therefore be based on the required production capability rather than simply selecting the system with more axes.

Maintenance and Control

Fewer controlled movements can simplify maintenance and troubleshooting.

A 3-axis system requires additional motion control and mechanical components, so commissioning and maintenance may require greater technical expertise.

However, the additional complexity can be justified when the production process requires greater transfer flexibility.

Which Transfer Robot Is Better for Your Stamping Line?

There is no universal answer to whether a 2-axis or 3-axis transfer robot is better.

The correct choice depends on the actual production requirements.

Choose a 2-Axis Transfer Robot When:

A 2-axis system may be appropriate when:

The transfer path is relatively fixed.

Workpiece geometry is relatively simple.

Limited movement is required.

The die layout is standardized.

Production requirements are stable.

Equipment investment needs to be controlled.

Additional part orientation is not required.

For these applications, a 2-axis transfer robot can provide effective automation without unnecessary system complexity.

Choose a 3-Axis Transfer Robot When:

A 3-axis system may be more suitable when:

The workpiece requires more flexible positioning.

The transfer process involves additional movement.

Parts are large or irregularly shaped.

Multiple forming operations are involved.

The die layout requires more flexible handling.

Production flexibility is an important requirement.

Future product changes may require additional transfer capability.

The final selection should be based on the complete stamping process rather than the number of axes alone.

Key Factors to Consider Before Choosing a Transfer Robot

Before selecting a transfer robot, manufacturers should evaluate the following parameters.

Workpiece Size and Weight

The robot and gripper must be capable of safely handling the maximum workpiece weight and dimensions.

Large or heavy components may require a higher-capacity transfer mechanism and specialized gripper design.

Press Specifications

Press tonnage, stroke, slide movement, operating speed, and available space can all influence the transfer system design.

The transfer robot must be synchronized with the press operating cycle.

Press SPM and Production Speed

Production speed is an important factor when selecting a transfer system.

The transfer robot must complete its programmed movement within the available press cycle time.

Higher SPM applications may require optimized acceleration, deceleration, transfer stroke, and motion profiles.

Die Layout

The distance between presses or die stations directly affects the required transfer stroke and movement path.

The transfer system should be designed around the actual die arrangement.

Number of Stations

A single transfer process and a multi-press transfer line can have significantly different automation requirements.

Manufacturers should determine how many stations the robot needs to serve and how the workpiece moves between them.

Required Movement

Determine whether the workpiece only needs basic transfer or requires additional lifting, positioning, orientation, or other movements.

This is one of the most important factors when deciding between a 2-axis and 3-axis system.

Gripper Design

The gripper must securely hold the workpiece without damaging its surface or interfering with the die.

Workpiece shape, weight, material, and transfer orientation should all be considered when designing the gripping system.

Future Production Requirements

Manufacturers should also consider whether product types, workpiece sizes, or production processes may change in the future.

A system with greater flexibility may provide more room for future production expansion.

How Do Transfer Robots Integrate With a Complete Stamping Line?

A press transfer robot is usually one part of a larger stamping automation system.

A typical coil-fed automated stamping process can include:

Coil → Decoiler → Straightener → Servo Feeder → Stamping Press → Transfer Robot → Next Press/Die → Transfer Robot → Finished Part

The main equipment performs different functions.

Coil Feeding System

The decoiler, straightener, and servo feeder prepare and accurately feed the metal strip into the first stamping process.

Stamping Press

The press performs punching, forming, drawing, blanking, or other stamping operations.

Transfer Robot

The transfer robot moves the stamped workpiece between different dies, presses, or processing stations.

Gripper System

The gripper securely picks up and releases the workpiece according to the programmed transfer sequence.

Control System

The PLC, servo drives, sensors, and press control system coordinate the movements of the transfer robot and stamping equipment.

By coordinating these systems, manufacturers can reduce manual handling and establish a continuous automated stamping process.

Press Transfer Robot Solutions by Youyi Precision

Youyi Precision provides press transfer automation solutions for manufacturers requiring stable, high-speed, and repeatable workpiece handling.

Our transfer automation solutions can be integrated with stamping presses, coil feeding equipment, conveyors, and other production systems according to the specific application.

Typical solution considerations include:

Press specifications

Workpiece dimensions

Workpiece weight

Die layout

Number of stamping stations

Transfer distance

Required transfer speed

Required movement

Gripper configuration

Production volume

For applications requiring greater movement flexibility, a 3-axis transfer robot can be configured according to the workpiece and stamping process.

For standardized applications with relatively fixed transfer paths, a 2-axis transfer solution may provide an effective balance between automation performance and system complexity.

Customized transfer automation solutions can be developed according to the customer's press layout, die configuration, workpiece characteristics, and production requirements.

FAQ About 2-Axis and 3-Axis Transfer Robots

What is the difference between a 2-axis and 3-axis transfer robot?

A 2-axis transfer robot uses two controlled movement axes, while a 3-axis system adds a third controlled axis to provide greater movement flexibility. The actual movement functions depend on the specific mechanical configuration.

Is a 3-axis transfer robot better than a 2-axis robot?

Not necessarily. A 3-axis transfer robot provides greater flexibility, but a 2-axis system may be more suitable for standardized applications with fixed transfer paths and simpler movement requirements.

Are 3-axis transfer robots faster than 2-axis systems?

Not always. Transfer speed depends on factors such as press cycle time, workpiece weight, transfer distance, acceleration, deceleration, robot design, and the overall stamping process.

Which transfer robot is better for automotive stamping?

Both can be used in automotive stamping. A 2-axis system may be suitable for standardized components with fixed transfer requirements, while a 3-axis system may be more appropriate for large, irregular, or complex workpieces requiring additional positioning flexibility.

Can a 2-axis transfer robot handle large workpieces?

It can, provided that the transfer mechanism, payload capacity, gripper, and movement requirements are suitable for the specific workpiece. Workpiece size alone does not determine whether a 2-axis system is appropriate.

Can a 3-axis transfer robot handle complex stamping processes?

Yes. The additional controlled axis can provide greater flexibility for complex workpiece handling and positioning. However, the final capability depends on the robot's mechanical design, payload, stroke, gripper, and stamping line configuration.

How do I choose the right press transfer robot?

Consider workpiece size and weight, press specifications, production speed, die layout, number of stations, transfer distance, required movement, gripper design, automation level, and future production requirements.

Can transfer robots be customized for different stamping presses?

Yes. Transfer systems can be designed or configured according to press layout, die spacing, workpiece characteristics, production speed, and required transfer movement.

Conclusion

Both 2-axis and 3-axis transfer robots can play an important role in automated stamping production, but they are designed for different levels of movement flexibility.

A 2-axis transfer robot can be a practical choice for standardized stamping processes with relatively fixed transfer paths and simpler workpiece handling requirements.

A 3-axis transfer robot provides greater movement flexibility and can be more suitable for complex stamping processes, irregular workpieces, and applications requiring additional positioning capability.

The best solution should not be selected based on the number of axes alone. Manufacturers should evaluate the complete production process, including workpiece dimensions, payload, press specifications, die layout, production speed, transfer distance, required movement, and future automation requirements.

By properly integrating the transfer robot with stamping presses, gripper systems, control systems, and upstream coil feeding equipment, manufacturers can build a stable and efficient automated stamping production line tailored to their specific manufacturing needs.
