1. Stamping Press Parameters: Confirm Equipment Compatibility

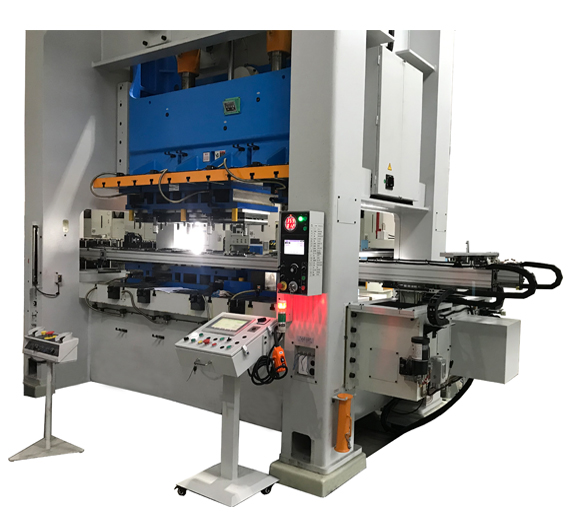

In stamping automation, a 3-axis transfer robot is commonly used to transfer workpieces between stamping presses or different processing stations. It performs essential handling operations, including picking up parts, transferring them, positioning them, and placing them into the next die.

For production lines involving multiple stamping operations, selecting the right transfer robot is essential for achieving reliable automatic part handling, maintaining production cycle times, and improving the overall stability of the stamping process.

However, providing only the stamping press tonnage or workpiece dimensions is rarely enough to determine a suitable robot configuration. Press structure and layout, die clearance, workpiece weight and geometry, robot travel range, and target production speed must all be evaluated together.

The stamping press is one of the primary pieces of equipment that a 3-axis transfer robot must work with. Before selecting a robot, manufacturers need to understand the press specifications, operating conditions, and installation environment to determine whether the robot can transfer workpieces safely and reliably.

1.1 Press Tonnage and Machine Model

Press tonnage indicates the rated pressing force of the machine, but it should not be used as the sole criterion for selecting a transfer robot.

Stamping presses with different tonnages and structural designs may have significantly different bed dimensions, slide strokes, shut heights, column spacing, and die installation spaces. These differences affect the robot mounting arrangement, motion range, and access to the working area.

Before selecting a robot, provide the following information:

• Stamping press model and rated tonnage

• Press structure and relevant technical specifications

• Bed dimensions and slide stroke

• Shut height and available die space

• Differences in machine height or layout between connected presses

For a production line consisting of multiple stamping presses, it is also important to confirm whether the machines share the same specifications or have different configurations. This information helps determine a suitable installation arrangement and transfer path.

1.2 Press Operating Speed and Production Cycle Time

Press speed, commonly expressed in strokes per minute (SPM), is an important parameter when evaluating the production cycle.

A 3-axis transfer robot must complete the required handling sequence within the available safe operating window of the press. Depending on the application, this sequence may include picking up a workpiece, lifting it clear of the die, moving it horizontally, lowering it into the next station, and releasing it.

If the robot's transfer cycle cannot match the press operating cycle, the production line may experience unnecessary waiting time, reduced output, or unstable coordinated operation.

Before selecting a robot, clarify the following requirements:

• Target press speed and actual production cycle time

• Workpiece transfer tasks required during each stamping cycle

• Time required for pickup, movement, positioning, and release

• Motion sequence and coordination between multiple presses

• Control signals and safety interlocks between the press and robot

It is important to distinguish the press's rated maximum speed from the actual production speed of the complete line. Die design, workpiece handling difficulty, robot travel distance, and process requirements can all affect the achievable production rate.

1.3 Press Layout and Installation Space

The physical layout of the production line directly affects the installation and movement of a 3-axis transfer robot.

Important dimensions and site conditions include:

• Center-to-center distance between stamping presses

• Press bed height and differences in working height

• Available space in front of and behind each press

• Robot mounting position and installation clearance

• Nearby columns, safety fences, pipelines, cables, and other equipment

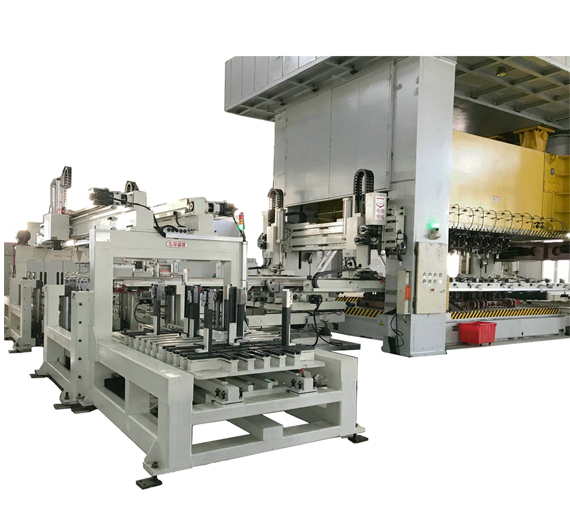

For a multi-press transfer line, the direction and distance of each workpiece transfer must also be established. A well-planned layout can reduce unnecessary robot travel and help prevent interference between the robot, dies, presses, and surrounding equipment.

2. Die Parameters: Check Available Space for Robot Movement

The die determines the workpiece processing position, pickup and placement areas, and the space available for the robot to enter and exit the tooling area.

Even when the stamping presses meet the basic equipment requirements, insufficient die clearance or an unsuitable transfer path can prevent the robot from handling workpieces smoothly.

2.1 Die Dimensions and Opening Height

Before selecting a transfer robot, confirm the die's length, width, and height, as well as the available space when the die is closed and open.

The die opening height and the actual clearance available when the tooling is open are particularly important. The robot must enter the pickup area, grip the workpiece, and move it out of the hazardous zone within the permitted portion of the stamping cycle.

If the die has limited internal space, or if guide pillars, pressure plates, and other structures occupy the robot's movement area, the entry direction, lifting stroke, or gripper design may need to be adjusted.

Providing a complete die assembly drawing, a diagram showing the die in its working positions, or accurate on-site measurements helps engineers evaluate the spatial relationship between the robot and the tooling before installation.

2.2 Station Spacing and Workpiece Transfer Distance

In a multi-stage stamping line, the distance between stations affects the robot's horizontal travel range and transfer time.

When the distance between stations is relatively large, the robot must provide sufficient horizontal travel. When stations are closely spaced, engineers should pay particular attention to gripper dimensions, robot structure, and potential interference with adjacent dies.

It is also necessary to establish whether the workpiece must change direction, be repositioned, or undergo a rotation or flipping operation during transfer. These requirements can affect the robot configuration, motion trajectory, and gripper design.

Station spacing should not be determined solely by measuring the external distance between presses. The actual die center positions, pickup and placement points, and workpiece travel path must also be considered.

2.3 Interference Checks Between the Robot and Dies

Potential interference should be evaluated during the robot selection and engineering design stages, particularly in the following areas:

• The path used by the gripper to enter and exit the die area

• Clearance between the workpiece and die components during lifting

• Clearance from guide pillars, pressure plates, and other tooling structures

• Potential interference with adjacent dies or press structures during horizontal movement

• Clearance between the robot and surrounding equipment when returning to its home position

For complex dies or applications with limited pickup and placement space, engineers can evaluate the arrangement using die drawings, on-site measurements, and motion-path verification.

Identifying interference risks early helps reduce design changes, installation difficulties, and commissioning adjustments later in the project.

3. Workpiece Parameters: Determine the Gripping and Handling Requirements

The workpiece is the component directly handled by the 3-axis transfer robot. Its weight, dimensions, shape, material, and surface condition all influence gripper selection and the required handling movements.

3.1 Workpiece Weight and Dimensions

Provide the workpiece length, width, height, thickness, and individual weight. It is also important to identify whether the part is off-center, elongated, easily deformed, or has an irregular center of gravity.

For large or relatively heavy parts, engineers need to evaluate the robot's payload capacity, handling orientation, and stability throughout the transfer process.

Thin sheet-metal components may be lightweight but still difficult to handle because of their large surface area, limited rigidity, or complex edge geometry. These characteristics can affect gripping stability and increase the risk of deformation during movement.

If the production line handles multiple product types, provide information about representative parts, including the largest, smallest, and most structurally different workpieces. This helps determine whether one robot configuration can accommodate the intended product range.

3.2 Material and Surface Requirements

Different materials and surface conditions may require different gripping methods.

For conventional steel stamping parts, the gripper can be selected according to the workpiece structure and handling requirements. For aluminum sheets, thin stainless steel parts, and components with demanding surface-quality requirements, additional attention should be given to gripper contact points, gripping stability, and the risk of scratches or deformation.

Materials with protective films, oil residue, or special coatings should also be identified before equipment selection. These conditions may affect the contact between the gripper and the workpiece and influence the appropriate handling method.

3.3 Workpiece Orientation and Positioning Requirements

A 3-axis transfer robot must do more than move a part from one station to another. It must also deliver the workpiece in the correct orientation for the next stamping operation.

During the selection process, confirm whether the workpiece must maintain its original orientation, rotate, or flip during transfer. The positioning accuracy and placement direction required by the next die must also be defined.

For irregularly shaped parts or production processes that require changes in workpiece orientation between operations, the gripper structure, robot movement, and die positioning requirements must be evaluated together.

4. Robot Specifications: Match Travel Range, Payload, and Motion Requirements

Once the press, die, and workpiece conditions have been established, the robot's own specifications can be determined more accurately.

4.1 X-, Y-, and Z-Axis Travel

A 3-axis transfer robot uses movement along different directions to pick up, transfer, and place workpieces. The definition of each axis may vary depending on the machine design, so the manufacturer's technical specifications should be used as the reference for the actual configuration.

The required travel range for each axis should be determined from the pickup points, placement points, station spacing, die clearance, and complete transfer path.

An insufficient travel range can restrict the robot's handling area. An unnecessarily large travel range, on the other hand, may increase equipment footprint and movement time.

The goal is to select travel ranges that suit the actual production layout and motion requirements rather than simply choosing the largest possible stroke.

4.2 Payload Capacity and Gripper Weight

Robot payload evaluation must include more than the weight of the workpiece itself. The weight of the gripper, connecting structures, and other moving components must also be taken into account.

The workpiece center of gravity, handling orientation, and motion acceleration can affect the loads experienced during operation. For large or off-center workpieces, particular attention should be paid to gripping stability and the possibility of deformation during movement.

The final payload configuration should be determined according to the manufacturer's technical specifications and an assessment of the actual operating conditions.

4.3 Gripper Design and Product Changeover

Common gripper solutions include mechanical grippers, vacuum grippers, and application-specific tooling designed around the workpiece geometry. The appropriate option depends on the material, shape, weight, and surface-quality requirements.

If the production line handles multiple products, manufacturers should also confirm changeover frequency, gripper replacement methods, and program adjustment requirements.

For high-mix production, gripper versatility and ease of changeover can have a direct impact on practical operating efficiency. These factors should therefore be considered during the initial design stage rather than after installation.

4.4 Control System Integration and Safety Interlocks

A 3-axis transfer robot must coordinate with the operating status of the stamping presses and execute pickup and placement operations in the correct sequence.

Before selecting the equipment, confirm the following:

• Stamping press control system and robot control method

• Communication and interlock signals between the press and robot

• Safety doors, guards, and other protective devices

• Stop sequences and fault-handling logic under abnormal conditions

• Motion permissions and signal transmission between connected presses

For a line connecting multiple presses, the control system must coordinate the operations of the individual stations according to the project's requirements.

The specific interfaces and interlocking methods must be confirmed based on the press model, control architecture, and applicable machine-safety requirements. Compatibility should never be assumed based on equipment names alone.

5. What Information Should You Prepare Before Selecting a 3-Axis Transfer Robot?

Preparing the relevant technical information before contacting an equipment supplier can make the selection process more efficient and help engineers evaluate the application more accurately.

If complete technical drawings are not yet available, you can begin by providing photographs of the press nameplates, workpieces, and dies, together with a video of the factory layout.

These materials can support an initial technical discussion. Additional on-site measurements or engineering assessments can then be arranged if required.

6. Why Does 3-Axis Transfer Robot Selection Require a Comprehensive Evaluation?

A 3-axis transfer robot cannot meet every production requirement simply because its payload capacity and travel range are sufficient. The stamping press, die, workpiece, and robot all impose interrelated constraints on the overall system design.

For example, a large workpiece may require a larger gripper and more clearance during movement. If the available die opening is limited, the robot's entry direction and lifting sequence must be planned carefully. When the press operates at a higher speed, the transfer path and timing of individual movements must be evaluated to determine whether the required production cycle can be achieved.

A practical selection process should therefore follow these steps:

Combining equipment specifications with actual production conditions helps reduce repeated adjustments after installation and provides a stronger foundation for stable stamping line operation.

7. Consult YouYi Precision for a 3-Axis Transfer Robot Solution

YouYi Precision specializes in stamping automation equipment and supporting automation solutions. Based on your stamping process, press layout, die structure, and workpiece handling requirements, our team can help evaluate a suitable configuration for your 3-axis transfer robot application.

Whether you are planning a new stamping production line or upgrading existing presses with automatic loading, unloading, and inter-station transfer capabilities, defining the technical requirements early can help make the equipment selection process more efficient.

When consulting about a 3-axis transfer robot solution, prepare the following information whenever possible:

• Stamping press models and tonnage

• Workpiece dimensions, weight, and material

• Die dimensions and station spacing

• Number of presses to be connected

• Target production cycle and factory layout

These details help engineers evaluate the required robot travel range, gripper design, installation position, and control integration approach.
