In an automated coil-fed stamping line, the automatic decoiler is responsible for one of the first and most important steps: releasing the metal coil at a controlled speed and supplying strip material to the downstream equipment.

An automatic decoiler uses a motor-driven mandrel, coil expansion mechanism, hold-down arm and tension or loop control system to control coil rotation and material output. Depending on the configuration, a coil loading car can also be used to position heavy coils before production.

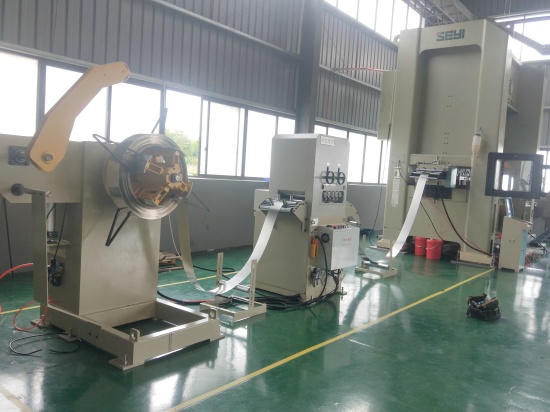

A typical stamping line is arranged as:

Coil → Automatic Decoiler → Straightener → Servo Feeder → Stamping Press

Understanding the automatic decoiler working principle is important when selecting equipment because coil weight, material thickness, strip width, production speed and coil dimensions all affect the required decoiler configuration.

This guide explains the main components of an automatic decoiler, how the machine works step by step, how it connects with a stamping line, and the key factors to consider when selecting one.

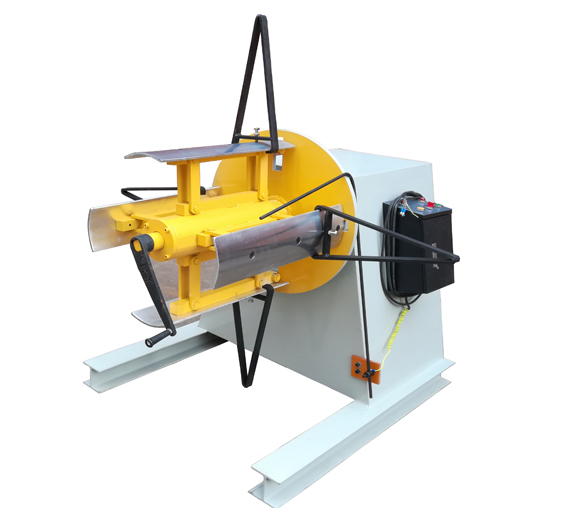

What Is an Automatic Decoiler?

What Is an Automatic Decoiler?

An automatic decoiler, also known as an automatic uncoiler, is a machine used to unwind coiled metal strip and supply the material continuously to downstream equipment.

It is commonly used in coil-fed stamping lines for materials such as:

Carbon steel

Stainless steel

Aluminum

Galvanized steel

Other coil-fed metal materials

The decoiler supports the coil on a rotating mandrel. During operation, the mandrel rotates to release the strip while the control system regulates the unwinding speed according to the material demand from the downstream feeder.

Its main functions are to:

Support and secure the coil

Rotate the coil for controlled unwinding

Maintain stable material output

Control coil tension or material loop

Coordinate with downstream equipment

Reduce manual coil handling

What Are the Main Components of an Automatic Decoiler?

The exact configuration varies according to coil weight, material thickness, strip width, and production requirements. However, most automatic decoilers include several core components.

Mandrel

The mandrel is the central shaft that supports the inner diameter of the coil.

During operation, the mandrel expands to grip the inside of the coil and prevent slipping while rotating. The mandrel capacity must match the coil's inner diameter, maximum coil weight, and required production speed.

Drive System

The drive system rotates the mandrel and controls the coil unwinding speed.

Depending on the machine design, it may include a motor, gearbox, inverter, or servo drive. The drive system needs sufficient torque to handle the coil load while maintaining smooth rotation.

Expansion Mechanism

The expansion mechanism secures the coil to the mandrel.

Mechanical or hydraulic expansion can be used depending on the machine configuration and coil requirements. Proper expansion helps prevent coil movement and improves unwinding stability.

Hold-Down Arm

A hold-down arm helps control the outer layer of the coil during unwinding.

It reduces the risk of the coil loosening or springing outward, particularly when processing larger or heavier coils.

Tension Control System

Tension control is important for maintaining stable material output.

Sensors or loop-control devices monitor material demand and provide feedback to the control system. The decoiler can then adjust its rotational speed according to the downstream feeding requirements.

Proper tension control helps reduce:

Material deformation

Strip wrinkling

Excessive pulling force

Feeding interruptions

Unstable material loops

Coil Loading Car

For heavy coils, a coil loading car can be integrated into the system to simplify coil loading and positioning.

The loading car moves the coil into the correct position and helps align the coil with the mandrel, reducing manual handling during coil replacement.

How Does an Automatic Decoiler Work?

The working principle of an automatic decoiler can be understood as a continuous process from coil loading to controlled material delivery.

Coil Loading → Coil Clamping → Mandrel Rotation → Tension/Speed Control → Material Transfer → Coil-End Detection

Step 1: Coil Loading

The metal coil is placed onto the coil loading car or positioned directly at the decoiler.

For heavy coils, the loading car moves the coil into alignment with the mandrel. Correct positioning is important because the coil center must match the decoiler axis for stable rotation.

Step 2: Coil Clamping

Once the coil is positioned, the mandrel expands inside the coil's inner diameter.

The expansion mechanism secures the coil to the mandrel and prevents unwanted movement during rotation. A hold-down arm can also be positioned against the outer layer of the coil to help prevent the strip from loosening.

Step 3: Automatic Unwinding

When the stamping line starts, the decoiler drive rotates the mandrel.

The coil rotates with the mandrel, allowing the metal strip to unwind and move toward the straightener or feeder.

The required rotational speed changes as the coil diameter decreases during production.

Step 4: Tension and Speed Control

The decoiler does not simply rotate at a constant speed.

Sensors or loop-control devices monitor the material position between the decoiler and downstream equipment. Based on this feedback, the control system adjusts the decoiler speed to match material demand.

This helps maintain a stable material loop and prevents excessive pulling or uncontrolled material release.

Step 5: Material Transfer

The uncoiled strip enters the straightener, where coil set and strip curvature are corrected.

The leveled strip then moves to the servo feeder, which controls the feeding length and positioning before the material enters the stamping press.

The complete material path can therefore be represented as:

Automatic Decoiler → Straightener → Servo Feeder → Stamping Press

Step 6: Coil-End Detection

As the coil approaches its end, sensors or control logic can detect the remaining material.

Depending on the system configuration, the control system can initiate a stop or coil-change procedure. This helps prevent unexpected material interruptions and provides operators with time to prepare for the next coil.

What Are the Benefits of an Automatic Decoiler?

Continuous Material Supply

An automatic decoiler continuously unwinds the coil, allowing the stamping press to operate with fewer material supply interruptions.

This is particularly valuable for high-volume production.

Improved Production Efficiency

Automated coil handling reduces the need for manual unwinding and material handling.

When integrated with a straightener and servo feeder, the system can support continuous automated stamping production.

More Stable Material Feeding

Controlled decoiling helps maintain a stable material loop and reduces fluctuations caused by uncontrolled coil unwinding.

This provides better operating conditions for the downstream feeder.

Reduced Material Damage

Proper tension and speed control can help reduce excessive pulling, deformation, and surface damage during coil unwinding.

This is especially important when processing aluminum, stainless steel, and other materials where surface quality is critical.

Improved Operator Safety

Metal coils can be heavy and difficult to handle manually.

Automatic coil handling and optional loading systems reduce direct operator involvement during coil loading and unwinding.

Better Production Consistency

Automated control provides more consistent operating conditions than manual coil handling.

This can help manufacturers maintain stable production performance over long stamping cycles.

How to Choose an Automatic Decoiler?

Selecting an automatic decoiler requires more than simply matching the machine to the strip width. The following parameters should be considered.

Coil Weight

The decoiler must have sufficient load capacity for the maximum coil weight.

Heavy coils require a stronger mandrel, drive system, and supporting structure.

Coil Width

The machine should accommodate the required material width.

The usable width range should be selected according to both current and potential future production requirements.

Material Thickness

Material thickness affects the required torque, tension control, and decoiling performance.

Thicker and higher-strength materials generally require a more robust drive system.

Coil Inner Diameter

The mandrel expansion range must match the coil inner diameter.

An incompatible mandrel can cause insufficient clamping or unstable coil rotation.

Coil Outer Diameter

The maximum coil outer diameter determines how much material the decoiler can accommodate.

It is important to consider both the maximum coil size and the available space around the machine.

Production Speed

High-speed stamping lines require fast and stable decoiler response.

The decoiler must be capable of matching the material demand of the straightener and servo feeder without creating excessive tension fluctuations.

Material Type

Different materials have different surface, strength, and tension requirements.

For example, aluminum may require more careful tension and surface protection than some conventional steel applications.

Automation Requirements

Manufacturers should also consider whether the system requires:

Automatic coil loading

Hydraulic mandrel expansion

Hold-down arm

Coil-end detection

Loop control

Automatic speed adjustment

PLC integration

Safety protection systems

The right configuration should be determined according to the complete stamping process rather than the decoiler alone.

Automatic Decoiler Solutions by Youyi Precision

Youyi Precision specializes in metal stamping automation and coil processing equipment for different material types, coil sizes, and production requirements.

Our product range includes:

Automatic Decoilers

Precision Coil Straighteners

Servo Roll Feeders

2-in-1 Uncoiler Straighteners

3-in-1 Decoiler Straightener Feeders

For manufacturers requiring a complete automated process, a 3-in-1 coil feeding system can integrate decoiling, straightening, and servo feeding into one compact unit.

For applications using separate equipment, an automatic decoiler can be combined with a precision straightener and servo feeder to create a customized coil-fed stamping line.

The equipment configuration can be selected according to:

Coil weight

Material width

Material thickness

Coil dimensions

Production speed

Stamping press specifications

Required feeding accuracy

Automation level

For special applications, customized coil processing and stamping automation solutions can also be developed according to production requirements.

FAQ About Automatic Decoilers

What is an automatic decoiler used for?

An automatic decoiler is used to unwind metal coils and provide a continuous strip supply for downstream equipment such as straighteners, servo feeders, and stamping presses.

How does an automatic decoiler work?

An automatic decoiler uses a motor-driven mandrel to rotate the coil. Its tension and speed control system adjusts the unwinding process according to downstream material demand.

What is the difference between a decoiler and an uncoiler?

The terms "decoiler" and "uncoiler" are often used interchangeably in the metal processing industry. Both generally refer to equipment designed to unwind coiled strip material.

Can an automatic decoiler work with a servo feeder?

Yes. An automatic decoiler can be integrated with a straightener and servo feeder to form a complete automated coil feeding system for stamping production.

What materials can an automatic decoiler process?

Depending on the machine specifications, automatic decoilers can process carbon steel, stainless steel, aluminum, galvanized steel, and other coil materials.

How do I choose the right automatic decoiler?

The selection should be based on coil weight, material width, thickness, coil inner and outer diameter, production speed, material type, and required automation level.

Can an automatic decoiler be customized?

Yes. The decoiler configuration can be customized according to coil dimensions, material characteristics, production speed, press specifications, and integration requirements.

What is the difference between an automatic decoiler and a 3-in-1 coil feeder?

An automatic decoiler primarily performs coil unwinding, while a 3-in-1 coil feeder integrates decoiling, straightening, and servo feeding in one machine. The appropriate solution depends on the available production space, material requirements, and automation configuration.

Conclusion

An automatic decoiler controls the unwinding of metal coils and provides a stable material supply for downstream equipment. Its basic working process includes coil loading, mandrel expansion, controlled unwinding, tension and speed adjustment, material transfer and coil-end detection.

When integrated with a straightener and servo feeder, the automatic decoiler becomes part of a complete coil-fed stamping system.

The most important factors when selecting an automatic decoiler are coil weight, strip width, material thickness, coil dimensions, material type, production speed and automation requirements. Matching these parameters with the complete stamping line is essential for stable and continuous production.
