Introduction

Copper sheets are widely used in electrical equipment, electronic components, new energy applications, and industrial manufacturing due to their excellent electrical conductivity and corrosion resistance.

However, copper materials require strict control during processing. Issues such as material deformation, uneven flatness, surface scratches, and inaccurate cutting dimensions can directly affect the quality of final products.

A Cut to Length Line provides an automated solution for precision copper sheet processing by integrating coil decoiling, leveling, servo feeding, shearing, and stacking functions into one continuous production system.

This guide explains how a cut to length line works, its advantages, and why it has become an important solution for manufacturers processing copper coils into high-quality sheets.

What Is a Cut to Length Line?

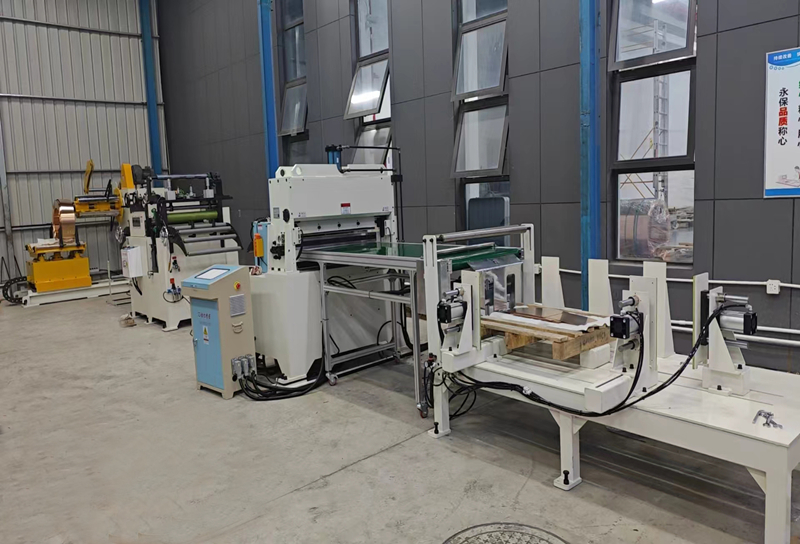

A Cut to Length Line is an automated coil processing system that converts metal coils into flat sheets with precise dimensions.

The production line typically consists of a decoiler, leveling machine, servo feeder, cutting unit, and stacking system.

During operation, the metal coil is continuously unwound, leveled to remove internal stress, accurately fed according to preset length, cut into individual sheets, and automatically stacked for further production.

For copper sheet processing, a precision cut to length line helps maintain excellent flatness and dimensional accuracy while protecting the material surface.

Why Copper Sheet Processing Requires Special Attention?

Copper has excellent conductivity but is relatively soft compared with many steel materials. During coil processing, improper handling may cause:

- Surface scratches

- Material deformation

- Uneven flatness

- Dimensional errors after cutting

Therefore, copper sheet production requires equipment with precise leveling, stable feeding, and effective surface protection.

Core Functions of the Cut to Length Line

1. Coil Decoiling: Stable Material Feeding for Copper Processing

The material is uncoiled by the uncoiler, which is designed to carry and secure the coil. The decoiler provides stable coil support during processing. For copper materials, stable unwinding is important because excessive tension or uncontrolled movement may cause deformation or surface damage.

The uncoiler is equipped with material pressing arms and support arms. The pressing arms are used to compress the material during operation, preventing the material from unrolling, while the support arms hold the material after it’s uncoiled, making it easier to enter the leveling mechanism. A loading trolley facilitates coil loading and unloading.

2. Precision Leveling: Ensuring Flatness for Copper Sheet Processing

The leveling process is one of the most important stages in a Cut to Length Line, especially when processing copper coils that require high flatness and dimensional accuracy.

During coil production and transportation, copper materials may develop internal stress, bending, or uneven deformation. The precision leveling machine removes these stresses through multiple leveling rollers, creating a flat and stable sheet surface before cutting.

For copper sheet applications, maintaining consistent flatness is essential because even minor deformation can affect subsequent stamping, forming, and assembly processes.

A high-precision leveling system is equipped with optimized roller arrangements and adjustable leveling pressure to handle different copper thicknesses while minimizing surface damage. Rubber-coated rollers and protective film systems can also be integrated to prevent scratches and ensure high-quality surface finishing.

By improving sheet flatness and stability, the leveling process helps manufacturers achieve better processing accuracy and consistent product quality.

3. Servo Feeding: Accurate Material Positioning Before Cutting

The servo feeding system controls the movement of leveled copper sheets before the shearing process, ensuring precise cutting length and stable production efficiency.

Unlike traditional mechanical feeding methods, a servo feeder uses a high-precision servo motor and control system to achieve accurate material positioning according to preset parameters.

For copper sheet processing, feeding accuracy is particularly important because many applications require strict dimensional tolerances. Stable feeding helps reduce material waste, improve cutting consistency, and maintain uniform sheet dimensions during continuous production.

The servo feeding unit works together with the leveling system to provide smooth and reliable material transfer, making the Cut to Length Line suitable for high-volume copper sheet production in electrical, electronic, and new energy industries.

4. Precision Shearing: Producing Accurate Copper Sheets with Clean Edges

The shearing system cuts the leveled copper material into individual sheets according to the required length.

A hydraulic shear provides strong cutting force and stable operation, allowing the Cut to Length Line to process copper sheets with consistent dimensions and clean cutting edges.

Because copper materials are commonly used in precision applications, the cutting process must minimize deformation, burrs, and edge defects. The optimized shearing mechanism ensures accurate sheet sizes while maintaining material quality.

Combined with accurate servo feeding, the shearing unit enables continuous production of copper sheets with reliable dimensional consistency, reducing the need for additional trimming or manual correction.

5. Automatic Stacking: Improving Copper Sheet Handling Efficiency

After the shearing process, the automatic stacking system collects and organizes the finished copper sheets for further production.

The stacking unit uses conveyors, lifting mechanisms, and positioning devices to arrange cut sheets neatly, reducing manual handling requirements and improving production efficiency.

For copper sheet manufacturers, automatic stacking provides several advantages:

- Reduces labor intensity

- Prevents surface damage caused by manual handling

- Maintains organized material flow

- Improves downstream processing efficiency

By integrating automatic stacking with decoiling, leveling, feeding, and shearing processes, the Cut to Length Line provides a complete automated solution for precision copper sheet processing.

Key Advantages of an Automatic Cut to Length Line

1. Improved Material Utilization

Using continuous coil processing helps reduce material waste compared with traditional sheet cutting methods.

This improves raw material utilization and lowers production costs.

2. Better Sheet Flatness

The precision leveling system removes internal stress and coil deformation, ensuring stable flatness quality.

This is especially important for:

Electrical copper sheets

Decorative copper panels

Precision stamped components

Electronic industry applications

3. Higher Production Efficiency

The integrated automatic production process enables simultaneous feeding and cutting operations, greatly improving production speed.

Compared with standalone machines, the automatic cut to length line reduces production downtime and improves workflow continuity.

4. Reduced Labor Costs

The fully automated operation minimizes manual handling and reduces labor intensity.

Manufacturers can achieve stable mass production with fewer operators.

5. Surface Protection for Copper Materials

Copper materials often require high surface quality standards. The production line adopts:

Rubber-coated rollers

Protective film systems

Stable feeding structures

These features help reduce scratches, pressure marks, and surface damage during processing.

Why Choose an Automatic Cut to Length Line?

For manufacturers aiming to improve productivity, reduce waste, and achieve consistent quality, investing in a cut to length line is a strategic decision.

It not only streamlines the production process but also enhances product quality while lowering long-term operational costs.

Conclusion

The automatic cut to length line is an essential solution for modern metal coil processing. By integrating multiple processes into one system, it delivers higher efficiency, precision, and automation.

As manufacturing demands continue to evolve, adopting advanced coil processing equipment like this line will be key to maintaining a competitive edge.

FAQ

Q1: What materials can a cut to length line process?

It can process stainless steel, carbon steel, aluminum, copper, titanium, and galvanized materials.

Q2: How does a leveling machine improve product quality?

It removes internal stress and ensures flatness, reducing deformation during further processing.

Q3: Is the system suitable for high-volume production?

Yes, it is designed for continuous, high-speed operation with minimal manual intervention.

Q4: Can the line be customized?

Yes, configurations can be tailored based on material thickness, width, and production requirements.
