In coil-fed metal stamping, decoiling, precision straightening, and feeding are essential processes that influence production continuity, material quality, and positioning accuracy. For manufacturers producing automotive components, hardware parts, electrical components, and metal structural parts, poor coordination between these processes can lead to unstable material feeding, inadequate straightening, positioning deviations, and unnecessary downtime during coil changes.
An effective way to improve material handling is to integrate a double head decoiler, Precision Straightener, and servo feeder into an automated coil feeding line. Each machine performs a specific function, while the entire system works together to deliver coil material to the stamping press in a controlled and consistent manner.
But how do these machines work together? What should manufacturers consider when selecting compatible equipment? And when is a double head decoiler a practical choice for a stamping production line?
This guide explains the equipment functions, production workflow, key matching requirements, suitable applications, and planning considerations for an integrated coil feeding system.
Executive Summary
A double head decoiler, Precision Straightener, and servo feeder form a coordinated material-handling system for coil-fed stamping production. The decoiler supplies the coil material, the Precision Straightener improves strip flatness, and the servo feeder advances the material to the stamping die according to the required feed length.
Double Head Decoiler: Provides two coil-loading positions and can reduce coil changeover waiting time.
Precision Straightener: Corrects strip curvature and helps improve material flatness before feeding.
Servo Feeder: Controls feed length and material positioning according to the stamping process.
System Integration: Requires compatible material capacities, coordinated operating cycles, suitable control interfaces, and appropriate safety interlocks.
Automated Coil Feeding Process
The actual equipment arrangement and control method should be determined by material specifications, production requirements, and machine design.
Key Takeaways
Match the decoiler load capacity to the maximum coil weight and dimensions.
Select the Precision Straightener according to material thickness, strip width, mechanical properties, and surface requirements.
Configure the servo feeder according to feed length, positioning accuracy, and press cycle.
Coordinate decoiling speed with downstream material demand to avoid excessive tension or loose material accumulation.
Define machine communication, fault responses, coil changeover procedures, and safety interlocks before commissioning.
Test the complete line using actual production material whenever possible.
1. What Does Each Machine Do in an Automated Stamping Line?
A typical coil-fed stamping line includes decoiling, precision straightening, servo feeding, and stamping. The performance of the complete line depends on how well these processes are coordinated.

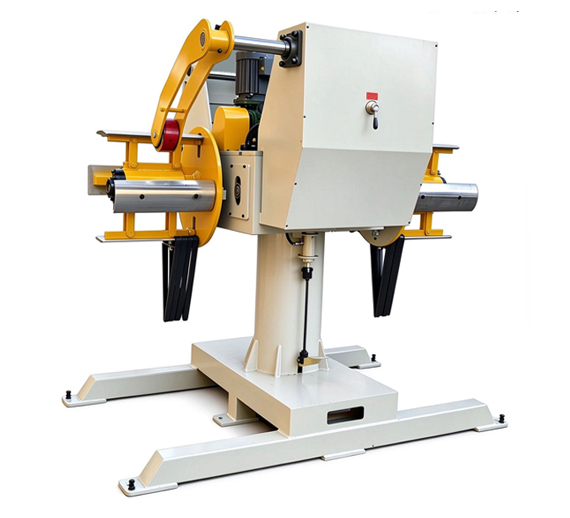

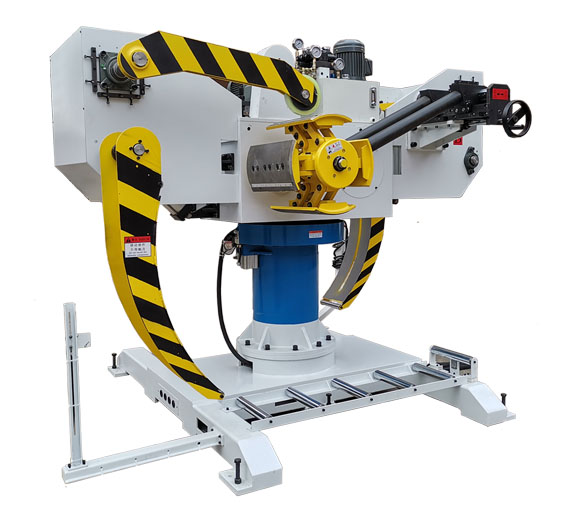

1.1 Double Head Decoiler: Supports Coils and Reduces Coil Changeover Downtime
A double head decoiler is designed to hold and release metal coils. Unlike a single-head decoiler, it has two coil-loading positions, allowing operators to prepare a spare coil while the other position supplies material to the production line, depending on the machine design and operating procedure.
When the active coil is depleted, the machine can switch to the prepared coil according to its specified changeover method. This arrangement can reduce waiting time associated with repeated coil loading and preparation.
During production, the decoiler must release material in coordination with downstream equipment. If the coil is released too quickly, excess material may accumulate. If the release is insufficient, the strip may experience unnecessary tension or pulling.
For this reason, the decoiler's operating mode and control method should be compatible with the material consumption rate and the overall line configuration.
1.2 Precision Straightener: Improves Material Flatness
Metal coils can develop curvature, warping, and residual stress during rolling, winding, transportation, and storage. If the material enters the stamping process without adequate straightening, these conditions may affect feeding stability and the quality of the finished parts.
A Precision Straightener uses multiple straightening rollers to repeatedly bend the strip and help improve its flatness before it reaches the feeding and stamping stages.
The required straightening capacity depends on several factors, including:
Material thickness and strip width
Material type, strength, and yield characteristics
Roller diameter, arrangement, and mechanical rigidity
Straightening adjustment range and operating parameters
Surface protection requirements
Thicker or higher-strength materials may require a more robust Precision Straightener, while thin aluminum, copper, and mirror-finish materials may require additional attention to roller condition and surface protection.
Selecting the appropriate Precision Straightener helps establish a more stable material condition for subsequent precision feeding.
1.3 Servo Feeder: Delivers Material According to the Required Feed Length
A servo feeder advances the straightened strip toward the stamping die according to preset feed lengths and production timing.
Driven by a servo system and controlled through the relevant electrical and automation components, the feeder can execute programmed feed commands and adjust parameters such as feed length and speed according to the stamping process.
However, actual feeding accuracy depends on more than the servo motor alone. Material surface conditions, gripping force, feed roller wear, mechanical clearances, control settings, and die positioning can all affect the final result.
When selecting a servo feeder, manufacturers should evaluate the actual material specifications, required feed length, target accuracy, and press operating cycle rather than relying solely on the servo system's rated performance.

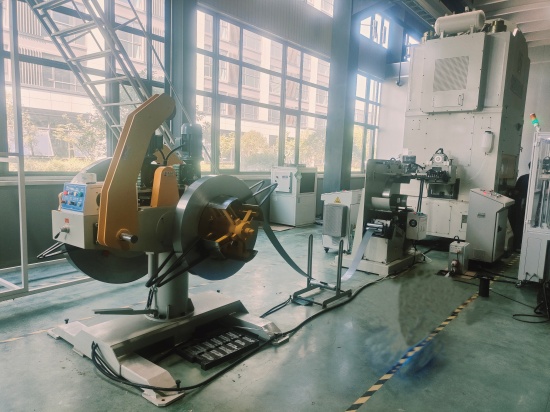

2. How Do the Three Machines Form an Automated Coil Feeding Line?
A common equipment arrangement is:
Double Head Decoiler → Precision Straightener → Servo Feeder → Stamping Press and Die
In this configuration, the double head decoiler releases the coil material, the Precision Straightener corrects its flatness, and the servo feeder advances the strip to the required position in the stamping die.
Depending on the production requirements and equipment design, the decoiling and straightening functions may also be integrated into a combined machine. The final configuration should reflect the actual equipment specifications and material processing requirements.
Step 1: The Double Head Decoiler Releases the Coil
The operator loads the coil onto the designated decoiling position and completes the required coil expansion, securing, and material-threading procedures according to the machine's operating instructions.
Once production begins, the decoiler releases material according to downstream material demand and its configured control method.
Where supported by the equipment, coordination with downstream machines can help regulate material release and reduce excessive tension or loose material accumulation.
The coil-loading and changeover procedures should also account for coil weight, handling equipment, operator access, and the manufacturer's specified safety requirements.
Step 2: The Precision Straightener Corrects the Material
After leaving the decoiler, the strip enters the Precision Straightener and passes through the roller assembly for continuous correction.
The operator adjusts the straightening settings according to the material thickness, width, and mechanical properties. Trial runs should be performed to evaluate whether the strip has excessive curvature, visible waviness, or surface damage.
Incorrect roller pressure or adjustment may result in insufficient straightening or leave marks on the material surface. Therefore, settings should be established through material-specific adjustment and production testing.
For surface-sensitive materials, roller cleanliness, roller condition, and the design of material-contact surfaces deserve particular attention.
Step 3: The Servo Feeder Advances the Material
After precision straightening, the material enters the servo feeder. The feeder executes the preset feed length and delivers the strip toward the stamping die according to the production sequence.
During commissioning, key items to verify include:
Feed length and repeatability
Feeding direction and strip alignment
Roller gripping and material slippage
Positioning relative to the stamping die
Coordination between feeding commands and press timing
For continuous stamping, the feed command must be synchronized with the press operating sequence. Incorrect timing can cause positioning errors and may interfere with the stamping process.
Step 4: The Stamping Press Performs the Forming Operation
Once the strip reaches the required position, the press performs the programmed stamping operation. The servo feeder then advances the material for the next cycle.
Depending on the die design, the process may involve punching, blanking, bending, or other metal forming operations.
The complete line should operate according to an integrated control plan, with appropriate safety interlocks, fault responses, and stop-and-restart procedures. Connecting individual machines does not, by itself, guarantee safe or coordinated automatic operation.
3. Key Factors When Matching a Double Head Decoiler, Precision Straightener, and Servo Feeder
An integrated stamping line requires more than selecting three machines with suitable individual specifications. Their capacities, material paths, control methods, and operating cycles must also be compatible.
3.1 Match Equipment Capacity to the Material Specifications
Before selecting equipment, manufacturers should confirm the following material parameters:
| Parameter | Why It Matters |
|---|---|
| Material type | Determines mechanical properties and surface protection requirements. |
| Material thickness | Affects Precision Straightener capacity and feeding requirements. |
| Strip width | Determines the required working width of the equipment. |
| Coil inner and outer diameters | Must fall within the equipment's loading and operating range. |
| Maximum coil weight | Determines the required decoiler load capacity. |
| Required feed length | Helps determine servo feeder specifications. |
| Target feeding accuracy | Establishes the positioning requirements for the application. |
The double head decoiler must safely support the specified coil weight. The Precision Straightener must accommodate the material thickness and width, while the servo feeder must satisfy the required feed length, speed, and accuracy.
If any machine is undersized for the application, it may limit the performance of the entire production line, even when the other machines have sufficient capacity.
3.2 Coordinate Decoiling Speed with Downstream Material Demand
A decoiler releases material, while a servo feeder may advance the strip intermittently according to the stamping cycle. Their operating patterns are therefore not necessarily identical.
If the decoiling speed does not match downstream material consumption, the strip may become excessively tensioned, accumulate loosely, or feed inconsistently.
The line design should consider the decoiler control method, available material-buffering space, feeder operating pattern, and press cycle. The appropriate coordination method depends on the equipment configuration and the characteristics of the material.
3.3 Ensure the Precision Straightener Meets the Process Requirements
Different materials respond differently to straightening because of variations in thickness, strength, elasticity, and yield characteristics.
For thin metal strips, roller adjustment and surface protection are important. For thicker or higher-strength materials, manufacturers should pay closer attention to machine rigidity, roller configuration, and drive capacity.
When processing aluminum, copper, or mirror-finish metal, roller surface condition and material-contact design should also be evaluated to reduce the risk of surface damage.
The appropriate Precision Straightener configuration should be determined by the actual material specifications and verified through trials.
3.4 Match Servo Feeding Parameters to the Stamping Die
Servo feeder selection should account for strip dimensions, feed length, required accuracy, and press cycle.
After setting the feed parameters, manufacturers should conduct trial runs and actual stamping tests to confirm feeding stability and positioning repeatability.
If the die requires tight positioning tolerances, the material guide, die locating features, and feeder gripping conditions should also be checked. Increasing servo control precision alone cannot correct every positioning problem caused by mechanical misalignment or unstable material handling.
3.5 Verify Control Integration and Safety Interlocks
An automated coil feeding line must coordinate the operating status of the double head decoiler, Precision Straightener, servo feeder, and stamping press.
Before installation, define the control requirements for:
Start and stop commands between machines
Press and feeder signal coordination
Fault alarms and abnormal shutdowns
Restart and fault-recovery procedures
Coil changeover and standby coil preparation
Necessary detection devices and safety protection
Double head decoilers require particular attention during position switching. The changeover procedure must follow the machine design and account for operator safety, coil securing, and downstream material supply conditions.
A clearly defined control strategy helps reduce coordination problems during commissioning and routine production.
4. Which Applications Benefit from This Automated Coil Feeding Solution?
A double head decoiler, Precision Straightener, and servo feeder can be suitable for production processes that use coil material for continuous or repetitive stamping. The final configuration should be based on the material and manufacturing requirements.
Automotive Component Stamping
Some automotive brackets, connectors, reinforcement parts, and other stamped metal components are produced from coil stock.
An integrated feeding line can reduce the need to manually handle individual sheets and provide a more organized material supply process for repetitive stamping operations.
Hardware and Electrical Component Manufacturing
Manufacturers producing hardware parts, electrical components, and metal mounting parts may benefit from automated coil feeding when production volumes and process requirements justify a continuous material supply arrangement.
The equipment should be selected according to the strip dimensions, die requirements, and production cycle.
Continuous Metal Punching and Blanking
For processes involving repeated punching, blanking, or forming, a properly configured coil feeding line can automate material handling between the coil and the stamping press.
The required double head decoiler, Precision Straightener, and servo feeder depend on the material thickness, width, mechanical properties, and stamping process.
Equipment selection note: A double head decoiler is not necessary for every application. If coil changes are infrequent, or the production process uses individual sheet blanks rather than coil stock, a single-head decoiler or a different material-handling arrangement may be more appropriate.
5. How to Plan a Double Head Decoiler Automated Stamping Line
Before purchasing equipment, manufacturers should define their production requirements and evaluate the complete material-handling process. This helps avoid equipment that is either underspecified or unnecessarily complex.
The following steps provide a practical starting point.
Define the Material Specifications
Confirm the material type, thickness range, maximum strip width, coil inner and outer diameters, and maximum coil weight.
Confirm the Stamping Process
Identify the press tonnage, die type, required feed length, production cycle, and finished-part accuracy requirements.
Select the Precision Straightener and Feeding Configuration
Determine whether a standalone Precision Straightener or an integrated decoiling and straightening unit is more suitable. Then select a servo feeder based on the material dimensions, feed length, and control requirements.
Review the Factory Layout
Consider available floor space, coil handling methods, material travel direction, machine access, maintenance clearance, and operator walkways.
Define the Line Control Requirements
Confirm the coordination method between decoiling and feeding, press signal interfaces, fault shutdown logic, and coil changeover procedures.
Validate the Line Through Trial Operation
Where possible, test the system with the actual production material. Check decoiling stability, straightening results, feeding accuracy, surface condition, and coordination between machines before regular production begins.
These steps help ensure that equipment selection reflects the real production environment rather than individual machine specifications alone.
6. How Can an Integrated Coil Feeding Line Improve Production Efficiency?
A double head decoiler, Precision Straightener, and servo feeder each contribute to a different part of the material-handling process.
The double head decoiler allows the next coil to be prepared at a separate loading position, potentially reducing coil changeover waiting time. The Precision Straightener improves the strip's flatness, while the servo feeder advances the material according to the stamping process requirements.
When these machines are properly matched and coordinated, the line can reduce certain manual handling tasks and improve the continuity of material supply.
For manufacturers seeking further automation, additional equipment may also be considered based on press tonnage, die design, and product structure. Options may include a coil loading car, material detection devices, or other auxiliary automation mechanisms.
The suitability of these additions should be evaluated against the actual production process, safety requirements, and expected operational benefits.
Conclusion
Integrating a double head decoiler, Precision Straightener, and servo feeder creates a coordinated material-handling system for coil-fed stamping applications. The decoiler supplies the coil material, the Precision Straightener improves its flatness, and the servo feeder delivers it to the stamping die according to the required feed length.
To achieve reliable operation, manufacturers should evaluate material specifications, equipment capacity, decoiling and feeding coordination, straightening performance, feeding accuracy, coil changeover procedures, and overall line safety.
