In modern stamping automation, feeding accuracy directly influences product consistency, die life, and the overall stability of a production line. As industries such as electric vehicles, electronic hardware, home appliances, and precision metal components continue to demand tighter tolerances, high-precision feeding equipment has become increasingly important.

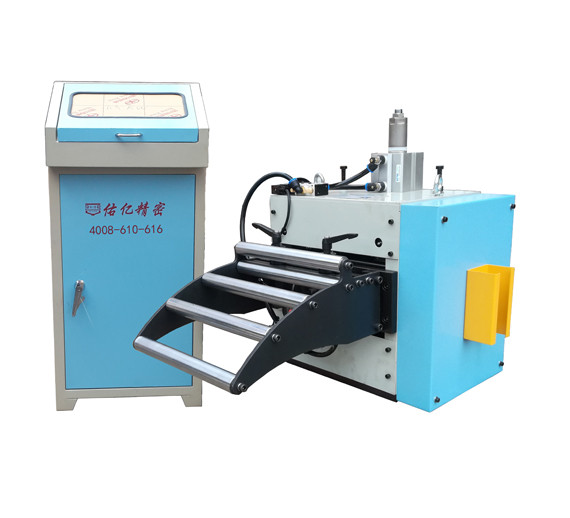

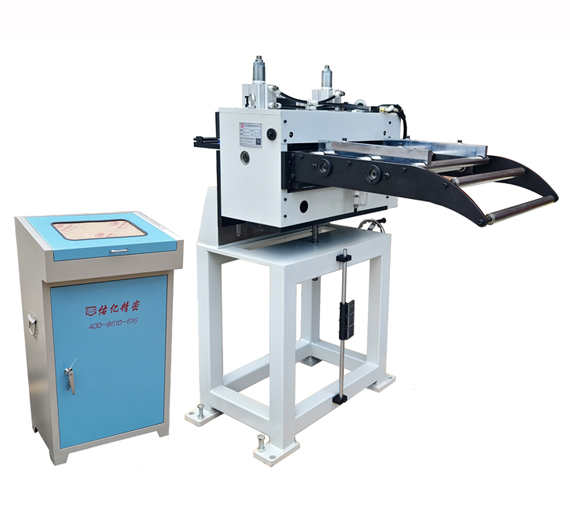

A Servo Roll Feeder, also commonly known as an NC Servo Feeder, has become a preferred solution for many stamping manufacturers due to its high accuracy, stable operation, and intelligent control capabilities.

So, how accurate can a Servo Roll Feeder actually be? What factors affect its feeding precision in real production environments? This article provides a comprehensive explanation.

What Feeding Accuracy Can a Servo Roll Feeder Achieve?

Most modern Servo Roll Feeders are driven by high-performance servo motors and equipped with precision encoders and PLC control systems, allowing highly accurate control of feed length.

Under normal operating conditions, a quality Servo Roll Feeder can typically achieve feeding accuracy of approximately ±0.02 mm. Under ideal conditions, including properly leveled materials and optimized die alignment, repeat feeding accuracy can even reach ±0.01 mm.

Compared with conventional mechanical feeders, a Servo Roll Feeder allows operators to set feed lengths directly through an HMI without changing gears. This not only simplifies operation but also improves positioning precision, making it particularly suitable for high-precision stamping applications, small-batch production, and multi-product manufacturing lines.

Factors That Affect Servo Roll Feeder Precision

Although a Servo Roll Feeder offers excellent control accuracy, actual feeding performance can still be influenced by several external factors.

Material Flatness

Material condition is one of the most critical factors affecting feeding accuracy. Coil materials with residual stress, edge waviness, or bending deformation may cause feeding deviations even when the feeder itself operates precisely.

Therefore, many manufacturers integrate a straightening machine or a combined decoiler straightener ahead of the Servo Roll Feeder to ensure proper material flatness before stamping.

Die Positioning Accuracy

Die design and maintenance also play an important role in achieving stable feeding precision. Improper pilot pin design, excessive die wear, or inaccurate installation may lead to dimensional inconsistencies in stamped products.

Regular die inspection and maintenance are essential to maintaining high product quality.

Feeding Roller Pressure

The pressure applied by the feeding rollers should be adjusted according to the thickness, material type, and surface finish requirements of the coil.

Insufficient pressure may cause slippage, while excessive pressure may leave marks or scratches on the material surface. Proper adjustment helps ensure smooth and consistent feeding.

Servo Parameter Settings

Servo system parameters can significantly influence feeding stability. If acceleration and deceleration times are set too short, inertia impacts may occur, leading to vibration, unstable positioning, or inconsistent feed lengths.

Optimizing servo parameters according to production requirements is necessary for achieving the best performance.

How to Maintain Long-Term Feeding Accuracy

To ensure long-term precision and reliable operation, routine maintenance of the Servo Roll Feeder is highly recommended.

Operators should periodically inspect feeding rollers for wear and remove oil residue, dust, and metal chips from roller surfaces to maintain proper friction and feeding stability.

In addition, it is advisable to regularly check encoder feedback signals, timing belts, couplings, and lubrication conditions of bearings and other critical transmission components.

For processing aluminum, stainless steel, and copper strips with demanding surface quality requirements, hardened chrome-plated rollers or rubber-coated rollers are recommended to minimize scratches and indentation marks.

Choosing a Reliable Servo Roll Feeder Supplier

The theoretical accuracy of a Servo Roll Feeder does not always represent its long-term production performance. Equipment manufacturing quality, component selection, assembly precision, and control system stability all directly influence actual feeding consistency.

With more than 20 years of experience in stamping automation, Youyi Precision manufactures high-performance Servo Roll Feeders equipped with advanced servo drive systems, precision feeding rollers, and intelligent control technology.

Standard models can maintain stable feeding accuracy of approximately ±0.02 mm and are widely used in EV battery components, automotive parts, electronic hardware, household appliances, and precision metal stamping industries.

As manufacturing continues to move toward higher precision and efficiency, choosing a reliable Servo Roll Feeder can help improve product consistency, reduce material waste, lower die maintenance costs, and increase overall production efficiency.

Frequently Asked Questions

1、What is the typical accuracy of a Servo Roll Feeder?

Most industrial Servo Roll Feeders provide feeding accuracy of approximately ±0.02 mm, while high-end models can achieve repeatability within ±0.01 mm.

2、Can coil flatness affect feeding precision?

Yes. Material waviness, residual stress, and deformation can significantly influence actual feeding performance.

3、Is a Servo Roll Feeder suitable for aluminum coils?

Yes. Servo Roll Feeders are widely used for aluminum, stainless steel, copper strips, and other precision materials. Rubber-coated or chrome-plated rollers are often recommended for delicate surfaces.
