A Complete Guide to Understanding Its Function, Components, and Operation

In modern manufacturing, especially in metal forming and processing industries, maintaining a smooth and reliable production flow is essential. One of the unsung heroes in this process is the uncoiler machine — sometimes called a decoiler or unwinding machine. But what exactly is an uncoiler, how does it work, and why is it so important? This article breaks everything down in simple, technical, and user‑friendly terms.

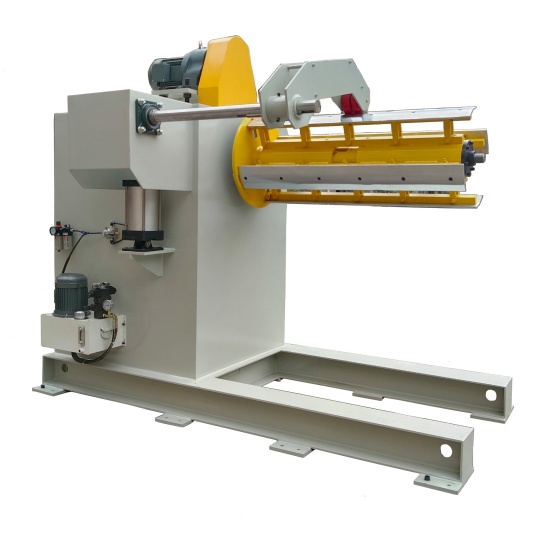

What Is an Uncoiler Machine?

An uncoiler machine is a specialized piece of industrial equipment designed to hold and unwind material coils — typically metals like steel, aluminum, or copper — and feed the material into the next stage of processing. It's usually the first piece of equipment in production lines such as slitting lines, roll forming systems, cut-to-length lines, stamp presses, and more. Without an uncoiler, manually handling large and heavy coils would be slow, unsafe, and inefficient. Uncoilers automate this process to improve production speed and continuity, maintain material tension and quality, reduce labor intensity, and enable precise and consistent feed rates for downstream machinery.

Core Components of an Uncoiler

Understanding how an uncoiler works starts with knowing its key parts:

1. Mandrel (Spindle)

The mandrel is the central shaft on which the coil sits. It expands to grip the inside diameter of the coil securely. Expansion can be mechanical, pneumatic, or hydraulic.

2. Drive System

Typically powered by a motor (AC or servo), the drive system controls the rotation of the mandrel. This allows the coil to unwind at controlled speeds.

3. Tension Control

Uncoilers use brakes, sensors, loops, or feedback systems to maintain proper tension in the material — preventing slippage, stretching, or buckling.

4. Frame and Support

A heavy-duty structure supports even multi-ton coils, ensuring stability, safety, and alignment with downstream equipment.

5. Control System

Modern uncoilers can integrate with PLCs (programmable logic controllers), sensors, and HMI (touchscreen) interfaces for automated precision and line synchronization.

Step-by-Step: How an Uncoiler Works

Let's walk through the typical operation of an uncoiler — from coil loading to material feed:

1. Coil Loading: Using overhead cranes or coil cars, the operator places the raw material coil onto the machine’s mandrel. The mandrel then expands to securely grip the coil.

2. Mandrel Expansion and Clamping: Once the coil is in place, mechanical or hydraulic actuators expand the mandrel arms outward. This locks the coil in place, ensuring it won’t slip or come loose during operation.

3. Initiating Uncoiling: The operator (or automated system) starts the machine. The mandrel — driven by the motor — begins rotating. The coil unwinds as the strip feeds out toward the next machine (straightener, slitter, feeder, etc.).

4. Controlled Tension: Sensors and brakes work together to maintain a smooth and consistent feed. They ensure the material remains under tension — not too tight (which can stretch or deform it) and not too loose (which can lead to snags and misfeeds).

5. Synchronization with Downstream Processes: Modern uncoilers communicate with downstream equipment to match material feed speeds. This means the uncoiler only spins as fast as the downstream machinery needs the material, reducing waste and timing errors.

6. Coil Changeover: In production lines requiring continuous operation, some uncoilers feature dual mandrels. While one coil feeds the line, the next is prepared on the second mandrel. This minimizes downtime when one coil runs out.

Types of Uncoiler Machines

Depending on production scale and automation needs, uncoilers come in several configurations:

• ·   Manual Uncoilers
  Operators manually control tension and rotation. Ideal for low volume or simpler lines.

• ·   Motorized Uncoilers
  Automated rotation and tension control via motor drive.

• ·   Hydraulic Uncoilers
  Heavy-duty systems with hydraulic mandrel expansion, perfect for large coils.

• ·   Double or Multi-Mandrel Units
  Allow near-instant coil changeovers for high-volume production.

• ·   Integrated Systems

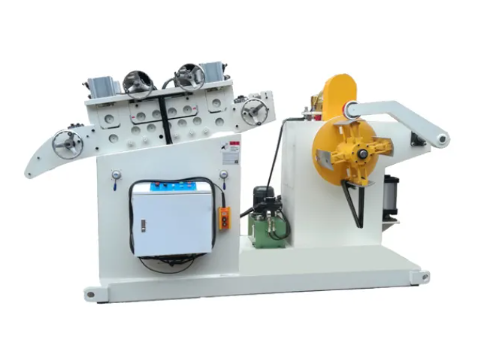

  Some uncoilers combine with straighteners or feeders to save space and streamline processes.

Where Uncoilers Are Used

Uncoiler machines are fundamental in industries such as:

• ·   Automotive manufacturing

• ·   Metal fabrication and stamping

• ·   Appliance and HVAC production

• ·   Pipeline and steel structure fabrication

• ·   Construction materials processing

Their role is to guarantee a continuous, tension-controlled supply of coil material — a prerequisite for high-precision, efficient manufacturing.

Benefits of Proper Uncoiler Functionality

A high-performance uncoiler machine unlocks several advantages:

• ·   Accelerated Production: Automated feeding reduces stops and starts.

• ·   Improved Material Quality: Consistent tension prevents material defects like wrinkling or deformation.

• ·   Reduced Labor Needs: Less manual handling leads to safer and more efficient operations.

• ·   Lower Downtime: Dual mandrels and smart controls keep production moving.

Conclusion

The uncoiler machine may seem like a humble part of the manufacturing process, but it plays a crucial role in feeding raw material into the production line with precision and continuity. From basic motorized units to advanced hydraulic systems with PLC control, uncoilers are engineered to increase productivity, maintain material integrity, and support high-speed manufacturing environments. Whether you’re exploring ways to optimize your production line or learning about industrial machinery basics, understanding how uncoilers work is a key step toward greater efficiency and performance.

FAQ: Quick Summary

Q: What is an uncoiler used for?
A: To hold and unwind large coils of material and feed them into production machinery.

Q: Can uncoilers handle very heavy coils?
A: Yes — modern machines can handle coils weighing several tons.

Q: Are uncoilers automated?
A: Many are, with sensors and PLC integration for synchronized operation.
