How to Determine the Number of Stations for a Multi-Station Transfer Robot?

October 31, 2026


Executive Summary

Determining the right number of stations for a multi-station transfer robot is an important step in planning an automated stamping production line. The configuration should not be based solely on the number of stamping operations. Instead, manufacturers need to consider the actual production process, press arrangement, die structure, workpiece transfer requirements, and target production cycle.

A properly configured transfer robot helps maintain smooth material handling between stamping stations, reduces unnecessary movements, and supports stable production. An unsuitable configuration, however, may increase equipment investment or create transfer bottlenecks that affect the overall production efficiency.

Key Takeaways

  • The number of stamping operations does not necessarily equal the number of transfer stations required.

  • Product processing sequences and actual workpiece transfer tasks should be evaluated together.

  • Single-press multi-station dies and multi-press production lines require different transfer solutions.

  • Press spacing, die dimensions, workpiece weight, and gripper design affect the robot configuration.

  • Production cycle time must be checked to ensure that all transfer movements can be completed within the available time.

  • The final configuration should balance automation requirements, equipment investment, operating stability, and maintenance needs.

How a Multi-Station Transfer Robot Works in a Stamping Line

Station 1
Initial Loading / First Operation
→
Station 2
Intermediate Processing
→
Station 3
Transfer and Positioning
→
Final Station
Final Processing / Unloading

The actual transfer sequence depends on the stamping process, press layout, die structure, and workpiece handling requirements.

1. Understand the Difference Between Stamping Operations and Transfer Stations

Before determining the number of stations for a multi-station transfer robot, it is important to understand one basic principle: the number of stamping operations required to manufacture a part does not necessarily equal the number of transfer stations required.

For example, a sheet metal component may require four operations: punching, drawing, trimming, and flanging. If each operation is performed by a separate stamping press, the workpiece must be transferred from one press to the next.

However, if two operations can be completed using a compound die on the same press, the actual number of workpiece transfers may be reduced.

Therefore, the number of stations should be determined according to the actual production workflow rather than simply counting the operation names.

During the initial project planning stage, manufacturers should clarify the following information:

  • Which stamping operations are required for the product?

  • Does each operation use an independent die or a compound die?

  • Does the workpiece need to be transferred between operations?

  • Which stamping press performs each operation?

  • Are additional operations such as manual inspection, part turning, or repositioning required?

  • How will the finished workpiece be removed after the final operation?

Once these details are confirmed, engineers can determine how many positions the transfer robot needs to serve and which handling tasks it must perform.

2. Determine the Station Requirements Based on the Actual Stamping Process

The product's stamping process is the primary basis for determining the required transfer station configuration.

Consider a metal stamping component that requires four operations:

Blanking → Piercing → Drawing → Forming

If each operation is performed by a separate stamping press, the production line needs to accommodate four processing stations and the transfer movements between them.

In this arrangement, the transfer robot may need to:

  • Transfer the blanked workpiece to the piercing station.

  • Move the pierced workpiece to the drawing station.

  • Transfer the drawn part to the forming station.

  • Move the completed part to the unloading position.

However, the actual robot configuration also depends on the equipment design.

In some solutions, finished-part unloading is included in the transfer robot's operating sequence. In others, an independent unloading mechanism handles the finished workpiece.

Additional requirements must also be considered. For example, some parts need to be flipped, repositioned, or picked up from a specific location before entering the next die.

For this reason, manufacturers should first establish the complete stamping process flow. The transfer robot manufacturer can then develop a suitable handling solution based on the press arrangement and die layout.

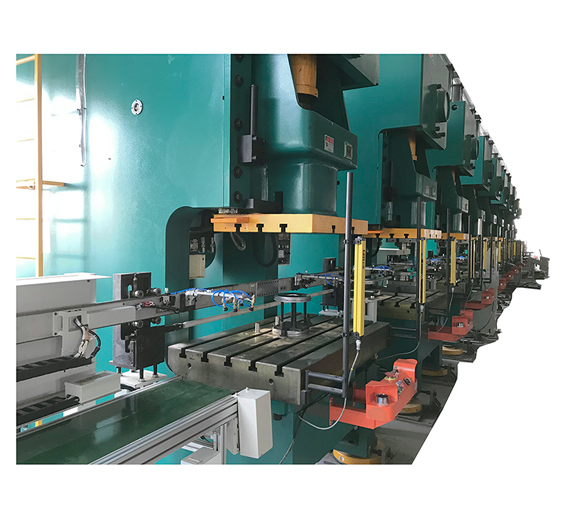

How to Determine the Number of Stations for a Multi-Station Transfer Robot?cid=6

3. Single-Press Multi-Station Dies and Multi-Press Production Lines Require Different Configurations

A multi-station transfer robot may be used in two different production scenarios:

  • A single stamping press equipped with a multi-station die.

  • Multiple stamping presses connected through an automated transfer system.

The method of determining the station requirements differs between these applications.

3.1 Single Stamping Press with a Multi-Station Die

When a single press operates with a progressive die or another type of multi-station die, multiple processing positions are already incorporated into the die structure.

In this situation, engineers need to confirm:

  • The actual number of stations inside the die.

  • The distance between adjacent die stations.

  • How the workpiece or strip material moves through the die.

  • Whether a transfer robot needs to handle parts between stations.

  • Whether additional loading or unloading operations are required.

It is important to distinguish material feeding inside a progressive die from workpiece transfer performed by a multi-station transfer robot.

With a progressive die, strip material is typically advanced through the die by a feeding mechanism. A separate multi-station transfer robot is not necessarily required.

A transfer robot should only be configured for inter-station handling when the production process actually requires it to pick up and move workpieces between different positions.

3.2 Multiple Stamping Presses Connected in an Automated Line

When a product requires processing on multiple stamping presses, a transfer robot typically handles workpiece movement between the presses.

For example, three presses may perform punching, drawing, and forming operations respectively. The transfer robot needs to move each workpiece between the three presses according to the production sequence.

In this application, the required station configuration depends on more than the number of stamping operations. Other factors include:

  • Number of stamping presses.

  • Distance between adjacent presses.

  • Die height and working clearance.

  • Workpiece pickup and placement directions.

  • Required transfer distance.

If the presses are arranged far apart or the workpiece needs to change its orientation during transfer, the robot structure and motion sequence may need to be adjusted.

Therefore, the number of presses alone is not enough to determine the final configuration. Engineers must evaluate the actual transfer relationship between every processing station.

4. Consider the Number of Workpiece Transfers

The number of times a workpiece needs to be transferred is another important factor when selecting a multi-station transfer robot.

For example, suppose a metal component requires five independent stamping operations, with each operation performed by a separate press.

If the workpiece moves sequentially from Press 1 to Press 2, Press 3, Press 4, and Press 5, there are at least four transfers between the processing stations.

Initial loading and final unloading must also be considered.

However, this does not mean that the transfer robot must simply be configured with five stations.

In an actual production solution, initial loading may be handled by an independent loading system, while a conveyor or another unloading device may remove finished parts. Some transfer tasks may also be divided between separate robots.

During project planning, it is useful to create a complete workpiece flow diagram that identifies every pickup, placement, and transfer movement.

This makes it easier to determine which operations the transfer robot needs to perform and helps avoid unnecessary equipment configurations.

5. Station Spacing Affects Robot Structure and Should Not Be Overlooked

Even when two stamping production lines have the same number of stations, their transfer robot configurations may be completely different.

For example, two production lines may both connect four stamping presses. However, one line may have a compact press arrangement, while the other has significantly greater distances between presses.

These differences directly affect the robot's horizontal travel range, structural rigidity, and installation space.

When determining the station configuration, manufacturers should also measure:

  • Center-to-center distance between adjacent stamping presses.

  • Center position of each die.

  • Height of the die working surface.

  • Workpiece pickup and placement positions.

  • Transfer robot installation height.

  • Required horizontal and vertical movement clearance.

When the distance between stations increases, the robot needs a longer transfer stroke.

If the available space inside or around the die is limited, engineers may also need to reassess the gripper dimensions and movement trajectory.

Important consideration: The number of stations determines how many positions the robot needs to serve, while station spacing determines how the robot must move between those positions. Both factors should be evaluated together during the design process.

6. Production Cycle Time Determines Whether Multiple Stations Can Operate Together

After determining the required station configuration, manufacturers must verify whether the transfer robot can meet the target production cycle.

For example, suppose a stamping production line is designed to operate at 30 strokes per minute. The theoretical time for each press cycle is approximately two seconds.

Within this cycle, the transfer robot may need to complete several movements:

  • Pick up the workpiece.

  • Lift the workpiece from the die.

  • Move it horizontally to the next station.

  • Position and place the workpiece.

  • Release the gripper.

  • Move to a safe position before the next stamping operation.

The entire movement sequence must fit within the available transfer time.

However, the actual available transfer window is not necessarily the full two seconds. It also depends on the press position, synchronization between the press and robot, and die safety requirements.

If adding more stations increases the transfer distance, gripper operations, or workpiece repositioning requirements, the overall movement cycle may become longer.

Therefore, station configuration must be verified through production cycle analysis rather than determined solely by the number of required operations.

If the transfer time cannot meet the press operating requirements, possible solutions include adjusting the press layout, optimizing the gripper design, modifying the transfer trajectory, or dividing the transfer tasks into separate stages.

Simply increasing robot speed is not always the most suitable solution.

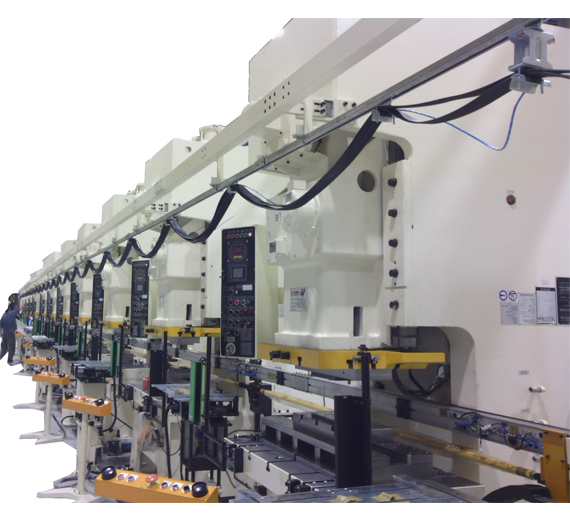

How to Determine the Number of Stations for a Multi-Station Transfer Robot?cid=6

7. Workpiece Shape and Weight Also Affect Station Configuration

Different stamped components have different workpiece handling requirements.

Lightweight, relatively flat metal parts are generally easier to pick up and transfer. The robot can usually move these parts between stations according to the planned production sequence.

However, large sheet metal components, deep-drawn parts, and irregularly shaped workpieces may require more specialized handling solutions.

Several factors can affect the transfer process:

  • Workpiece weight and center of gravity.

  • Part geometry and structural rigidity.

  • Suitable gripping positions.

  • Workpiece orientation during transfer.

  • Gripper dimensions and payload.

  • Available space around the dies.

For example, a deep-drawn component may require a customized gripper. Some products may also need to be rotated or flipped during transfer.

If the gripper is relatively large or the workpiece is prone to swinging during movement, engineers must consider the surrounding die space, robot payload, and movement trajectory.

Therefore, for products with complex geometries, the robot configuration should not be based only on the number of stamping operations.

The manufacturer should verify whether the workpiece can be picked up securely, transferred smoothly, and positioned accurately at every required station.

8. More Stations Do Not Always Mean Better Automation

The number of stations should not be increased simply to achieve a higher level of automation.

Adding stations generally requires coordination between more processing positions. It may also increase the number of grippers, control sequences, installation space requirements, and commissioning tasks.

For example, if a product only requires three independent stamping operations, adding unnecessary transfer positions may increase equipment complexity and investment without delivering a corresponding improvement in production capacity.

On the other hand, if the configuration has too few transfer positions, some workpiece handling tasks may still require manual operations or additional equipment, potentially affecting production continuity.

A more practical approach is to determine the necessary processing stations based on the actual stamping process and then design the transfer robot around the required workpiece handling tasks.

Under the conditions of production cycle time, equipment safety, and positioning accuracy, minimizing unnecessary transfer movements is generally beneficial for long-term operation and maintenance.

9. What Information Should Be Prepared Before Selecting a Multi-Station Transfer Robot?

Before contacting a stamping transfer robot manufacturer, manufacturers should prepare the basic technical information about the product, stamping presses, dies, and production environment.

Project InformationDetails to ConfirmPurpose
Product processStamping operations and processing sequenceDetermine station requirements
Press quantitySingle press or multiple presses connected in a lineEstablish the transfer arrangement
Press specificationsTonnage, model, and actual operating SPMVerify production cycle requirements
Die specificationsDie dimensions, center positions, and die opening heightCheck pickup and placement clearance
Station spacingCenter-to-center distance between adjacent dies or pressesDetermine transfer travel range
Workpiece parametersDimensions, weight, and material thicknessSelect payload and gripper
Gripping methodMechanical clamps, vacuum suction, or other methodsDetermine end-effector design
Workpiece orientationWhether flipping or repositioning is requiredEstablish the motion sequence
Target production capacityRequired output per minute or hourVerify the overall production solution
Factory layoutEquipment positions, installation space, and safety zonesEvaluate installation feasibility

For existing stamping line upgrades, it is also recommended to provide site photographs, press layout drawings, and die drawings.

For workpieces with complex shapes or special transfer paths, a 3D workpiece model can help engineers evaluate movement trajectories and potential interference.

The more complete the project information, the easier it is for the transfer robot manufacturer to determine a suitable station configuration, mechanical structure, and gripper solution.

10. Selection Example: How Many Stations Are Needed for a Three-Operation Stamping Part?

Consider a metal component that requires three stamping operations: punching, drawing, and forming. Each operation is performed by a separate stamping press.

In this situation, the production solution needs to account for the connection between the three processing stations, as well as the initial loading and final unloading processes.

If an independent loading system is used, the transfer robot may primarily handle workpiece movement between the three presses, while a separate mechanism performs finished-part unloading.

However, if the transfer robot is also responsible for initial loading, finished-part removal, or workpiece flipping, the required movement sequence and gripper configuration will change.

Similarly, if two of the three operations can be completed using a compound die, the actual number of processing stations and workpiece transfers may be reduced.

Therefore, the final transfer robot configuration cannot be determined simply by counting the three stamping operations.

The press layout, die structure, workpiece pickup and placement requirements, and target production cycle must all be evaluated before selecting the appropriate solution.

This is why the stamping process, tooling design, and automation equipment should be considered together during multi-station transfer robot selection.

Conclusion

The number of stations for a multi-station transfer robot should be determined according to the actual stamping process, equipment layout, and workpiece transfer requirements rather than simply matching the number of stamping operations.

For a single press equipped with a multi-station die, engineers should focus on the internal die structure, material feeding method, and whether independent workpiece transfer is required.

For a production line consisting of multiple stamping presses, the main considerations include press quantity, station spacing, workpiece pickup and placement directions, and the robot's movement range.

Workpiece weight, gripper design, production cycle time, and available installation space should also be verified during the selection process.

For automotive components, household appliance sheet metal parts, and general metal stamping applications, it is advisable to establish the complete production process and workpiece transfer route before selecting the transfer robot.

YouYi Precision provides customized stamping transfer automation solutions based on actual press configurations, die layouts, workpiece characteristics, and production requirements. Contact our engineering team to discuss a suitable transfer robot configuration for your stamping production line.

Planning a Multi-Station Stamping Automation Line?

Choosing the right transfer robot requires more than counting the stamping operations. YouYi Precision can evaluate your press layout, die dimensions, workpiece parameters, transfer distance, and production cycle to develop a suitable automation solution.

Share your stamping process and equipment details with our engineering team to discuss a customized transfer robot configuration.



Latest News

Related Products

NC Servo Feeder (0.1-3.0mm)

High-precision feeding: Aiming at the advent of high-tech industries, computer close-circuit feedback control is used to ensure accuracy within ±0.02mm

Thick Plate NC Servo Feeder (0.1-6.0mm)

High-precision feeding: Aiming at the advent of high-tech industries, computer close-circuit feedback control is used to ensure accuracy within ±0.02mm

NC Servo Zigzag Feeder

This machine can perform multiple shifts according to the blanking diameter of the water to ensure the circular cutting of the material, which maximizes the utilization of the material. If size of the blank is not equal, it can automatically arrange the angle calculations to ensure maximum material saving

NCF Servo Leveling Feeder

This machine is used to cut and level the feeding line with shearing machine (no need to release)

Dual Servo Feeder

Dual servo feeder is suitable for high-speed punching machine, dual servo control, the feeding speed can reach 300 times per minute

GNC High-speed Servo Feeder

Dual servo feeder is suitable for high-speed punching machine, dual servo control, the feeding speed can reach 300 times per minute

Gripper Feeder

High-precision feeding: Aiming at the advent of high-tech industries, computer close-circuit feedback control is used to ensure accuracy within ±0.05mm

3 in1 Decoiler Leveler Feeder For Thin Plate(0.3-3.2mm)

The 3-in-1 servo feeder integrates four functions—uncoiling, leveling, feeding, and shearing—into a fully automated system.

3 in1 Decoiler Leveler Feeder For Medium Plate(0.5-4.5mm)

The three functions of uncoiling and leveling feed are integrated, with the characteristics of high accuracy, easy operation, space saving and so on.

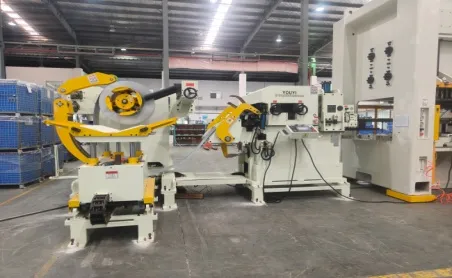

Compact Coil Feed Line | 3 in 1 Decoiler Straightener Feeder for Thick Plate

The Compact Coil Feed Line integrates decoiling, precision straightening, and servo feeding into one space-saving system for processing 0.6–6.0mm metal coils. With high-precision feeding, durable components, and an integrated design, it provides an efficient and reliable solution for automatic metal stamping applications.

youyimachine1999@gmail.com
8613790277263
WeChat
WeChat
+86 135 0901 8706
