How Uncoilers, Straighteners, and Servo Feeders Work Together: Complete Stamping Feeding Process Explained

As manufacturing industries such as automotive components, new energy equipment, home appliances, and 3C electronics accelerate toward automation and high-efficiency smart manufacturing, traditional manual feeding methods can no longer meet modern standards for speed, precision, and continuous operational stability.

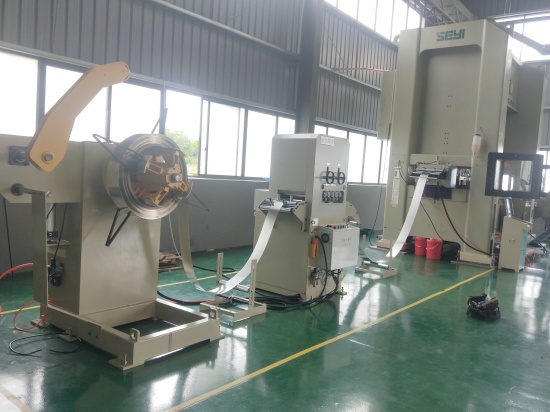

In coil metal stamping production lines, the Automatic Uncoiler (Decoiler), Coil Straightener (Leveler), and Servo roll Feeder serve as three indispensable pillars. Working in synchronization, they convert raw metal coils into continuous, flattened, and precisely indexed material ready for high-speed press processing. This automated coordination drastically reduces labor overhead, eliminates operator safety hazards, and guarantees consistent finished product quality.

How exactly do these three systems coordinate? What happens step-by-step across a complete stamping coil feeding line? This comprehensive article provides a detailed technical breakdown.

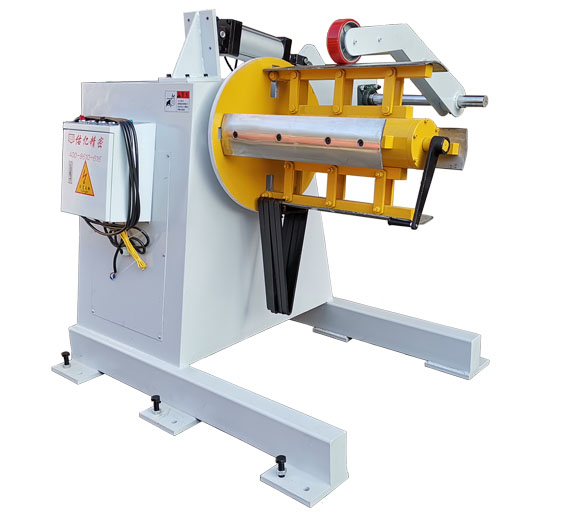

1. The Strategic Role of the Automatic Uncoiler in Metal Stamping

The automatic uncoiler (also referred to as a decoiler or reel) sits at the front end of the coil processing line. Its main responsibility is to support, expand, and smoothly release heavy metal coils—such as steel, aluminum, copper, and stainless steel—for downstream processing.

In traditional setups, operators relied heavily on cranes and manual pulling to introduce coil stock into the die. This manual approach was inefficient, high-risk, and frequently introduced material distortion and erratic material tension.

Modern automatic uncoilers overcome these limitations through advanced mechanical design and integrated sensors:

• Hydraulic Expansion & Clamping: Securely locks heavy coils onto the main mandrel without damaging inner coil wraps.

• Variable Speed Motorized Uncoiling: Automatically adjusts rotation speed matching downstream consumption via optical sensor loops or ultrasonic loop control.

• Reduced Manual Hazards: Eliminates risky physical handling of heavy metal sheets.

• High-Speed Continuity: Provides a steady, uninterrupted loop of material for continuous high-speed press operations.

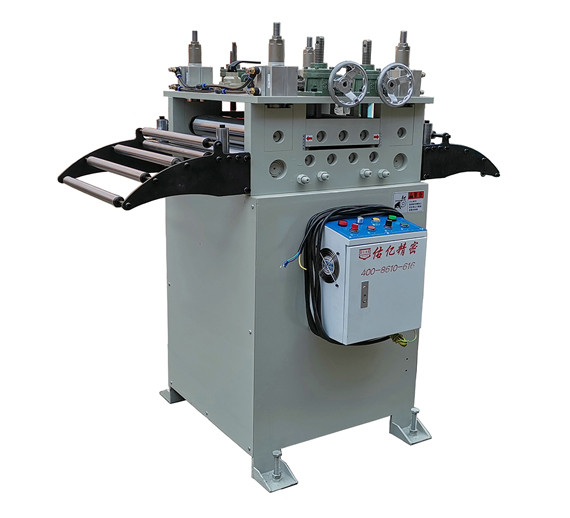

2. How the Coil Straightener Solves Material Distortion Issues

During manufacturing, slitting, transport, and tight winding, metal coils naturally develop residual stresses, coil set (curvature), cross-bowing, and surface unevenness.

If unstraightened raw material feeds directly into a press die, severe complications arise: dimensional inaccuracies, accelerated die wear, surface scratches, and frequent line jams. The coil straightener eliminates these defects by passing the sheet through multiple alternating precision work rollers, repeatedly bending the material past its yield point to release internal residual stress.

Key Phases of the Precision Leveling Process:

1. Entry & Guidance: The uncoiled strip is guided cleanly into the entrance rolls with pinch roll assistance.

2. Multi-Roll Precision Bending: Alternating top and bottom rolls exert controlled pressure, stretching and compressing surface fibers to neutralize memory curvature.

3. Flat Strip Output: The stress-relieved, perfectly flat sheet emerges, providing an ideal foundation for accurate downstream measurement and stamping.

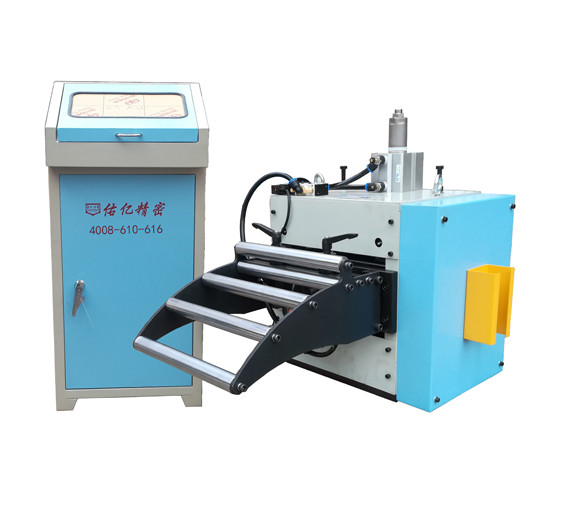

3. Achieving Precision Feeding with  Servo Roll Feeders

The feeder is the critical link connecting material preparation equipment to the stamping press. It is tasked with advancing the flattened strip into the stamping die at precise step lengths and exact timing intervals relative to the press stroke.

4. Step-by-Step Workflow: The Complete Stamping Feeding Process

5. Key Factors for Selecting the Ideal Feeding Line Setup

1. Material Specifications: Strip width, thickness range, yield strength, tensile strength, and maximum coil weight.

2. Press Speed & Stroke Frequency: High-speed presses require low-inertia equipment with rapid signal response times.

3. Floor Space & Layout (3-in-1 vs. Split Line): For tight floor spaces or thick materials, integrated 3-in-1 Feeder Uncoiler Straighteners offer compact footprints and effortless motorized setup.

4. Customization Options: Look for manufacturers capable of tailor-engineered solutions, including non-standard widths, shear attachments, and automated coil loading cars.
