1. What Is a Precision Coil Straightener?

A precision coil straightener is designed to correct deformation in metal strip or sheet material by passing the coil strip through multiple upper and lower straightening rolls.

Unlike simply pressing a material flat, the straightener uses controlled repeated bending to gradually change the material's stress distribution. The objective is to reduce residual curvature and other forms of deformation while providing a more stable material condition for subsequent processing.

A typical precision straightening process can be summarized as:

The final straightening result depends on several factors, including:

• Material properties

• Material thickness

• Material width

• Original deformation

• Straightening roll configuration

• Machine rigidity

• Adjustment accuracy

Therefore, a precision coil straightener should be selected according to the complete material and production requirements rather than by a single machine specification.

2. Why Do Metal Coils Need Straightening?

Metal coils are not naturally flat after manufacturing and handling. During rolling and coiling, the material is subjected to different types of deformation and stress. After remaining coiled for a period of time, the strip can develop what is commonly referred to as coil set or coil memory.

After uncoiling, common material conditions include:

• Upward or downward curvature

• Edge waves

• Center waves

• Camber

• Local deformation

• Residual stress after uncoiling

If these conditions are directly introduced into a stamping press, the material may not sit consistently against the die. This can lead to floating material, lateral movement, or unstable positioning during feeding.

For example, if the leading edge of a thin strip continuously curls upward as it enters the feeder, the contact condition between the strip and feeding rollers may change. This can affect feeding stability and positioning consistency.

Therefore, the purpose of a precision coil straightener is not simply to flatten the strip. Its primary function is to control and redistribute residual stress through repeated bending.

3. How Does a Precision Coil Straightener Work?

The core working principle is relatively straightforward. Multiple upper and lower straightening rolls apply controlled, repeated bending to the strip, gradually changing its internal stress distribution.

The material does not become flat in a single operation. Instead, it passes through a series of straightening rolls, with the bending direction repeatedly changing as the strip moves forward.

During this process, different areas of the material experience changing stress conditions. After sufficient repeated bending, the original tendency of the material to remain curved is reduced. When the strip leaves the final straightening roll, it can maintain a more stable and flatter condition.

This repeated-bending process is one of the key differences between precision coil straightening and simply applying pressure to a metal strip.

What Happens to the Material as It Passes Through the Straightening Rolls?

Consider a thin metal strip that initially curves upward after uncoiling. When the strip enters the first group of straightening rolls, it is forced to bend downward. As it moves into the next roll group, the relative position of the upper and lower rolls changes the bending direction.

The strip therefore experiences a sequence similar to:

These repeated, controlled bends gradually reduce the original curvature of the strip. However, the amount of bending is not normally identical at every roll.

The entrance section generally applies a more significant bending effect to correct the original coil curvature. As the strip approaches a flatter condition, the bending amount in the subsequent roll groups is gradually reduced.

For this reason, roll gap, roll position, and reduction adjustment are important factors in precision coil straightening.

4. Why Does the Roll Gap Need to Be Adjusted Progressively?

If every straightening roll applies exactly the same reduction, the strip may continue to experience relatively large bending without achieving the desired final flatness.

A precision coil straightening process normally requires controlled adjustment of the straightening rolls.

Excessive reduction near the exit can introduce new deformation instead of improving flatness. Therefore, a precision coil straightener needs accurate adjustment capability rather than relying simply on higher straightening pressure.

5. Do More Straightening Rolls Always Mean Better Results?

No. The number of straightening rolls is only one factor affecting performance.

Whether a precision coil straightener is suitable for a specific material depends on the overall roll system and machine configuration.

For thin sheet materials, a smaller roll diameter can increase the number of bending cycles over a given strip length, which can help provide more precise control of material deformation.

For thicker or higher-strength materials, however, using rolls that are too small can increase the load on the machine. Larger rolls and greater structural rigidity may therefore be required.

This is why comparing machines simply by saying “9 rolls, 15 rolls, or 19 rolls” is not enough. The complete roll system must be matched to the material specification and required straightening process.

6. Why Are High-Precision Straightening Rolls Important?

The straightening rolls are the components that directly contact the material. If a roll has significant cylindricity error, surface defects, or installation deviation, the pressure applied to the material may become uneven as the strip passes through the machine.

This is particularly important for thin sheet materials.

For example, if one side of a roll is slightly higher than the other, the left and right sides of the material may experience different straightening forces.

Possible consequences include:

• One side becoming flat while the other side remains curved

• New lateral deformation

• Local surface marks or indentations

• Unstable strip movement during feeding

For this reason, precision coil straighteners require carefully manufactured and finished straightening rolls.

7. YouYi SNL Precision Straightening Machine: Roll Accuracy and Adjustment

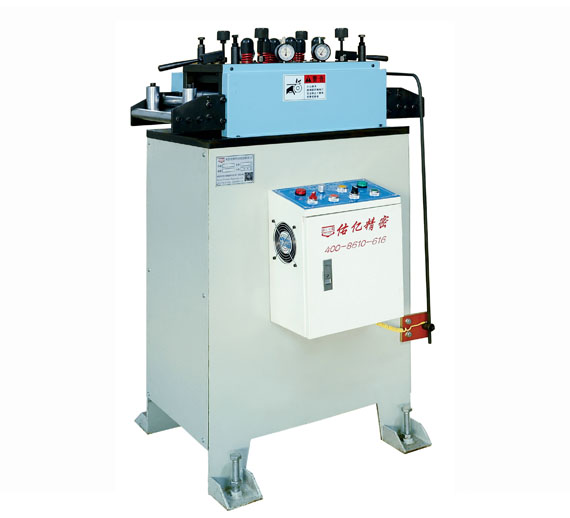

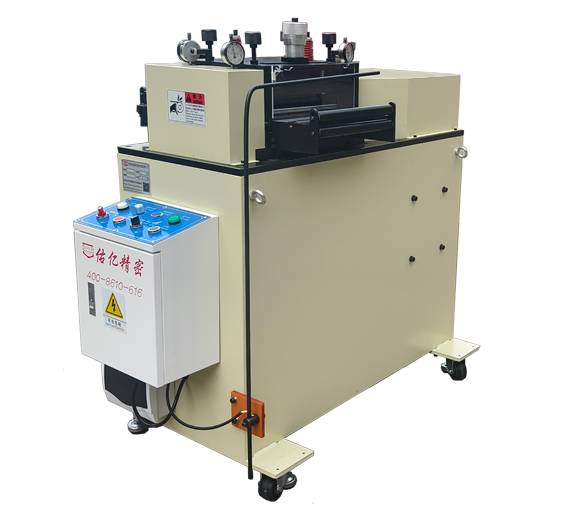

For thin-sheet precision straightening applications, the YouYi SNL Precision Straightening Machine uses SUJ2 straightening rolls with heat treatment, hard-chrome treatment, and precision grinding.

The cylindricity of the straightening rolls can be controlled within 0.002 mm, and the series is designed for precision straightening applications involving thin materials in the 0.1–0.6 mm thickness range.

This distinction is important when evaluating precision straightening equipment. A high-accuracy roll provides a controlled mechanical foundation, but the final straightening result is determined by the complete machine and material system.

8. What Is the Role of Four-Point Micro-Adjustment?

A conventional straightening machine can change straightening pressure through an overall vertical adjustment mechanism. For precision applications, however, adjusting the entire roll assembly up or down may not provide enough control.

In actual production, the deformation on the two sides of a strip may not be identical. For example, the left side may have more pronounced waves while the right side is relatively flat, or the center may have upward curvature while the edges show different deformation.

If the straightening rolls can only move up and down as one unit, it becomes difficult to make fine corrections for these differences.

Some precision coil straighteners therefore use a four-point micro-adjustment structure, allowing operators to make more localized adjustments to the straightening rolls.

The YouYi SNL series uses a floating four-point micro-adjustment structure together with dial indicators for adjustment.

The practical value of this design is not simply to advertise a particular numerical tolerance. More importantly, it provides greater adjustment flexibility when processing materials with different specifications and deformation conditions.

9. Why Is Machine Rigidity Important in Precision Coil Straightening?

During straightening, the material generates a reaction force against the rolls. As material thickness and strength increase, the load placed on the machine generally increases as well.

If the machine frame, roll shafts, or support structure does not have sufficient rigidity, small structural deflections may occur under high straightening loads. Although these deflections may not be visible to the naked eye, they can change the actual gap between the upper and lower rolls.

For this reason, straightening machines for thick or high-strength materials generally require higher structural rigidity.

Material thickness alone is also not enough for machine selection. For example, 0.5 mm aluminum and 0.5 mm high-strength steel have the same nominal thickness, but their material strength and straightening loads can be very different.

10. How Does a Fully Driven Straightening Roll System Work?

In some conventional designs, certain rolls rotate mainly as the material passes through the machine. In a fully driven configuration, the transmission system actively drives the straightening rolls so that they participate in material movement.

For thin aluminum, copper, and other surface-sensitive materials, a fully driven roll system can help reduce relative sliding caused by speed differences between individual rolls.

However, fully driven does not mean that surface scratching is impossible. If foreign particles are present on the roll surface, or if the straightening pressure is incorrectly adjusted, the material surface can still be affected.

For surface-sensitive materials, operators should control:

• Roll surface condition

• Straightening pressure

• Roll running condition

• Cleaning and maintenance

This is particularly important when processing aluminum, copper, mirror-finish materials, and other products where surface appearance is a critical requirement.

11. What Is the Complete Working Process of a Precision Coil Straightener?

Step 1: Material Enters the Straightener

After the coil is uncoiled, the strip passes through a guiding device and enters the precision coil straightener. At this stage, the material may still contain coil curvature and residual stress.

Step 2: Initial Bending at the Entrance Roll Group

The material passes through the first straightening rolls and begins to bend. The entrance section primarily works to correct the original coil curvature.

Step 3: Repeated Bending Through Multiple Roll Groups

As the strip continues moving forward, the alternating upper and lower rolls repeatedly change the bending direction. The internal stress distribution of the material gradually changes during this process.

Step 4: Progressive Reduction

As the material approaches a flatter condition, the subsequent roll groups provide increasingly fine adjustment. Excessive reduction should be avoided because it can introduce new deformation.

Step 5: Straightened Material Enters the Servo Feeder

After straightening, the material can enter a servo feeder in a more stable condition. This can help the feeder perform continuous, fixed-length feeding before the strip enters the stamping press.

12. Precision Coil Straightener vs. Conventional Straightening Machine

The basic operating principle of both conventional and precision straightening machines is similar: the material is repeatedly bent through straightening rolls.

The main difference is the degree of control over the material condition and the requirements for machine accuracy and adjustment.

A precision coil straightener is therefore not simply a conventional machine with more rolls. Precision performance depends on the combined design of the straightening rolls, adjustment mechanism, machine rigidity, drive system, and material control process.

13. How to Select a Precision Coil Straightener for Your Material

When purchasing a precision coil straightener, it is better to provide the manufacturer with detailed material and process information rather than simply requesting “a precision straightener.”

At minimum, the following parameters should be considered:

For precision stamping applications or aluminum materials with demanding surface requirements, providing an actual coil for machine testing is highly recommended.

Equipment specifications can indicate the theoretical processing range of a machine, but the actual straightening result needs to be evaluated against the real material and production conditions.

Frequently Asked Questions

Conclusion

The working principle of a precision coil straightener is based on a relatively simple concept: multiple straightening rolls repeatedly and controllably bend the metal strip to redistribute internal stress and reduce deformation such as coil curvature and waves.

However, achieving stable straightening performance is not simply a matter of increasing the number of rolls.

For thin aluminum, copper, stainless steel, and other materials where surface quality is important, additional attention should be given to roll surface condition, straightening pressure, material protection, and machine cleanliness.

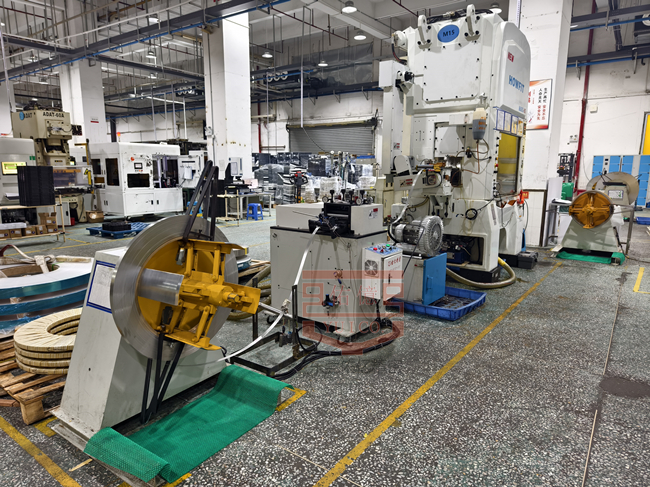

When the precision coil straightener is integrated with an uncoiler, servo feeder, and stamping press, the entire line also needs to be considered. Straightening speed, feeding synchronization, and production cycle must work together to maintain stable automated production.

Ultimately, precision coil straightener selection should be based on the actual material and manufacturing process. By matching the straightening structure and operating parameters to the material thickness, width, grade, strength, and product requirements, manufacturers can achieve a more stable and controllable straightening process.
