Thin and thick sheet stamping applications place different demands on servo feeders. Thin sheet processing generally requires greater attention to feeding stability, surface protection, and repeatable positioning. Thick sheet processing places greater emphasis on material thickness capacity, drive performance, clamping capability, and feeding stability under load.

However, material thickness alone does not determine which servo feeder is suitable. Material width, feed length, material type, press speed, and the configuration of the production line also influence actual feeding performance.

Understanding these differences helps manufacturers select equipment that matches their material specifications and production requirements, reducing the risk of feeding problems after installation.

1. How Do Thin and Thick Sheet Stamping Differ in Feeding Requirements?

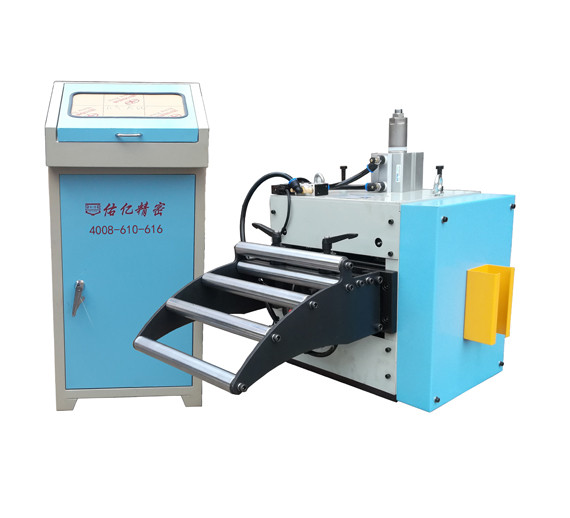

1.1 Thin Sheet Stamping: Feeding Stability and Surface Protection

Thin sheet materials are commonly used in electronic hardware, electrical components, metal enclosures, and precision stamped parts. Because these materials have relatively low thickness and may be susceptible to local deformation, their feeding requirements often focus on maintaining material flatness, protecting the surface, and ensuring consistent feeding.

Excessive roller pressure, foreign particles on the roller surfaces, or uneven roller wear can leave marks on the material or affect its flatness. For aluminum strip, copper strip, and other materials with demanding surface finish requirements, roller contact conditions and cleanliness deserve particular attention.

When selecting a servo feeder for thin sheet stamping, manufacturers should evaluate the following factors.

1.1.1 Roller Clamping Pressure

Roller pressure should be adjusted according to material thickness, material properties, and surface quality requirements. Insufficient pressure may cause slippage, while excessive pressure may damage the material surface or affect feeding performance.

For materials with strict surface requirements, the roller contact surface and pressure adjustment method should be checked before the machine enters production.

1.1.2 Feeding Accuracy and Repeatability

For precision parts produced with progressive dies, the feeder must advance the material consistently during repeated cycles. Buyers should evaluate positioning repeatability under the intended production conditions rather than relying only on a nominal accuracy specification.

Feed length, press speed, material condition, and the synchronization between the feeder and press can all influence actual feeding results.

1.1.3 Roller Surface Condition

Roller cleanliness, surface treatment, wear, and material contact conditions should be checked regularly, especially when processing copper, aluminum, or decorative metal sheets.

Even when the machine configuration is suitable, metal debris or other contaminants on the rollers can scratch the material during continuous feeding.

1.1.4 Feeding Smoothness

For short feed lengths or high-speed stamping applications, verify that the feeder's motion profile matches the press cycle. The feeder must complete the required movement within the available feeding time while maintaining stable material positioning.

Thin material does not necessarily mean that a lower-performance feeder is sufficient. High-speed progressive stamping and applications with strict surface quality requirements may demand precise motion control, a suitable mechanical structure, and careful commissioning.

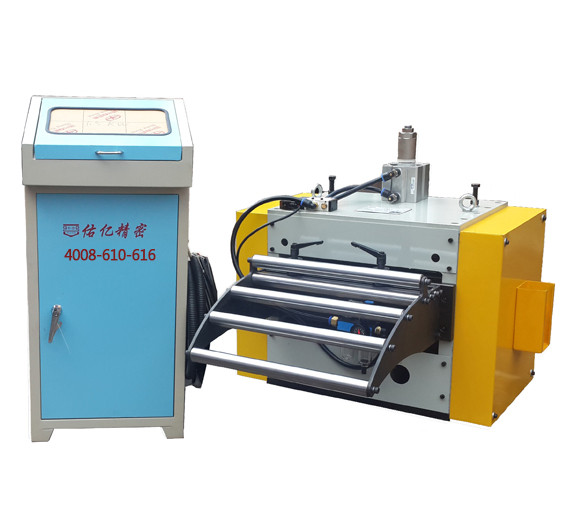

1.2 Thick Sheet Stamping: Drive Capacity and Feeding Stability

Thick sheet materials are commonly used in automotive structural components, mechanical parts, metal brackets, and other stamped products that require greater structural strength.

Compared with thinner materials, thick sheets and heavy-gauge strips generally place greater demands on the feeding system because of their weight, material resistance, and the inertia involved during acceleration and deceleration. Material hardness, guide resistance, and differences in equipment height can also affect the load experienced by the feeder.

When selecting a servo feeder for thick sheet stamping, manufacturers should pay particular attention to the following factors.

1.2.1 Applicable Material Thickness

Confirm that the selected model is designed for the actual material thickness and material type. Do not rely on the maximum thickness specification alone without checking the material width, feed length, and operating conditions.

1.2.2 Feed Rollers and Transmission Structure

Evaluate the rollers, transmission components, and drive system against the material weight, feeding resistance, and required production cycle.

The suitability of a feeder depends on the complete mechanical configuration, not simply the rated motor power.

1.2.3 Clamping Capability

The rollers must grip and transport the material reliably to minimize slippage and feed-length deviations. Roller pressure and the condition of the material contact surfaces should be checked during commissioning.

1.2.4 Feed Speed and Acceleration

Consider the feed length, target production speed, material inertia, and press cycle when evaluating the feeder's dynamic response. A machine that can transport a material at a particular thickness may not necessarily achieve the required production speed under every operating condition.

1.2.5 Coordination with Upstream Equipment

If the material comes from a decoiling or straightening process, account for material tension, residual curvature, and the connection between machines. Poor coordination between upstream equipment and the feeder may affect feeding stability.

Motor power alone does not determine whether a servo feeder is suitable for thick sheet stamping. Material width, thickness, hardness, feed length, target speed, and the feeder's mechanical design all influence actual performance.

2. What Are the Main Differences in Servo Feeder Selection?

Both thin and thick sheet stamping applications can use servo feeders for automatic material feeding. However, their equipment selection priorities and configuration requirements can differ significantly.

These differences provide a general selection framework rather than a fixed rule for every application. High-speed thin sheet stamping may require a highly responsive feeding system, while some thick sheet applications operate with longer feed lengths and lower press speeds.

Therefore, material thickness should not be used as the sole criterion for determining the required feeder configuration. Thickness, width, material type, feed length, and production speed must be assessed together.

3. What Parameters Should You Check Beyond Material Thickness?

Material thickness is only one part of the servo feeder selection process. Before purchasing equipment, manufacturers should confirm several additional parameters to reduce the risk of selecting a machine that does not match the actual production requirements.

3.1 Material Width

Material width directly affects the feeder's effective working width and roller configuration.

For wider materials, check not only the maximum supported width but also the effective roller contact area, material guiding method, and the possibility of lateral movement during feeding.

Provide the maximum material width expected in production rather than selecting a model based only on the narrowest or most frequently used material.

3.2 Feed Length and Feed Pitch

Feed length determines how far the material must advance during each feeding cycle.

For short feed pitches and frequent feeding cycles, pay close attention to motion response and repeatability. For longer feed lengths, evaluate material inertia, acceleration and deceleration settings, and the available time within the press cycle.

Even when two production lines process material of the same thickness, different feed lengths and stamping speeds may require different feeder configurations.

3.3 Press Speed and Available Feeding Time

A servo feeder does not operate independently of the stamping press. Its feeding motion must be coordinated with the press cycle and the die's operating sequence.

In continuous stamping, the material must advance within the time window permitted by the die and press. If the press speed increases but the feeder cannot complete its movement within the available time, incomplete feeding or positioning errors may occur.

During selection, confirm the actual operating speed of the press, the time available for each feed movement, and the signal interface used to coordinate the feeder with the press.

3.4 Material Type and Surface Requirements

Different metals have different hardness levels, surface characteristics, and deformation behavior. These differences influence the appropriate roller configuration and clamping method.

For example, ordinary steel strip, copper strip, aluminum strip, and stainless steel strip may require different handling considerations. Mirror-finish aluminum sheets and decorative panels with demanding surface requirements need particular attention to roller contact surfaces, cleaning procedures, and clamping pressure.

Roller configuration should not be determined by material thickness alone. When necessary, conduct feeding tests using the actual production material to verify compatibility.

3.5 Whether a Decoiler and Precision Straightener Are Required

For continuous stamping with coil material, a decoiler and a Precision Straightener are commonly installed upstream of the servo feeder.

When processing thin sheet coils, the line configuration should account for material flatness, surface protection, and smooth transitions between processes. For thick sheet coils, coil weight, material thickness, and the operating range of the decoiling and straightening equipment become particularly important.

A complete coil-fed stamping line should also be evaluated for speed coordination, material tension, and installation space.

4. Can the Same Servo Feeder Handle Both Thin and Thick Materials?

The answer depends on the actual production requirements and the machine's specified operating range.

If a manufacturer processes a relatively fixed range of materials, the feeder can be selected according to the commonly used thicknesses, maximum material width, feed length, and press cycle.

If the same production line must handle multiple material thicknesses, confirm that the selected model supports all intended material specifications. It is also important to determine whether roller pressure, feeding parameters, and material guide settings need to be adjusted when changing materials.

For example, a metal stamping manufacturer may produce thin electronic components as well as thicker metal brackets. Selecting a feeder based only on the thin sheet application and assuming that it can automatically accommodate the thicker material may lead to feeding problems.

A more reliable approach is to list the full range of materials used in production and then select the feeder based on the maximum thickness, maximum width, feed length, and target production speed.

A feeder's ability to handle a particular material thickness does not guarantee identical performance under every combination of width, speed, and load. Check the manufacturer's technical specifications and arrange practical feeding tests when necessary.

5. How Can You Improve Feeding Stability for Different Materials?

In addition to selecting the appropriate servo feeder, correct installation, commissioning, and routine maintenance are essential for stable feeding performance.

5.1 Check Machine Alignment

Verify the installation position of the servo feeder relative to the stamping press. The material centerline, feeding direction, and die entrance should be properly aligned to reduce material deviation and unnecessary feeding resistance.

5.2 Adjust Roller Pressure According to the Material

Roller clamping pressure should be adjusted according to material thickness and surface characteristics. Excessive pressure may damage the material or affect its feeding condition, while insufficient pressure may cause slippage and inconsistent feed lengths.

5.3 Match Feeding Parameters to the Press Cycle

Set the feeding parameters according to the actual production speed and verify the timing between the feeder and the press. For progressive die stamping, ensure that feeding, roller release, and die piloting or material positioning actions are correctly coordinated.

5.4 Perform Routine Inspection and Maintenance

Clean the roller surfaces regularly and inspect roller wear, transmission components, and pneumatic components where applicable. If feed length begins to vary or the material shifts sideways, first check the material condition, mechanical alignment, and control parameters before deciding whether components need replacement.

Proper equipment selection, accurate commissioning, and regular maintenance help maintain stable feeding performance and support continuous automated stamping production.

6. Conclusion

Thin and thick sheet stamping applications place different demands on servo feeders. Thin sheet processing generally requires greater attention to feeding stability, surface protection, and repeatable positioning. Thick sheet processing places greater emphasis on the applicable material thickness, drive capacity, clamping performance, and dynamic response under load.

However, material thickness is not the only factor that determines the appropriate feeder. Material width, material type, feed pitch, press speed, and the configuration of the production line also influence actual feeding performance.

Before selecting a servo feeder, define the material specifications and stamping process, then evaluate the equipment against the required production cycle and available installation space. Matching the machine configuration to the actual operating conditions is essential for reliable feeding and continuous production.

If you are planning a new stamping line or looking for a servo feeder to match an existing press, prepare the material thickness, width, material type, feed length, and press model in advance. These details will help the equipment manufacturer evaluate your application and recommend a suitable configuration.
