Servo Roll Feeder: Working Principle, Advantages and Applications in Stamping Automation
April 14, 2026
In modern metal stamping production, precision, speed, and automation are critical to maintaining competitiveness. As a result, the servo roll feeder has become one of the most widely used feeding solutions in automated stamping lines.
Also known as an NC servo feeder, this equipment provides high-precision material feeding, stable operation, and flexible control, making it ideal for industries such as automotive manufacturing, home appliances, electronics (3C), and metal parts production.

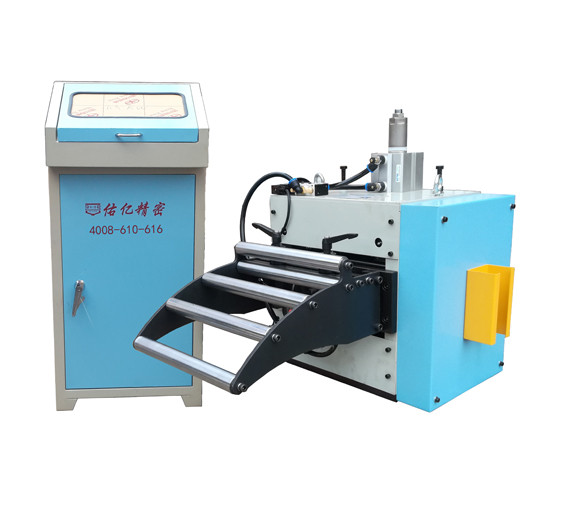

A servo roll feeder is an automated feeding device that uses a servo motor to drive rollers, accurately feeding coil or strip material into a stamping press.
Compared to traditional pneumatic or mechanical feeders, it offers:
· Higher feeding accuracy
· Better synchronization with press machines
· More flexible parameter control
Because of these advantages, servo roll feeders are widely used in high-precision stamping applications.
The working principle of a servo roll feeder is based on precise servo motor control.
During operation:
· The operator inputs feeding length and speed via the control system
· The servo motor drives the feeding rollers to move material forward
· The feeder synchronizes with the press signal
· Material is fed step-by-step according to the stamping cycle
Each press stroke triggers a feeding action, ensuring consistent pitch and stable production.
This is why servo roll feeders are essential for high-speed and high-precision stamping lines.
A typical servo roll feeder consists of several key parts:
Servo Drive System
Provides precise motion control and ensures accurate feeding length.
Feeding Rollers
Clamp and transport the material smoothly without damaging the surface.
Control System
Allows programmable settings such as feeding length, speed, and acceleration, and ensures synchronization with the press.
Machine Structure
Ensures stability and durability during continuous operation.

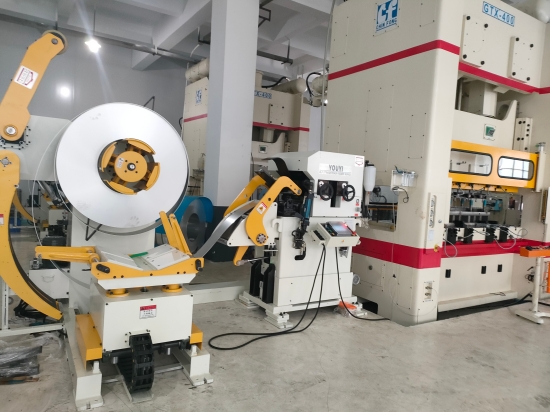

In practical applications, servo roll feeders are often combined with:
· Uncoiler
to form a complete coil feeding line.
High Precision Feeding
Feeding accuracy can typically reach ±0.1 mm, meeting strict stamping requirements.
Excellent Stability
Servo control enables smooth acceleration and deceleration, reducing vibration and material deviation.
Easy Operation
User-friendly interface allows quick parameter setup and reduces operator dependency.
Wide Application Range
Compatible with various materials, including:
· Stainless steel
· Aluminum
· Cold-rolled steel
· Copper
Suitable for different thicknesses and widths.
Servo roll feeders are widely used in automated stamping systems, especially in:
· Automotive parts manufacturing
· Electrical and electronic components
· Home appliance parts
· Hardware and metal stamping

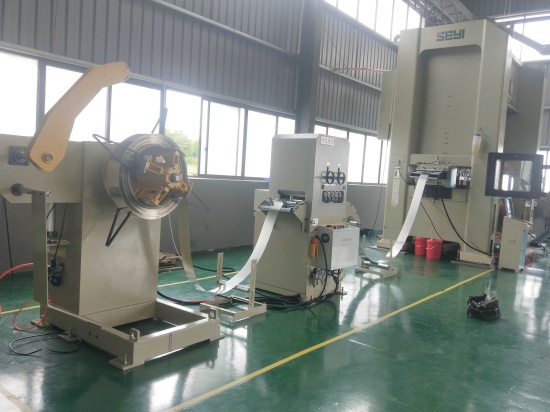

They are typically integrated with uncoilers, straighteners, and presses to achieve a fully automated workflow.
With increasing demand for efficiency and space optimization, many manufacturers are upgrading to 3-in-1 servo feeding systems.
These systems integrate:
· Uncoiling
· Straightening
· Servo feeding
into a single machine.
Benefits include:
· Reduced floor space
· Higher efficiency
· Improved feeding stability
· Simplified operation
The servo roll feeder has become an essential solution in modern stamping automation due to its high precision, stability, and efficiency.
Whether used as a standalone unit or as part of a complete coil feeding line, it helps manufacturers improve productivity, reduce errors, and ensure consistent product quality.
As automation continues to advance, servo roll feeders will play an increasingly important role in optimizing stamping production lines.
