3D Transfer Robot for Stamping Automation: Structure, Working Principle and Applications

October 29, 2025

In high-volume metal stamping production, transferring workpieces between press stations accurately and consistently is essential for maintaining production efficiency. Manual handling can limit cycle times, increase labor requirements, and introduce variations in part positioning, especially in multi-station stamping lines.

A 3D transfer robot for stamping automation automates workpiece transfer through coordinated X-, Y-, and Z-axis movements. By integrating mechanical transmission, servo control, gripping devices, and press synchronization, it helps manufacturers move parts between stamping stations with repeatable positioning and controlled motion.

For manufacturers planning a new stamping line or upgrading an existing production process, understanding the structure, working principle, and selection criteria of a 3D transfer robot is an important step toward designing a suitable automation solution.

1. What Is a 3D Transfer Robot in Stamping Automation?

A 3D transfer robot is an automated material-handling system designed to move workpieces between different stages of a stamping process. It is commonly used in multi-station press lines where parts must be picked up, lifted, repositioned, and placed into successive dies.

Unlike manual transfer, which relies on operators to handle workpieces between operations, a transfer robot follows programmed movement sequences coordinated with the production cycle.

A typical 3D transfer robot performs three main types of movement:

X-axis movement: Horizontal transfer between stamping stations.

Y-axis movement: Forward and backward movement for approaching or withdrawing from dies.

Z-axis movement: Vertical lifting and lowering to clear dies and position workpieces.

The combination of these movements allows the robot to handle parts along a three-dimensional transfer path.

Depending on the production layout, workpiece geometry, press configuration, and required cycle time, the robot can be configured with suitable transfer arms, grippers, and control functions.


2. How Does a 3D Transfer Robot Work?

A 3D transfer robot operates through a programmed sequence of movements coordinated with the stamping press and die positions. The exact sequence depends on the transfer mechanism, workpiece shape, station spacing, and production requirements.

A typical press-to-press transfer cycle includes the following steps.

Step 1: Pick Up the Workpiece

After the stamping operation is completed and the press reaches the designated transfer position, the robot approaches the workpiece.

A suitable end-effector, such as a vacuum gripper or mechanical clamp, secures the part. Workpiece detection and gripping confirmation can be incorporated into the control sequence where required.

Step 2: Lift the Workpiece from the Die

The Z-axis raises the workpiece to a suitable transfer height. The lifting distance must provide sufficient clearance from the die, tooling, and surrounding equipment.

Correct lifting trajectories help reduce the risk of interference during transfer.

Step 3: Transfer the Workpiece to the Next Station

The robot coordinates X- and Y-axis movements to transport the workpiece to the next stamping station.

The programmed trajectory must account for the dimensions of the part, the distance between stations, and the available space around the press and die.

Step 4: Position and Release the Workpiece

The robot lowers the workpiece into the designated position in the next die. Once placement is confirmed, the gripping device releases the part according to the programmed sequence.

Step 5: Return and Synchronize with the Next Cycle

The robot returns to its designated position or begins the next transfer sequence when the required press and robot conditions are satisfied.

Press status, robot position, gripping signals, and safety interlocks must be coordinated to support stable automatic operation.

The key to reliable transfer is not simply achieving fast axis movement. The complete system must maintain an appropriate balance between motion speed, positioning repeatability, die clearance, gripping stability, and press-cycle timing.


3. Main Components of a 3D Transfer Robot

A 3D transfer robot typically consists of a mechanical frame, three-axis motion mechanism, end-effectors, servo drive and control system, human-machine interface, and safety devices.

3.1 Mechanical Frame and Transmission System

The mechanical frame supports the transfer mechanism and maintains the relative positions of the motion axes. Its rigidity influences vibration behavior, positioning stability, and the robot's ability to operate consistently under repeated motion.

The transmission system may incorporate servo motors, linear guides, ball screws, precision reducers, or other drive mechanisms, depending on the robot's design.

When evaluating the mechanical structure, manufacturers should consider:

Workpiece weight and dimensions.

Transfer distance and station spacing.

Required movement speed and acceleration.

Structural stiffness and vibration.

Installation space and maintenance access.

The frame and transmission mechanism must be designed to accommodate the loads and dynamic forces generated during the intended production cycle.

3.2 Three-Axis Motion System: X, Y, and Z

The three-axis motion system enables the robot to execute the transfer path between stamping stations.

X-axis — Horizontal Transfer

The X-axis moves the transfer mechanism horizontally between stations. Its travel range must accommodate the station layout and the dimensions of the workpieces being transferred.

Y-axis — Forward and Backward Movement

The Y-axis moves the transfer arm toward or away from the die area. This movement allows the gripper to approach workpieces, withdraw from tooling, and reach the required pickup and placement positions.

Z-axis — Vertical Lifting

The Z-axis raises and lowers the workpiece. Adequate vertical clearance is essential for avoiding interference with dies, press structures, and adjacent equipment.

The coordinated movement of these three axes enables the robot to execute complex transfer paths. The required stroke, speed, acceleration, and positioning repeatability should be determined from the actual stamping process rather than selected independently.

3.3 End-Effector: Gripping and Clamping Unit

The end-effector directly contacts and holds the workpiece during transfer. Its design affects gripping reliability, part positioning, surface protection, and changeover flexibility.

Common gripping options include:

Vacuum suction cups: Suitable for compatible sheet materials and surfaces that allow reliable vacuum gripping.

Mechanical grippers: Suitable for workpieces with appropriate gripping edges or structural features.

Magnetic grippers: Applicable to compatible ferromagnetic materials, subject to workpiece geometry and process requirements.

The gripping method should be selected according to material properties, part weight, surface condition, shape, and the forces generated during robot acceleration and deceleration.

For thin, polished, or coated sheet materials, the contact surface and gripping force require particular attention to help prevent scratches, deformation, or slipping.

3.4 Servo Drive and Control System

The servo drive and control system manage the motion of the robot's axes and coordinate the transfer sequence with the stamping press.

Depending on the system configuration, the control functions may include:

Programmed axis positioning and motion profiles.

Acceleration and deceleration adjustment.

Press-cycle synchronization.

Position and gripping signal monitoring.

Fault detection and alarm management.

Recipe or program selection for different workpieces.

Servo control provides precise command and feedback management, but actual positioning performance depends on the mechanical design, encoder configuration, load, tuning, and operating conditions.

When specifying a robot, distinguish between commanded positioning resolution, positioning accuracy, and repeatability. These are different performance characteristics and should be verified against the manufacturer's technical documentation.

3.5 Human-Machine Interface (HMI)

The HMI provides an interface for operators to configure and monitor the transfer process.

Depending on the control system, the available functions may include:

Setting pickup and placement positions.

Adjusting movement speed and timing.

Selecting stored motion programs.

Monitoring axis positions and operating status.

Displaying alarms and troubleshooting information.

An intuitive HMI can simplify changeovers and help maintenance personnel identify operating problems more efficiently.

The available functions and degree of recipe management depend on the selected control configuration.

3.6 Safety and Detection System

Safety devices and detection functions help protect operators, workpieces, tooling, and equipment during automatic operation.

Depending on the machine design and risk assessment, the system may incorporate:

Position and presence sensors.

Gripping confirmation signals.

Overload or abnormal-pressure detection.

Press and robot interlocks.

Emergency-stop devices.

Guarding, access monitoring, and other protective measures.

The robot must be integrated into the safety system of the complete stamping line. Protective devices, operating procedures, and restart conditions should be designed and validated for the actual installation.


4. Key Advantages of a 3D Transfer Robot

The benefits of a 3D transfer robot depend on the original production method and the configuration of the complete stamping line. When correctly selected and integrated, it can provide several operational advantages.

4.1 Reduced Manual Workpiece Handling

Automated transfer reduces the need for operators to move parts manually between press stations. This can lower routine handling requirements and help establish a more consistent production workflow.

It also reduces direct operator exposure to workpiece movement around the press line when appropriate guarding and safety measures are implemented.

4.2 More Consistent Part Positioning

A programmed transfer sequence helps maintain repeatable pickup and placement movements. This is particularly important when workpieces must enter successive dies in a defined orientation.

Actual positioning performance depends on robot configuration, gripping stability, workpiece geometry, and die alignment.

4.3 Improved Production Coordination

A transfer robot can coordinate workpiece movement with the press cycle, reducing unnecessary waiting and handling between operations.

The achievable production rate depends on press speed, transfer distance, part characteristics, die design, and the time required for safe pickup and placement.

4.4 Greater Flexibility for Multi-Station Processes

A programmable transfer system can support different movement sequences and workpiece configurations when the mechanical range, gripping devices, and control functions are appropriately designed.

For manufacturers producing multiple part types, program management and suitable tooling arrangements can help simplify changeovers.

4.5 Better Integration of Stamping Automation

A 3D transfer robot can form part of a broader automation solution involving stamping presses, dies, feeding equipment, sensors, and line-level control.

The overall benefit depends on how well the individual machines communicate and how consistently the complete production process operates.


5. Applications of 3D Transfer Robots in Metal Stamping

3D transfer robots are suitable for stamping processes that require workpieces to move between multiple stations with controlled positioning.

Automotive Components

Automotive stamping processes may involve multiple forming, trimming, piercing, and other operations. A transfer robot can move compatible workpieces between stations while maintaining the required orientation.

Potential applications include structural brackets, reinforcement components, and other metal parts, depending on the press layout and robot payload.

Home Appliance Components

Manufacturers of household appliances may use transfer automation for sheet-metal housings, panels, brackets, and structural components.

The gripping system should account for surface finish requirements and the risk of damaging visible or coated surfaces.

Electrical and Electronic Metal Components

For suitable metal stamping applications, a transfer robot can support repetitive movement between successive processing stations.

The required handling accuracy and gripping method depend on component size, material properties, and tooling requirements.

New Energy and Other Metal Forming Applications

Some new energy equipment components and related metal parts are produced through multi-stage stamping processes. A transfer robot may be considered when the production sequence requires automated movement between presses or stations.

Suitability must be assessed according to the workpiece, die arrangement, process cycle, and automation objectives.

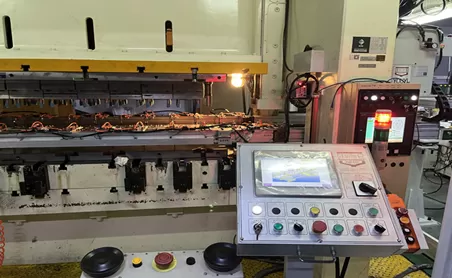

The Anatomy of a Three-Dimensional Transfer Robot: Structure, Motion, and Precision Explained


6. How to Select a 3D Transfer Robot for Your Stamping Line

Choosing a suitable robot requires more than comparing the number of axes or maximum movement speed. The system must match the actual workpiece, press layout, tooling, and production cycle.

The following factors should be evaluated before confirming the configuration.

6.1 Workpiece Dimensions and Weight

Confirm the maximum and minimum workpiece dimensions, weight, shape, center of gravity, and gripping features.

These parameters influence the required payload, gripper design, transfer-arm structure, and motion profile.

6.2 Press Layout and Die Spacing

Measure the distance between stations and check the available installation space around the presses.

The robot's X-, Y-, and Z-axis travel ranges must provide sufficient access to the pickup and placement positions while maintaining clearance from dies and press structures.

6.3 Required Cycle Time

Determine the required production rate and the time available for each transfer operation.

The robot's movement profile must be coordinated with press opening and closing, die clearance, gripping confirmation, and other process conditions. Maximum axis speed alone does not determine the achievable line output.

6.4 Positioning Accuracy and Repeatability

Define the positioning performance required by the workpiece and die.

Ask the manufacturer to specify the relevant accuracy and repeatability figures, including the test conditions and measurement method where available. Confirm that the complete transfer system can meet the process requirements under the intended load and operating conditions.

6.5 Gripping Method and Surface Protection

Choose a suitable gripper based on material type, workpiece geometry, surface finish, and transfer forces.

For delicate sheet materials, verify that the gripping arrangement can hold the part securely without unacceptable surface marks or deformation.

6.6 Press Compatibility and Control Integration

Confirm the press interface, communication signals, transfer timing, and safety interlocks before finalizing the system design.

Integration requirements may vary according to press type, existing control architecture, station count, and the desired operating mode.

6.7 Changeover and Maintenance Requirements

For production lines handling multiple part types, evaluate how gripping tools, motion programs, and operating parameters will be changed.

Maintenance access, spare parts, troubleshooting functions, and technical support should also be considered when assessing the long-term suitability of the system.

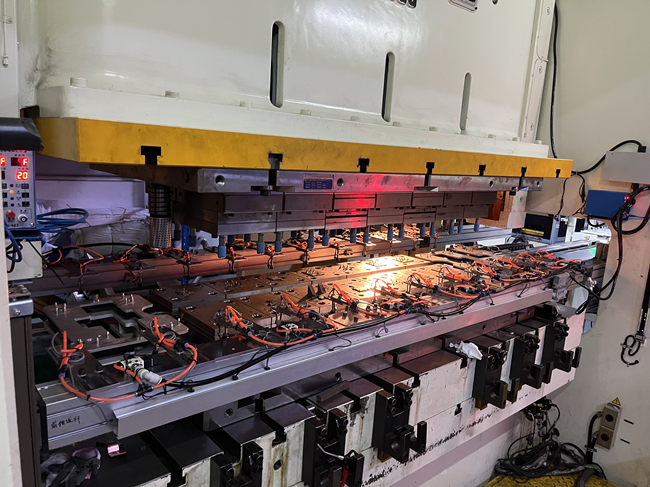

The Anatomy of a Three-Dimensional Transfer Robot: Structure, Motion, and Precision Explained


7. Why Work with YouYi Precision for Stamping Transfer Automation?

Selecting a transfer robot is part of a broader stamping automation decision. The mechanical design, gripping method, press interface, die layout, and production requirements must work together.

YouYi Precision provides press peripheral automation equipment and stamping automation solutions. Its 3-Axis Transfer Robot Manipulator is a relevant starting point for manufacturers evaluating three-axis workpiece transfer.

Before selecting a configuration, manufacturers should prepare the workpiece drawings, material specifications, part weight, press layout, die spacing, required production rate, and existing control requirements.

These details help establish whether a three-axis transfer solution is appropriate and which configuration should be evaluated for the application.

Planning a New Stamping Line?

Contact YouYi Precision to discuss your workpiece transfer requirements and explore a suitable stamping automation solution.

Share your part dimensions, workpiece weight, press specifications, station layout, and target cycle time so the equipment configuration can be evaluated against your production needs.

Contact YouYi Precision to discuss your application.


FAQ: 3D Transfer Robot

Q1: What is a 3D transfer robot used for?

A 3D transfer robot automatically moves workpieces between stamping stations using coordinated X-, Y-, and Z-axis movements. It is used to reduce manual handling and support consistent transfer in multi-station stamping processes.

Q2: What is the difference between a 2D and a 3D transfer robot?

The distinction depends on the motion capabilities of the specific equipment. A conventional two-axis transfer mechanism may provide horizontal and forward/backward movement, while a three-axis system adds a separately controlled vertical movement. The actual travel directions and configuration should be confirmed in the manufacturer's specifications.

Q3: Can a 3D transfer robot work with existing stamping presses?

Yes, integration may be possible if the robot's working range, payload, transfer timing, control interface, and safety functions are compatible with the existing press line. A technical assessment of the presses, dies, and station layout is required before confirming compatibility.

Q4: Which industries use 3D transfer robots?

Potential applications include automotive component stamping, home appliance sheet-metal production, electrical and electronic components, and other metal stamping processes that require automated inter-station transfer.

Q5: How accurate is a 3D transfer robot?

Positioning accuracy and repeatability depend on the mechanical structure, drive system, feedback devices, payload, motion profile, and operating conditions. Manufacturers should provide application-relevant specifications and clarify the associated test conditions.

Q6: What information is needed to select a 3D transfer robot?

Useful information includes workpiece dimensions and weight, material type, press model and specifications, die spacing, station count, target cycle time, gripping requirements, and the available installation space. These details help determine the required motion range, payload, control interface, and gripping configuration.
