Stamping Press Machine

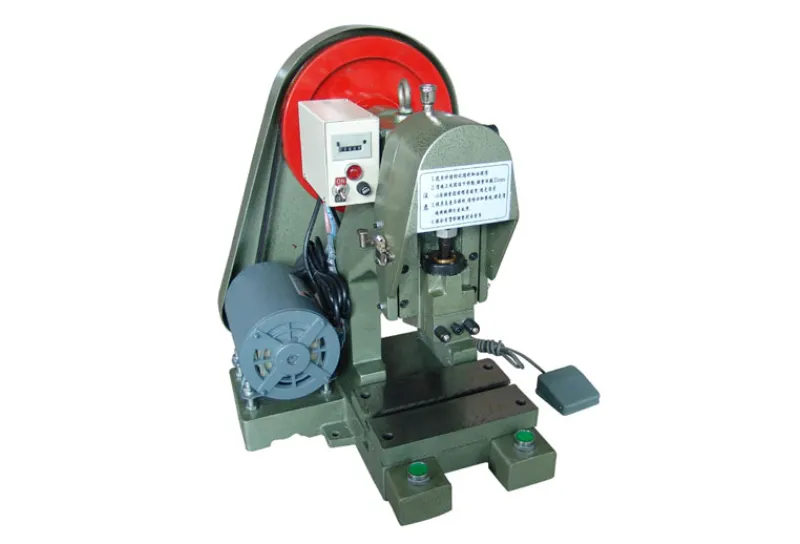

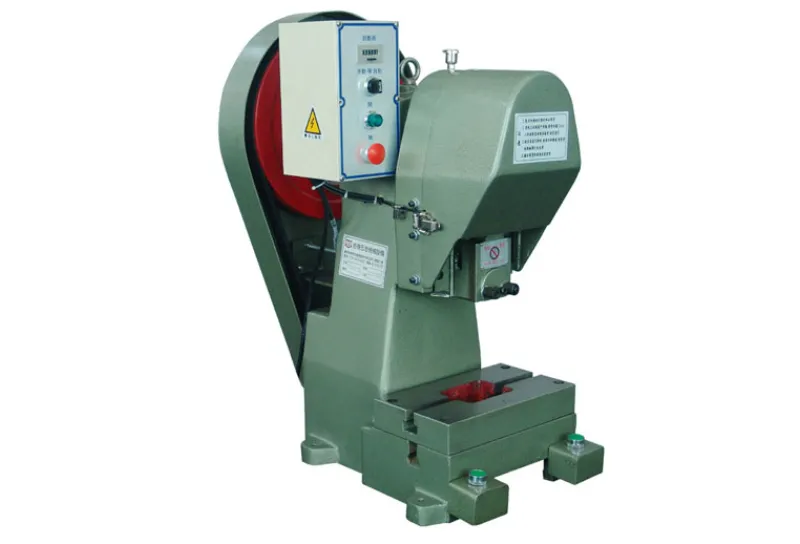

The 2T/3T/5T Servo Electric Benchtop Precision Punch Press is a compact, high-performance stamping machine designed for precision metal parts production. Featuring a fully electric servo drive, high-speed operation, and ±0.01 mm repeatability, it is ideal for electronic terminals, connectors, precision hardware, and automated micro stamping applications.
Product Characteristics
The 2T/3T/5T Servo Electric Benchtop Precision Punch Press is a compact yet powerful stamping machine engineered for high-precision metal forming in limited production spaces.
Powered by an advanced servo electric drive system, the press delivers exceptional punching accuracy, stable high-speed performance, and low energy consumption. Compared with conventional pneumatic or hydraulic presses, it offers quieter operation, reduced maintenance, and superior motion control.
Designed for precision manufacturing, this machine is widely used in the production of electronic terminals, connectors, battery contacts, precision hardware, and other micro metal components requiring consistent quality and tight dimensional tolerances.
Designed with a small footprint, this benchtop punch press is perfect for workshops or production lines with limited space. It can be easily integrated into existing setups without requiring major layout changes.
With a stroke speed of 100–300 strokes per minute, the machine supports stable, high-speed punching operations while maintaining precision for continuous production.
Featuring repeatability of up to ±0.01 mm, this precision punch press is ideal for manufacturing fine metal components and micro stamping parts that demand strict tolerances.
Unlike traditional pneumatic or hydraulic presses, this system uses a fully electric drive, offering:
Lower energy consumption
Reduced maintenance requirements
Cleaner and quieter operation
Better motion control and consistency
The integrated control interface allows operators to easily adjust parameters, monitor machine status, and improve operational efficiency with minimal training.
Equipped with multiple safety features including overload protection, emergency stop, and real-time operation monitoring, ensuring a safe and reliable working environment.
This machine supports integration with:
servo roll feeders
Robotic arms
Automated stamping lines
Helping manufacturers upgrade toward fully automated production systems.
Compared with conventional pneumatic and hydraulic presses, the servo electric punch press offers significant advantages in precision, efficiency, and operating cost.
Key benefits include:
Higher positioning accuracy for precision stamping
Lower energy consumption and operating costs
Reduced maintenance requirements
Quiet and clean production environment
Excellent compatibility with automated feeding systems
Stable performance for continuous production
This benchtop precision punch press can be seamlessly integrated with a servo coil feeder to create a fully automated stamping system.
The servo feeder provides:
Precise feeding length control
Accurate synchronization with punching cycles
Improved production efficiency
Enhanced product consistency
This combination is especially suitable for continuous stamping of electronic terminals, connectors, and precision metal components.
1、What materials can this punch press process?
The machine is suitable for stainless steel, copper, aluminum, brass, and other precision metal strips used in electronic and industrial applications.
2、What industries use a servo electric punch press?
It is widely used in electronics, automotive electronics, medical devices, battery manufacturing, precision hardware, and connector production.
3、Why choose a servo electric punch press instead of a pneumatic press?
Servo electric presses provide higher accuracy, better motion control, lower energy consumption, quieter operation, and easier integration with automated production lines.
Technical Parameters
| Mode | TUP-2T | TUP-3T | TUP-5T |
| Ability | 2 | 3 | 5 |
| Adjustable stroke | 30 mm | 40 mm | 40 mm |
| (Linked) times/min | 150 | 150 | 150 |
| Slider aperture | 1＂×40mm | 1＂×45mm | 1＂×45mm |
| Mesa aperture | 75×75mm | 75×110mm | 80×130mm |
| Motor | 1/4HP×4P | 1/2HP×4P | 1HP×4P |
| Machine weight | 80Kg | 160Kg | 200Kg |
| Maximum mold height(mm) | 165 | 185 | 200 |
| Working desk size mm | 230×155 | 300×175 | 300×190 |
| Machine size | 440x450x590 | 400x590x760 | 480x620x820 |
Application
1600 Large-Scale New Energy Lithium Battery Aluminum Casing Blanking Dedicated Automated Stamping Line
Thick-Sheet 3-in-1 Decoiler, Leveler & Feeder System for Automotive Stamping Applications
Customized Dual-Uncoiler 3-in-1 Feeding Line for Automated Stamping of Smart Furniture Hardware Components
2-in-1 Decoiler & Leveling Machines with Servo Feeders: Enhancing Precision in 3C Industry Automation
Ready to streamline your production with reliable stamping automation solutions that boost efficiency, reduce downtime!
Related Products
1.5T Electric Benchtop Precision Compact Punch Press for Small Metal Stamping
Adopt roller clutch for accurate positioning. Absolutely single punch, safe operation. The design is exquisite and does not take up space. Smooth operation, low noise, easy to adjust and maintain.
Lower energy consumption compared to traditional presses, with higher operational efficiency, meeting green manufacturing standards.
Servo C-type Press adjustable pressure and speed to meet various processing needs, adaptable to multiple tasks.
TUP-5T/10T Precision Pneumatic Benchtop Punch Press
Can be equipped with an optional NC servo feeder to enable automatic material feeding and punching operations.
FAQ
Q: How do I determine the right feeder size for my production line?
A: The feeder size depends on the material width, thickness, and feeding step distance required by your stamping press. Choosing the correct specifications ensures smooth operation and prevents feeding errors or misalignment.
Q: What factors should I consider when choosing a servo feeder machine?
A: When selecting a servo feeder, key factors include feeding accuracy (±0.05mm or better), maximum feeding speed (e.g., 20m/min), material compatibility (stainless steel, aluminum, etc.), load capacity, and control system (PLC or touchscreen). Ensure the machine matches your stamping process requirements.
Q: How do I choose the right decoiler, straightener and feeder?
A: Select based on material type, width, thickness, coil weight, and required speed. Match decoiler capacity to coil size, choose a straightener for material strength, and a feeder that meets feed length and precision. Ensure compatibility with your press and automation level.
Q: Coil feeder vs servo feeder: what’s the difference?
A: A coil feeder is a broader system for continuous coil feeding, often integrated with decoiler and straightener. A servo feeder uses servo motors for precise, programmable feeding, ideal for short pitches and high accuracy applications.
Q: How to choose decoiler capacity?
A: Select a decoiler rated 10–20% above your maximum coil weight. Confirm inner diameter (I.D.) compatibility and outer diameter limits. Adjustable mandrels are recommended if you run multiple coil sizes.
Q: What feed precision can I expect?
A: Servo feeders typically achieve ±0.01–0.05 mm, with high-end models reaching ±0.005 mm. Mechanical feeders usually provide ±0.02–0.1 mm. Actual accuracy depends on material properties and straightening quality.
Q: How does material affect machine selection?
A: High-strength materials need stronger straightening and drive systems. Thin materials require low-pressure handling. Soft materials like aluminum need anti-scratch solutions.
Q: What affects feeding accuracy most?
A: Key factors include feeder precision, servo tuning, straightener setup, material quality, and press stability. Poor setup or worn dies can reduce accuracy.
Q: What spare parts should be prepared?
A: Common spares include bearings, belts, sensors, seals, guide blocks, and lubrication parts. Keeping key components reduces downtime and improves maintenance efficiency.
Q: Can feeders be retrofitted to existing presses?
A: Yes, most systems support retrofitting. Check press dimensions, feed height, control compatibility, and safety requirements before installation.
Q: How long does it take to receive the feeder machine after placing an order?
A: Lead time for delivery typically ranges from 4 to 8 weeks depending on customization, production schedules, and shipping location. Once your order is confirmed, we will provide a more precise delivery estimate.
Q: What are your payment terms?
A: We accepts T/T payment, 30% deposit and 70% balance before shipping
Q: How often should I perform maintenance on my servo feeder machine?
A: Routine maintenance should be conducted weekly for basic cleaning and lubrication, while a more thorough inspection should be done monthly to check for wear on rollers, belts, and electrical components. A full servicing is recommended every 6-12 months depending on usage intensity.
Q: What are the most common issues with feeder machines, and how can I troubleshoot them?
A: Common issues include misalignment, inconsistent feeding accuracy, or motor failure. Check for loose bolts, dirt buildup, or software calibration errors. If problems persist, refer to the user manual or contact technical support.
Q: Do you provide on-site repair services if my machine breaks down?
A: Yes, we offer on-site repair services for major issues, along with remote troubleshooting support for minor problems. For urgent cases, we can dispatch a technician within 24-48 hours, depending on your location.
Q: What is the maintenance cycle?
A: Daily cleaning and inspection; weekly check belts, air lines; monthly inspect bearings and guides; yearly replace worn parts. Adjust frequency based on operating hours and workload.
Q: What's the package of your coil feeding machines?
A: For the coil feeding equipment that go LCL shipping, We will use plastic films wrap on the equiment, and then fix it into a wooden box.
For the large coil lines that go FCL shipment, We will fix each part with ropes on the shipping container and then wrapped them with plastic films.
Q: What is the typical lead time?
A: Standard machines usually take 4–8 weeks. Customized systems or full production lines may require 10–20+ weeks depending on complexity and production schedule.
