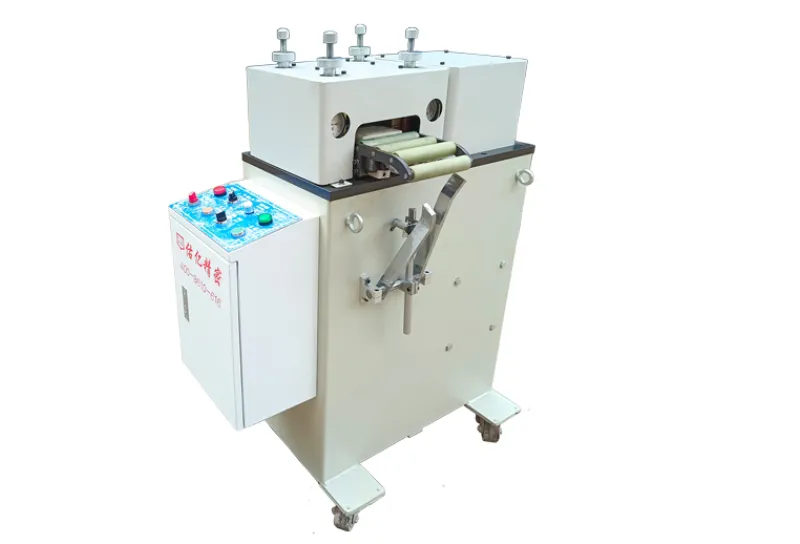

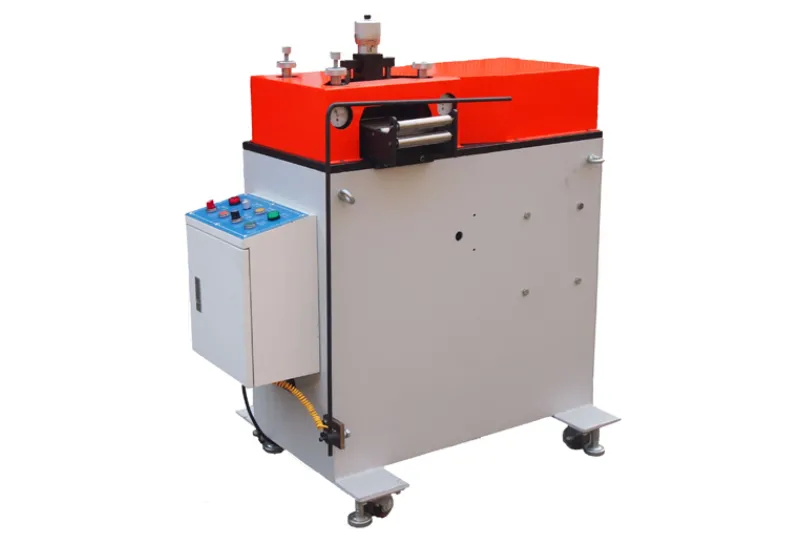

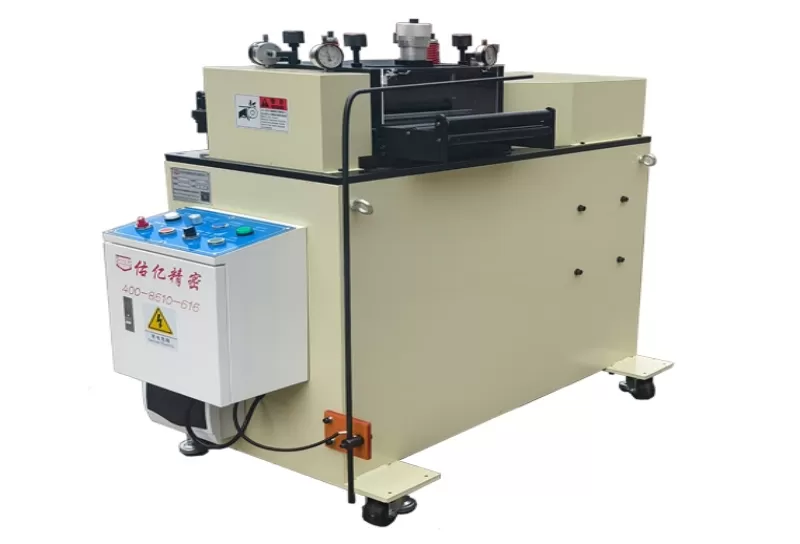

Straightener/Leveling Machine
The GJ Series High Precision Straightener is specifically designed for ultra-thin materials ranging from 0.05mm to 0.6mm in thickness. It is ideal for delicate metals such as stainless steel, copper, aluminum, and other thin sheets used in high-precision industries.
Equipped with high-rigidity construction, precision-ground leveling rollers, and micro-adjustable controls, the straightener guarantees excellent leveling accuracy without scratching or damaging sensitive surfaces.
Material width (mm): 100-200
Material thickness (mm): 0.05-0.6
Correction Speed (m/min): 7
Product Characteristics
The High Precision Straightener is a high-performance coil leveling machine designed for manufacturers processing ultra-thin and high-precision metal materials. It is specifically engineered to remove residual stress, eliminate coil set, and achieve exceptional flatness before stamping, laser cutting, or precision forming operations.
Unlike conventional straightening machines, this model features precision-engineered leveling rollers, a rigid transmission system, and micron-level adjustment capability to ensure stable and repeatable results. It is particularly suitable for processing stainless steel, copper, aluminum, nickel, and other thin metal coils with thicknesses starting from 0.1 mm.
Widely used in electronics, semiconductor components, EV battery parts, precision hardware, medical devices, and connector manufacturing, the Ultra Precision Straightener helps improve stamping accuracy, extend die life, reduce material waste, and enhance overall production efficiency.
Engineered specifically for stamping medium-thin materials requiring micron-level accuracy. Coil materials must undergo stress-relieving leveling to ensure production quality, making the leveler's performance pivotal in manufacturing excellence.
Optimized for flawlessly leveling ultra-thin sheets (stainless steel, copper, iron, and aluminum) with thicknesses as low as 0.1mm, delivering unmatched surface flatness.
All leveling rollers utilize imported SUJ2 steel, heat-treated to HRC 60°, followed by hard chrome plating and precision grinding to guarantee uniform coating (±0.001mm) and cylindrical tolerance (±0.003mm).
Equipped with a floating four-point micro-adjustment mechanism and integrated dial indicator, enabling rapid calibration for immediate precision alignment.
Dual fully-driven upper/lower rollers eliminate energy waste and surface abrasion caused by passive rotation in conventional systems, ensuring 100% material integrity.
Advanced auto-lubrication system minimizes wear, extending operational lifespan while maintaining sub-10μm precision over continuous 24/7 runs.
Optional flip-top head design allows instant access to rollers for debris removal, streamlining cleaning without disassembly.
Ultra-thin metal coils often contain internal stress, coil memory, edge waves, center buckles, and other flatness defects generated during rolling and storage. If these imperfections are not removed before stamping or forming, they may lead to:
Poor stamping accuracy
Material deformation
Burr formation
Die wear
Feeding instability
Low product consistency
Increased scrap rates
A high-precision straightener effectively relieves internal stress and restores material flatness, ensuring stable feeding and superior product quality throughout the production process.

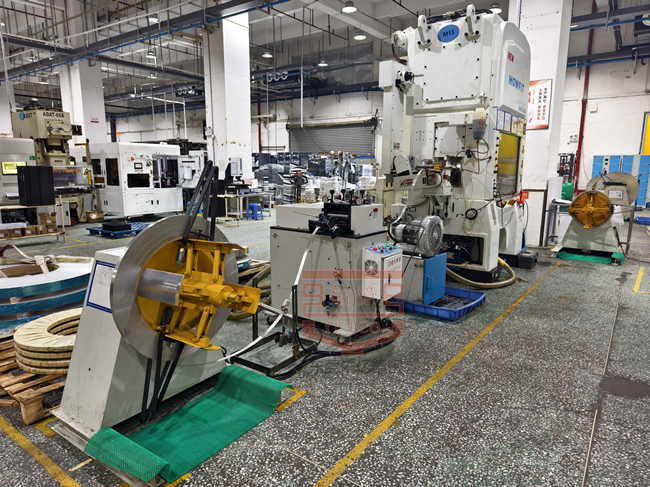

In the 3C electronics manufacturing industry, components such as smartphone and tablet parts require extremely high flatness, dimensional accuracy, and surface quality. Thin metal materials are especially prone to deformation during uncoiling and feeding, which can directly affect stamping precision and product consistency.
To meet these challenges, a high-speed automated coil processing line was implemented, with the high precision straightener as the core unit of the system.
This 3C industry coil processing line integrates the following equipment:
High Precision Straightener
The straightener is electrically controlled and equipped with a variable frequency drive (VFD) to precisely regulate leveling speed. Upper and lower rollers operate in synchronized motion, and leveling accuracy is achieved by fine adjustment of the roller gap.
It is specially designed for ultra-thin materials with thicknesses from 0.05mm to 0.5mm and widths up to 200mm, making it ideal for stainless steel, copper, iron, and aluminum sheets used in 3C components.
Automatic Uncoiler
Provides stable and continuous uncoiling, ensuring smooth material flow and reducing production interruptions.
High-Speed Servo Feeder
Delivers accurate and repeatable feeding length control, meeting the strict precision requirements of high-speed stamping processes.
Waste Material Suction System
Automatically removes scrap and residual material, keeping the production area clean and improving overall operational efficiency.
High-Speed Stamping Press
Works seamlessly with the leveling and feeding system to achieve high-speed, high-accuracy stamping, widely adopted in 3C manufacturing lines.
With the integration of the high precision straightener, the production line successfully achieved:
Stable and consistent flatness of ultra-thin metal sheets
Improved stamping accuracy and surface quality
Reduced material deformation and scrap rate
Significantly enhanced production efficiency through automation
This solution has been widely applied in the 3C industry, particularly for manufacturing precision components used in smartphones, tablets, and other electronic products.
By combining automation, precision control, and high-speed operation, this coil processing line provides manufacturers with a reliable and scalable stamping solution. It enables 3C enterprises to maintain stable product quality while improving productivity and competitiveness in a fast-paced and highly demanding market.
Technical Parameters
| Modle | GJ-100 | GJ-150 | GJ-200 |
| Width mm | 100 (max) | 150 (max) | 200 (max) |
| Thicknessmm | 0.05~0.6 | 0.05~0.6 | 0.05~0.6 |
| Correction Speedm/min | 0-12M/MIN | ||
| Motor | 1HP×4P | 1HP×4P | 1HP×4P |
| Fine wheel diameter mm | ∮12 | ∮12 | ∮12 |
| Number of fine wheels PCS | 9/10 Upper/Lower | 9/10 Upper/Lower | 9/10 Upper/Lower |
| Weight Kg | 150Kg | 200Kg | 250Kg |
| Lubrication methodl | The gearbox loops oil, and the correction wheel automatically oils | ||
Application
1600 Large-Scale New Energy Lithium Battery Aluminum Casing Blanking Dedicated Automated Stamping Line
Thick-Sheet 3-in-1 Decoiler, Leveler & Feeder System for Automotive Stamping Applications
Customized Dual-Uncoiler 3-in-1 Feeding Line for Automated Stamping of Smart Furniture Hardware Components
2-in-1 Decoiler & Leveling Machines with Servo Feeders: Enhancing Precision in 3C Industry Automation
Ready to streamline your production with reliable stamping automation solutions that boost efficiency, reduce downtime!
Related Products
SNL Type Single/Two stage Precision Straightener (Thickness: 0.1-0.6mm)
SNL Type Precision Straightener is designed for leveling thin coil materials from 0.1mm to 0.6mm. Available in single-stage and two-stage structures, it ensures high precision and surface protection for stainless steel, copper, and aluminum strips
HCL Type Heavy Duty Coil Straightener(Thickness: 1-6mm)
The leveling adjustment mechanism integrates a compact worm gear and worm wheel system, ensuring smooth torque transmission with reverse self-locking capability.
SFL Type precision straightener (Thickness: 0.2-1.2mm)
This series of straightening machine is specially designed to straighten thin stainless steel, copper sheet, iron sheet and aluminum sheet and other thin materials, which can achieve perfect leveling effect
FJS Type high-speed straightener (Thickness: 0.3-1.5mm)
The precision-leveled material is transferred to downstream feeders via an S-shaped guiding system.
FAQ
Q: How do I determine the right feeder size for my production line?
A: The feeder size depends on the material width, thickness, and feeding step distance required by your stamping press. Choosing the correct specifications ensures smooth operation and prevents feeding errors or misalignment.
Q: What factors should I consider when choosing a servo feeder machine?
A: When selecting a servo feeder, key factors include feeding accuracy (±0.05mm or better), maximum feeding speed (e.g., 20m/min), material compatibility (stainless steel, aluminum, etc.), load capacity, and control system (PLC or touchscreen). Ensure the machine matches your stamping process requirements.
Q: How do I choose the right decoiler, straightener and feeder?
A: Select based on material type, width, thickness, coil weight, and required speed. Match decoiler capacity to coil size, choose a straightener for material strength, and a feeder that meets feed length and precision. Ensure compatibility with your press and automation level.
Q: Coil feeder vs servo feeder: what’s the difference?
A: A coil feeder is a broader system for continuous coil feeding, often integrated with decoiler and straightener. A servo feeder uses servo motors for precise, programmable feeding, ideal for short pitches and high accuracy applications.
Q: How to choose decoiler capacity?
A: Select a decoiler rated 10–20% above your maximum coil weight. Confirm inner diameter (I.D.) compatibility and outer diameter limits. Adjustable mandrels are recommended if you run multiple coil sizes.
Q: What feed precision can I expect?
A: Servo feeders typically achieve ±0.01–0.05 mm, with high-end models reaching ±0.005 mm. Mechanical feeders usually provide ±0.02–0.1 mm. Actual accuracy depends on material properties and straightening quality.
Q: How does material affect machine selection?
A: High-strength materials need stronger straightening and drive systems. Thin materials require low-pressure handling. Soft materials like aluminum need anti-scratch solutions.
Q: What affects feeding accuracy most?
A: Key factors include feeder precision, servo tuning, straightener setup, material quality, and press stability. Poor setup or worn dies can reduce accuracy.
Q: What spare parts should be prepared?
A: Common spares include bearings, belts, sensors, seals, guide blocks, and lubrication parts. Keeping key components reduces downtime and improves maintenance efficiency.
Q: Can feeders be retrofitted to existing presses?
A: Yes, most systems support retrofitting. Check press dimensions, feed height, control compatibility, and safety requirements before installation.
Q: How long does it take to receive the feeder machine after placing an order?
A: Lead time for delivery typically ranges from 4 to 8 weeks depending on customization, production schedules, and shipping location. Once your order is confirmed, we will provide a more precise delivery estimate.
Q: What are your payment terms?
A: We accepts T/T payment, 30% deposit and 70% balance before shipping
Q: How often should I perform maintenance on my servo feeder machine?
A: Routine maintenance should be conducted weekly for basic cleaning and lubrication, while a more thorough inspection should be done monthly to check for wear on rollers, belts, and electrical components. A full servicing is recommended every 6-12 months depending on usage intensity.
Q: What are the most common issues with feeder machines, and how can I troubleshoot them?
A: Common issues include misalignment, inconsistent feeding accuracy, or motor failure. Check for loose bolts, dirt buildup, or software calibration errors. If problems persist, refer to the user manual or contact technical support.
Q: Do you provide on-site repair services if my machine breaks down?
A: Yes, we offer on-site repair services for major issues, along with remote troubleshooting support for minor problems. For urgent cases, we can dispatch a technician within 24-48 hours, depending on your location.
Q: What is the maintenance cycle?
A: Daily cleaning and inspection; weekly check belts, air lines; monthly inspect bearings and guides; yearly replace worn parts. Adjust frequency based on operating hours and workload.
Q: What's the package of your coil feeding machines?
A: For the coil feeding equipment that go LCL shipping, We will use plastic films wrap on the equiment, and then fix it into a wooden box.
For the large coil lines that go FCL shipment, We will fix each part with ropes on the shipping container and then wrapped them with plastic films.
Q: What is the typical lead time?
A: Standard machines usually take 4–8 weeks. Customized systems or full production lines may require 10–20+ weeks depending on complexity and production schedule.
