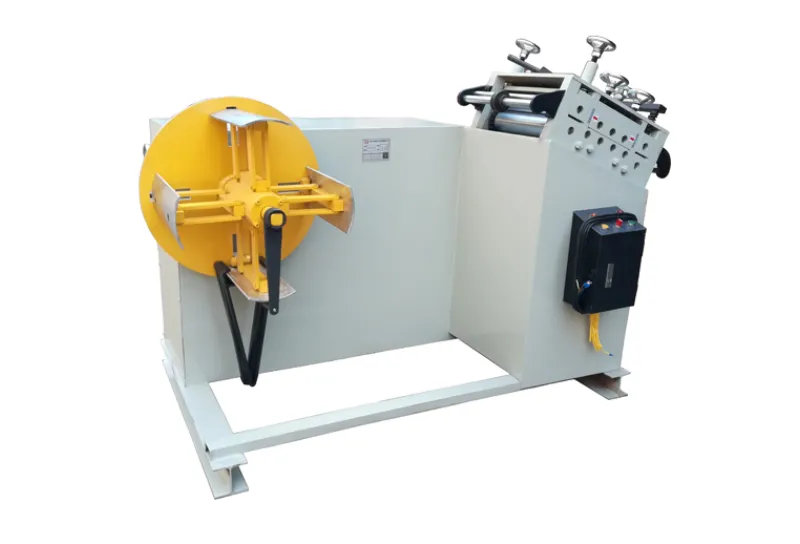

2 In 1 Uncoiler Leveler
Designed to combine decoiling and leveling functions into a compact structure, ideal for handling coil materials with thicknesses ranging from 0.5mm to 3.0mm. It features a robust frame, precision leveling rollers, and adjustable coil width capability.
Material width (mm): 200-600
Material thickness (mm): 0.5-3.0
Coi. weight (kg): 800-2000
Product Characteristics
The GO Type 2-in-1 Uncoiler Leveler is a compact and highly efficient integrated coil handling solution that combines decoiling and precision leveling into a single machine. Designed specifically for processing coil materials with thicknesses ranging from 0.5 mm to 3.0 mm, this model ensures stable operation, excellent material flatness, and consistent feeding performance.
With its space-saving structure and optimized leveling mechanism, the GO Type 2-in-1 Uncoiler Leveler is ideal for automated stamping lines requiring reliable coil preparation, improved surface quality, and efficient material flow. It is well suited for applications across automotive components, electronics, and precision metal stamping industries.
By integrating the decoiler and leveler into one machine, this model reduces overall footprint and simplifies installation—making it an ideal choice for factories with limited floor space or compact press lines.
The structure and roller configuration are tailored for medium-thin metal coils, ensuring stable operation without material distortion.
Equipped with multiple hardened leveling rollers, the machine effectively removes internal stress and improves flatness, providing smooth and accurate material feeding for downstream stamping processes.
Pneumatic pressing arm for stable coil unwinding
Mechanical expansion uncoiler for enhanced coil holding force
These upgrades allow the system to adapt to different coil weights and material types.
The leveling roller gap is easy to adjust, enabling compatibility with multiple materials such as cold-rolled steel, stainless steel, aluminum, and coated sheet metals.
Integrated PLC controls provide stable operation, precise adjustments, and real-time monitoring—reducing operator workload and improving overall production efficiency.

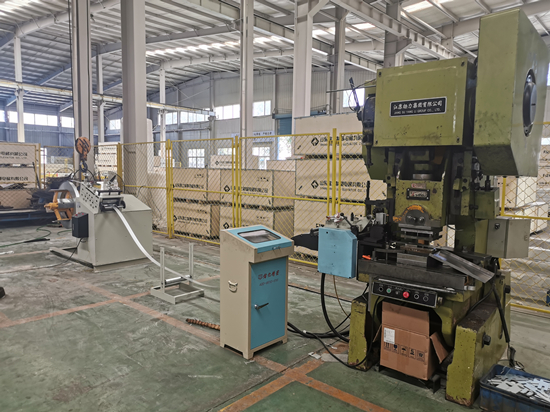

The GO Type 2-in-1 Uncoiler Leveler can be seamlessly integrated with a servo coil feeder and a punching press to create a fully automated coil feeding and stamping line. This configuration significantly enhances production efficiency, ensures consistent stamping accuracy, and reduces manual intervention—making it ideal for modern automated metalworking applications.
Compact structure reduces installation area and simplifies line layout.
Improved material flatness enhances stamping accuracy and reduces defect rates.
Integrated design minimizes synchronization issues found in traditional separate machines.
Cost-effective solution suitable for small to medium coil-processing applications.
Stable automation compatibility, ideal for pairing with servo coil feeders, press machines, and compact stamping lines.
Whether you are upgrading an existing production line or designing a new automatic stamping line, the GO Type 2-in-1 Uncoiler Leveler provides a reliable and efficient foundation for continuous, high-precision coil processing.
Technical Parameters
| Modle | G0-200 | G0-300 | GO-400 | GO-500 | GO-600 |
| Width mm | 200 | 300 | 400 | 500 | 600 |
| thickness mm | 0.5-3.0 | ||||
| Coil.I.Dia mm | 450-530 | ||||
| Coil.O.Dia mm | 1200 | ||||
| Coi. weight | 800 | 1000 | 1500 | 2000 | 2000 |
| Expand type | Manual | ||||
| Drive Motor HP | 1 | 2 | 2 | 3 | 3 |
| Body weight kg | 800 | 900 | 1000 | 1100 | 1200 |
Application
1600 Large-Scale New Energy Lithium Battery Aluminum Casing Blanking Dedicated Automated Stamping Line
Thick-Sheet 3-in-1 Decoiler, Leveler & Feeder System for Automotive Stamping Applications
Customized Dual-Uncoiler 3-in-1 Feeding Line for Automated Stamping of Smart Furniture Hardware Components
2-in-1 Decoiler & Leveling Machines with Servo Feeders: Enhancing Precision in 3C Industry Automation
Ready to streamline your production with reliable stamping automation solutions that boost efficiency, reduce downtime!
Related Products
JMGO Type Precision 2 In 1 Uncoiler Leveler For Sheet Thickness: 0.1-1.2mm
This equipment is equipped with a photoelectric sensor that controls the stopping and feeding of materials (to prevent material blockage) comes with a support rack to prevent scratching of thin materials.
TL Type 2 In 1 Uncoiler Leveler For Sheet Thickness: 0.5-6.0mm
Dual-Function Design: Combines decoiling and leveling operations in a single unit, saving floor space and streamlining workflows.
HTC-1600 Coil Processing Equipment for Lithium Battery Cover & Aluminum Parts
HTC-1600 heavy-duty 2-in-1 uncoiler & leveler (100–1600mm, 0.5–3.0mm, up to 15,000kg). Engineered for lithium battery covers and aluminum stamping — hydraulic expansion, precision SUJ2 rollers, NC servo feeder.
HCXL Type 2 In 1 Uncoiler Leveler With Coil Loading Trolley For Sheet Thickness: 1.0-6.0mm
HCXL 2-in-1 Uncoiler & Leveler for 1.0–6.0mm sheets — integrated decoiler + precision leveling, hydraulic coil loading trolley, customizable widths 300–1000mm. Request quote.
FAQ
Q: How do I determine the right feeder size for my production line?
A: The feeder size depends on the material width, thickness, and feeding step distance required by your stamping press. Choosing the correct specifications ensures smooth operation and prevents feeding errors or misalignment.
Q: What factors should I consider when choosing a servo feeder machine?
A: When selecting a servo feeder, key factors include feeding accuracy (±0.05mm or better), maximum feeding speed (e.g., 20m/min), material compatibility (stainless steel, aluminum, etc.), load capacity, and control system (PLC or touchscreen). Ensure the machine matches your stamping process requirements.
Q: How do I choose the right decoiler, straightener and feeder?
A: Select based on material type, width, thickness, coil weight, and required speed. Match decoiler capacity to coil size, choose a straightener for material strength, and a feeder that meets feed length and precision. Ensure compatibility with your press and automation level.
Q: Coil feeder vs servo feeder: what’s the difference?
A: A coil feeder is a broader system for continuous coil feeding, often integrated with decoiler and straightener. A servo feeder uses servo motors for precise, programmable feeding, ideal for short pitches and high accuracy applications.
Q: How to choose decoiler capacity?
A: Select a decoiler rated 10–20% above your maximum coil weight. Confirm inner diameter (I.D.) compatibility and outer diameter limits. Adjustable mandrels are recommended if you run multiple coil sizes.
Q: What feed precision can I expect?
A: Servo feeders typically achieve ±0.01–0.05 mm, with high-end models reaching ±0.005 mm. Mechanical feeders usually provide ±0.02–0.1 mm. Actual accuracy depends on material properties and straightening quality.
Q: How does material affect machine selection?
A: High-strength materials need stronger straightening and drive systems. Thin materials require low-pressure handling. Soft materials like aluminum need anti-scratch solutions.
Q: What affects feeding accuracy most?
A: Key factors include feeder precision, servo tuning, straightener setup, material quality, and press stability. Poor setup or worn dies can reduce accuracy.
Q: What spare parts should be prepared?
A: Common spares include bearings, belts, sensors, seals, guide blocks, and lubrication parts. Keeping key components reduces downtime and improves maintenance efficiency.
Q: Can feeders be retrofitted to existing presses?
A: Yes, most systems support retrofitting. Check press dimensions, feed height, control compatibility, and safety requirements before installation.
Q: How long does it take to receive the feeder machine after placing an order?
A: Lead time for delivery typically ranges from 4 to 8 weeks depending on customization, production schedules, and shipping location. Once your order is confirmed, we will provide a more precise delivery estimate.
Q: What are your payment terms?
A: We accepts T/T payment, 30% deposit and 70% balance before shipping
Q: How often should I perform maintenance on my servo feeder machine?
A: Routine maintenance should be conducted weekly for basic cleaning and lubrication, while a more thorough inspection should be done monthly to check for wear on rollers, belts, and electrical components. A full servicing is recommended every 6-12 months depending on usage intensity.
Q: What are the most common issues with feeder machines, and how can I troubleshoot them?
A: Common issues include misalignment, inconsistent feeding accuracy, or motor failure. Check for loose bolts, dirt buildup, or software calibration errors. If problems persist, refer to the user manual or contact technical support.
Q: Do you provide on-site repair services if my machine breaks down?
A: Yes, we offer on-site repair services for major issues, along with remote troubleshooting support for minor problems. For urgent cases, we can dispatch a technician within 24-48 hours, depending on your location.
Q: What is the maintenance cycle?
A: Daily cleaning and inspection; weekly check belts, air lines; monthly inspect bearings and guides; yearly replace worn parts. Adjust frequency based on operating hours and workload.
Q: What's the package of your coil feeding machines?
A: For the coil feeding equipment that go LCL shipping, We will use plastic films wrap on the equiment, and then fix it into a wooden box.
For the large coil lines that go FCL shipment, We will fix each part with ropes on the shipping container and then wrapped them with plastic films.
Q: What is the typical lead time?
A: Standard machines usually take 4–8 weeks. Customized systems or full production lines may require 10–20+ weeks depending on complexity and production schedule.
