2 In 1 Uncoiler Leveler

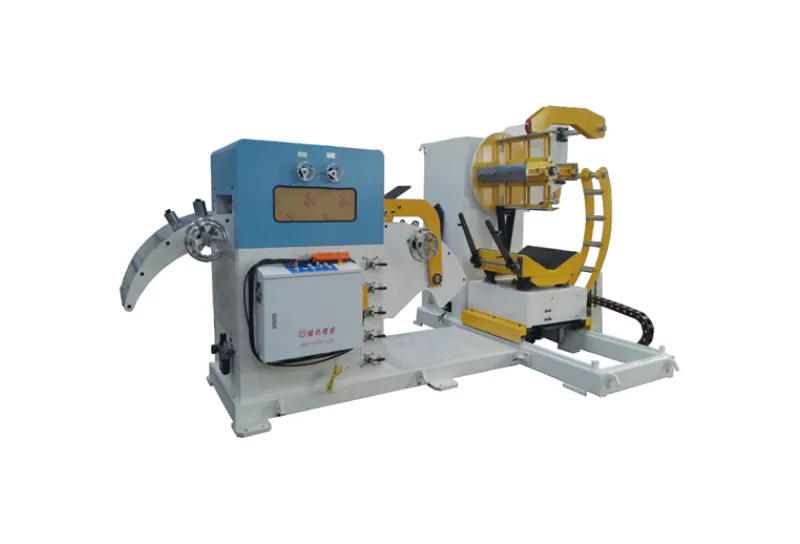

The HCXL 2-in-1 Uncoiler Leveler is a heavy-duty coil processing machine designed for metal coils from 1.0 to 6.0 mm thick. It combines coil decoiling and precision leveling in one compact system and features a hydraulic coil loading trolley for safer, faster handling of heavy coils. It is ideal for automated stamping, punching, and sheet metal processing lines.
Material width (mm): 300-1000
Material thickness (mm): 1.0-6.0
Coi. weight (kg): 2000-8000
Product Characteristics
The HCXL 2-in-1 Uncoiler Leveler is designed for continuous processing of medium and thick metal coils ranging from 1.0 mm to 6.0 mm in thickness. By combining a heavy-duty decoiler and precision leveler in one integrated machine, the system reduces equipment footprint while simplifying coil processing and material feeding.

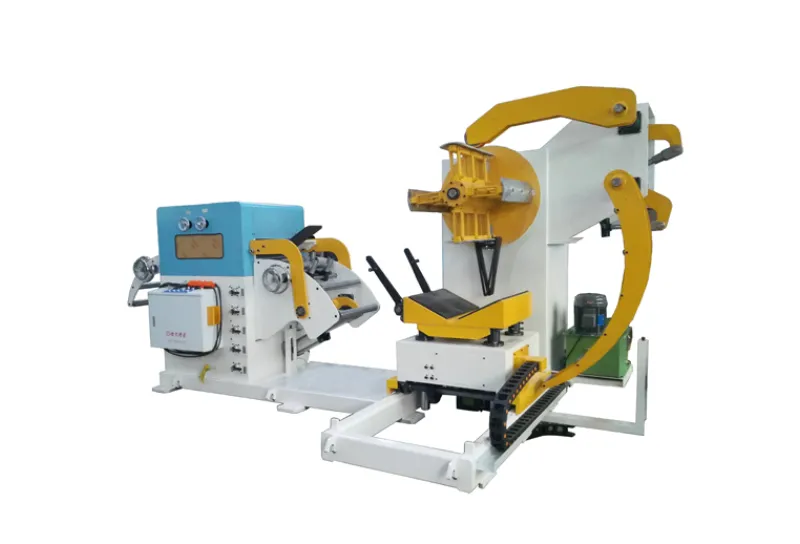

A hydraulic coil loading trolley is built into the system to assist operators in positioning and loading heavy coils safely. After the coil is clamped by the expansion mandrel, the material is continuously decoiled and guided through the leveling rollers to remove coil set and improve material flatness before stamping, punching, or shearing.
The HCXL is suitable for carbon steel, stainless steel, galvanized steel, aluminum, copper, and other metal coils. It can also be integrated with an NC servo feeder, stamping press, or shearing machine to form an automated coil processing line.
The HCXL combines a decoiler and precision leveler into one integrated machine. This compact configuration reduces floor space, simplifies equipment installation, and minimizes material transfer between separate machines.
The hydraulic loading trolley assists with positioning and loading heavy metal coils onto the machine. It reduces manual handling, lowers operator workload, and improves safety during coil loading.
The leveling section is designed for medium and thick metal coils from 1.0 mm to 6.0 mm. Heavy-duty rollers provide stable leveling force to improve material flatness and reduce coil set before downstream stamping or shearing.
Optional pressing arms and anti-loosening devices can be configured to improve coil stability during decoiling.
The expansion mandrel securely clamps the coil and maintains stable concentric rotation during decoiling. Mandrel configuration can be customized according to coil width, inner diameter, and coil weight.
The PLC control system provides centralized operation, parameter setting, machine monitoring, and fault diagnosis. It supports stable and repeatable operation during continuous coil processing.
The HCXL can be configured according to different coil widths, coil weights, material types, and production requirements. Optional features include hydraulic or servo-driven expansion systems, pressing arms, anti-loosening devices, emergency stops, and light curtains.
Combining the decoiler and leveler into one machine reduces the footprint compared with a conventional separate decoiler and straightener configuration.
The hydraulic coil loading trolley reduces manual handling during coil loading and positioning, improving operator safety.
The heavy-duty leveling section provides the required leveling force for materials from 1.0 mm to 6.0 mm.
The integrated configuration reduces material transfer between separate machines and creates a more compact coil processing workflow.
More stable material flatness before feeding helps improve positioning and consistency during downstream stamping and shearing.

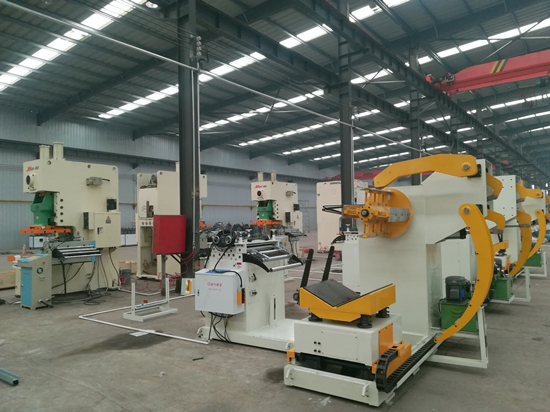

The HCXL 2-in-1 Uncoiler Leveler can be integrated with a servo coil feeder and stamping press to create a compact automatic coil feeding line. It can also be connected to a shearing machine for automated coil-to-sheet processing.
A typical production workflow is:
Coil Loading → Decoiling → Leveling → Servo Feeding → Stamping or Shearing
The hinged leveling head provides convenient access to the leveling rollers for cleaning and maintenance. Removing dust, debris, and material residue from the roller surfaces helps reduce the risk of surface scratches during continuous coil processing.
This configuration is particularly suitable for manufacturers processing medium and thick metal coils where floor space, coil handling safety, leveling stability, and production efficiency are important considerations.
Youyi develops integrated decoiling and leveling equipment designed to simplify coil processing and reduce production line footprint.
The HCXL is engineered for material thicknesses from 1.0 mm to 6.0 mm, with configurations available for different coil sizes and production requirements.
The hydraulic coil loading trolley reduces manual handling of heavy coils and improves the safety and efficiency of coil loading operations.
The HCXL can be integrated with Youyi NC servo feeders and other stamping automation equipment to build complete automatic coil feeding lines.
Coil width, coil weight, expansion system, control system, safety devices, and other configurations can be customized according to the customer's production requirements.
1、What material thickness can the HCXL machine process?
The HCXL model is designed for metal coils ranging from 1.0 mm to 6.0 mm thick.
2、Does the machine include a coil loading trolley?
Yes. A hydraulic coil loading trolley is integrated to improve loading efficiency and operator safety.
3、Can the machine be connected to an NC servo feeder?
Yes. It can work together with an NC servo feeder to build a complete automatic stamping production line.
4、What materials can be processed?
Suitable for carbon steel, stainless steel, galvanized steel, aluminum, copper and other metal coils.
5、Can the machine be customized?
Yes. Coil width, weight capacity, control system and optional accessories can all be customized.
Technical Parameters
| Modle | HCLX-300 | HCLX-400 | HCLX-500 | HCLX-600 | HCLX-800 | HCLX-1000 | |||||||
| Applicable materials | Aluminum plate, cold/hot rolled plate, pickling plate, stainless steel, ect. | ||||||||||||
| Materaial width | 300mm | 400mm | 500mm | 600mm | 800mm | 1000mm | |||||||
| Materaial thickness | 1.0-6.0mm | ||||||||||||
| Total power | 5 | 8.7 | 8.7 | 10.7 | 12.7 | 16 | |||||||
| Leveling roller | 84*7(upper4 lower3) | ||||||||||||
| Coil.I.Dia | ∮450-∮520 | ||||||||||||
| Coil.O.Dia | ∮1200 | ||||||||||||
| Uncoiler load | 2000kg | 3000kg | 4000kg | 5000kg | 6000kg | 8000kg | |||||||
| Expansion method | Hydraulic | ||||||||||||
| Induction method | Phptoelectric or contact | ||||||||||||
| Speed mode | Frequency | ||||||||||||
Application
1600 Large-Scale New Energy Lithium Battery Aluminum Casing Blanking Dedicated Automated Stamping Line
Thick-Sheet 3-in-1 Decoiler, Leveler & Feeder System for Automotive Stamping Applications
Customized Dual-Uncoiler 3-in-1 Feeding Line for Automated Stamping of Smart Furniture Hardware Components
2-in-1 Decoiler & Leveling Machines with Servo Feeders: Enhancing Precision in 3C Industry Automation
Ready to streamline your production with reliable stamping automation solutions that boost efficiency, reduce downtime!
Related Products
JMGO Precision 2 in 1 Uncoiler Leveler for Thin Sheet Metal (0.1–1.2mm)
The JMGO Precision 2 in 1 Uncoiler Leveler is designed for 0.1–1.2mm thin metal coils, integrating uncoiling and precision leveling in one compact machine. It is suitable for aluminum, copper, stainless steel and other thin sheet metal used in precision stamping applications.
GO Type 2 In 1 Uncoiler Leveler For Sheet Thickness: 0.5-3.0mm
The two machines of the uncoiler and the straightener machine are integrated to reduce the installation space, reducethe excessive links in the precision material straightening process, and maximize the performance of the machine.
HTC-1600 Coil Processing Line for Lithium Battery Aluminum Component Stamping
TC-1600 Coil Processing Line integrates decoiling, leveling, and servo feeding for high-precision lithium battery aluminum stamping. Designed for battery covers, aluminum shells, and terminal components, it delivers stable feeding, accurate positioning, and excellent surface protection.
TL Type 2 In 1 Uncoiler Leveler For Sheet Thickness: 0.5-6.0mm
Dual-Function Design: Combines decoiling and leveling operations in a single unit, saving floor space and streamlining workflows.
FAQ
Q: How do I determine the right feeder size for my production line?
A: The feeder size depends on the material width, thickness, and feeding step distance required by your stamping press. Choosing the correct specifications ensures smooth operation and prevents feeding errors or misalignment.
Q: What factors should I consider when choosing a servo feeder machine?
A: When selecting a servo feeder, key factors include feeding accuracy (±0.05mm or better), maximum feeding speed (e.g., 20m/min), material compatibility (stainless steel, aluminum, etc.), load capacity, and control system (PLC or touchscreen). Ensure the machine matches your stamping process requirements.
Q: How do I choose the right decoiler, straightener and feeder?
A: Select based on material type, width, thickness, coil weight, and required speed. Match decoiler capacity to coil size, choose a straightener for material strength, and a feeder that meets feed length and precision. Ensure compatibility with your press and automation level.
Q: Coil feeder vs servo feeder: what’s the difference?
A: A coil feeder is a broader system for continuous coil feeding, often integrated with decoiler and straightener. A servo feeder uses servo motors for precise, programmable feeding, ideal for short pitches and high accuracy applications.
Q: How to choose decoiler capacity?
A: Select a decoiler rated 10–20% above your maximum coil weight. Confirm inner diameter (I.D.) compatibility and outer diameter limits. Adjustable mandrels are recommended if you run multiple coil sizes.
Q: What feed precision can I expect?
A: Servo feeders typically achieve ±0.01–0.05 mm, with high-end models reaching ±0.005 mm. Mechanical feeders usually provide ±0.02–0.1 mm. Actual accuracy depends on material properties and straightening quality.
Q: How does material affect machine selection?
A: High-strength materials need stronger straightening and drive systems. Thin materials require low-pressure handling. Soft materials like aluminum need anti-scratch solutions.
Q: What affects feeding accuracy most?
A: Key factors include feeder precision, servo tuning, straightener setup, material quality, and press stability. Poor setup or worn dies can reduce accuracy.
Q: What spare parts should be prepared?
A: Common spares include bearings, belts, sensors, seals, guide blocks, and lubrication parts. Keeping key components reduces downtime and improves maintenance efficiency.
Q: Can feeders be retrofitted to existing presses?
A: Yes, most systems support retrofitting. Check press dimensions, feed height, control compatibility, and safety requirements before installation.
Q: How long does it take to receive the feeder machine after placing an order?
A: Lead time for delivery typically ranges from 4 to 8 weeks depending on customization, production schedules, and shipping location. Once your order is confirmed, we will provide a more precise delivery estimate.
Q: What are your payment terms?
A: We accepts T/T payment, 30% deposit and 70% balance before shipping
Q: How often should I perform maintenance on my servo feeder machine?
A: Routine maintenance should be conducted weekly for basic cleaning and lubrication, while a more thorough inspection should be done monthly to check for wear on rollers, belts, and electrical components. A full servicing is recommended every 6-12 months depending on usage intensity.
Q: What are the most common issues with feeder machines, and how can I troubleshoot them?
A: Common issues include misalignment, inconsistent feeding accuracy, or motor failure. Check for loose bolts, dirt buildup, or software calibration errors. If problems persist, refer to the user manual or contact technical support.
Q: Do you provide on-site repair services if my machine breaks down?
A: Yes, we offer on-site repair services for major issues, along with remote troubleshooting support for minor problems. For urgent cases, we can dispatch a technician within 24-48 hours, depending on your location.
Q: What is the maintenance cycle?
A: Daily cleaning and inspection; weekly check belts, air lines; monthly inspect bearings and guides; yearly replace worn parts. Adjust frequency based on operating hours and workload.
Q: What's the package of your coil feeding machines?
A: For the coil feeding equipment that go LCL shipping, We will use plastic films wrap on the equiment, and then fix it into a wooden box.
For the large coil lines that go FCL shipment, We will fix each part with ropes on the shipping container and then wrapped them with plastic films.
Q: What is the typical lead time?
A: Standard machines usually take 4–8 weeks. Customized systems or full production lines may require 10–20+ weeks depending on complexity and production schedule.
