2 In 1 Uncoiler Leveler

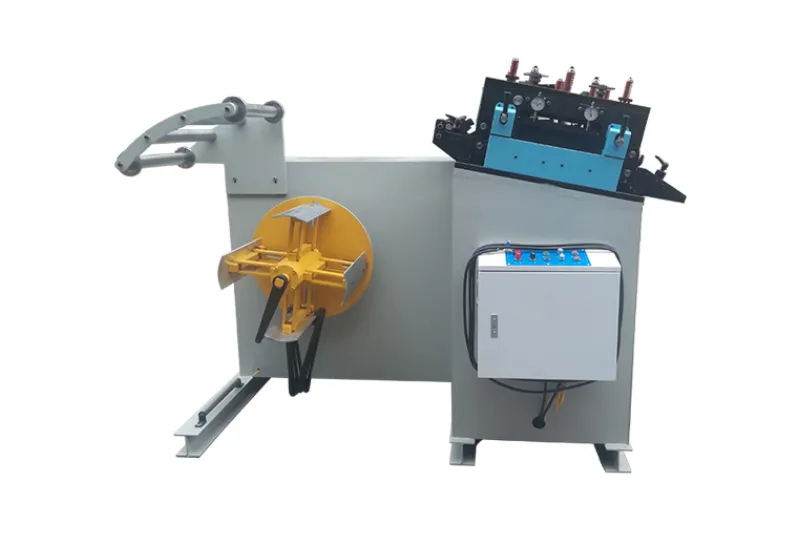

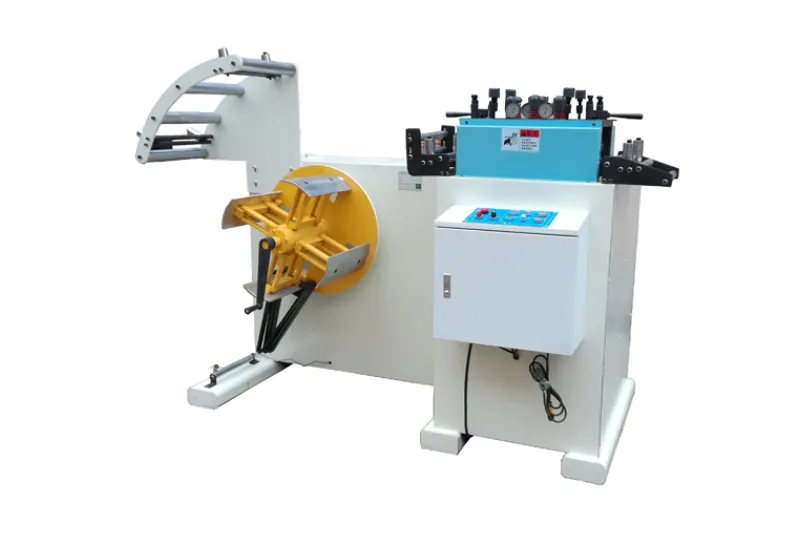

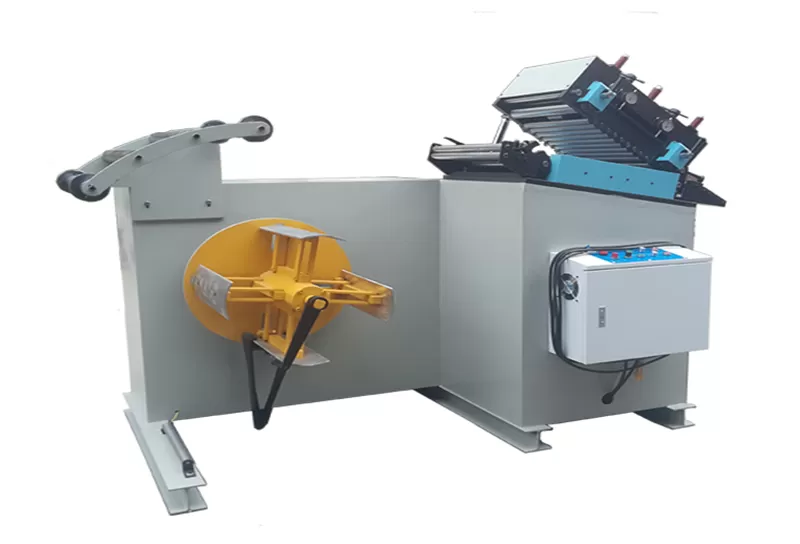

The JMGO Precision 2 in 1 Uncoiler Leveler is a Combined Uncoiler & Leveler designed for ultra-thin metal coils from 0.1mm to 1.2mm.
By integrating decoiling and precision leveling functions into one compact system, it provides excellent material flatness, stable coil handling, and surface protection for high-precision stamping applications.
It is especially suitable for lithium battery components, electronic parts, and thin sheet metal manufacturing where dimensional accuracy and surface quality are critical.
Material Width: 200–400 mm
Material Thickness: 0.1–1.2 mm
Product Characteristics
The JMGO Precision 2 in 1 Uncoiler Leveler is designed for thin metal coils from 0.1 to 1.2 mm, combining coil uncoiling and precision leveling in a single machine.
It is developed for stamping applications where thin material flatness, stable strip movement and surface condition directly affect the final part quality. The machine is suitable for materials such as aluminum, copper, stainless steel and thin steel strip.
By integrating the uncoiling and leveling functions, the JMGO reduces the number of separate machines required in the coil preparation section. Its compact configuration also helps save floor space and simplifies material transfer before the servo feeder and stamping press.
For applications involving sensitive or high-value materials, optional surface-protection components can be configured to reduce the risk of scratches and other contact marks during coil processing.
Thin metal strip is more sensitive to residual stress and deformation during coil processing. The JMGO 2 in 1 Uncoiler Leveler uses precision leveling adjustment to help correct coil set and improve material flatness before stamping.
The uncoiler and leveler are integrated into one machine instead of using two separate units. This reduces the equipment footprint and shortens the material transfer path between coil storage and the stamping process.
When processing 0.1–1.2mm material, uncontrolled strip movement can affect feeding stability. The JMGO is designed to provide controlled material handling from coil uncoiling through leveling, helping maintain consistent strip movement before feeding.
Aluminum, copper and stainless steel can require additional attention to surface quality. Optional anti-scratch components can be configured according to the material and production requirements to reduce direct contact-related surface damage.
After leveling, the material is transferred to the servo feeder and stamping press. The combination of coil preparation and precision feeding helps create a more stable material path for applications requiring consistent dimensional accuracy.
The JMGO 2 in 1 Uncoiler Leveler is suitable for applications where thin metal coils require controlled uncoiling and precision leveling before stamping.
Thin aluminum and other metal materials used for battery components require stable flatness and careful surface handling. The JMGO can be integrated into coil feeding systems for battery component stamping.
For small and precision-stamped electronic parts, material flatness and feeding consistency can affect dimensional accuracy. The compact 2 in 1 configuration provides a controlled material preparation process before the servo feeder.
Aluminum and copper are relatively sensitive to surface marks during material handling. The optional surface-protection configuration makes the JMGO suitable for applications where appearance and surface quality are important.
The machine can also be configured for thin stainless steel and steel strip applications within its specified material thickness and width range.
The JMGO Combined Uncoiler & Leveler is specially designed for ultra-thin metal strips ranging from 0.1mm to 1.2mm.
Unlike standard coil processing machines, it focuses on maintaining material flatness, reducing internal stress, and protecting sensitive surfaces during continuous stamping production.
With precision leveling rollers and fine adjustment mechanisms, this integrated system provides stable material preparation for lithium battery components, electronic parts, and other high-precision stamping applications.
For continuous thin sheet metal stamping, the JMGO Precision 2 in 1 Uncoiler Leveler can be integrated with a servo feeder, punch press and automatic stacking system to form a complete coil-to-part production line.

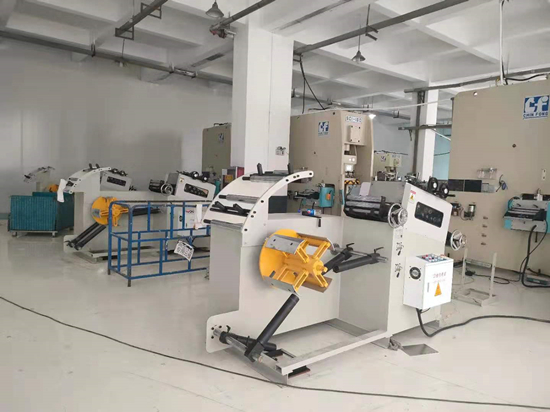

Metal Coil → JMGO 2 in 1 Uncoiler Leveler → Servo Roll Feeder → Punch Press → Automatic Stacking System
The JMGO machine performs two functions in one unit: coil uncoiling and precision leveling. It prepares thin metal strip from 0.1 to 1.2 mm before it enters the feeding section.
For materials such as aluminum, copper, stainless steel and thin steel strip, proper leveling helps reduce coil set and improve material flatness before stamping.
After leveling, the material is transferred to the servo roll feeder. The feeder controls the strip feeding length and timing according to the stamping program, providing consistent positioning for each stamping cycle.
The JMGO can therefore be combined with an NC servo feeder when higher feeding accuracy and automated press synchronization are required.
The punch press performs the actual forming, punching or blanking operation according to the required part geometry.
A stable material path from the uncoiler and leveler to the servo feeder helps reduce feeding variations that could affect stamping consistency.
This configuration is suitable for thin sheet metal stamping applications such as:
Lithium battery components
Electronic components
Aluminum and copper stamped parts
Stainless steel precision parts
Other thin metal components requiring stable feeding and consistent flatness
The actual line configuration should be selected according to the material thickness, strip width, coil weight, stamping speed, part dimensions and required production capacity.
1、What materials can the 2 in 1 Uncoiler Leveler process?
The machine is suitable for thin metal strips including aluminum, copper, stainless steel and steel materials from 0.1mm to 1.2mm.
2、What industries use this machine?
It is widely used in lithium battery components, electronic parts, precision stamping and thin sheet metal manufacturing.
3、What is the difference between a 2 in 1 Uncoiler Leveler and a compact coil feed line?
A 2 in 1 Uncoiler Leveler integrates decoiling and leveling, while a compact coil feed line combines decoiling, leveling and feeding functions for fully automated stamping production.
4、Can the JMGO be connected to a servo feeder and stamping press?
Yes. The JMGO can be used as the coil preparation section of a stamping automation line and connected with a servo feeder and punch press according to the production requirements.
Technical Parameters
| Modle | JMGO-200 | JMGO-300 | JMGO-400 | |
| Width | mm | 200 | 300 | 400 |
| thickness | mm | 0.3-2.0 | 0.3-2.0 | 0.3-2.0 |
| Coil.I.Dia | mm | ∮450-530 | ∮450-530 | ∮450-530 |
| Coil.O.Dia | mm | ∮1200 | ∮1200 | ∮1200 |
| Coi. weight | Kg | 800 | 1200 | 2000 |
| Expand type | Manual/Hydraulic | |||
| Straightener adjustment | 4 point fine tunning | |||
| UncoilPower | HP | 1 | 2 | 2 |
| Straight Power | HP | 1 | 2 | 2 |
Application
1600 Large-Scale New Energy Lithium Battery Aluminum Casing Blanking Dedicated Automated Stamping Line
Thick-Sheet 3-in-1 Decoiler, Leveler & Feeder System for Automotive Stamping Applications
Customized Dual-Uncoiler 3-in-1 Feeding Line for Automated Stamping of Smart Furniture Hardware Components
2-in-1 Decoiler & Leveling Machines with Servo Feeders: Enhancing Precision in 3C Industry Automation
Ready to streamline your production with reliable stamping automation solutions that boost efficiency, reduce downtime!
Related Products
HTC-1600 Coil Processing Line for Lithium Battery Aluminum Component Stamping
TC-1600 Coil Processing Line integrates decoiling, leveling, and servo feeding for high-precision lithium battery aluminum stamping. Designed for battery covers, aluminum shells, and terminal components, it delivers stable feeding, accurate positioning, and excellent surface protection.
HCXL 2-in-1 Uncoiler Leveler with Coil Loading Trolley (1.0–6.0mm)
HCXL 2-in-1 Uncoiler & Leveler for 1.0–6.0mm sheets — integrated decoiler + precision leveling, hydraulic coil loading trolley, customizable widths 300–1000mm. Request quote.
GO Type 2 In 1 Uncoiler Leveler For Sheet Thickness: 0.5-3.0mm
The two machines of the uncoiler and the straightener machine are integrated to reduce the installation space, reducethe excessive links in the precision material straightening process, and maximize the performance of the machine.
TL Type 2 In 1 Uncoiler Leveler For Sheet Thickness: 0.5-6.0mm
Dual-Function Design: Combines decoiling and leveling operations in a single unit, saving floor space and streamlining workflows.
FAQ
Q: How do I determine the right feeder size for my production line?
A: The feeder size depends on the material width, thickness, and feeding step distance required by your stamping press. Choosing the correct specifications ensures smooth operation and prevents feeding errors or misalignment.
Q: What factors should I consider when choosing a servo feeder machine?
A: When selecting a servo feeder, key factors include feeding accuracy (±0.05mm or better), maximum feeding speed (e.g., 20m/min), material compatibility (stainless steel, aluminum, etc.), load capacity, and control system (PLC or touchscreen). Ensure the machine matches your stamping process requirements.
Q: How do I choose the right decoiler, straightener and feeder?
A: Select based on material type, width, thickness, coil weight, and required speed. Match decoiler capacity to coil size, choose a straightener for material strength, and a feeder that meets feed length and precision. Ensure compatibility with your press and automation level.
Q: Coil feeder vs servo feeder: what’s the difference?
A: A coil feeder is a broader system for continuous coil feeding, often integrated with decoiler and straightener. A servo feeder uses servo motors for precise, programmable feeding, ideal for short pitches and high accuracy applications.
Q: How to choose decoiler capacity?
A: Select a decoiler rated 10–20% above your maximum coil weight. Confirm inner diameter (I.D.) compatibility and outer diameter limits. Adjustable mandrels are recommended if you run multiple coil sizes.
Q: What feed precision can I expect?
A: Servo feeders typically achieve ±0.01–0.05 mm, with high-end models reaching ±0.005 mm. Mechanical feeders usually provide ±0.02–0.1 mm. Actual accuracy depends on material properties and straightening quality.
Q: How does material affect machine selection?
A: High-strength materials need stronger straightening and drive systems. Thin materials require low-pressure handling. Soft materials like aluminum need anti-scratch solutions.
Q: What affects feeding accuracy most?
A: Key factors include feeder precision, servo tuning, straightener setup, material quality, and press stability. Poor setup or worn dies can reduce accuracy.
Q: What spare parts should be prepared?
A: Common spares include bearings, belts, sensors, seals, guide blocks, and lubrication parts. Keeping key components reduces downtime and improves maintenance efficiency.
Q: Can feeders be retrofitted to existing presses?
A: Yes, most systems support retrofitting. Check press dimensions, feed height, control compatibility, and safety requirements before installation.
Q: How long does it take to receive the feeder machine after placing an order?
A: Lead time for delivery typically ranges from 4 to 8 weeks depending on customization, production schedules, and shipping location. Once your order is confirmed, we will provide a more precise delivery estimate.
Q: What are your payment terms?
A: We accepts T/T payment, 30% deposit and 70% balance before shipping
Q: How often should I perform maintenance on my servo feeder machine?
A: Routine maintenance should be conducted weekly for basic cleaning and lubrication, while a more thorough inspection should be done monthly to check for wear on rollers, belts, and electrical components. A full servicing is recommended every 6-12 months depending on usage intensity.
Q: What are the most common issues with feeder machines, and how can I troubleshoot them?
A: Common issues include misalignment, inconsistent feeding accuracy, or motor failure. Check for loose bolts, dirt buildup, or software calibration errors. If problems persist, refer to the user manual or contact technical support.
Q: Do you provide on-site repair services if my machine breaks down?
A: Yes, we offer on-site repair services for major issues, along with remote troubleshooting support for minor problems. For urgent cases, we can dispatch a technician within 24-48 hours, depending on your location.
Q: What is the maintenance cycle?
A: Daily cleaning and inspection; weekly check belts, air lines; monthly inspect bearings and guides; yearly replace worn parts. Adjust frequency based on operating hours and workload.
Q: What's the package of your coil feeding machines?
A: For the coil feeding equipment that go LCL shipping, We will use plastic films wrap on the equiment, and then fix it into a wooden box.
For the large coil lines that go FCL shipment, We will fix each part with ropes on the shipping container and then wrapped them with plastic films.
Q: What is the typical lead time?
A: Standard machines usually take 4–8 weeks. Customized systems or full production lines may require 10–20+ weeks depending on complexity and production schedule.
