NC Servo Feeder

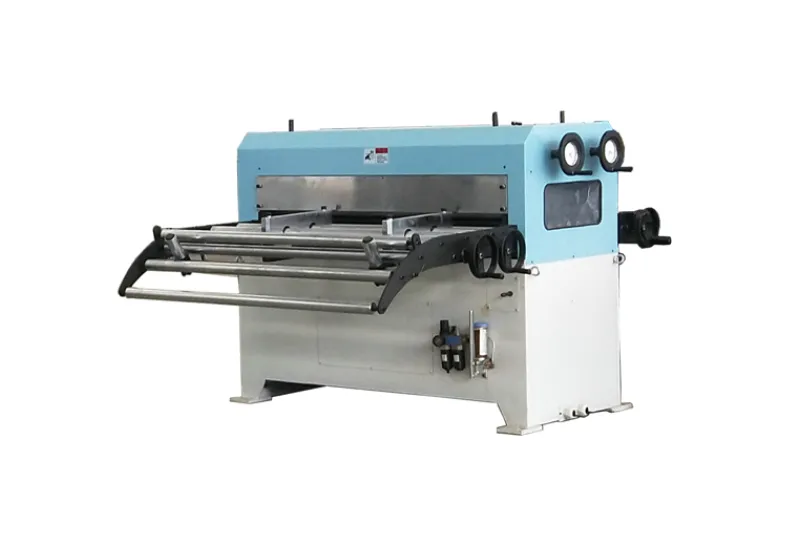

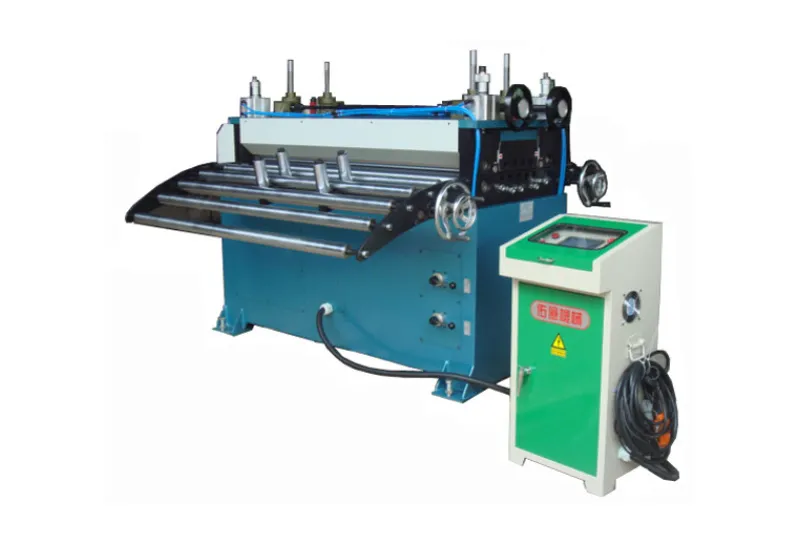

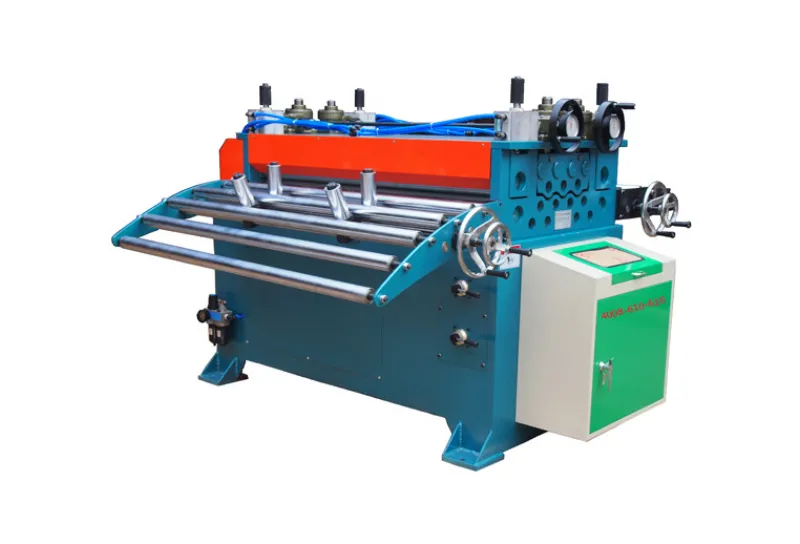

Designed for Cut to Length Line applications, the NCF Servo Leveling Feeder integrates leveling and feeding in a single compact unit. Perfectly suited for coil-to-sheet processing, it delivers flat and precisely positioned material to shearing machines or laser cutters, enabling high-efficiency automatic production.
The NCF is a NC servo feeder with mechanical release, designed for feeding sheet metal coil materials with a thickness range of 0.5–2.0mm. It offers a maximum feeding speed of 20m/min and ensures ±0.02mm feeding precision.
A mounting plate helps the servo feeder to be easily installed onto the press machine, or you can choose a separate bracket for better stability. The NCF Servo Leveling Feeder provides reliable and precise feeding performance for various stamping applications.
Product Characteristics
This machine is used to cut and level the feeding line with shearing machine (no need to release)
High-precision feeding: Aiming at the advent of high-tech industries, computer close-circuit feedback control is used to ensure accuracy within ±0.02mm
Stage feeder: 20 groups of different feeding lengths can be input, each group provides 999 punching times, to meet the processing and production of special products (optional)
Humanized manual mode: You can enter the appropriate 3-step manual speed, which makes it easier for users to operate and accurately position the material into the mold
Efficient relaxation device: With the cam signal of punch press and simple thick material adjustment, you can quickly set the relaxation angle
Setting of feeding length: On the control panel, directly input the feeding length to reach the required feeding distance
Feeding mechanism: The roller adopts hollow type, light weight, small rotation inertia, performance hardness HRC60°, hard chrome plating, wear resistance, long life
It is equipped with key digital codes for feeding length and feeding speed, which the operator can set arbitrarily, quickly and accurately. The feeding length can be 0.1mm-9999.99mm
Leveling wheel is made of bearing steel, and is ground after heat treatment at HRC60°, and then overall ground after being plated with hard chrome. Ensure the uniformity of the hard chrome layer and the cylindricity tolerance of each axis
The machine comes out of the correction wheel, and additionally installs heavy-duty bearings in the middle of the upper and lower rollers to enhance the rigidity of shaft, prevent the deformation of shaft, and improve the flatness of plate
Rollers of this machine are arranged in sequence at the time of design. The operation is simplified, and the adjustment can be completed by turning a handle

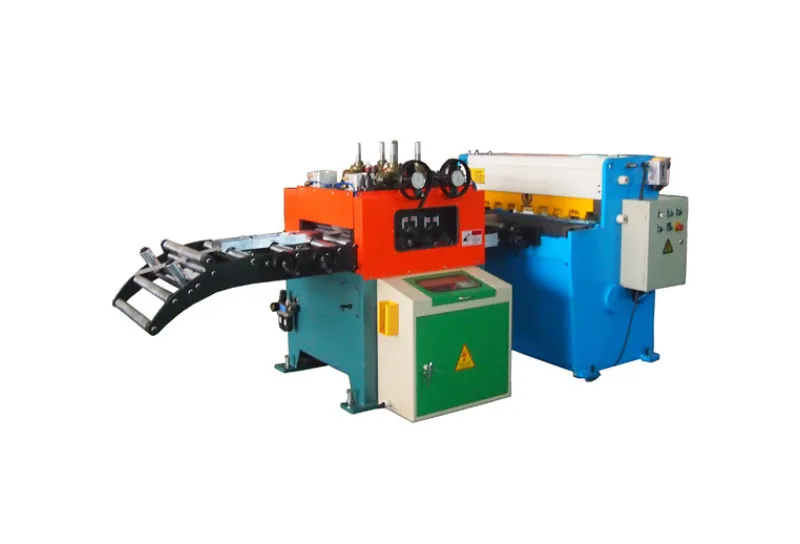

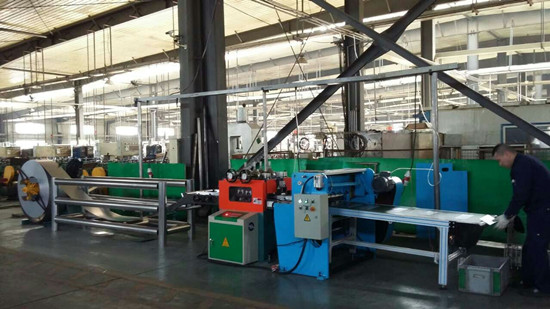

This automated coil processing line consists of an uncoiler, NCF servo leveling feeder, hydraulic shearing machine, and a discharge conveyor. It enables a fully automatic transformation from coil stock to cut sheets, ensuring flatness, length accuracy, and continuous output. The system is ideal for sheet metal fabrication, appliance manufacturing, and steel service centers.
Integrated leveling and feeding reduce floor space and simplify workflow.
Compatible with shearing machine for precise length cutting.
Fully automatic operation from decoiling to shearing and stacking.
Suitable for stainless steel, aluminum, cold-rolled steel, and more.
This production line integrates an automatic decoiler, NCF servo leveling feeder, and a laser cutting machine, enabling seamless coil-to-laser cutting operations. It eliminates manual handling between processes and ensures flat, precisely fed material for high-speed laser cutting — ideal for sheet metal fabrication, cabinet manufacturing, and elevator parts production.
Technical Parameters
| Model | NCF2-400 | NCF2-500 | NCF2-600 | NCF2-800 | NCF2-1000 | NCF2-1200 |
| Material width (mm) | 400 | 500 | 600 | 800 | 1000 | 1200 |
| Material thickness(mm) | 0.5～2.0 | |||||
| Feeding roller | 2 Groups | |||||
| Leveling roller | Up 4 / Down 5 | |||||
| Standard feeding speed(m/min) | 20 | |||||
| Servo motor(KW) | 2.9 | 2.9 | 2.9 | 4.4 | 7.5 | 7.5 |
| Standard feeding accuracy(mm) | 1000±0.15 | |||||
| Feeding length(mm) | 0～9999.99 | |||||
| Internal secret control | Yes | |||||
| Voltage(V) | 380V | |||||
| Air source(gkf/cm²) | 5 | |||||
1. NCF roller feeder is suitable for material feeding with different thickness and length.
2. NCF roller feeder is suitable for high-speed and long-size feeding to improve productivity and feeding accuracy.
3. NCF roller feeder has a simple operation panel; the feeding length and feeding speed are key numeric settings that the operator can adjust arbitrarily, rapidly, and accurately. Feeding length ranges from 0.1mm to 9999.99mm.
4. NCF roller feeder adopts air-pressure type relaxation with accurate relaxation points, which can be used for a long time with zero faults.
5. NCF roller feeder can be reformed into mechanical relaxation mode according to customer NC requirements.
6. NCF roller feeder provides the best general performance of a model and is compatible with both cylinder presses and spring presses.
1. NCF roller feeder uses a high-quality brushless servo motor drive, effectively shortening the feeding distance adjustment and testing time.
2. NCF roller feeder uses a high-sensitivity encoder, ensuring precise feeding and higher accuracy.
3. NCF roller feeder uses timing belt transmission to eliminate gear gap and wear, operates quietly, requires no lubrication, and ensures safety and environmental protection.
4. NCF roller feeder's motor internal device prevents damage during handling, loading, and unloading.
5. NCF roller feeder is capable of 600 cycles under the best cost-effective performance.
1. HMI adopts a screen with uniform color and exquisite picture quality. It is suitable for most industrial environments, offering high reliability, and supports both serial port and network communication simultaneously.
2. Switch adopts sliding contact with a self-cleaning function. Normally open and normally closed contacts use a separate bonding structure, compatible with different poles, and are equipped with anti-rotation positioning and a stop-loose mounting gasket.
3. Self-compound flat button design is light, with moderate actuation force and key travel. The modular structure contacts use ketone compound points, providing strong conductivity, high current carrying capacity, and a lifespan of up to 1 million operations.
1. Electric control box is equipped with an operation box, allowing convenient personnel transposition, time-saving operation, and is waterproof and dustproof. It features high material strength, excellent electrical conductivity, and long service life.
2. Emergency stop button is separately installed on the electric control box for safety and reliability, reducing unnecessary opening and closing, and effectively protecting the operation panel.
Feed Roller & Block Wheel
3. Feeding roller is a galvanizing roller without power, formed in one piece. Its surface is scratch-resistant and wear-resistant, with mechanical bearings that rotate smoothly and offer long durability.
4. Feeding wheel is hard chrome plated (HRC60) with strong locking force on the locking handle, convenient locking, and smooth roller operation.
· Uses genuine Yade Polite cylinder with an alloy cylinder body, hard oxidation, and riveted no-leakage design.
· Solid aluminum CNC precision machining, smooth inner wall grinding, non-clamping operation, high efficiency, high strength, and durability suitable for all kinds of working conditions.
· Gear processing includes: gear blank preparation → tooth surface processing → heat treatment → tooth surface fine grinding.
· Maopei parts are mainly forgings, normalized to improve machinability.
· Following the gear design drawings, rough machining is performed, followed by semi-finishing, turning, rolling, and gear shaping to achieve the basic gear shape.
· Heat treatment enhances mechanical properties.
· Final finishing is performed according to design requirements, completing the benchmark and tooth profile.
Application
1600 Large-Scale New Energy Lithium Battery Aluminum Casing Blanking Dedicated Automated Stamping Line
Thick-Sheet 3-in-1 Decoiler, Leveler & Feeder System for Automotive Stamping Applications
Customized Dual-Uncoiler 3-in-1 Feeding Line for Automated Stamping of Smart Furniture Hardware Components
2-in-1 Decoiler & Leveling Machines with Servo Feeders: Enhancing Precision in 3C Industry Automation
Ready to streamline your production with reliable stamping automation solutions that boost efficiency, reduce downtime!
Related Products
High-precision feeding: Aiming at the advent of high-tech industries, computer close-circuit feedback control is used to ensure accuracy within ±0.02mm
High-precision feeding: Aiming at the advent of high-tech industries, computer close-circuit feedback control is used to ensure accuracy within ±0.05mm
Thick Plate NC Servo Feeder (0.1-6.0mm)
High-precision feeding: Aiming at the advent of high-tech industries, computer close-circuit feedback control is used to ensure accuracy within ±0.02mm
Dual servo feeder is suitable for high-speed punching machine, dual servo control, the feeding speed can reach 300 times per minute
Dual servo feeder is suitable for high-speed punching machine, dual servo control, the feeding speed can reach 300 times per minute
This machine can perform multiple shifts according to the blanking diameter of the water to ensure the circular cutting of the material, which maximizes the utilization of the material. If size of the blank is not equal, it can automatically arrange the angle calculations to ensure maximum material saving
FAQ
Q: How do I determine the right feeder size for my production line?
A: The feeder size depends on the material width, thickness, and feeding step distance required by your stamping press. Choosing the correct specifications ensures smooth operation and prevents feeding errors or misalignment.
Q: What factors should I consider when choosing a servo feeder machine?
A: When selecting a servo feeder, key factors include feeding accuracy (±0.05mm or better), maximum feeding speed (e.g., 20m/min), material compatibility (stainless steel, aluminum, etc.), load capacity, and control system (PLC or touchscreen). Ensure the machine matches your stamping process requirements.
Q: How long does it take to receive the feeder machine after placing an order?
A: Lead time for delivery typically ranges from 4 to 8 weeks depending on customization, production schedules, and shipping location. Once your order is confirmed, we will provide a more precise delivery estimate.
Q: What are your payment terms?
A: We accepts T/T payment, 30% deposit and 70% balance before shipping
Q: How often should I perform maintenance on my servo feeder machine?
A: Routine maintenance should be conducted weekly for basic cleaning and lubrication, while a more thorough inspection should be done monthly to check for wear on rollers, belts, and electrical components. A full servicing is recommended every 6-12 months depending on usage intensity.
Q: What are the most common issues with feeder machines, and how can I troubleshoot them?
A: Common issues include misalignment, inconsistent feeding accuracy, or motor failure. Check for loose bolts, dirt buildup, or software calibration errors. If problems persist, refer to the user manual or contact technical support.
Q: Do you provide on-site repair services if my machine breaks down?
A: Yes, we offer on-site repair services for major issues, along with remote troubleshooting support for minor problems. For urgent cases, we can dispatch a technician within 24-48 hours, depending on your location.
Q: What's the package of your coil feeding machines?
A: For the coil feeding equipment that go LCL shipping, We will use plastic films wrap on the equiment, and then fix it into a wooden box.
For the large coil lines that go FCL shipment, We will fix each part with ropes on the shipping container and then wrapped them with plastic films.
