A 2 in 1 uncoiler leveler and servo feeder are often used together in automatic coil stamping lines. The two machines perform different jobs: the uncoiler leveler handles coil unwinding and sheet leveling, while the servo feeder controls the length and timing of material entering the stamping press.

This combination is particularly useful when a stamping line needs a compact material handling layout without sacrificing feeding accuracy.

However, choosing the right equipment is not simply a matter of connecting a 2 in 1 uncoiler leveler to a servo feeder. Material thickness, coil width, coil weight, feeding length, press speed, and required accuracy all affect the configuration.

This guide explains how a 2 in 1 uncoiler leveler works with a servo feeder, what each machine does, how to select the equipment, and when this configuration makes more sense than a conventional coil feeding line.

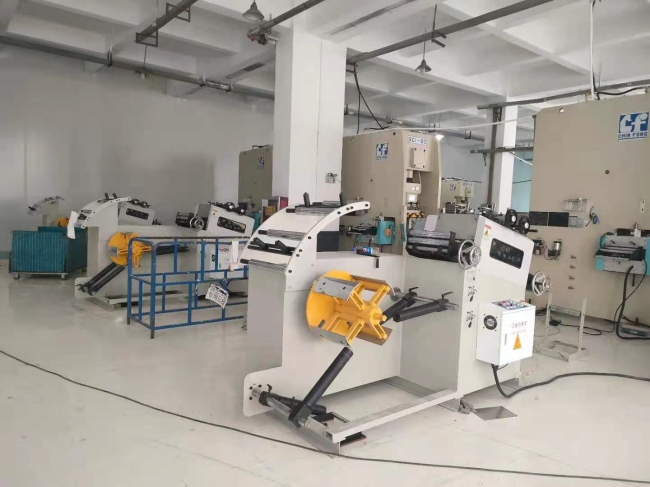

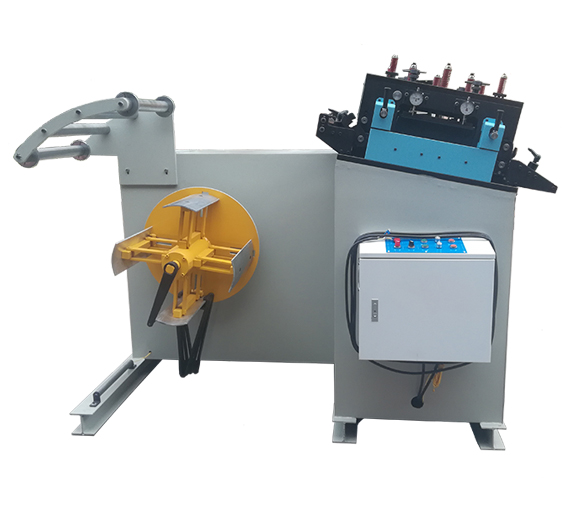

What Is a 2 in 1 Uncoiler Leveler?

A 2 in 1 uncoiler leveler combines two functions in one machine:

• Coil unwinding

• Sheet leveling

Instead of installing a separate uncoiler and straightener, the coil is loaded directly into the integrated machine. The material is then unwound and passed through leveling rollers before entering the downstream feeder.

The actual configuration depends on the material and production requirements. For example, thin aluminum sheet, galvanized steel, cold-rolled steel, and thicker steel strip require different roller arrangements, motor capacity, and leveling adjustment.

A typical production sequence is:

The 2 in 1 machine therefore handles the material preparation stage, while the servo feeder performs the final positioning before the press.

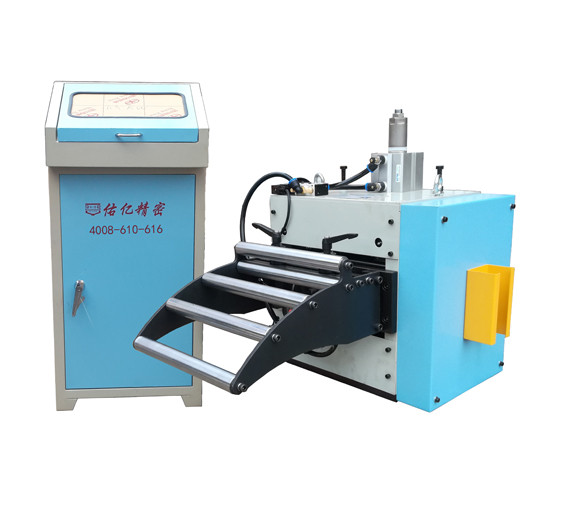

What Does an NC Servo Feeder Do?

The servo feeder is responsible for accurately feeding the leveled strip into the stamping die.

Unlike a basic mechanical roller feeder, an NC servo feeder uses a servo motor and programmable control system to determine the feeding distance and feeding timing.

Typical functions include:

• Programmable feeding length

• High repeatability

• Adjustable feeding speed

• Automatic start and stop

• Multiple feeding programs

• Synchronization with the stamping press

• Compensation for different blank or part lengths

The feeder does not normally replace the leveling function. Its main purpose is to control how much material enters the die and when it enters.

This distinction is important when configuring a coil stamping line. A 2 in 1 uncoiler leveler prepares the strip, while the servo feeder provides controlled feeding to the press.

Why Use a 2 in 1 Uncoiler Leveler with a Servo Feeder?

The combination works because the two machines solve different problems in coil stamping.

A coil naturally has curvature from being wound. If this curvature is not properly controlled, the strip may not sit consistently on the feeding path or inside the stamping die.

The 2 in 1 uncoiler leveler removes much of this coil curvature before the material reaches the servo feeder.

The servo feeder then controls the final feeding movement into the press.

In practical terms:

• 2 in 1 uncoiler leveler = material unwinding + leveling

• Servo feeder = feeding distance + feeding timing + positioning

Using both machines allows the material preparation and press feeding stages to be controlled separately.

This is especially useful for applications where the press requires consistent feed length and the material must be leveled before entering the die.

How Does a 2 in 1 Uncoiler Leveler Work with a Servo Feeder?

A typical automatic coil stamping process can be divided into five stages.

1. Coil Loading

The metal coil is loaded onto the uncoiler section. Depending on the machine configuration, loading may be performed using a coil loading trolley or another lifting method. The coil weight, inner diameter, outer diameter, and material width must match the equipment specifications.

2. Coil Unwinding

The mandrel expands to hold the coil securely. As the stamping line operates, the coil is gradually unwound. The uncoiling speed must be coordinated with the downstream feeding process to prevent excessive material accumulation or tension.

3. Sheet Leveling

The strip passes through the leveling rollers integrated into the 2 in 1 machine. The purpose of leveling is to reduce coil set and improve the flatness of the material before feeding.

Leveling adjustment should be based on:

• Material thickness

• Material strength

• Material width

• Coil condition

• Required flatness

• Production speed

The correct leveling setting is important. Excessive roller adjustment can mark the material or introduce unnecessary stress, while insufficient adjustment may leave residual curvature.

4. Servo Feeding

After leveling, the strip enters the servo feeder. The servo feeder controls the programmed feeding length and sends the material into the stamping die according to the press cycle.

For example, if a stamping operation requires a 200 mm feed length, the servo system can be programmed for the required pitch and synchronized with the press.

The actual production setting depends on the die design, press stroke, material characteristics, and required production speed.

5. Stamping

The press performs the forming, punching, blanking, or other stamping operation. The feeder then advances the strip for the next cycle.

The process continues automatically:

For a broader explanation of how the individual machines interact in a complete stamping line, see our guide to the complete coil stamping feeding process.

What Are the Main Benefits of This Combination?

1. More Compact Equipment Layout

A conventional line may use separate machines for uncoiling and straightening. A 2 in 1 uncoiler leveler combines these two functions, which can reduce the overall equipment footprint and simplify the material path. This can be useful when the available workshop space is limited or when the production line needs a relatively short material path.

2. Fewer Independent Machines

With uncoiling and leveling integrated into one machine, there are fewer individual machines to install and coordinate. This can simplify equipment layout, electrical connections, material routing, daily operation, and routine maintenance. However, the actual maintenance requirements still depend on the machine configuration and production environment.

3. Controlled Feeding Accuracy

The 2 in 1 machine prepares the material, but the servo feeder determines the final feeding length. This separation allows the feeder to focus on precise material positioning instead of performing both leveling and feeding functions. For stamping applications with different feed pitches or multiple product programs, programmable servo feeding can be particularly useful.

4. Better Material Preparation Before Feeding

A servo feeder performs better when the strip entering it is reasonably flat and stable. If significant coil curvature remains, the material may not enter the feeder consistently. The leveling section therefore plays an important role before the material reaches the servo rolls.

5. Suitable for Automated Coil-to-Press Production

A properly configured system can connect the coil handling, leveling, feeding, and stamping processes into one continuous production line. This reduces the need for manual material handling between machines and makes automatic coil feeding practical for repetitive stamping production.

2 in 1 Uncoiler Leveler + Servo Feeder vs. Conventional Coil Feeding Line

A conventional coil stamping line may use a separate uncoiler, straightener, and feeder. A 2 in 1 configuration integrates the first two functions while keeping servo feeding as a separate stage.

Neither configuration is universally better. A 2 in 1 system is attractive when compactness and simplified equipment layout are important. A separate uncoiler and straightener may be more appropriate when the production line requires heavy-duty coil handling, longer material loops, additional processing equipment, or greater flexibility between individual machines.

How to Select the Right 2 in 1 Uncoiler Leveler and Servo Feeder

The equipment should be selected according to the actual production parameters rather than only the press tonnage.

Material Thickness

Material thickness is one of the first specifications to confirm. For example, YouYi's 2 in 1 configurations cover different thickness ranges depending on the machine model. A thin-sheet application may require a completely different roller configuration from a line processing several millimeters of steel. Do not select a machine simply because its maximum thickness appears to cover the material. The actual material grade and yield strength also need to be considered.

Material Width

The machine must accommodate the actual strip width. For example, a narrow electronic component stamping line may use a significantly narrower strip than an automotive stamping application. Material width affects the leveling roller configuration, feeding roller width, machine rigidity, and overall equipment size.

Coil Weight

The maximum coil weight determines the required uncoiler capacity. If the coil weight is too close to the machine's maximum rated capacity, loading and continuous production may become less practical. When selecting equipment, consider maximum coil weight, coil inner diameter, coil outer diameter, coil width, and loading method.

Feeding Length

The servo feeder should be selected according to the required feed pitch. Short and repetitive feeding lengths may have different requirements from applications using longer feed strokes. The die structure and product geometry should therefore be considered together with the required feeding length.

Press Speed

The feeder must be capable of keeping up with the stamping press. A high-speed press requires the servo feeder to complete its feeding movement within the available cycle time. Press speed alone is not enough to determine feeder capacity. The required feed length, material thickness, acceleration, deceleration, and die cycle all influence the actual operating condition.

Required Feeding Accuracy

The required accuracy should be defined according to the finished part and die tolerance. For precision stamping, it is important to consider not only the servo motor and controller but also material flatness, roller condition, feeding pressure, die alignment, machine rigidity, material variation, and servo parameter settings. A quoted servo feeder accuracy should therefore not be treated as a guaranteed finished-part tolerance.

When Is a 2 in 1 Uncoiler Leveler with Servo Feeder a Good Choice?

This configuration is worth considering when the production line has several of the following characteristics:

• Coil-fed stamping production

• Limited floor space

• Thin or medium-thickness metal strip

• Repetitive stamping operations

• Programmable feeding lengths

• Need for automatic coil-to-press feeding

• Requirement for controlled feed positioning

• Preference for an integrated uncoiling and leveling unit

Typical applications include:

• Automotive components

• Electrical and electronic parts

• Home appliance components

• Metal furniture

• General sheet metal stamping

• New energy component manufacturing

For example, a steel furniture production line may combine a 2 in 1 uncoiler leveler with a high-speed servo feeder to process cold-rolled and galvanized steel strips. A real production case from YouYi involved a 2 in 1 uncoiler leveler feeding line customized for the steel furniture industry.

2 in 1 Uncoiler Leveler or 3-in-1 Coil Feed Line?

The two configurations have similar overall objectives but different equipment structures.

A 2 in 1 uncoiler leveler combines:

A 3-in-1 coil feed line combines:

For applications where floor space, material path length, and equipment integration are important, a 3-in-1 system can provide a more compact solution. On the other hand, keeping the servo feeder separate from the 2 in 1 uncoiler leveler provides greater flexibility when the feeding section needs to be adjusted or replaced independently.

The choice should therefore be based on material specifications, press requirements, line layout, production volume, and automation objectives rather than simply choosing the machine with more integrated functions.

Key Parameters to Confirm Before Ordering

Before selecting a 2 in 1 uncoiler leveler with a servo feeder, prepare the following information:

Providing these parameters to the equipment manufacturer makes it easier to determine the appropriate machine capacity and configuration.

Frequently Asked Questions

Conclusion

A 2 in 1 uncoiler leveler with servo feeder is a practical configuration for automatic coil stamping when the production line needs both controlled material preparation and accurate feeding.

The 2 in 1 machine handles uncoiling and leveling, while the servo feeder controls feeding distance, timing, and material positioning before the stamping die.

The most important point is that these machines should be selected as a matched system. Material thickness, width, coil weight, press speed, feed length, material strength, and required accuracy all affect the final configuration.

For compact and automated stamping lines, this combination can provide a simpler material path and reduce the number of separate machines compared with a conventional uncoiler + straightener + feeder arrangement.
